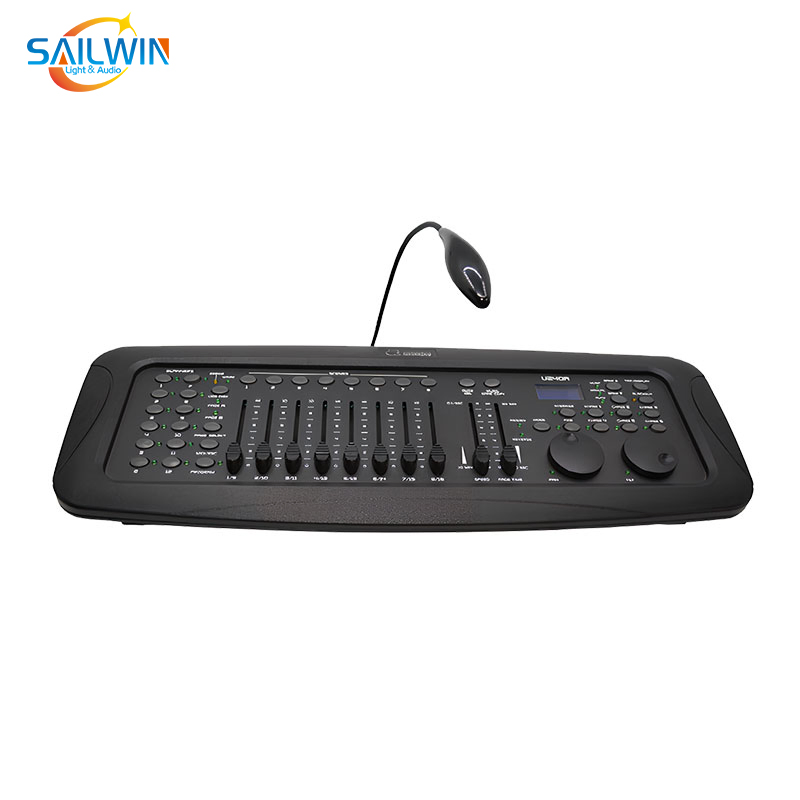

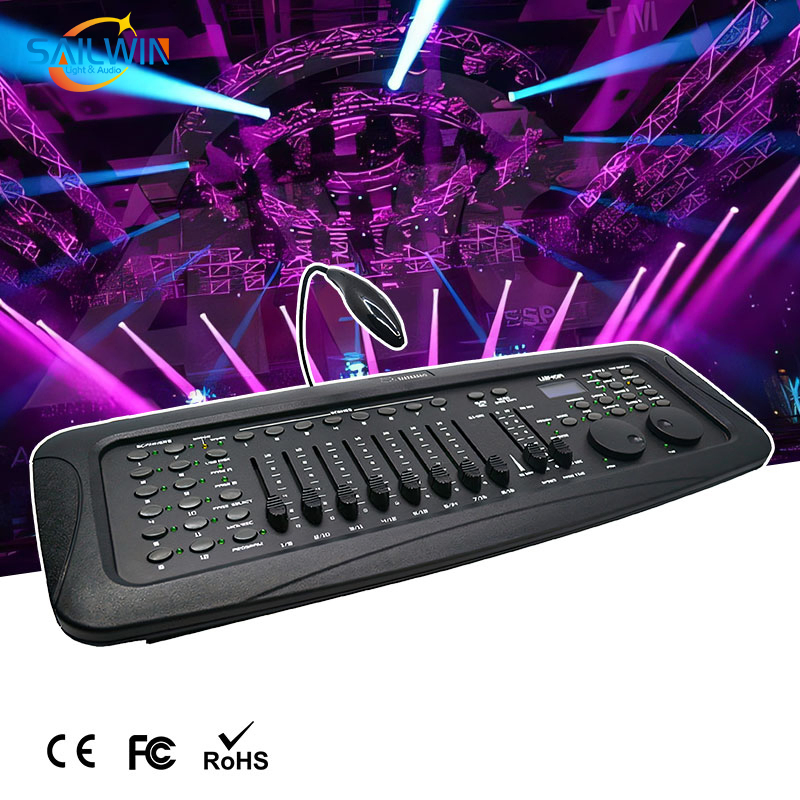

DMX Control 240A Controller Stage Lighting Console for Stage Light Event Shows Night
DMX Control 240A Controller Stage Lighting Console for Stage Light Event Shows Night
DMX Control 240A Controller Stage Lighting Console for Stage Light Event Shows Night
DMX Control 240A Controller Stage Lighting Console for Stage Light Event Shows Night
DMX Control 240A Controller Stage Lighting Console for Stage Light Event Shows Night
1 / 5
DMX Control 240A Controller Stage Lighting Console for Stage Light Event Shows Night
DMX Control 240A Controller Stage Lighting Console for Stage Light Event Shows Night
DMX Control 240A Controller Stage Lighting Console for Stage Light Event Shows Night
DMX Control 240A Controller Stage Lighting Console for Stage Light Event Shows Night
DMX Control 240A Controller Stage Lighting Console for Stage Light Event Shows Night

DMX Control 240A Controller Stage Lighting Console for Stage Light Event Shows Night

Customization: Available
Light Source: LED
Material: Aluminum Alloy
Send Inquiry

Product Description

Basic Specifications

Model NO.:SW-1350
Emitting Color:Changeable
Strobe:Adjustable Speed Strobe
Control Mode:Dmx Signal Control
IP Rating:IP20
Certification:CE, RoHS
Voltage:220V
Power Supply:AC110V-240V 50-60Hz
Housing:High-Temperature Die-Casting Aluminum
Prism:540°/270°
Net Weight:2.7kg
Origin:China
HS Code:9405409000
Capacity:10000PCS/Year

Product Description & Features

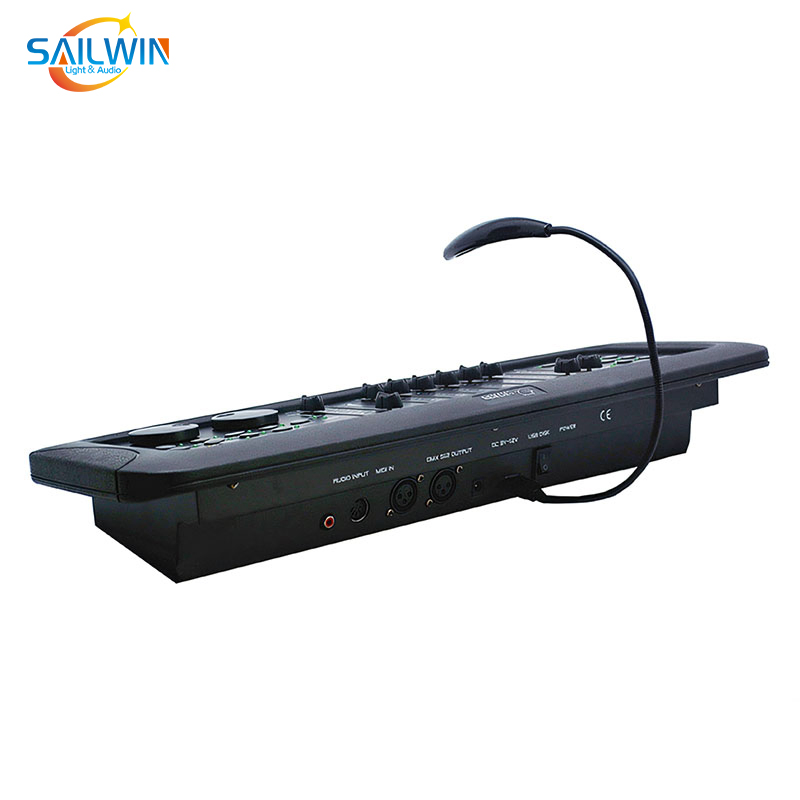

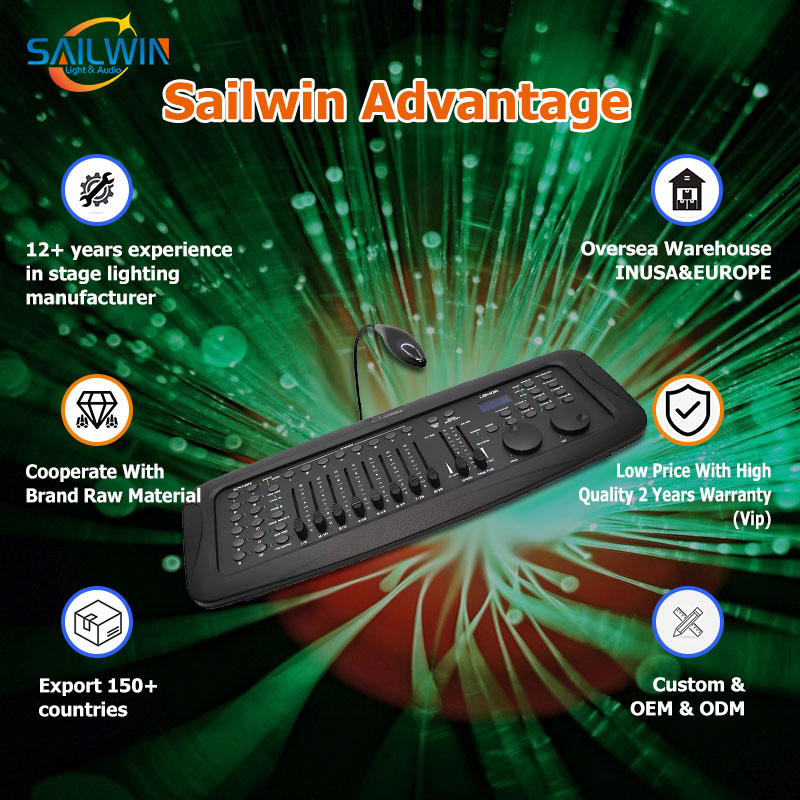

DMX Control 240A controller Stage Lighting Console for stage light event shows night

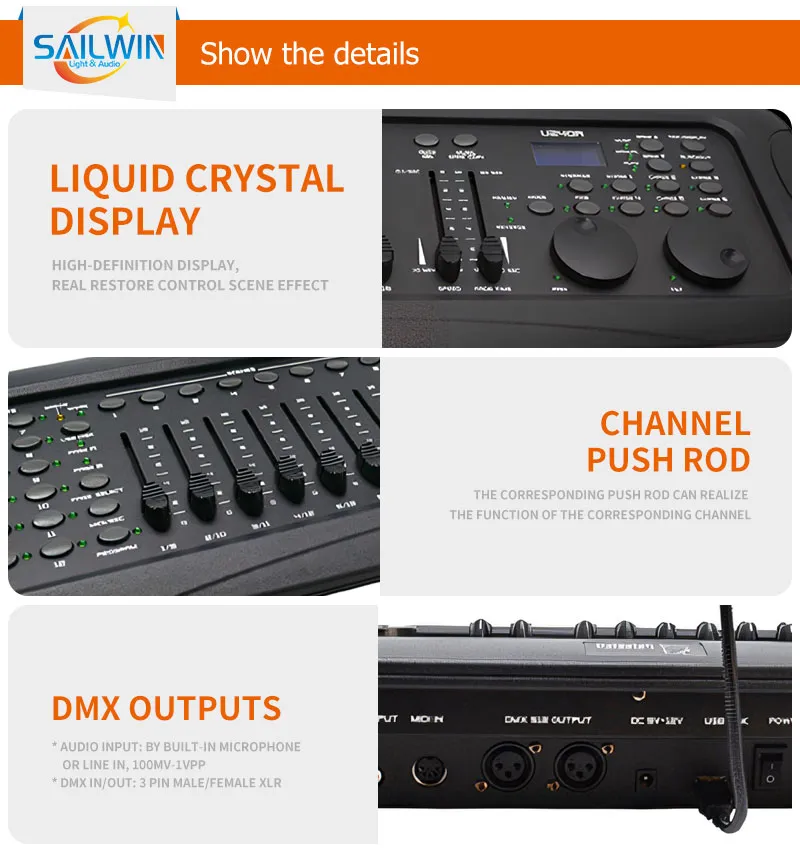

  • 12 scanners of 16 channels each
  • 6 programmable chases have 30 banks each
  • 20 banks have 8 programmable scenes each
  • 8 slider for manual control of channels
  • 2 assignable wheels for easy of movement
  • Power input: DC 9-12V 1000mA
  • Audio input: by built-in microphone or line in, 100mv-1vpp
  • DMX in/out: 3 pin male/female XLR
  • Midi in: 5 pin multiple socket

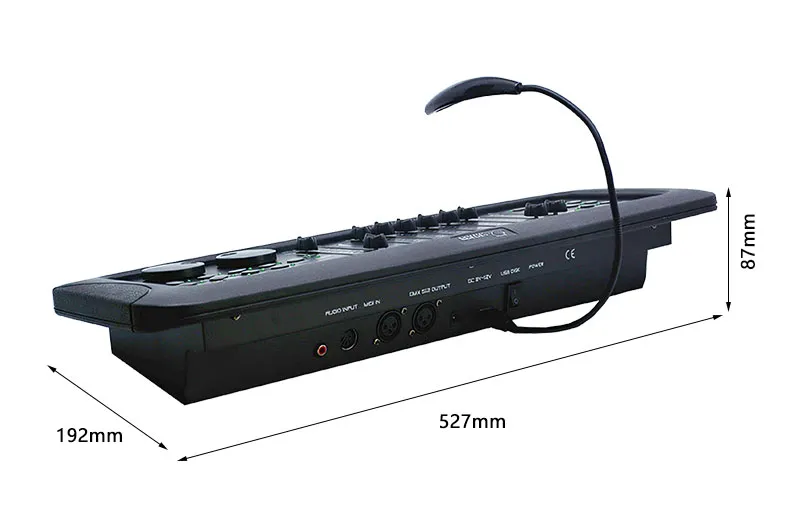

  • Dimension : 527mm X 192mm X 87mm
  • Net Weight: 2.65kg

Packaging & Delivery

Package Size:54.00cm * 20.00cm * 88.00cm
Gross Weight:3.000kg
Transport Package:Standard Carton/Flight Case

Product Gallery

Stage Lighting Console View 1

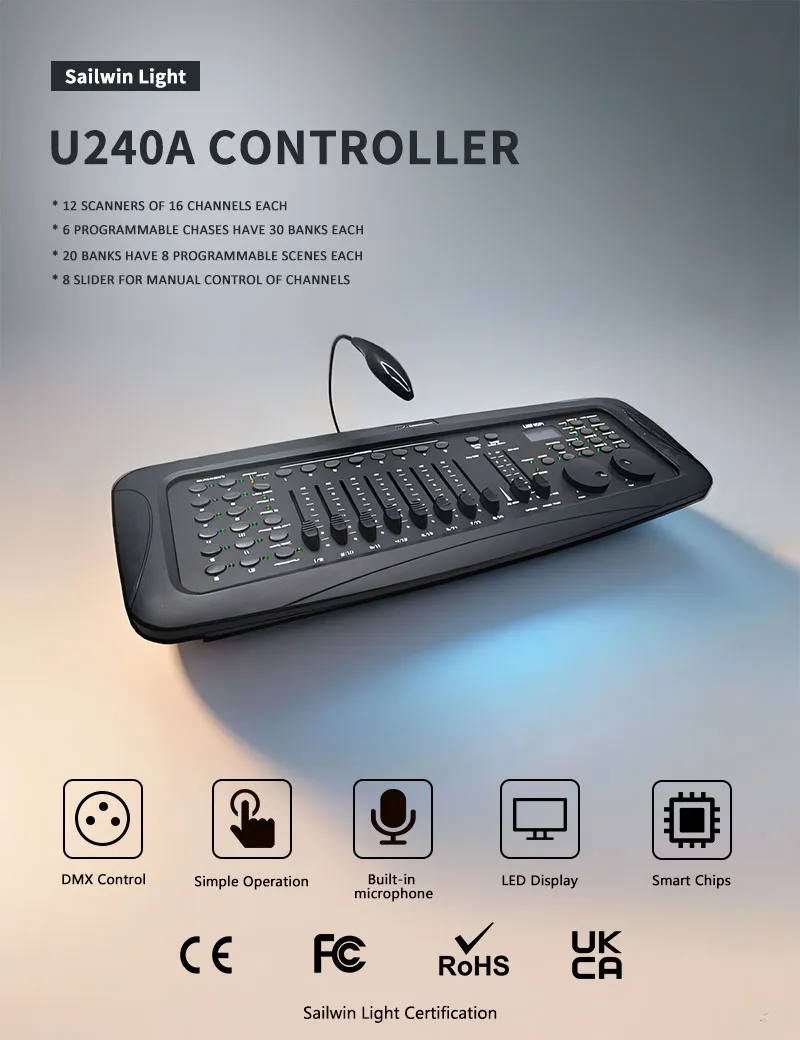

Stage Lighting Console View 2
Stage Lighting Console View 3

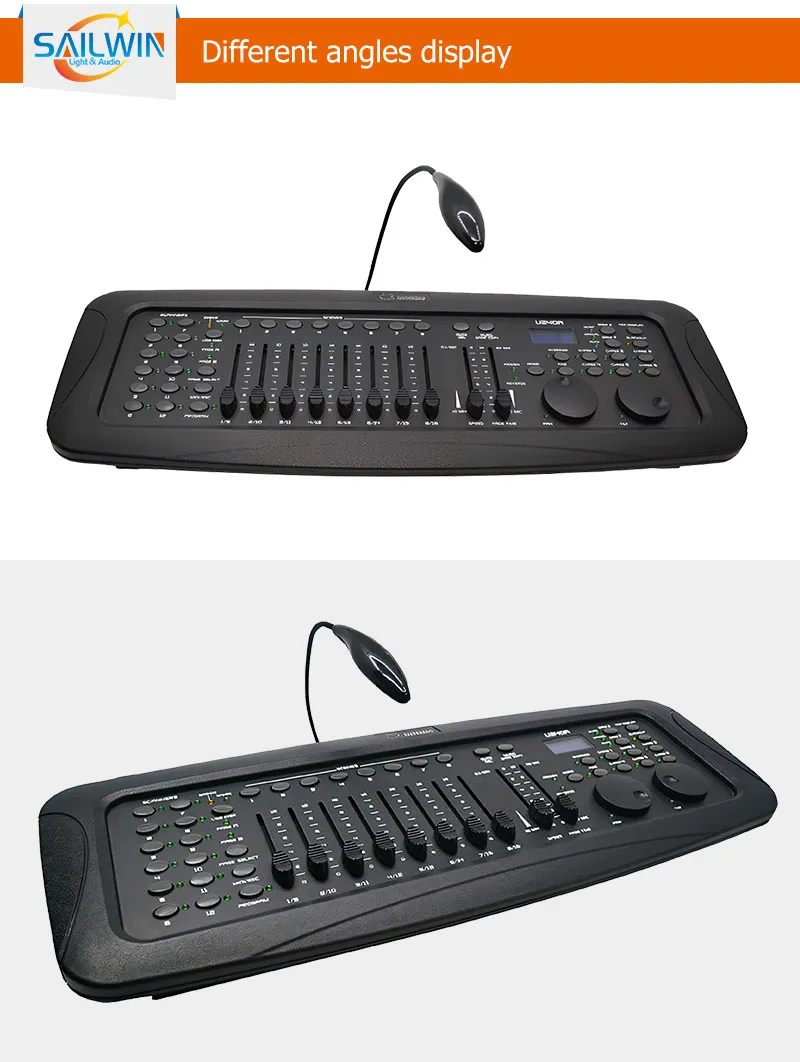

Stage Lighting Console View 4
Stage Lighting Console View 5
Stage Lighting Console View 6
Stage Lighting Console View 7
Stage Lighting Console View 8
Stage Lighting Console View 9

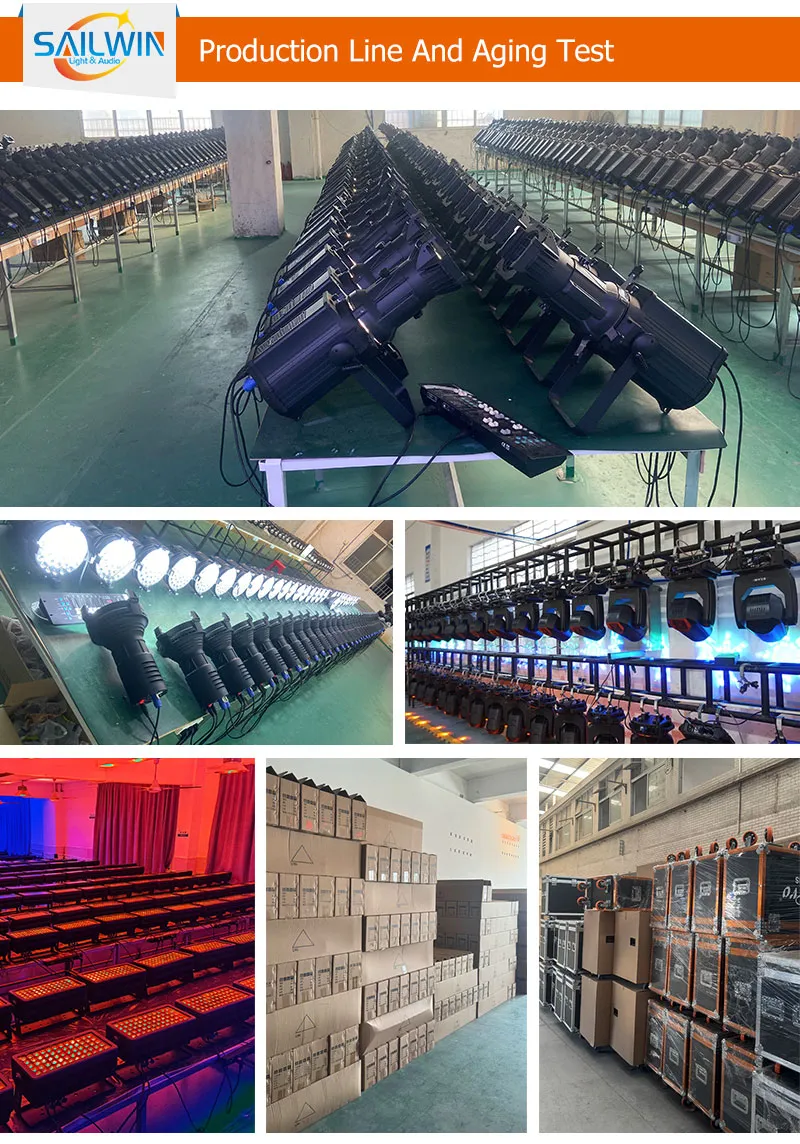

Stage Lighting Console View 10
Stage Lighting Console View 11

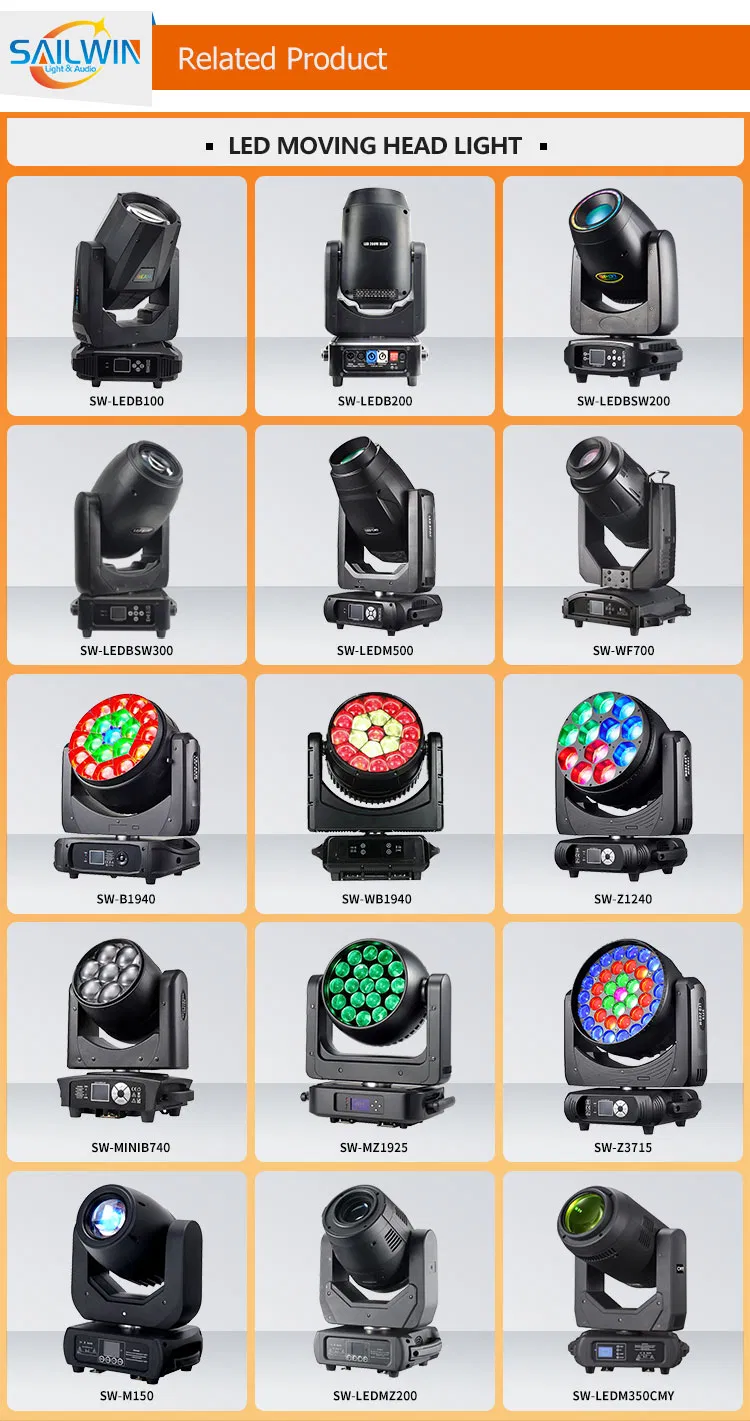

Stage Lighting Console View 12
Stage Lighting Console View 13
Stage Lighting Console View 14

Frequently Asked Questions

How many scanners can this DMX controller manage simultaneously?
The controller can manage up to 12 scanners, with each scanner supporting up to 16 channels.
What are the power requirements for this console?
It operates on a DC 9-12V 1000mA power input and is compatible with AC110V-240V 50-60Hz power supplies.
Does this unit support sound-to-light activation?
Yes, it features audio input via a built-in microphone or a line-in connection (100mv-1vpp) for synchronized lighting effects.
Is the console compatible with MIDI equipment?
Yes, it includes a 5-pin multiple socket for Midi input integration.
What type of DMX connections are used?
The unit uses standard 3-pin male and female XLR connectors for DMX in/out signals.
Can I program my own custom scenes and chases?
Absolutely. It supports 6 programmable chases with 30 banks each, and 20 banks that can store 8 programmable scenes each.
