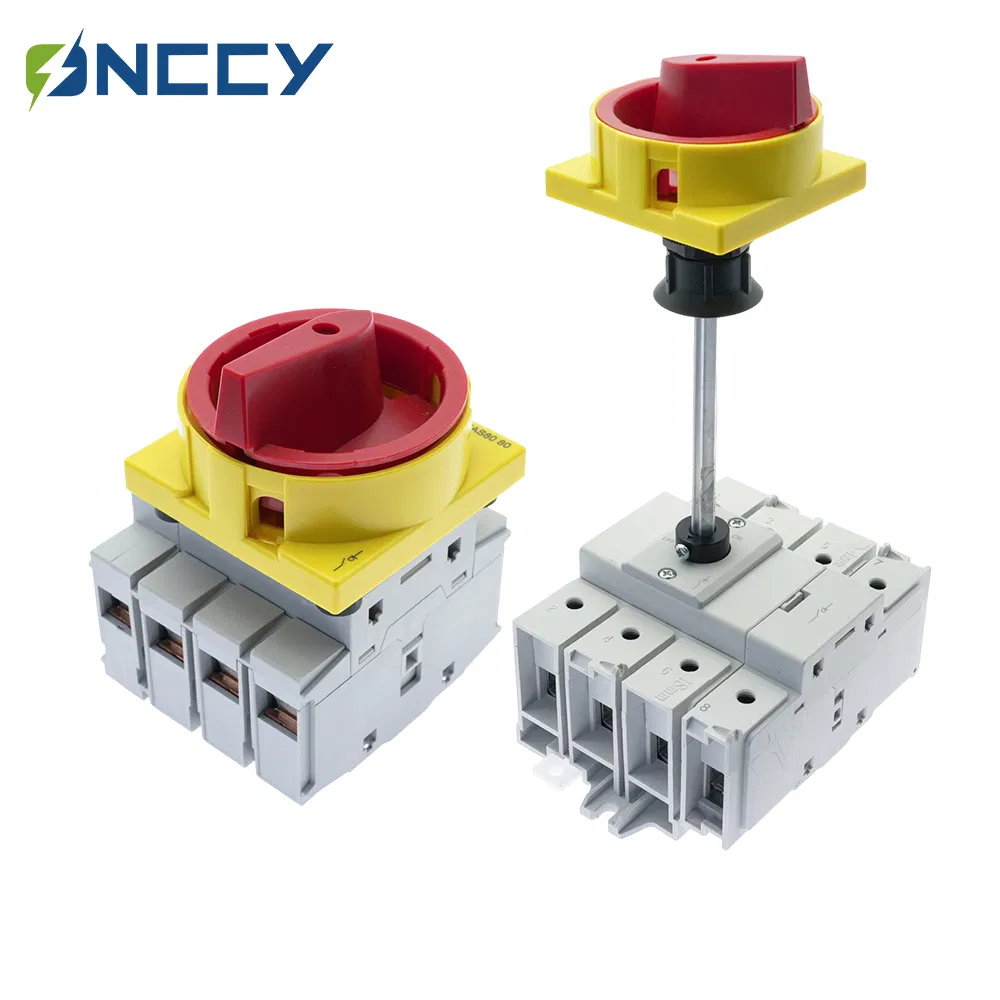

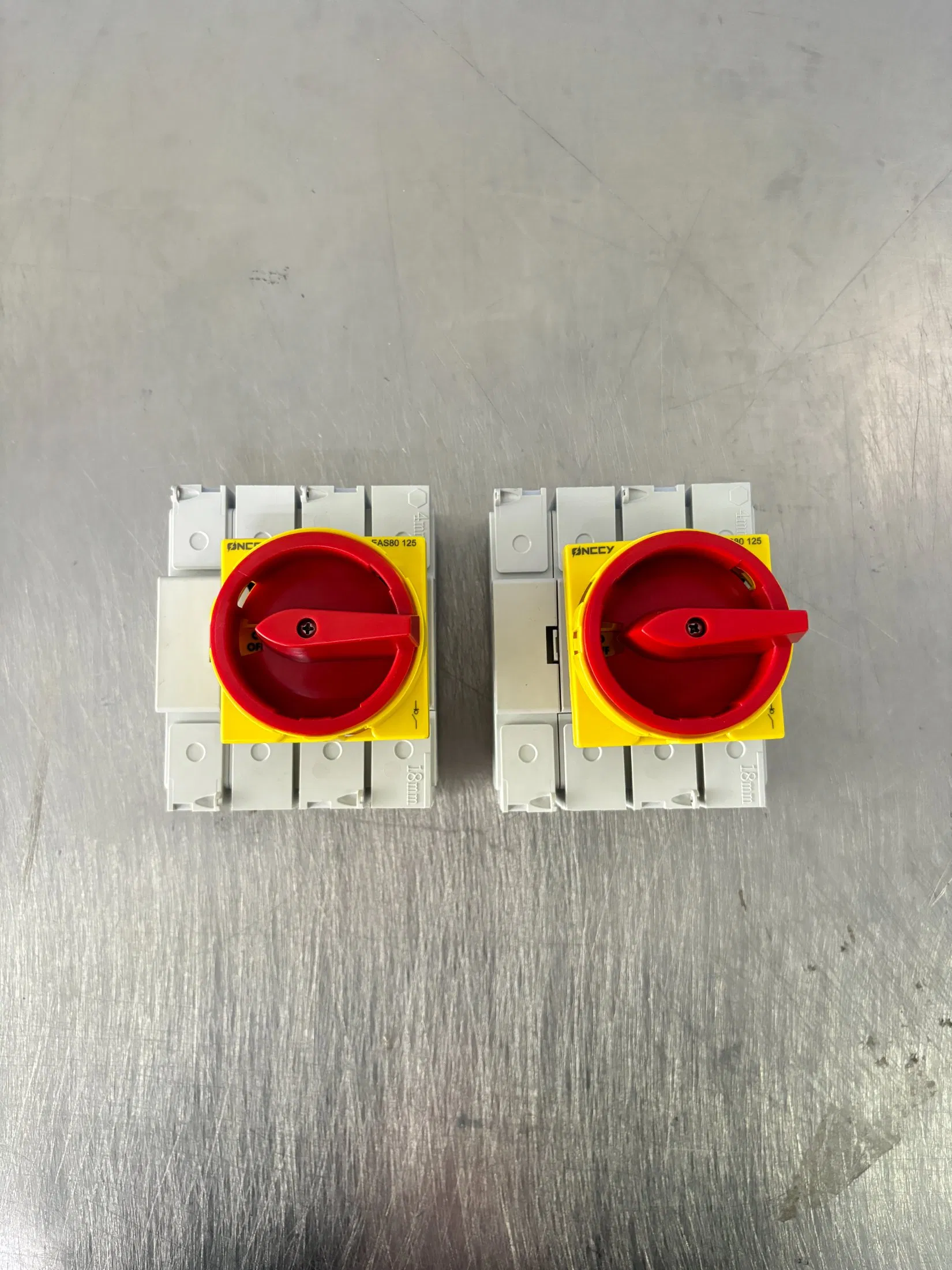

AC Isolator switches are essential devices designed to isolate specific circuits for maintenance, ensuring no current flows through them. These switches, often referred to simply as isolators, are composed of one or two sets of electrical contacts arranged in series. The line side is strategically connected to an external power supply, offering a robust solution for safeguarding electrical systems.
The AC Isolator Switch is vital for ensuring an electrical circuit is completely de-energized for routine service and maintenance. It facilitates rapid shutdown in emergencies by separating the circuit from the main power source.
| Code | Description | Details |
|---|---|---|
| 1 | Type | EAS80- |

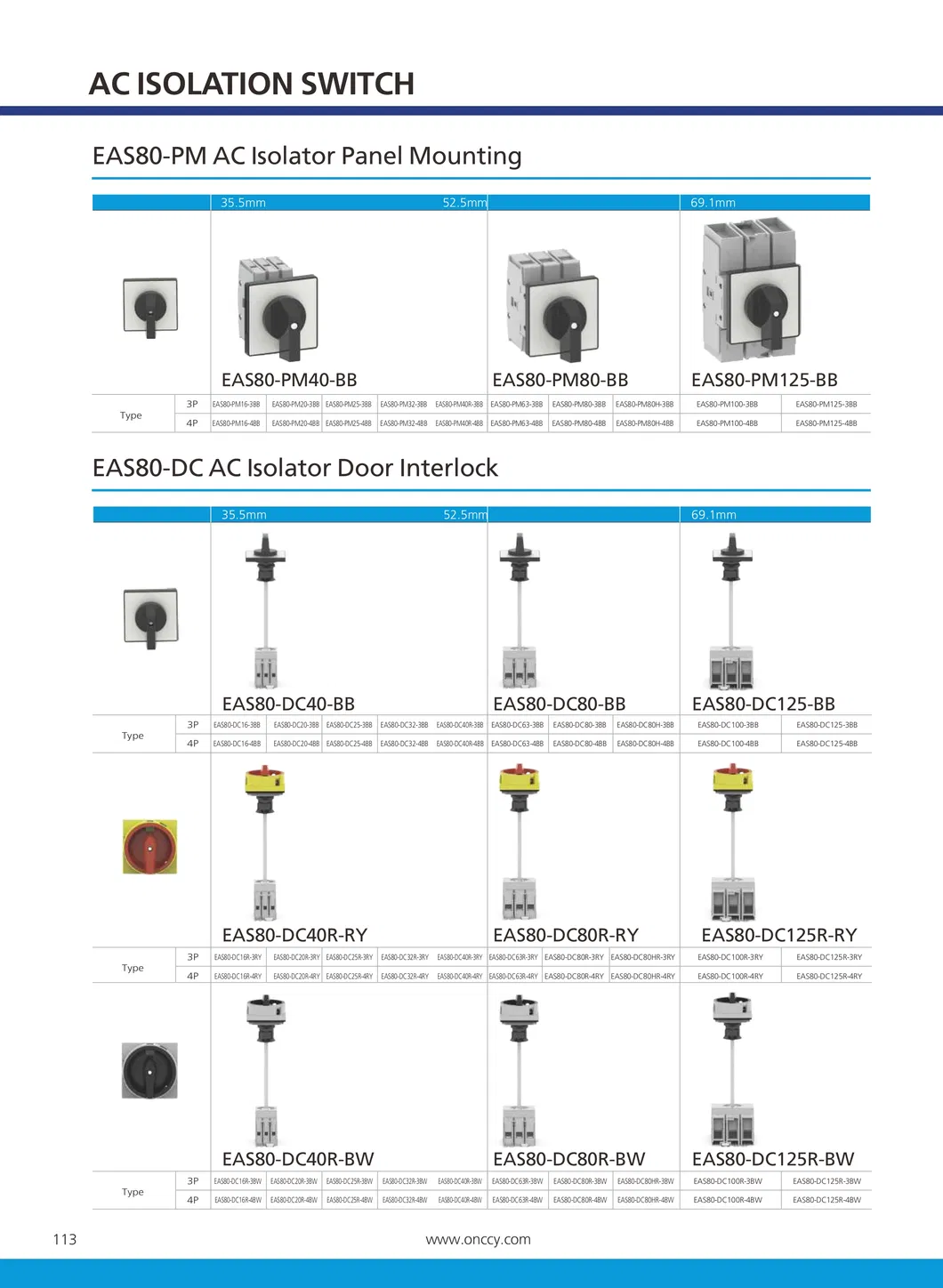

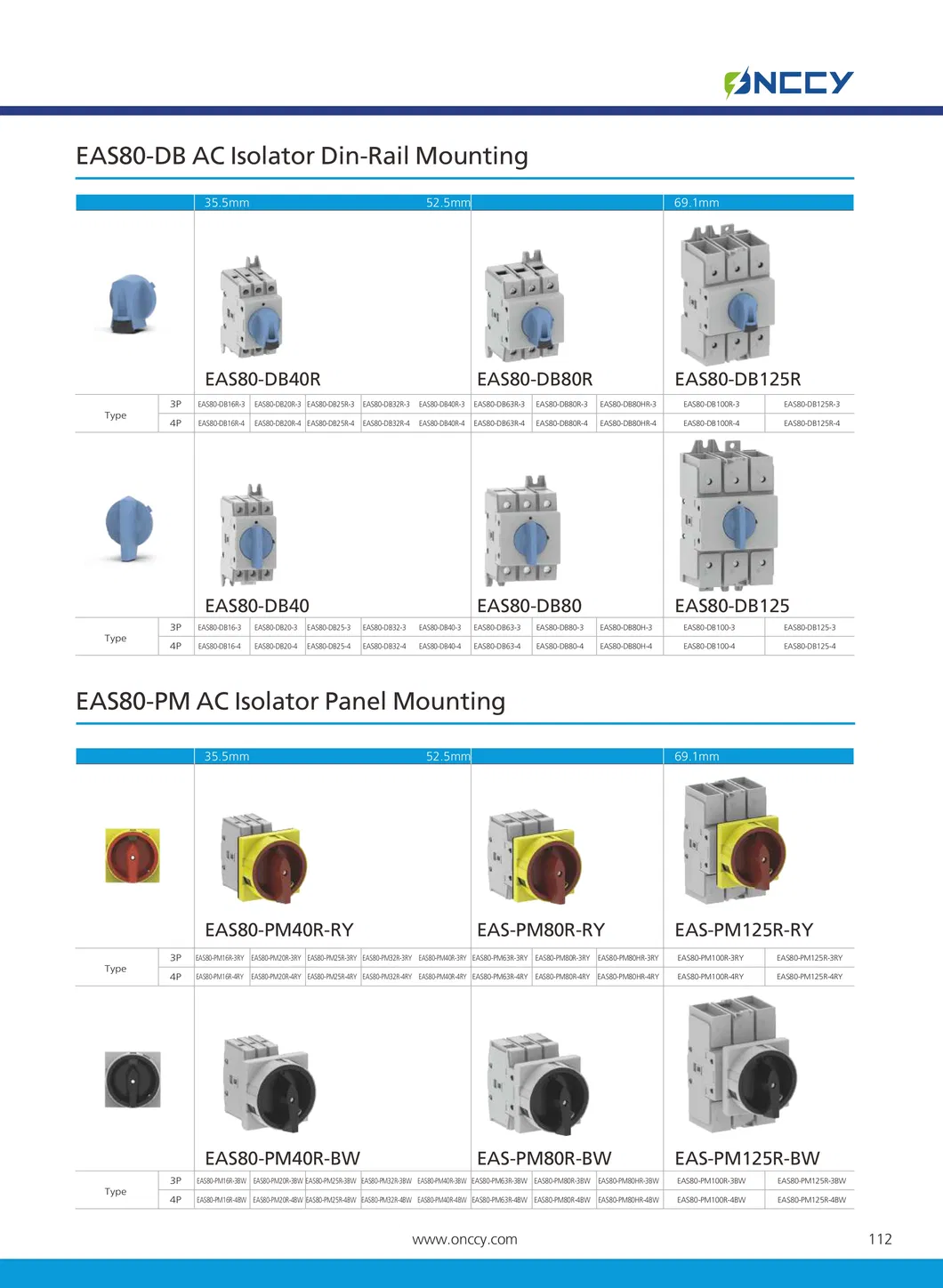

| 2 | Installation | DB: Rail mounting / DC: Door interlocked / PM: Panel mounting / EL: Plastic enclosure box |
| 3 | Rated Current | 16A to 125A options |
| 4 | Knob Lock | Nil: Without lock / R: With lock |
| 5 | Poles | 2P, 3P, 4P, 6P, 8P |
| Parameter | 16A - 32A Range | 40A - 80A Range | 100A - 125A Range |
|---|---|---|---|
| Rated Insulation Voltage (Ui) | 800V | 800V | 800V |
| Impulse Withstand Voltage (Uimp) | 8kV | 8kV | 8kV |
| Mechanical Endurance | 100,000 Cycles | 100,000 Cycles | 100,000 Cycles |
| Ambient Temperature | -25~+55°C (Op) | -25~+55°C (Op) | -25~+55°C (Op) |
| IP Rating | IP66 | IP66 | IP66 |
EXPERIENCED PV PROTECTIVE PRODUCT AND EV CHARGING STATION MANUFACTURER
Our vision is to illuminate the path to a clean, sustainable future by pioneering advancements in solar and new energy industries. We are committed to spreading intelligent solar solutions across the globe with high-quality products.
Our main product range includes DC/AC Isolator Switches, PV Combiner Boxes, DC Circuit Breakers, Surge Arresters, DC Fuse Holders, Rapid Shutdown Devices, and EV Chargers.

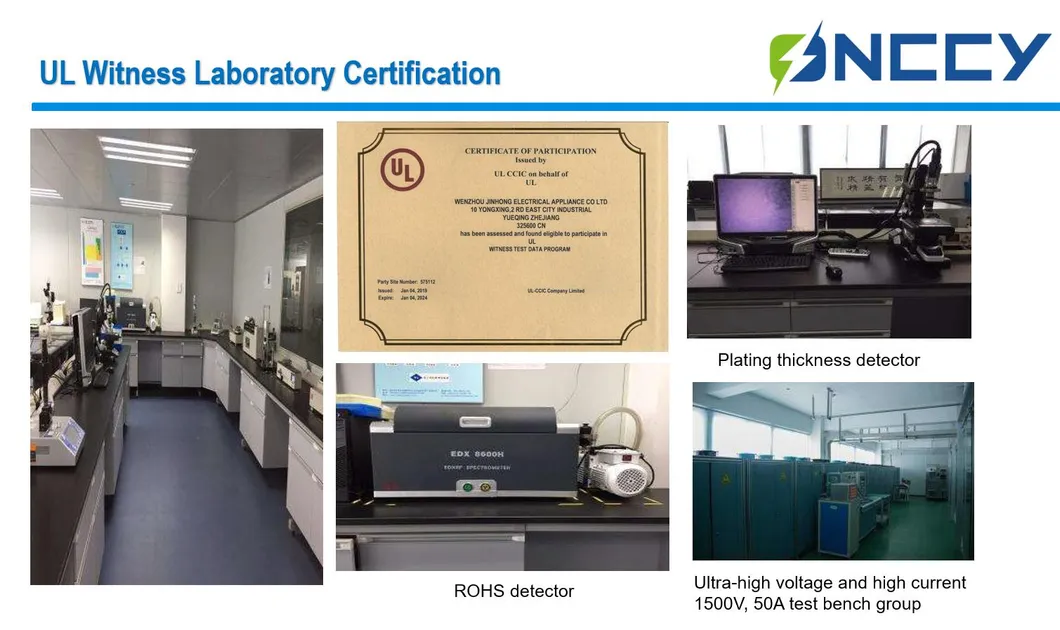

Quality isn't just a priority—it's our promise. Adhering to stringent standards like UL, SAA, CB, CE, TUV, ISO, and RoHS, we ensure optimal performance and safety across Solar, Storage, and EV charging systems.
