AC Isolator switches are essential devices designed to isolate specific circuits for maintenance, ensuring no current flows through them. These switches are composed of sets of electrical contacts arranged in series. The line side is strategically connected to an external power supply, offering a robust solution for safeguarding electrical systems.
The AC Isolator Switch is vital for ensuring an electrical circuit is completely de-energized for routine service and maintenance. It facilitates rapid shutdown in emergencies by separating the circuit from the main power source and discharging any residual current.

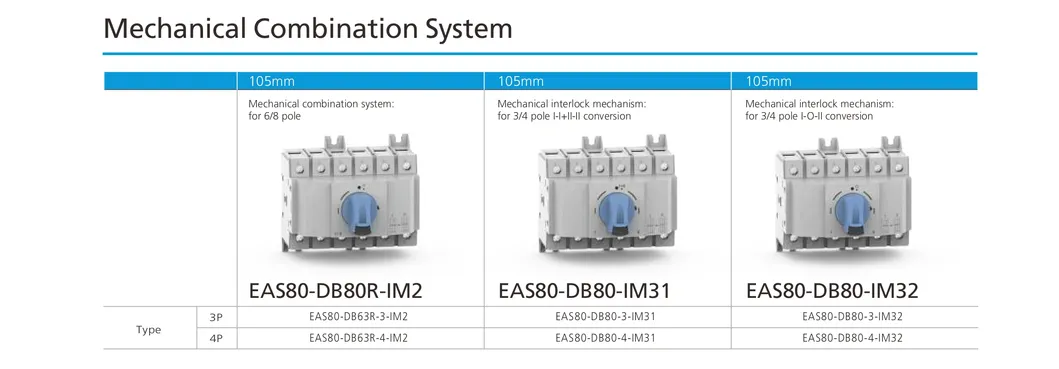

Switch-disconnectors Model Selection| Code | Description | Details |
|---|---|---|
| 1 | Type | EAS80- |
| 2 | Installation | DB: Rail, DC: Door, PM: Panel, EL: Plastic Box |
| 3 | Rated Current | 16A, 20A, 25A, 32A, 40A, 63A, 80A, 100A, 125A |
| 4 | Knob Lock | Nil: Without lock, R: With lock |
| 5 | Poles | 2P, 3P, 4P, 6P, 8P |
| Parameter | Values / Rating |
|---|---|
| Agreed Heating Current (Ith) | 16A, 20A, 25A, 32A, 40A, 63A, 80A, 100A, 125A |
| Rated Insulation Voltage (Ui) | 800V |
| Rated Impulse Withstand Voltage (Uimp) | 8kV |
| Mechanical Endurance | 100,000 operations |
| Ambient Temperature | Operating: -25~+55°C / Storage: -40~+70°C |
| Cable Cross Section | 1.5~10mm² / 2.5~35mm² / 10~70mm² |
