Electric Power Waterproof Enclosure IP66 3p4p 50Hz 16A 25A 40A 63A AC Isolating Isolation Isolator Switch for AC Industry
Electric Power Waterproof Enclosure IP66 3p4p 50Hz 16A 25A 40A 63A AC Isolating Isolation Isolator Switch for AC Industry
Electric Power Waterproof Enclosure IP66 3p4p 50Hz 16A 25A 40A 63A AC Isolating Isolation Isolator Switch for AC Industry
Electric Power Waterproof Enclosure IP66 3p4p 50Hz 16A 25A 40A 63A AC Isolating Isolation Isolator Switch for AC Industry
Electric Power Waterproof Enclosure IP66 3p4p 50Hz 16A 25A 40A 63A AC Isolating Isolation Isolator Switch for AC Industry
1 / 5
Electric Power Waterproof Enclosure IP66 3p4p 50Hz 16A 25A 40A 63A AC Isolating Isolation Isolator Switch for AC Industry
Electric Power Waterproof Enclosure IP66 3p4p 50Hz 16A 25A 40A 63A AC Isolating Isolation Isolator Switch for AC Industry
Electric Power Waterproof Enclosure IP66 3p4p 50Hz 16A 25A 40A 63A AC Isolating Isolation Isolator Switch for AC Industry
Electric Power Waterproof Enclosure IP66 3p4p 50Hz 16A 25A 40A 63A AC Isolating Isolation Isolator Switch for AC Industry
Electric Power Waterproof Enclosure IP66 3p4p 50Hz 16A 25A 40A 63A AC Isolating Isolation Isolator Switch for AC Industry

Electric Power Waterproof Enclosure IP66 3p4p 50Hz 16A 25A 40A 63A AC Isolating Isolation Isolator Switch for AC Industry

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.:E-12 SERIES
Installation:Outdoor High-voltage
Operation:Electric
Grounding Mode:Grounding
Number of Poles:3p/4p
Protection Grade:IP66
Shell Material:PC and ABS Fireproof
Rated Voltage:AC415V
Application:Home and Outdoor Use
Certification:ISO, RoHS, CE
Capacity:20000PCS/Month
Origin:China
Product Description

Waterproof IP66 AC Isolating Switch

  • Rated insulation voltage 690V, current 20A~160A, suitable for single or three-phase AC systems.
  • IP66 box body with imported sealing strips for dustproof, waterproof, and anti-UV protection.
  • Switch rotating operator (knob) with three lock positions to prevent misuse.
  • Compatible with cable connectors: M25, M20, M16, and M12.
  • Large internal wiring space for convenient connection and excellent heat dissipation.
  • Operating temperature range: -25ºC to +70ºC.
  • Large contrast color design for easy identification.

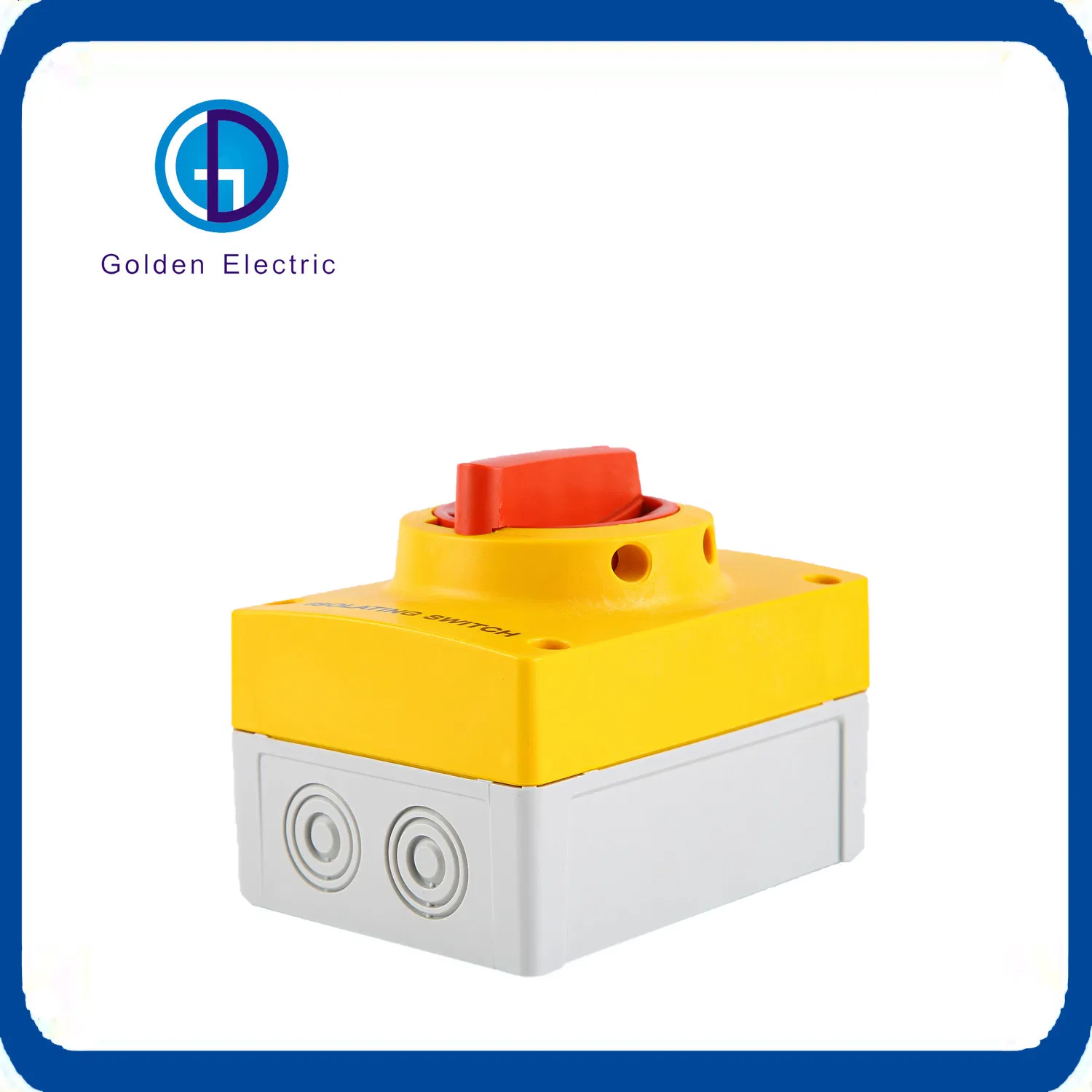

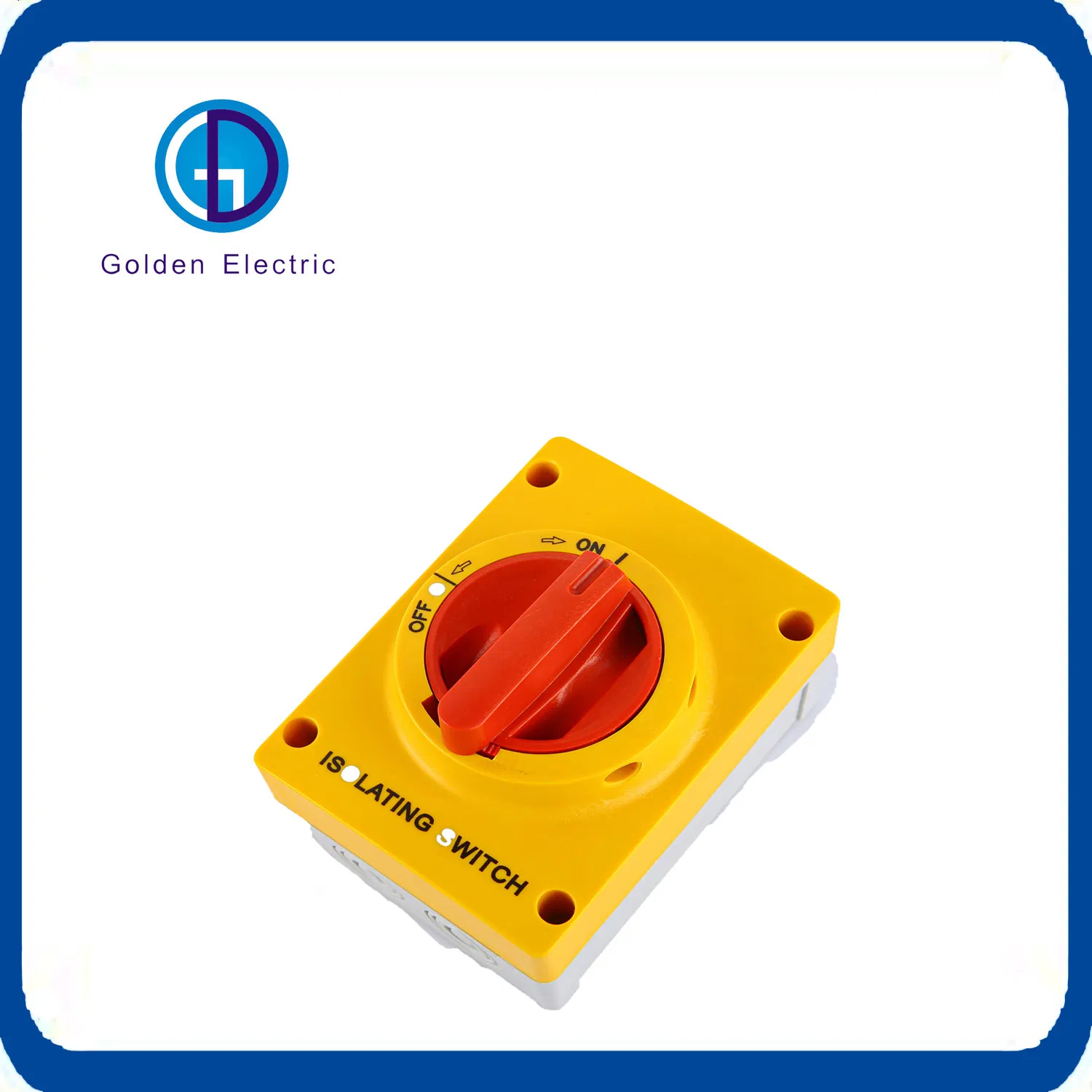

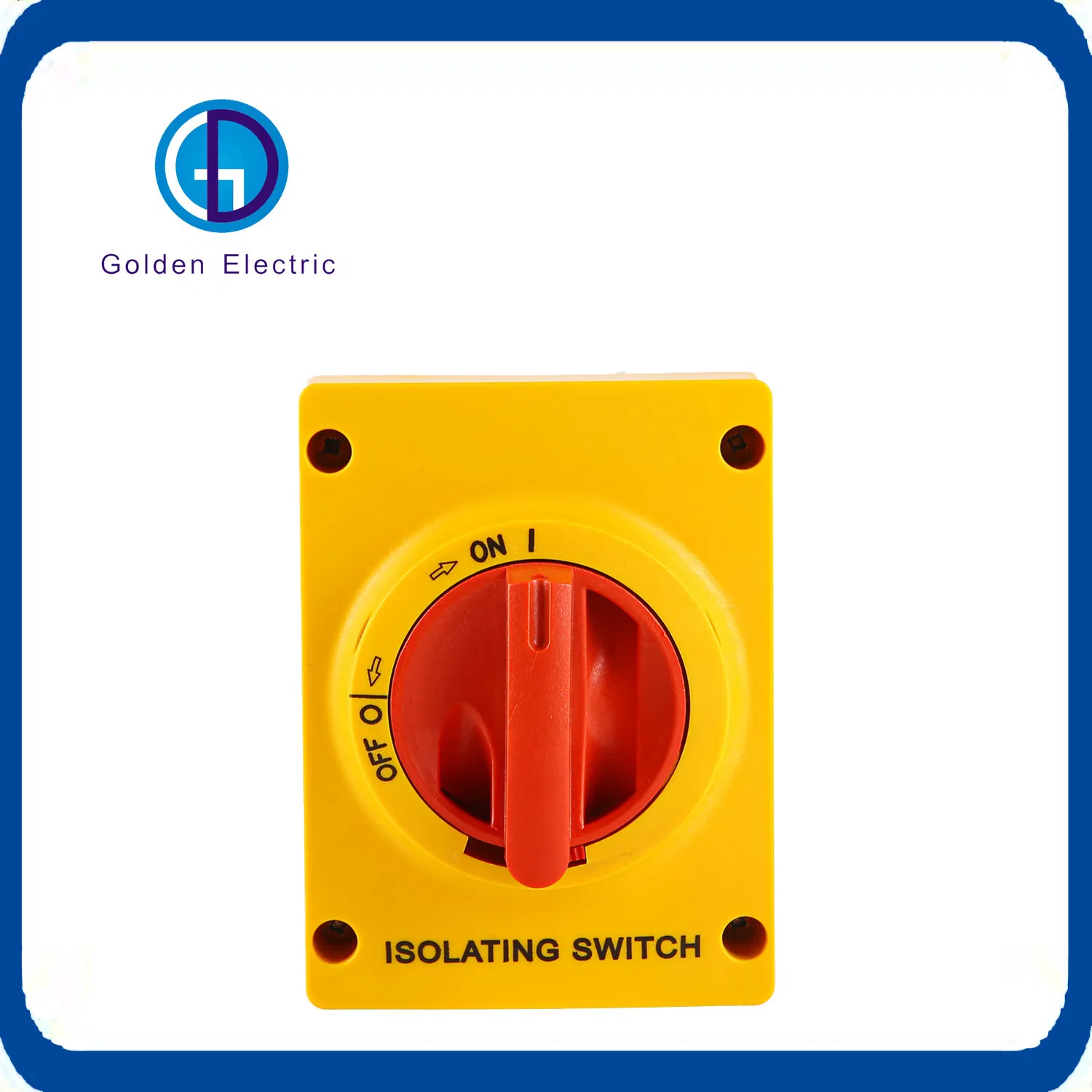

Isolating Switch Display

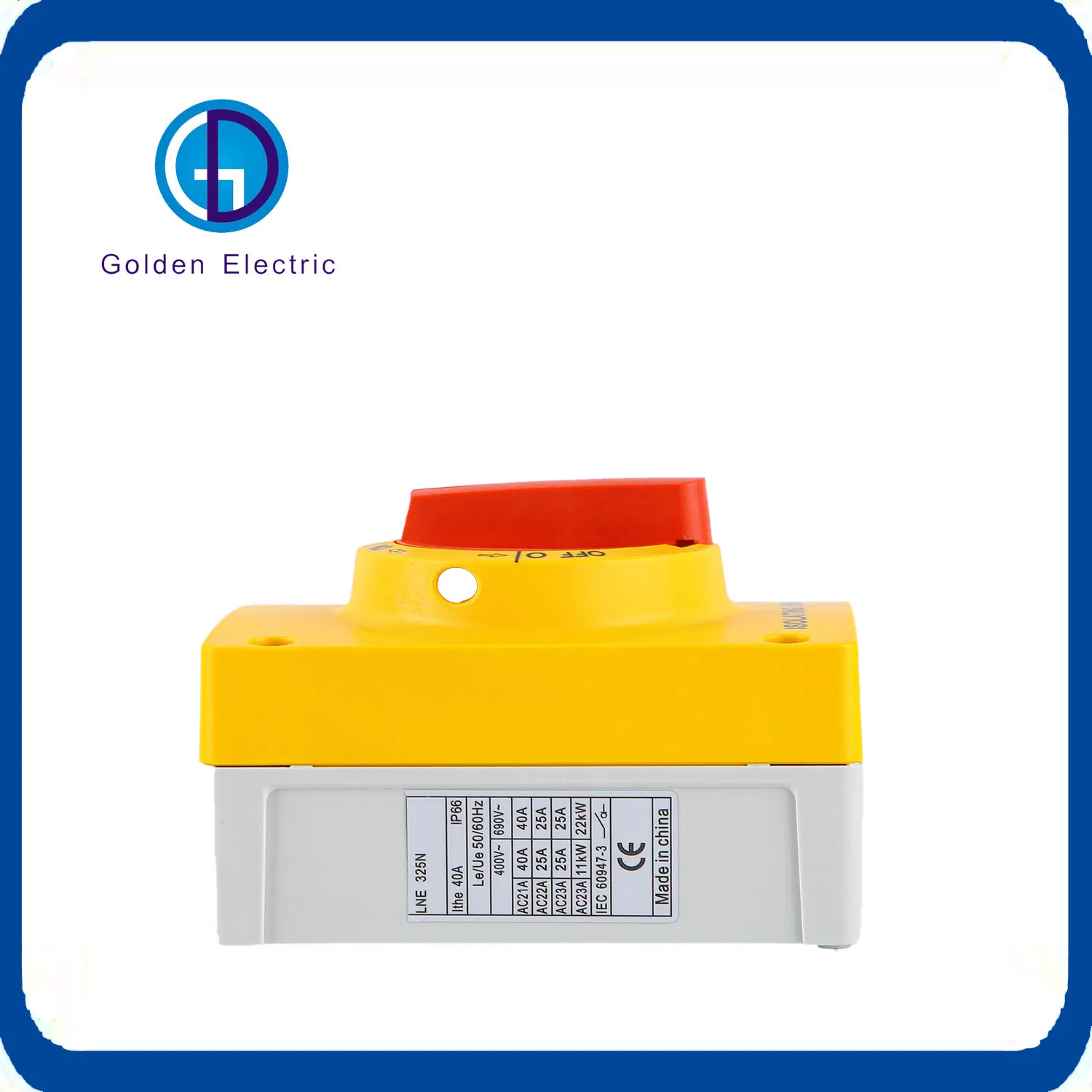

Isolating Switch Side View

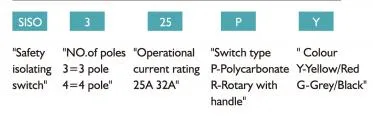

Catalogue number construction:
Catalogue Construction
Product Parameters
Technical Parameters GS-25-3/4 GS-32-3/4 GS-40-3/4 GS-63-3/4 GS-80-3/4
Rated Insulation Voltage Ui 690V 690V 690V 690V 690V
Rated Current Ith 25A 32A 40A 63A 80A
Rated Value@415V AC23 KW 7.5 11 15 18.5 22
Switching Capacity@415V Aeff 150 220 300 370 440
Breaking Capacity@415V Aeff 135 200 250 330 380
Mechanical Life 10³ 20 20 20 10 10

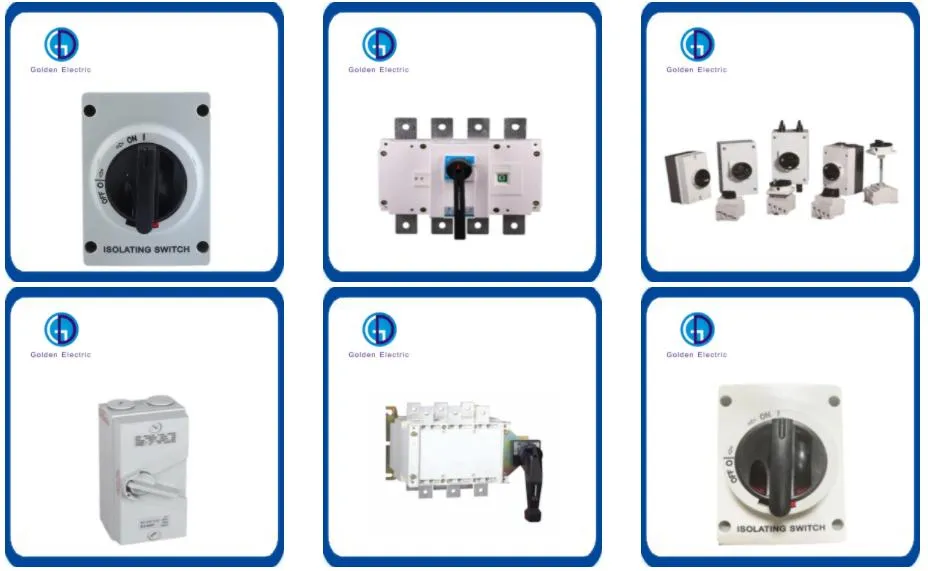

Other Isolating Switches
Packaging & Shipping

Packaging Details:

Standard export cartons. Customized packing available: Header card, Blister with card, Double blister, or Canister packing based on requirements.

Shipping Options:

  • By Air or by Sea for batch goods (Airport/Port receiving).
  • Customer-specified freight forwarders or negotiable methods.

Delivery: Shipped within 7-20 days after payment confirmation.

Shipping Logistics
Our Advantages
  • Commitment to 100% customer satisfaction.
  • One to five years quality guarantee on all products.
  • Simple design, easy to operate and maintain.
  • High-quality materials used for all electrical components.
  • No MOQ limit for trial orders.
  • Efficient after-sales service and 12-hour response time.

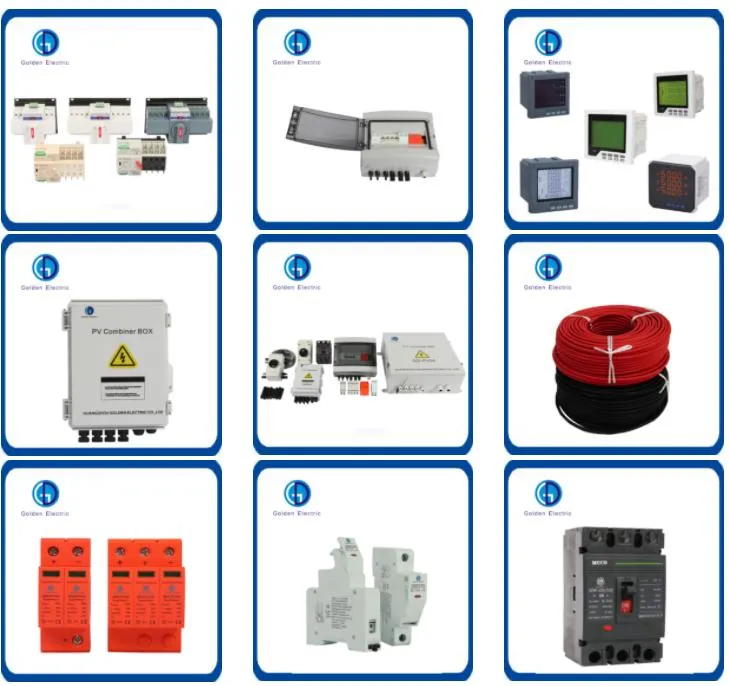

Main Product Range

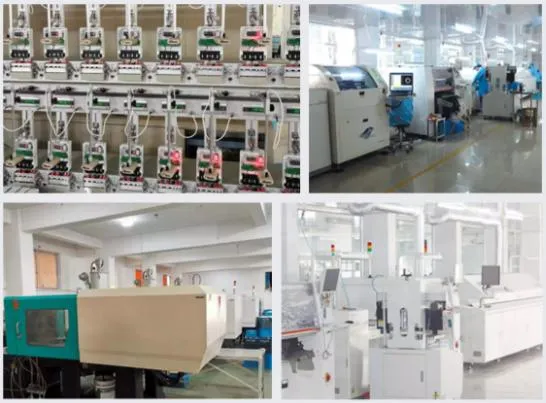

Quality Control
Frequently Asked Questions
1. How quickly can I get a quotation?
All enquiries will be replied to with detailed information within 8 hours.
2. Can I request a free sample before ordering?
Yes, we provide free sample services to prove product quality. Please contact us to arrange yours.
3. Do you offer OEM services for logo printing?
Absolutely. We provide full OEM services, including printing your own logo on the products.
4. What is the standard warranty period?
We offer a 2 to 5-year quality guarantee. All products undergo 100% inspection before shipping.
5. What is the typical delivery timeframe?
Sample orders usually take 3-5 working days, while official bulk orders take between 10-20 days.
6. Which international standards do your products meet?
Our products are manufactured under ISO9001 and have been approved by TUV, CE, CQC, SGS, RoHS, and SASO.
