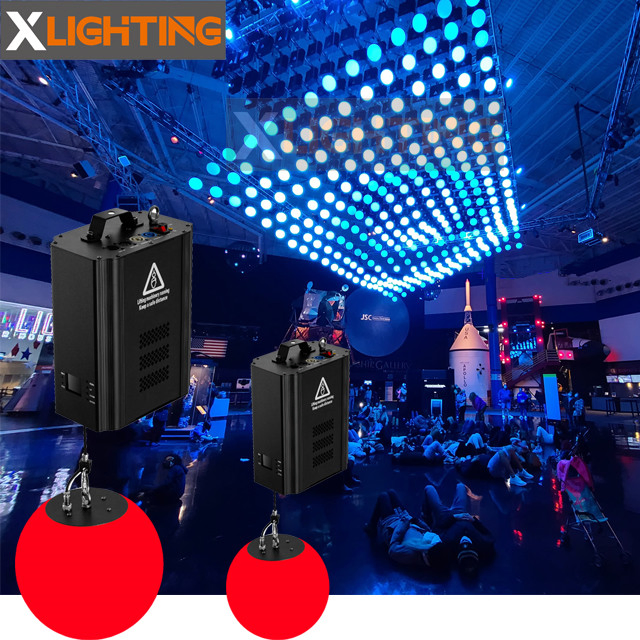

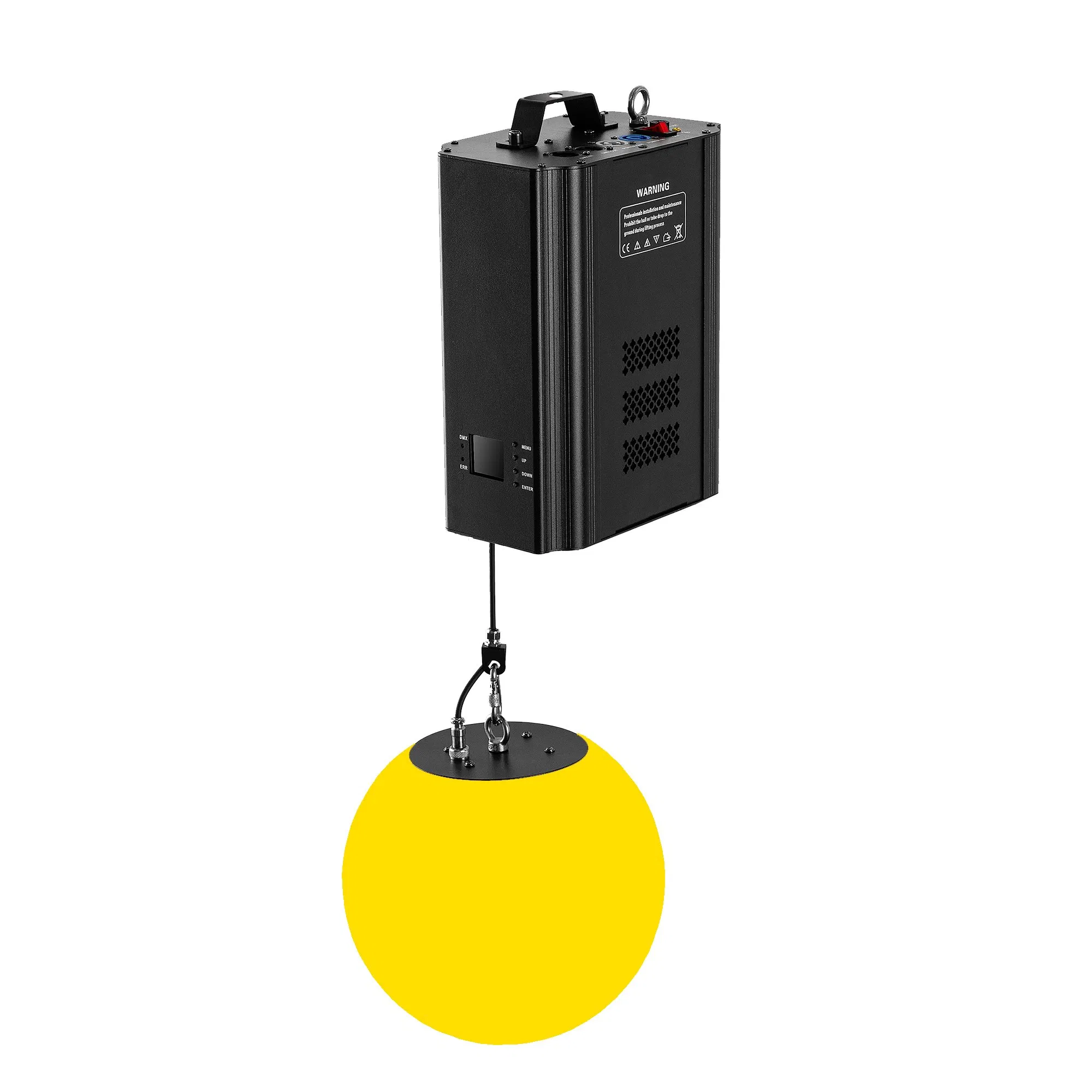

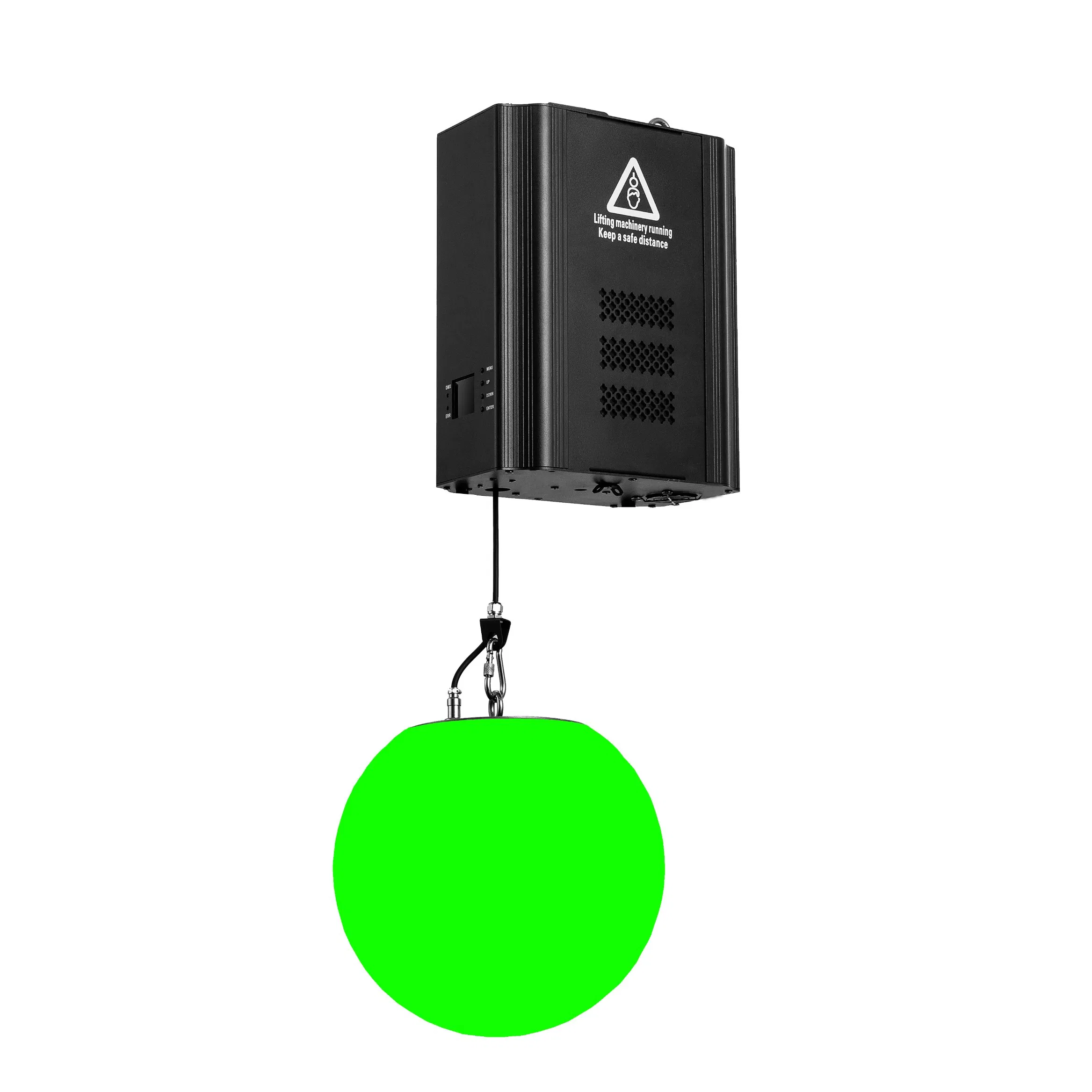

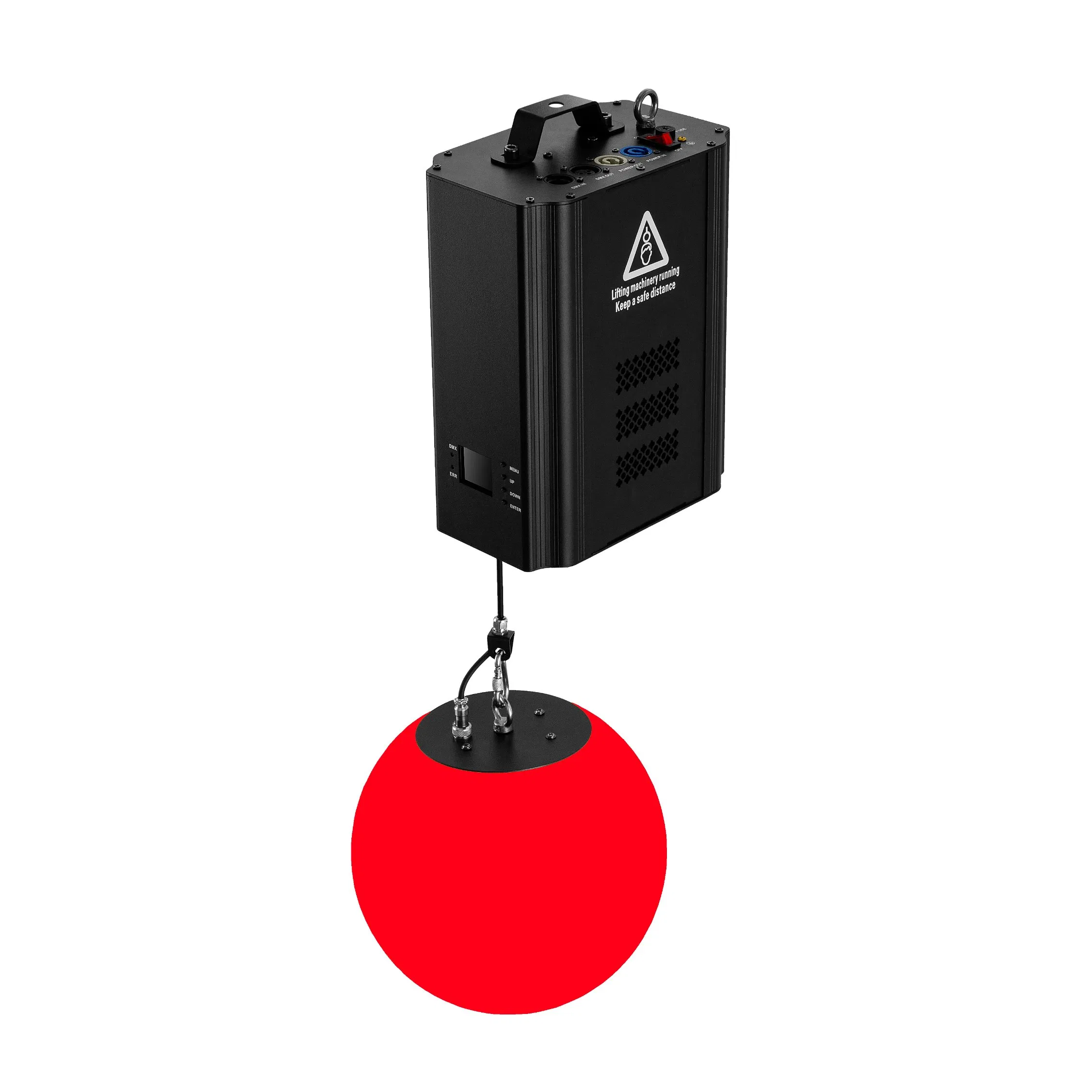

Professional Stage Light LED DMX Winch LED RGB Colorful Lifting Ball Kinetic Lighting

1 / 5

Professional Stage Light LED DMX Winch LED RGB Colorful Lifting Ball Kinetic Lighting

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

X-K01

Application

Stage, Film and Television

IP Rating

IP44

Certification

CE, RoHS, SGS

Product Name

Professional Stage Light LED DMX Winch Kinetic Ball

Power

100W

Winch Height

1.5/3/6/9m

Control Mode

DMX512 / Software Control

Product Description

Professional Stage Light Led DMX Winch LED RGB Colorful Lifting Ball Kinetic lighting.

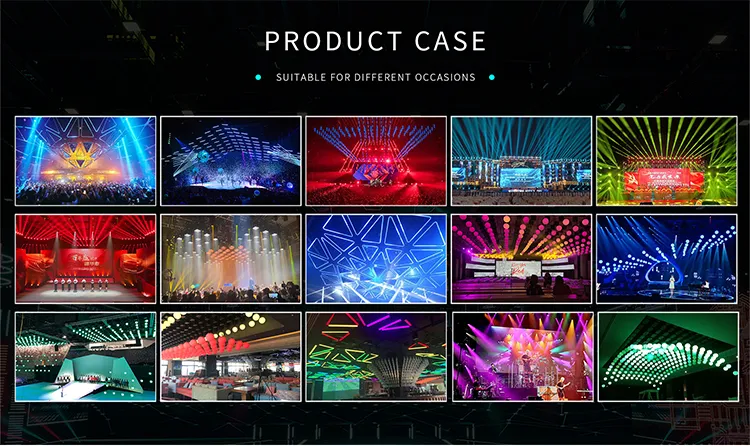

LED kinetic energy ball lights, also known as dance balls, are primarily used for film and television productions, live performances, entertainment venues, hotels, and exhibition halls. Adopting DMX512 signal control and equipped with a high-speed, silent motor, these lights allow for seamless lift movements and color matching via programming software (such as German MADRIX) to create intricate patterns, flowing clouds, and vibrant atmospheric changes.

Voltage	AC 90/240V, 50/60HZ
Power	100W
Winch lifting height	1.5/3/6/9m
Ball size	15/20/25/30/35cm

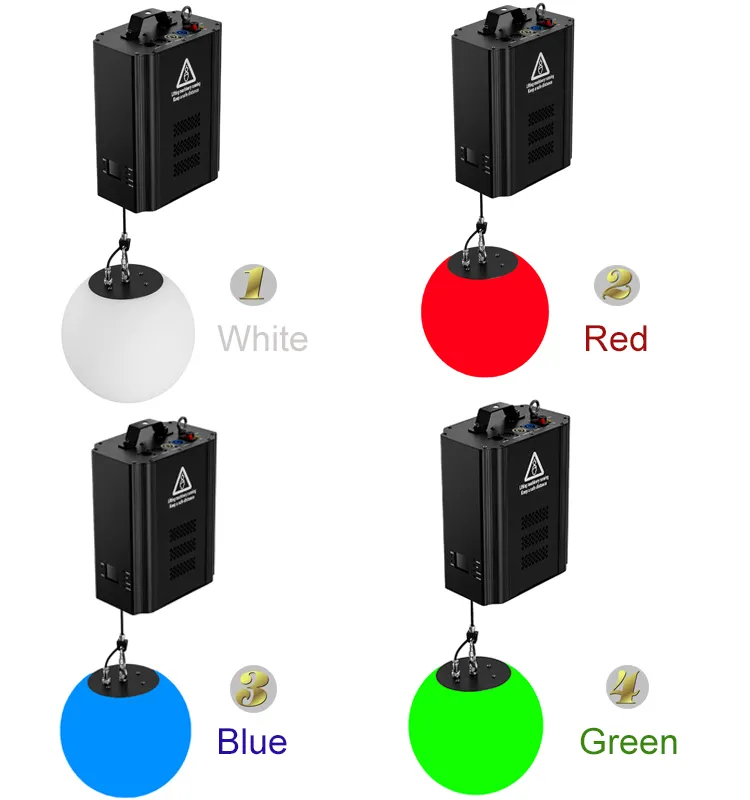

Display	Colorful display
Channel	9CH
Fall protection	Physical Braking, Electronics Protection
Installation	Vertical hoisting
Connectors	3 Pin / 5 pin XLR connector in and out
Environment temperature	Minus 10ºC~50ºC
Winch case material	Aluminum
Ball material	PE
Light source	High brightness SMD 5050

Key Features

⚙️

Complete control board with DMX in/out for seamless integration.

🔌

Newest inductor with shielding function for smooth dimming performance.

🚀

High-power electric motor driver for fast and facile winch movement.

⛓️

Small and firm lift cable sourced from Germany for maximum durability.

🛡️

Advanced fall protection with electromagnetic valve safety design.

🎨

Fully customizable configurations to meet specific project needs.

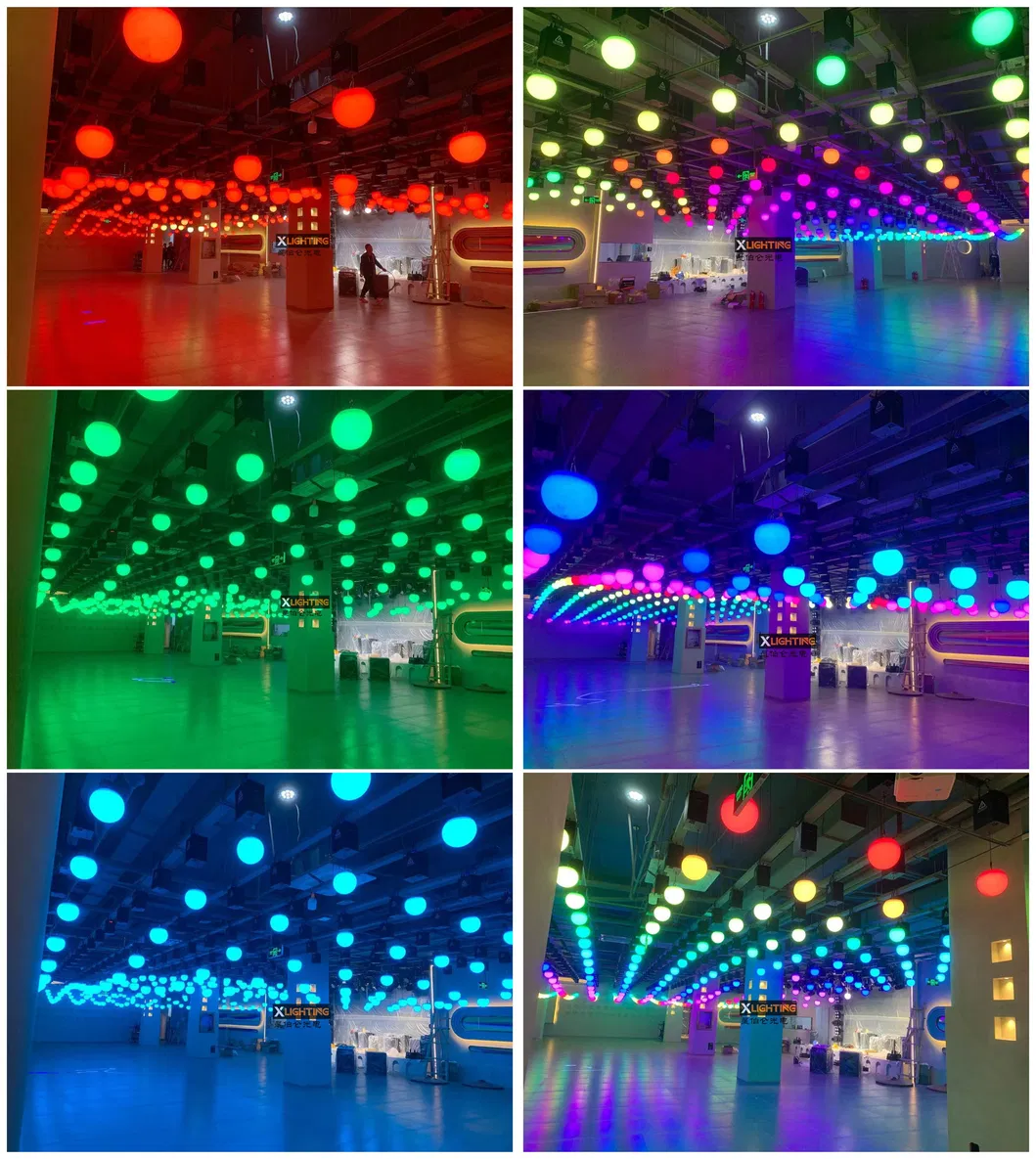

Product Display

Frequently Asked Questions

How is the kinetic light system controlled?

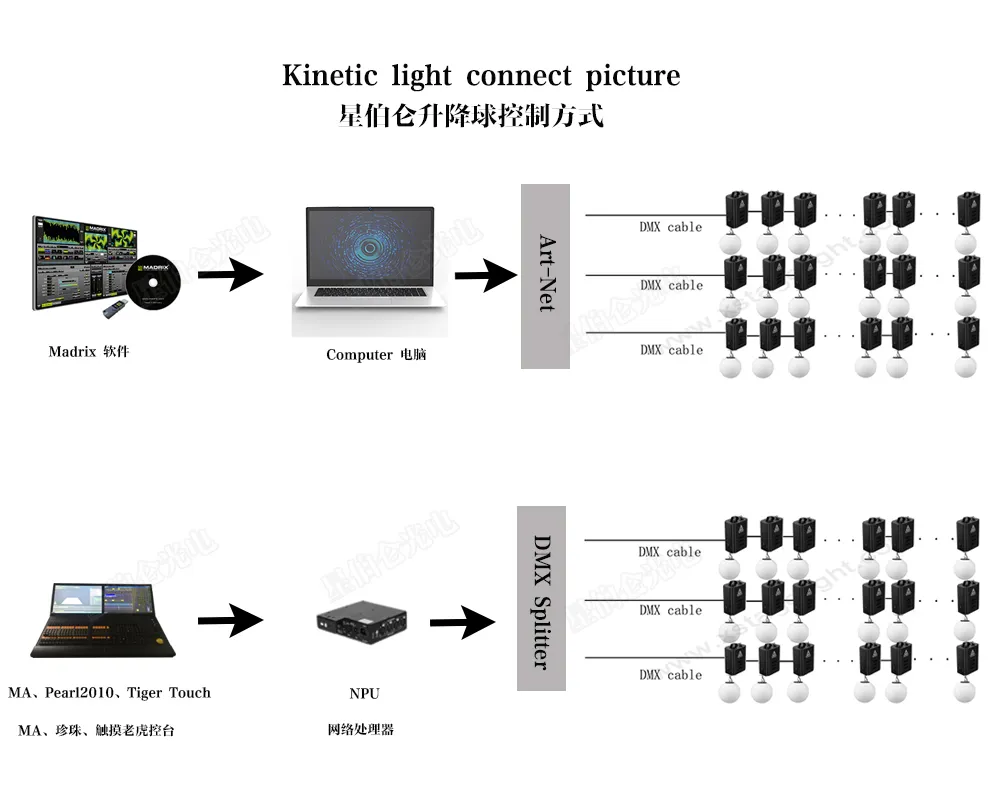

The system uses standard DMX512 signal control. For complex patterns and lifting movements, we recommend using professional software such as German MADRIX.

What safety features are included for the lifting winch?

Safety is a priority. The system includes physical braking, electronic protection, and a specialized electromagnetic valve fall-protection design.

What are the available ball sizes and lifting heights?

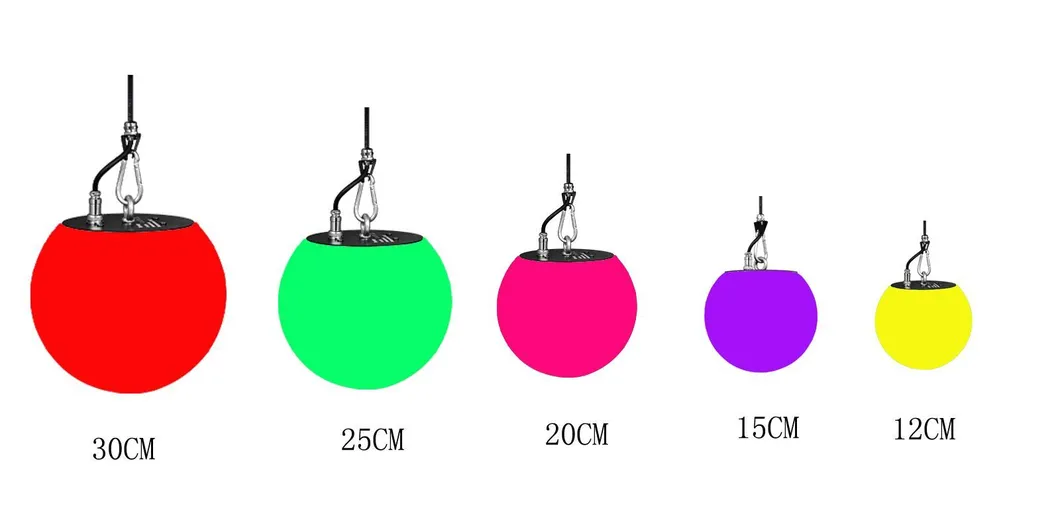

We offer ball sizes of 12/15/20/25/30/35cm and winch lifting heights of 1.5m, 3m, 6m, and 9m. Custom sizes are also available.

What certifications do your stage lighting products hold?

Our products are fully compliant with international standards and hold CE, RoHS, and SGS certifications.

Are the important components manufactured in-house?

Yes, the core components are manufactured by us to ensure quality stability, while other parts are sourced from top industry suppliers.

Is the system suitable for permanent installation?

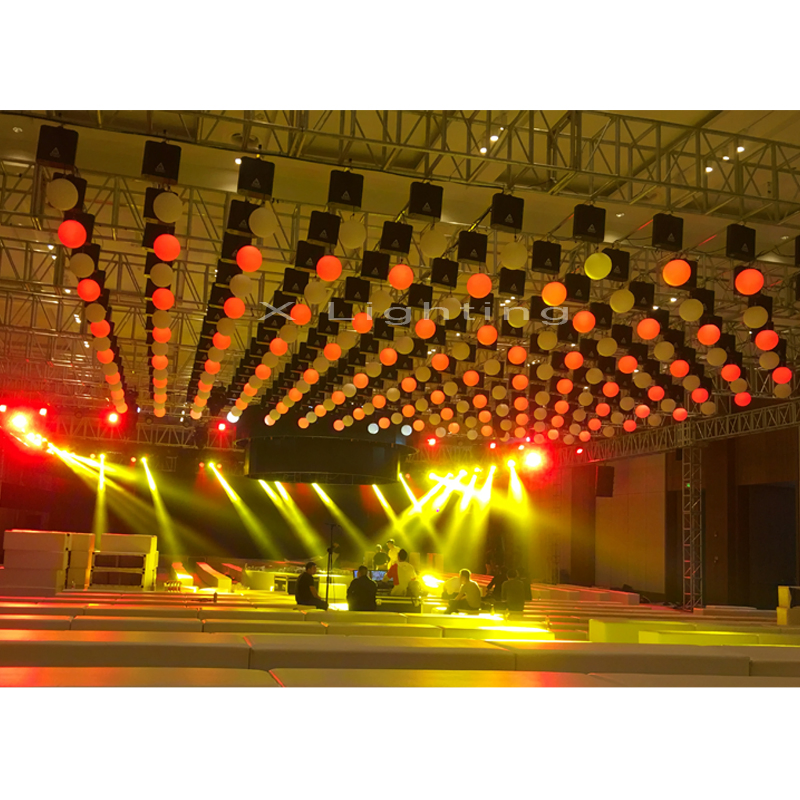

Yes, the system is designed for vertical hoisting installation and is ideal for permanent setups in exhibition halls, hotels, and entertainment venues.
