Slide Switch Control Stage Lighting Auto Parts
Slide Switch Control Stage Lighting Auto Parts
Slide Switch Control Stage Lighting Auto Parts
1 / 3
Slide Switch Control Stage Lighting Auto Parts
Slide Switch Control Stage Lighting Auto Parts
Slide Switch Control Stage Lighting Auto Parts

Slide Switch Control Stage Lighting Auto Parts

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
SK-13D12
Protection
Waterproof
Size
Ultra Small Size
Environment
﹤250℃
Breaking Capacity
Micro-Current
Application
Household Appliances
Certification
ISO9001, CE, CCC, ENEC, VDE
Function
Spdt/Normal Closed/Normal Open
Operating Force
1-3.5n (Customizable)
Operating Travel
0.4-1.5mm (Customizable)
Levers
Roller/Short/Long/Customized
Rating
0.1A 125/250VAC; 3A 12VDC
Production
50000PCS/Day
HS Code
8536500000
Performance & Test Conditions
Item Test Conditions Performance
Contact Resistance Measured at small current (100 mA or less) 30mΩ MAX
Insulation Resistance Apply 500V DC for 1 min between terminals & frame 100MΩ MIN
Dielectric Strength AC 500V rms (50-60Hz) for 1 min; Trip current 0.5 mA No arcing or breakdown
Product Gallery

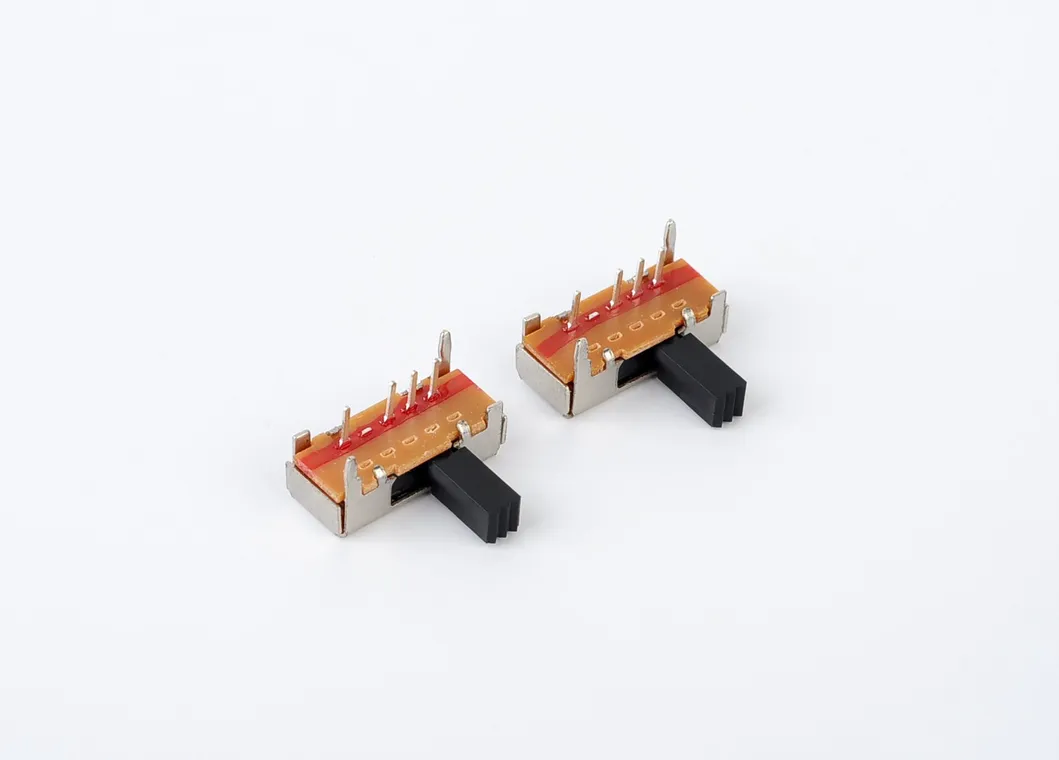

Switch Detail 1

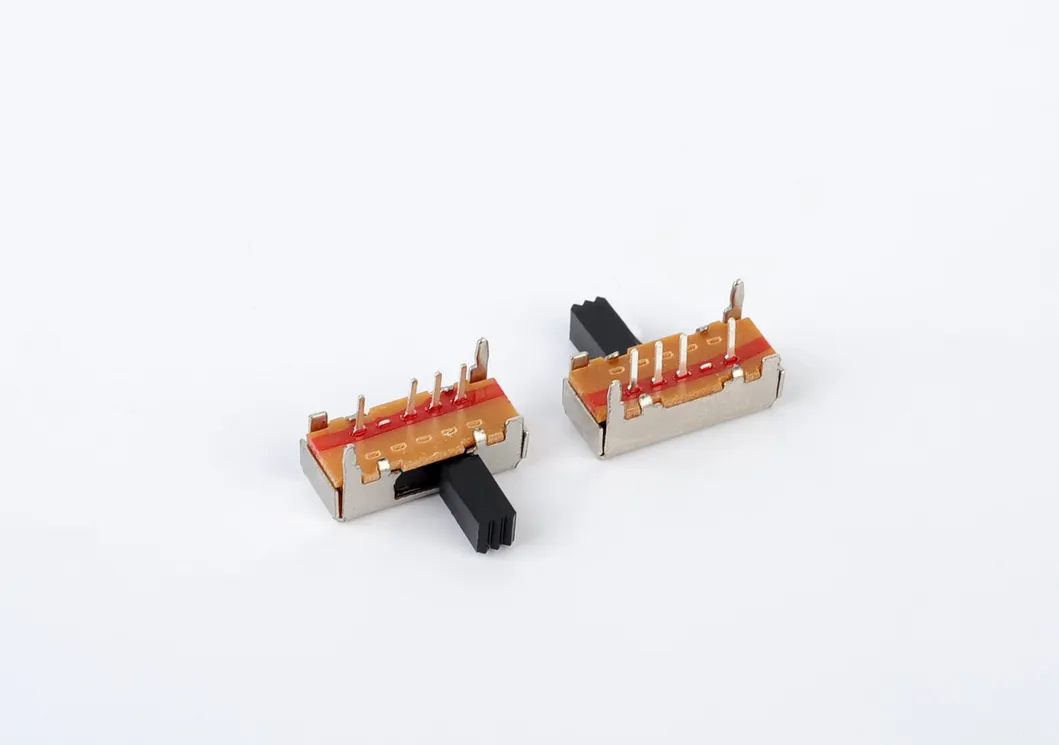

Switch Detail 2

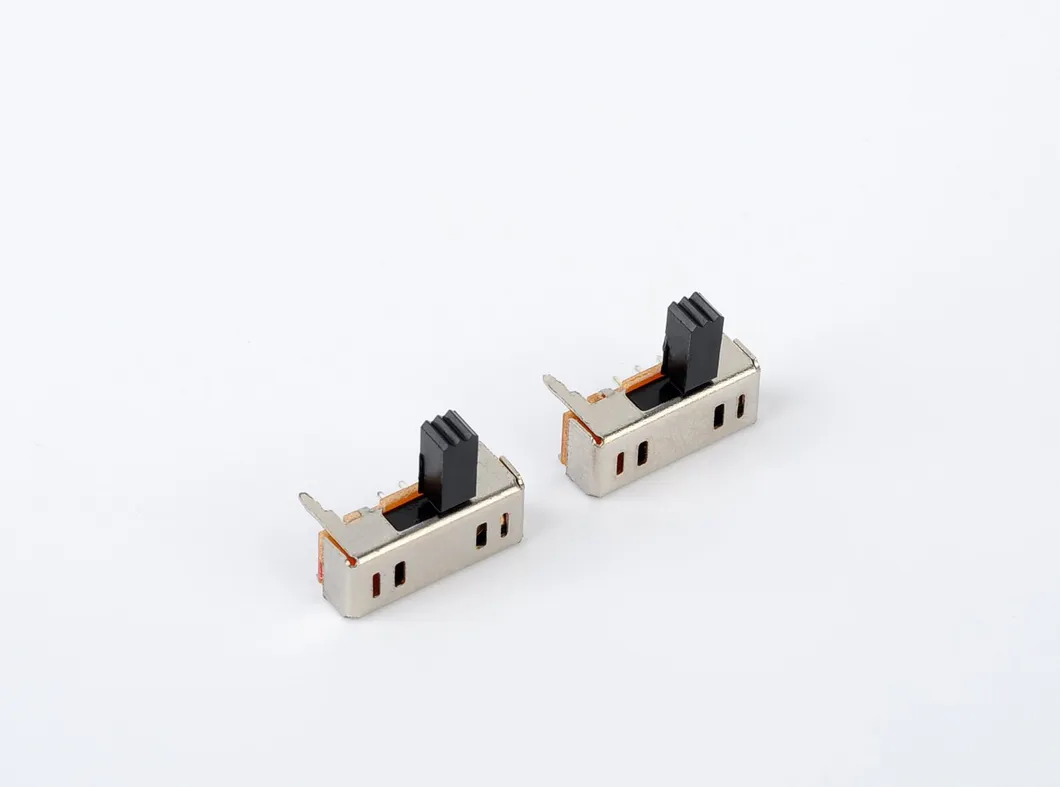

Switch Detail 3
Accessories & Features
Accessories Details
Technical Drawing
💧
Waterproof and dustproof design
⚡
Tight structure, small contact gap, snap action
🎯
High sensitivity and high precision reliability
🏠
Wide application in auto and household appliances
Certifications & Manufacturing
Product Certifications
Certification Logo

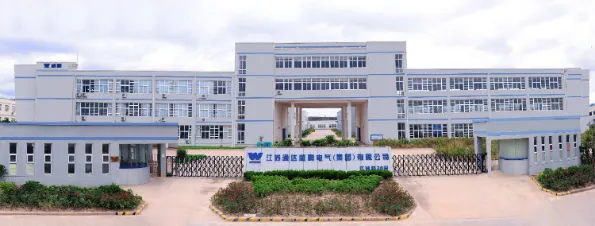

Factory View
Frequently Asked Questions
Do you have any certification for your products?
Yes, we have strong system certifications including IATF16949, ISO14001, UL, TUV, VDE, RoHS, and Reach approvals.
What is your sample policy?
Free samples can be provided within 3 days, though express shipping charges are usually covered by the customer.
What are your terms of packing?
Generally, we pack goods in neutral boxes and brown cartons. Customized packaging is available for qualifying quantities.
How about the delivery time?
Typically, it takes 3 to 15 days upon receipt of payment, depending on the specific items and order quantity.
Do you test all goods before delivery?
Yes, we perform 100% testing on all products before they are dispatched.
Can you produce based on samples?
Yes, we can produce according to your physical samples or technical drawings, including building necessary molds and fixtures.
