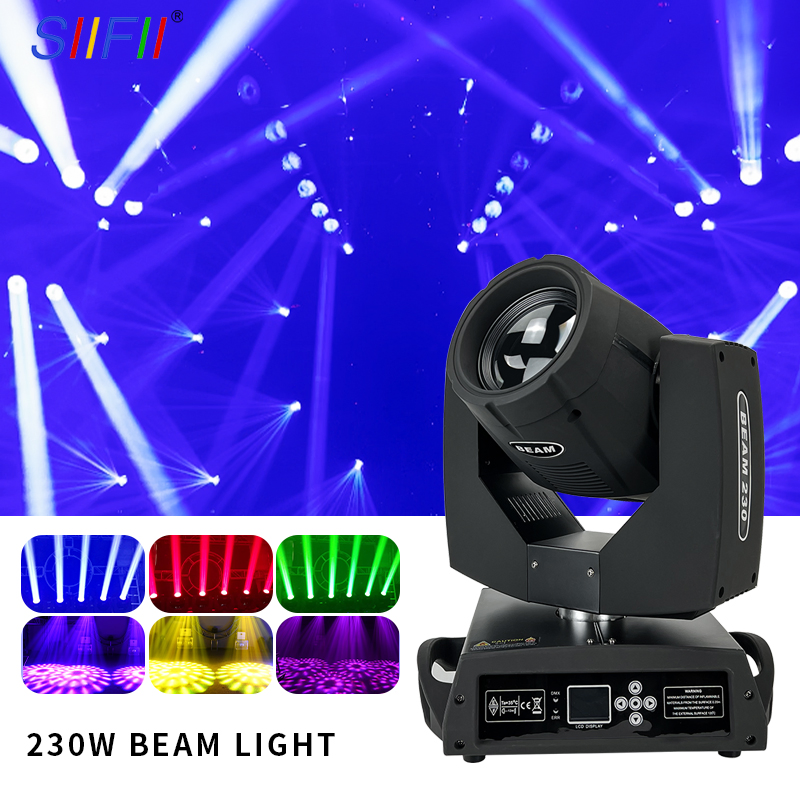

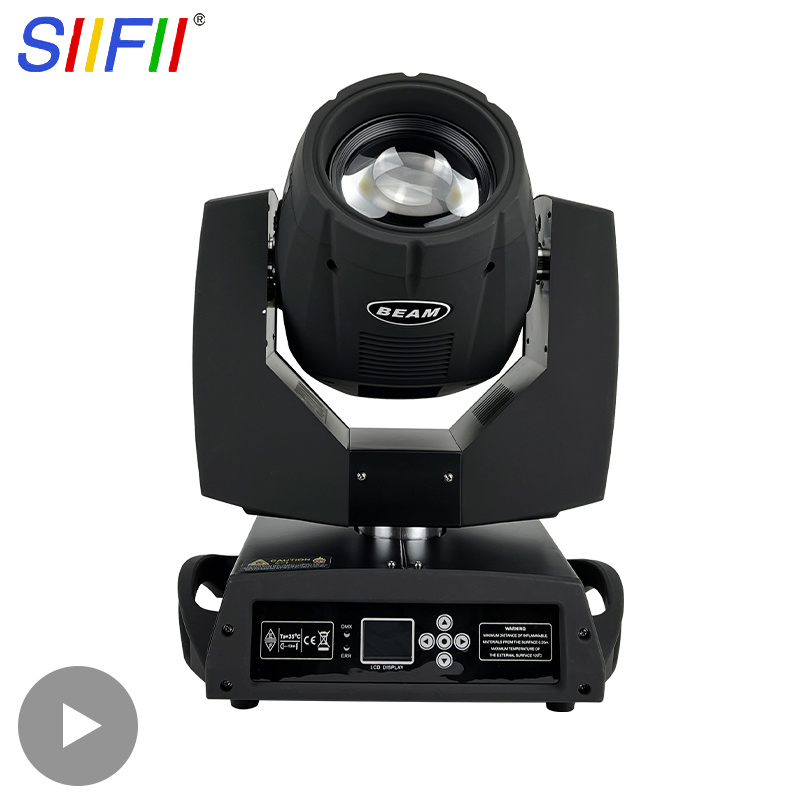

230W 7r Moving Head Beam Spot Light with LED Strip for Events Party Stage Light

Customization: Available
Light Source: Gas Discharge Bulb
Material: Aluminum

Product Description

Basic Info
Model NO.:SF-M230
Emitting Color:Changeable
Control Channel:16CH
Strobe:Electronic Strobe
Control Mode:DMX512, Sound, Master-Slave
IP Rating:IP44
Certification:CE, RoHS, GB7000.217-2008, GB7000.15-2000
Voltage:240V
Transport Package:Carton Package or Flight Case

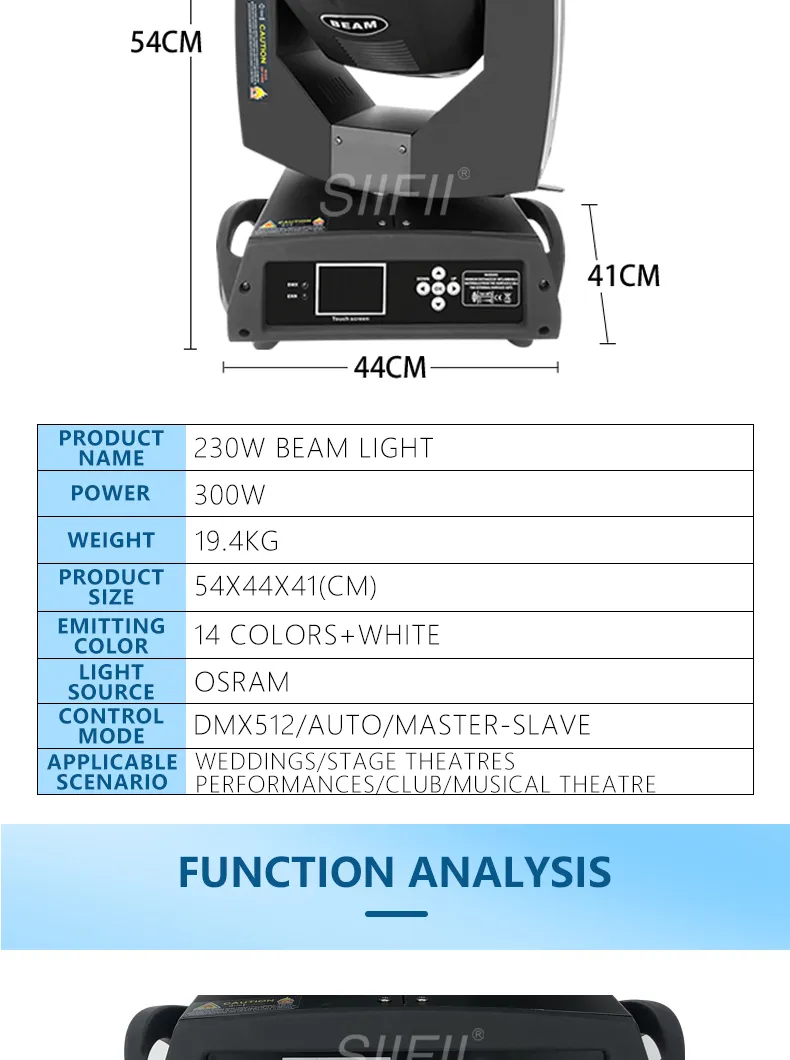

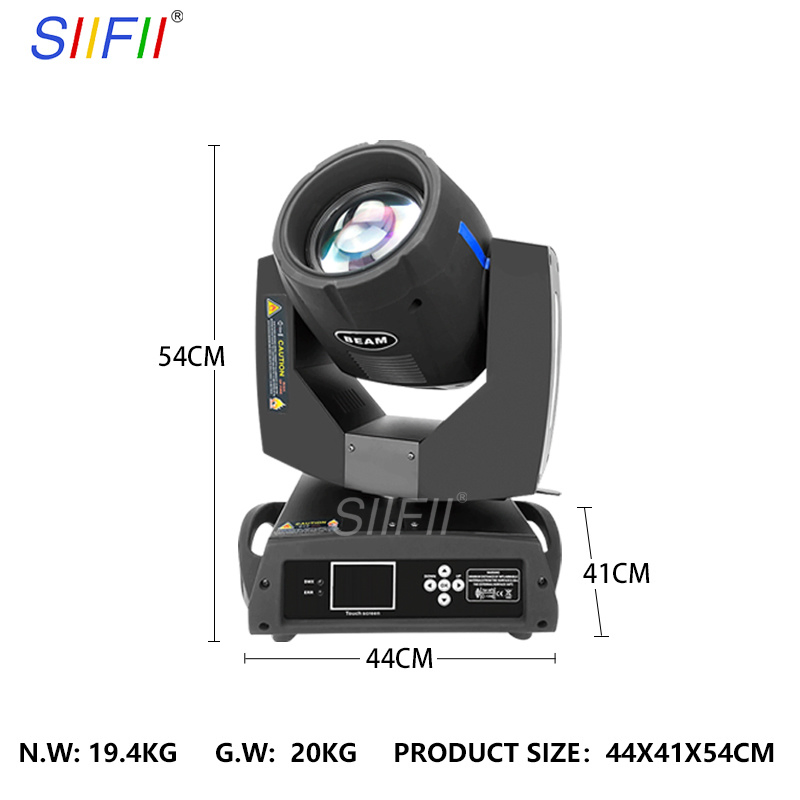

Specification:54x44x41cm
HS Code:9405409000
Production Capacity:5000 PCS Per Month
Technical Parameters
VoltageAC100-240, 50/60HZ
Light source230W 7R
Consumption300W
Lamp life2000 Hour
Color wheel14 colors + white
Gobo wheel17 fixed gobos + white
PrismRotating prism, bi-directional rotation, speed adjustable
Strobe0-15 times/s
Dimmer0-100% linear dimmer
Other functionFrost, Focus, Zoom etc.
Channel16/20CHs
Control modeDmx512, sound, master-slave

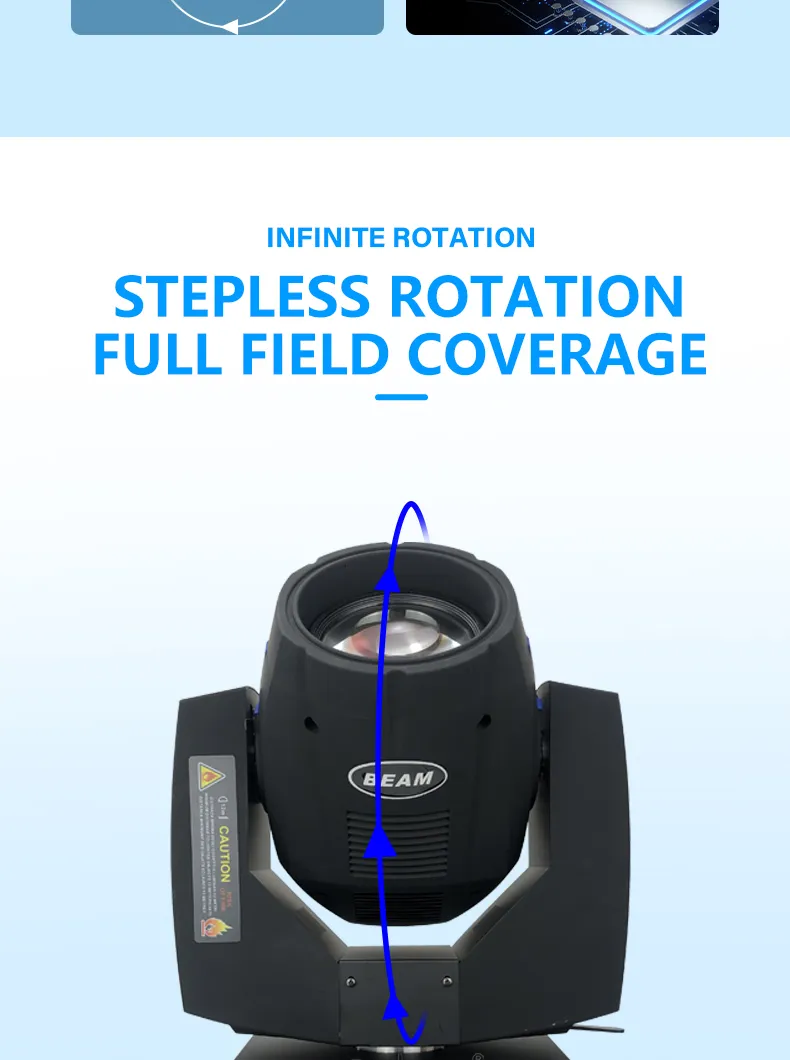

Pan540 degree, 16bit, Automatic position correction
Tilt270 degree, 16bit, Automatic position correction

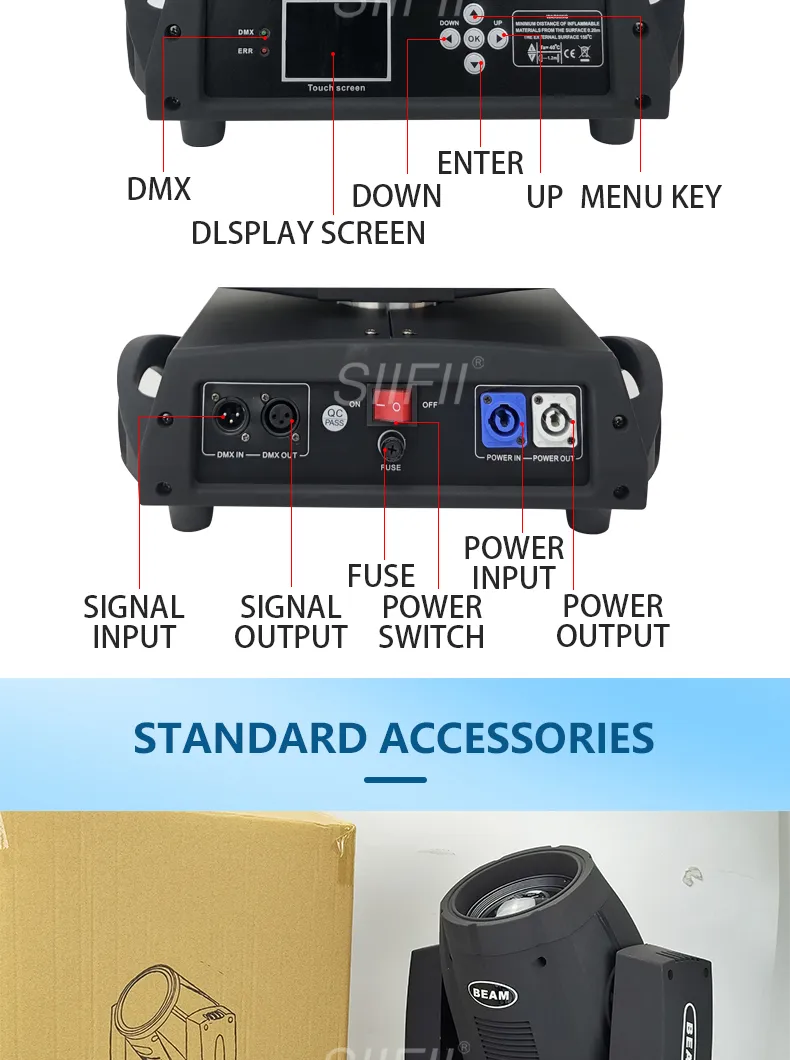

DisplayLCD display
DMX in/out3pin XLR
Net Weight19.4kg
Package Gross Weight17.200kg

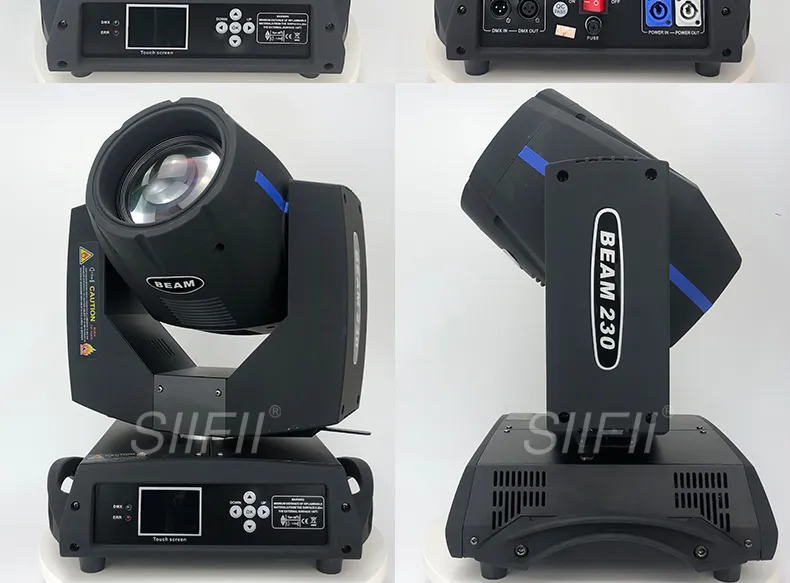

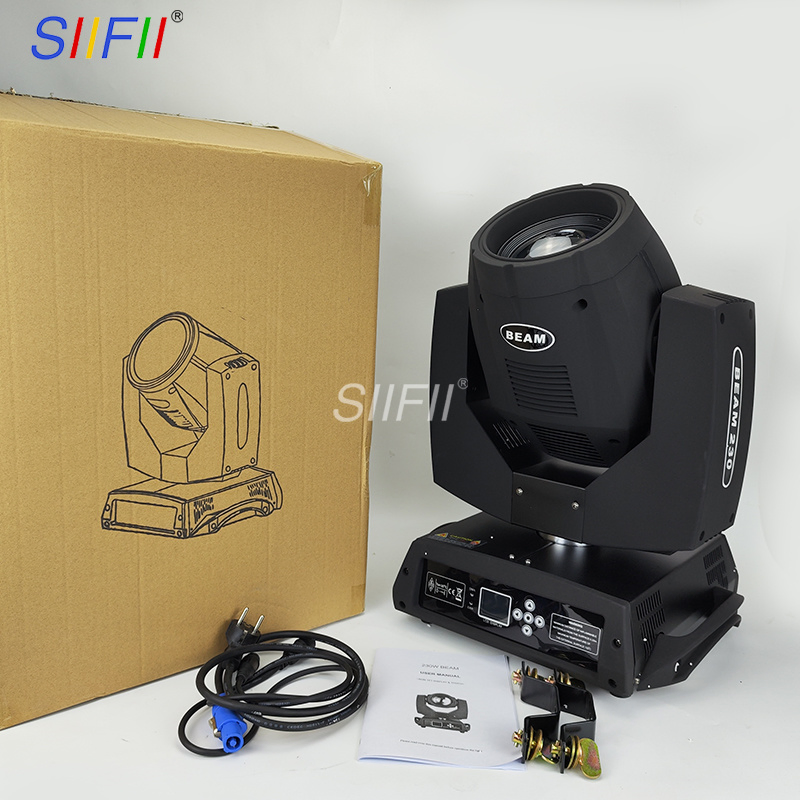

Product Showcase

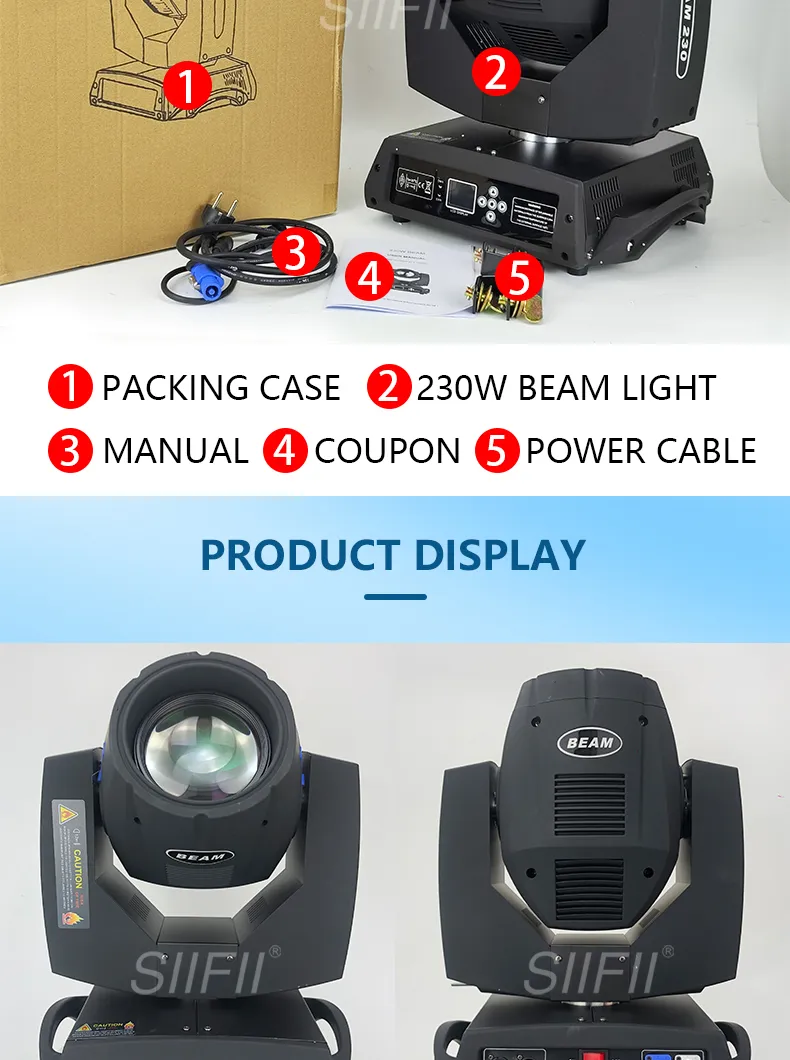

Packaging & Shipping
Price TermEXW, FOB
Packing DetailStandard export carton box with foam is provided. Flight case and color box is also available if needed.
Shipping OptionsBy Express: DHL, FedEx, UPS, TNT (door to door); By Air: To airport; By Sea: FCL or LCL
Delivery TimeMini order: 3-5 working days. Under 1000 pcs: 10-20 days. More than 1000 pcs: 20-35 days.
Payment TermsT/T or Western Union: 30% down payment and 70% paid before delivery; Paypal
Warranty PeriodTWO years warranty period. Free parts and after-service provided for problems not caused by improper operation.
Our Service & Promise

Our Promise

  • Provide solutions and high quality products
  • Streamline the buying and paying processes
  • Deliver goods to customers worldwide with speed and precision
  • Protection of your sale area and design ideas

Our Service

  • Professional communication before ordering
  • Strict quality check for each part and process
  • Optimum system solutions based on requirements
  • Complete post-sale service including technical guides
Frequently Asked Questions
Q1: What is the light source used in the SF-M230?

A: The SF-M230 utilizes a powerful 230W 7R lamp with a lifespan of approximately 2000 hours.

Q2: How many colors and gobos are available on this beam light?

A: This model features a color wheel with 14 colors plus white, and a gobo wheel with 17 fixed gobos plus white.

Q3: What control modes does the SF-M230 support?

A: It supports multiple control modes including DMX512 (16/20 channels), Sound Active, and Master-Slave configurations.

Q4: Is the SF-M230 suitable for outdoor events?

A: The light has an IP44 rating, which provides protection against solid objects larger than 1mm and water splashes from any direction, making it suitable for protected outdoor use or standard indoor stage environments.

Q5: What is the warranty policy for this product?

A: We provide a two-year warranty period. During the first year, if there are any technical issues not caused by improper operation, free parts and professional after-service are provided.

Q6: What are the shipping options for international orders?

A: We offer shipping via Express (DHL, FedEx, UPS, TNT), Air freight to your local airport, or Sea freight (FCL/LCL) depending on your order size and urgency.
