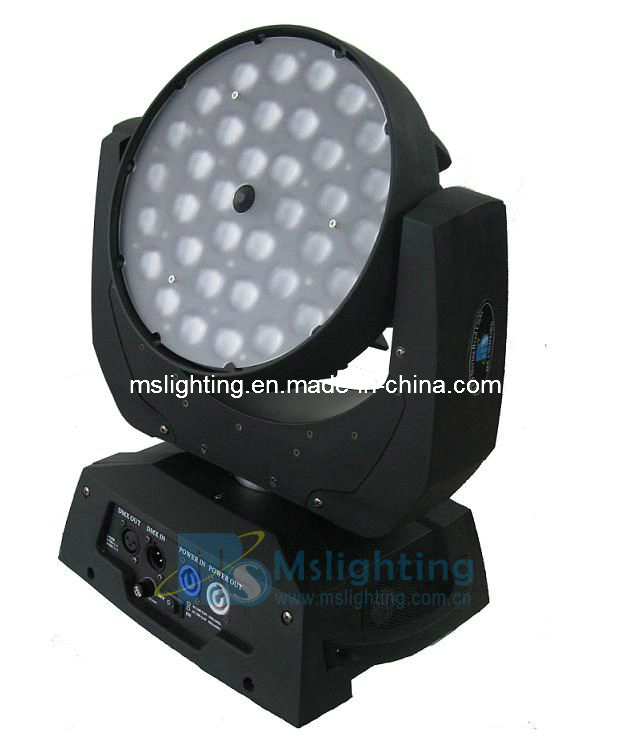

36*15W RGBWA 5in1 LED Zoom Moving Head Wash Light

Customization: Available
Light Source: LED
Material: Aluminum

Product Description

i

Basic Info.

Model NO.MHLED 3615Z
Emitting ColorRGBWA 5in1
Control Channel15CH/16CH
StrobeAdjustable Speed Strobe
Control ModeDMX512, Master/Slave, Sound, Auto
IP RatingIP20
CertificationCE, RoHS, SGS
Voltage90-245VAC 50-60Hz
Beam Angle10° to 90° Adjust Freely
No.of LED36*15W RGBWA 5in1
Luminous Efficiency99%
Electronic Dimmer0-100% Linear Dimmer

Product Description

  • Bulbs: 36*15W RGBWA 5IN1 Multi-Color LED Lamp (Total Power: 600W)
  • Color System: 16.7 million kinds of colors changes with infinite RGB color mixed system.
  • Movement: Horizontal scanning reaches 450° and vertical 270° with 8bit/16bit precision.
  • Strobe: 1-25/second high speed strobe, single color or mixed color strobe options.
  • Zoom Range: Adjustable beam angle from 10 degree to 90 degree freely.
  • Display: 180° reversible digital LCD display on the control panel.
Technical Specifications
Electronic Strobe1-30 flashes/second
LED Life Time80,000-100,000 hours
Beam AngleZOOM 10°-90°, adjustable freely
Power Consumption600W
IP RatingIndoor (IP20)
Operating Temperature-20ºC to +45 ºC
CRI (Ra>)95
Refresh Rate>1000 Hz (Flicker Free)

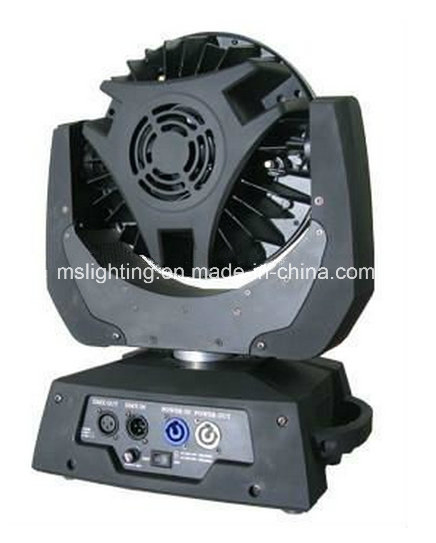

CoolingEntire casing as heat sink plus noiseless fans
Channel Function (16CH Mode)
CH1PAN
CH2TILT
CH3ZOOM
CH4Strobe / Reset
CH5Color
CH6Dimmer
CH7RED
CH8Green
CH9Blue
CH10White
CH11AMBER
CH12RGBWA RAINBOW Effect & Speed adjustment
CH13X Fine
CH14Y Fine
CH15Motor Speed
CH16RUNNING MODE
📷

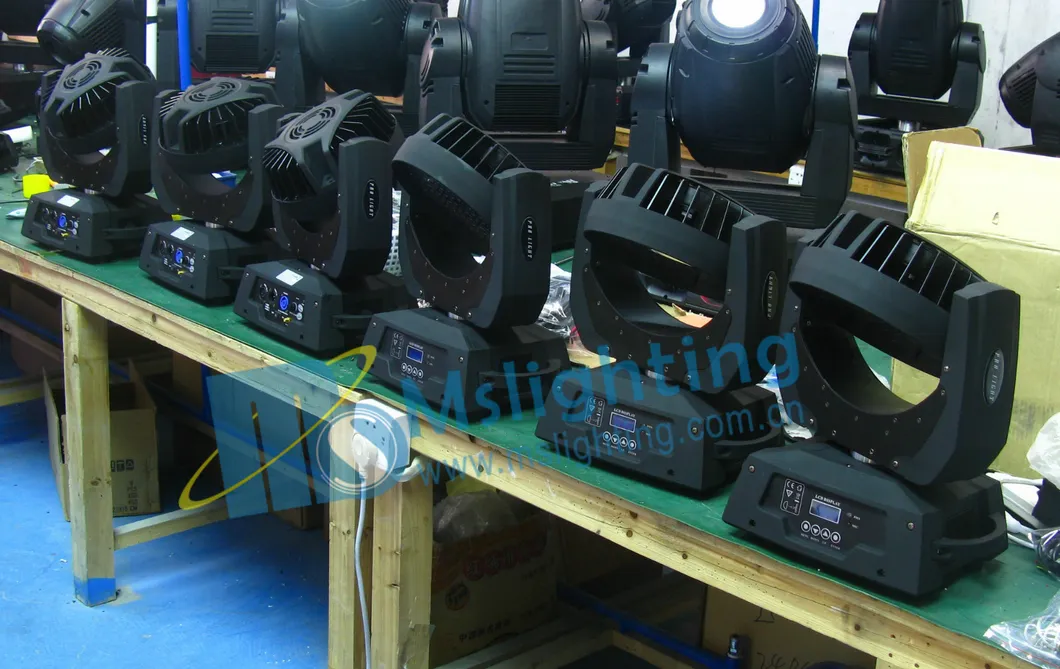

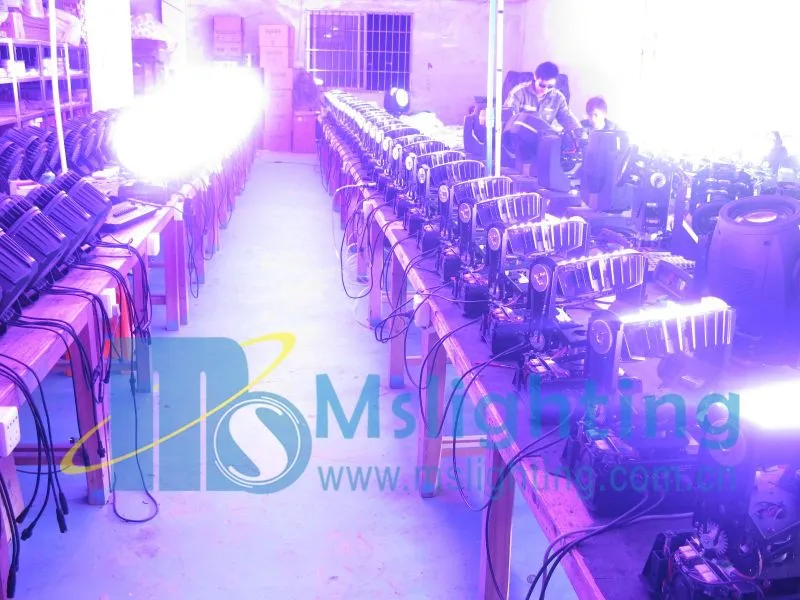

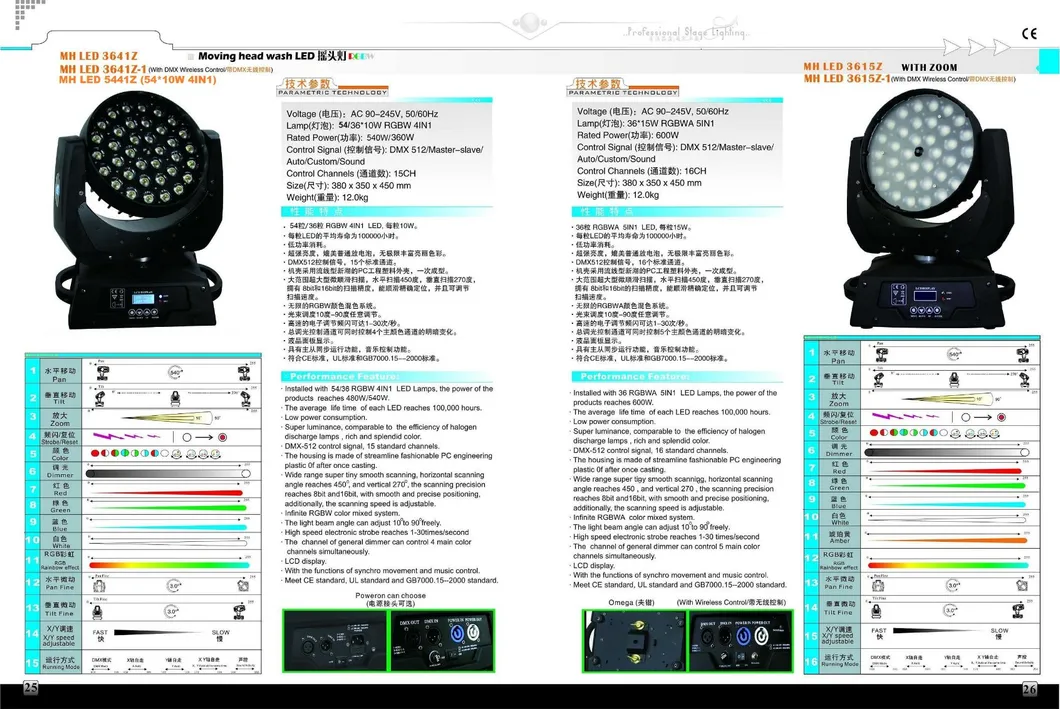

Production Line & Catalog

?

Frequently Asked Questions

What is the zoom range of this moving head light?
The light features a motorized zoom function that can adjust the beam angle freely from 10 degrees to 90 degrees.
How long do the LEDs last?
The 36*15W RGBWA LEDs are rated for a long lifetime of between 80,000 and 100,000 operating hours.
What control modes are supported?
This fixture supports DMX512 (15 or 16 channels), Master/Slave mode, Sound Active mode, and Auto-run programs.
Is the light flicker-free for video recording?
Yes, it has a refresh rate of over 1000 Hz, making it flicker-free and suitable for television and film applications.
What is the maximum power consumption?
The total power consumption is 600W, powered by a high-efficiency switch power supply compatible with 90V-240V.
What is the scanning range for Pan and Tilt?
It offers a wide range of movement with horizontal scanning up to 450° and vertical scanning up to 270°, with smooth 16-bit positioning.
