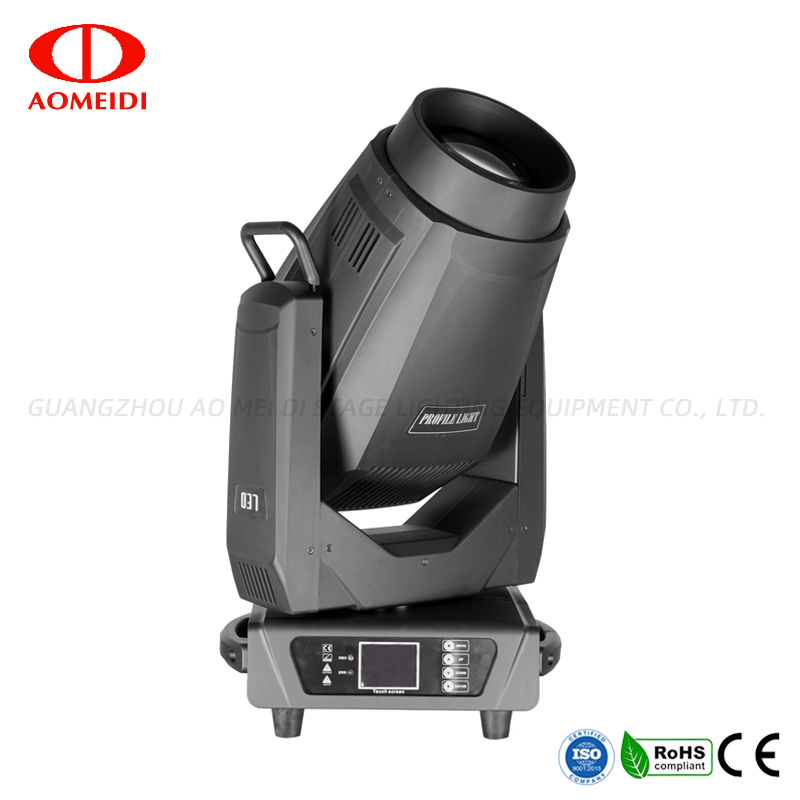

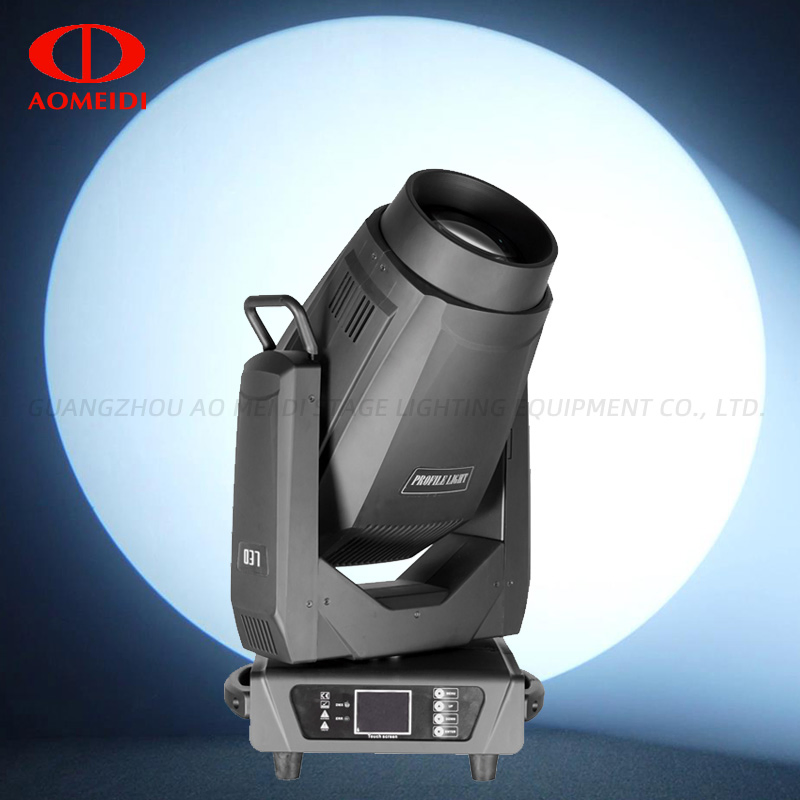

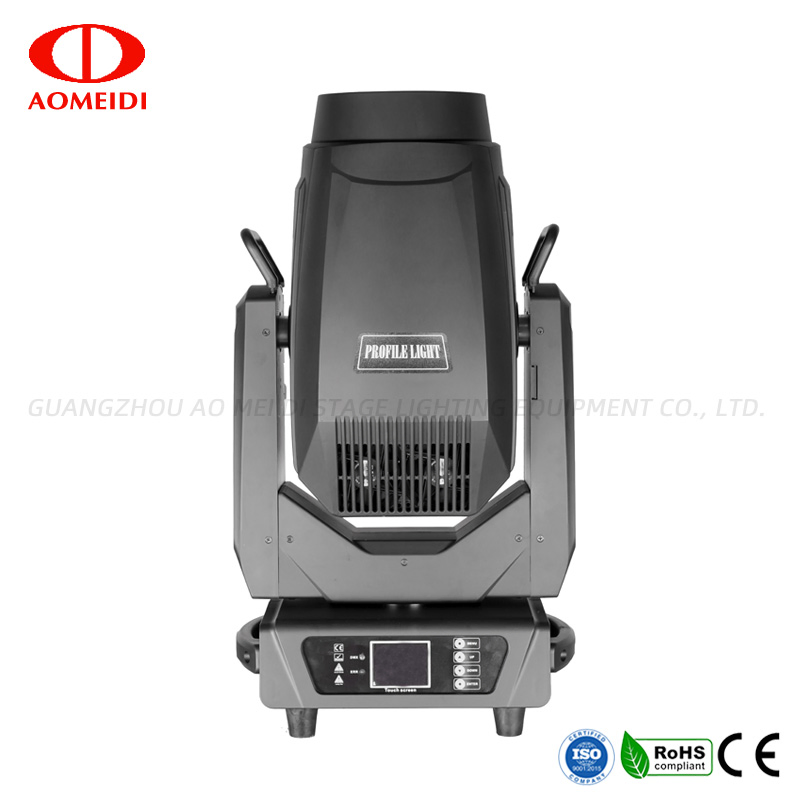

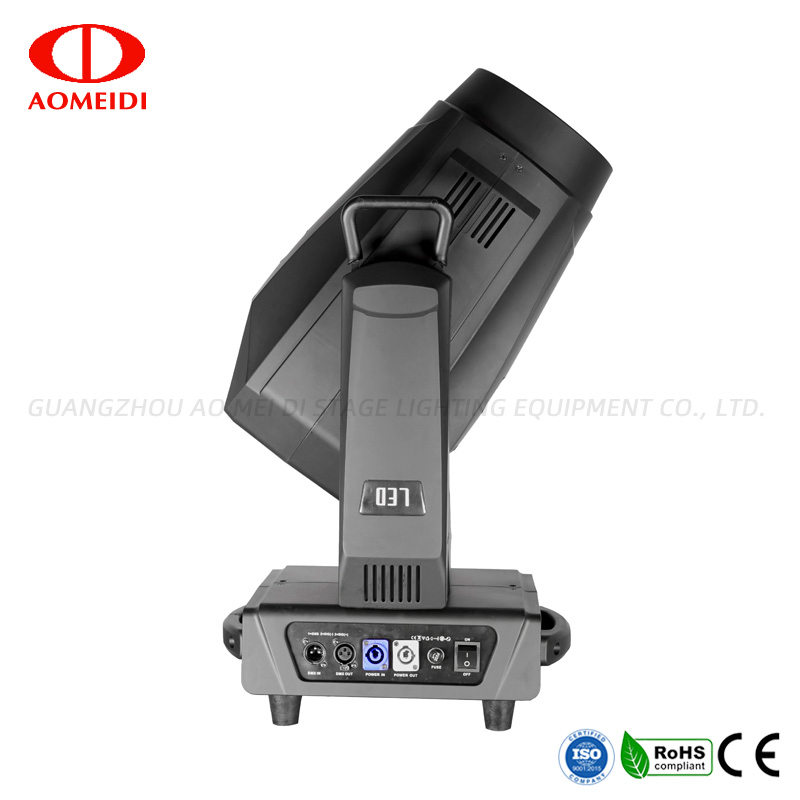

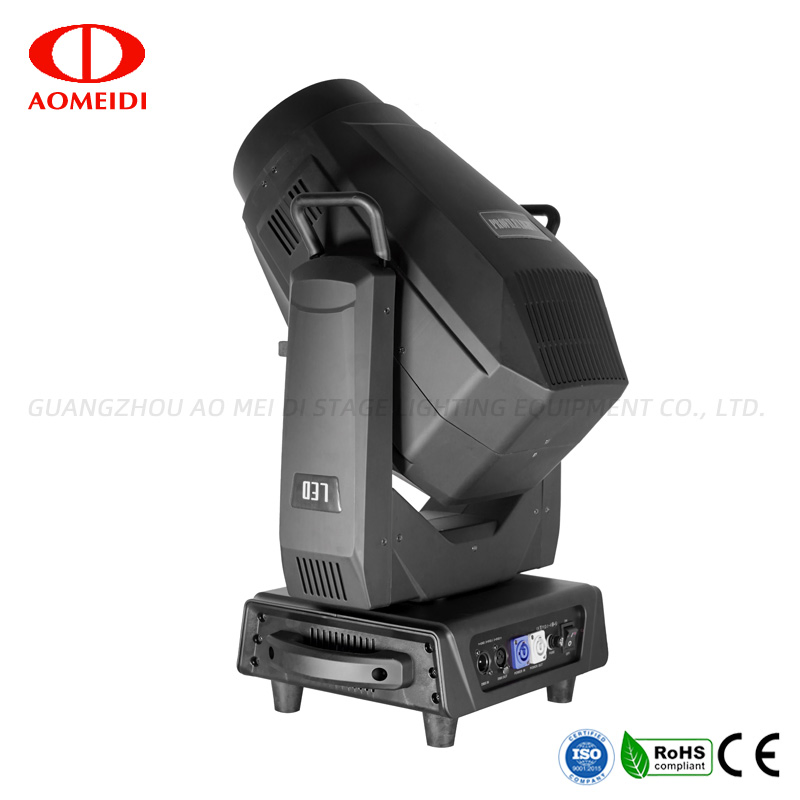

600W LED Profile Beam Spot Wash Lighting Moving Head Stage Bar Light

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Information

Model NO. AMD9918-600W
Emitting Color Changeable
Control Channel 35 Standard DMX512 Channels
Strobe Adjustable Speed Strobe
Control Mode Sound Control, Auto, Master-Slave, DMX512
IP Rating IP20
Voltage AC 100V-240V
Net Weight 25.5kg

Technical Parameters

Input voltage/frequencyAC100V-240V, 50/60Hz.
Rated power700W.
Light sourceHigh-brightness and high-power 600W white light LED.
Light source life expectancy20,000 hours.
Beam angle3°-40°, zoom lens, linear zoom in and zoom out.
Color SystemCMY infinite color mixing system. CTO color temperature linear adjustment(3000K-6500K).
Color wheel 1 & 24 colors + white light, half color effect, filter indexing, bidirectional rotating rainbow effect.
Static gobo wheel11 fixed gobos + flame effect + white circle, gobo jittering.
Rotating gobo wheel6 pluggable rotating gobos + water ripple effect + white circle, gobo indexing and jittering.
FramingControllable framing system with 4 blades, 150° rotation, precise spot control.
Prism3-facet and 8-facet circular prisms, bidirectional rotate, overlapping composite effects.
Frost & FocusDMX linear high-definition focus; built-in frost filter for soft wash effect.
Pan/Tilt movementPan 540°, Tilt 270°, 16-bit fine adjustment, automatic reset.
📷

Detailed Gallery

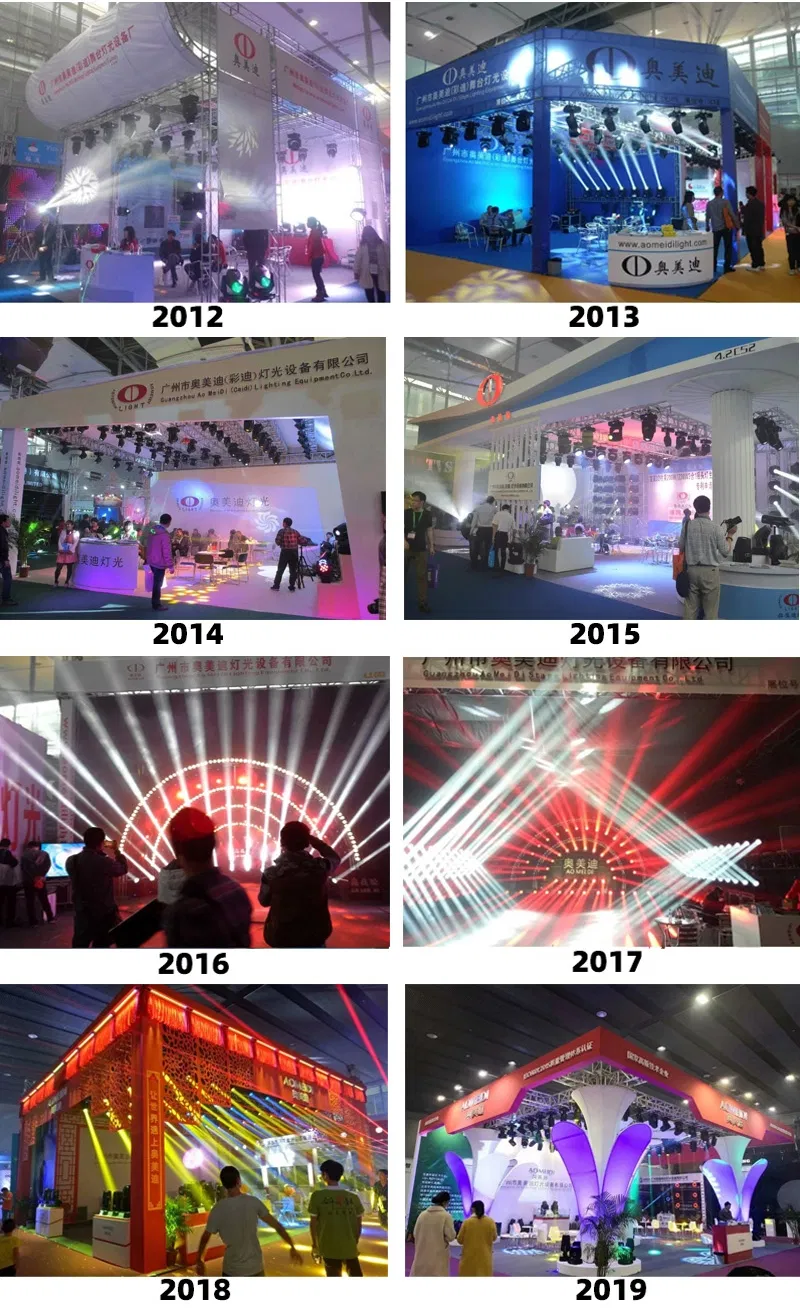

Quality & Capability

?

Frequently Asked Questions

What is the light source used in this moving head?
The fixture uses a high-brightness and high-power 600W white light LED with a life expectancy of approximately 20,000 hours.
Does this light support color mixing?
Yes, it features a CMY infinite color mixing system and CTO linear color temperature adjustment ranging from 3000K to 6500K.
What are the zoom and beam angle capabilities?
The fixture includes a zoom lens with a linear range from 3° to 40°, allowing for both tight beams and wide wash effects.
How many DMX channels are required for control?
The unit operates on 35 international standard DMX512 channels for precise professional control.
Is this fixture suitable for outdoor use?
The product has an IP20 rating, which means it is designed for indoor use and should be protected from moisture and dust.
Does it have a framing system?
Yes, it features a controllable framing system with 4 blades that can be rotated 150°, enabling the creation of any spot shape.
