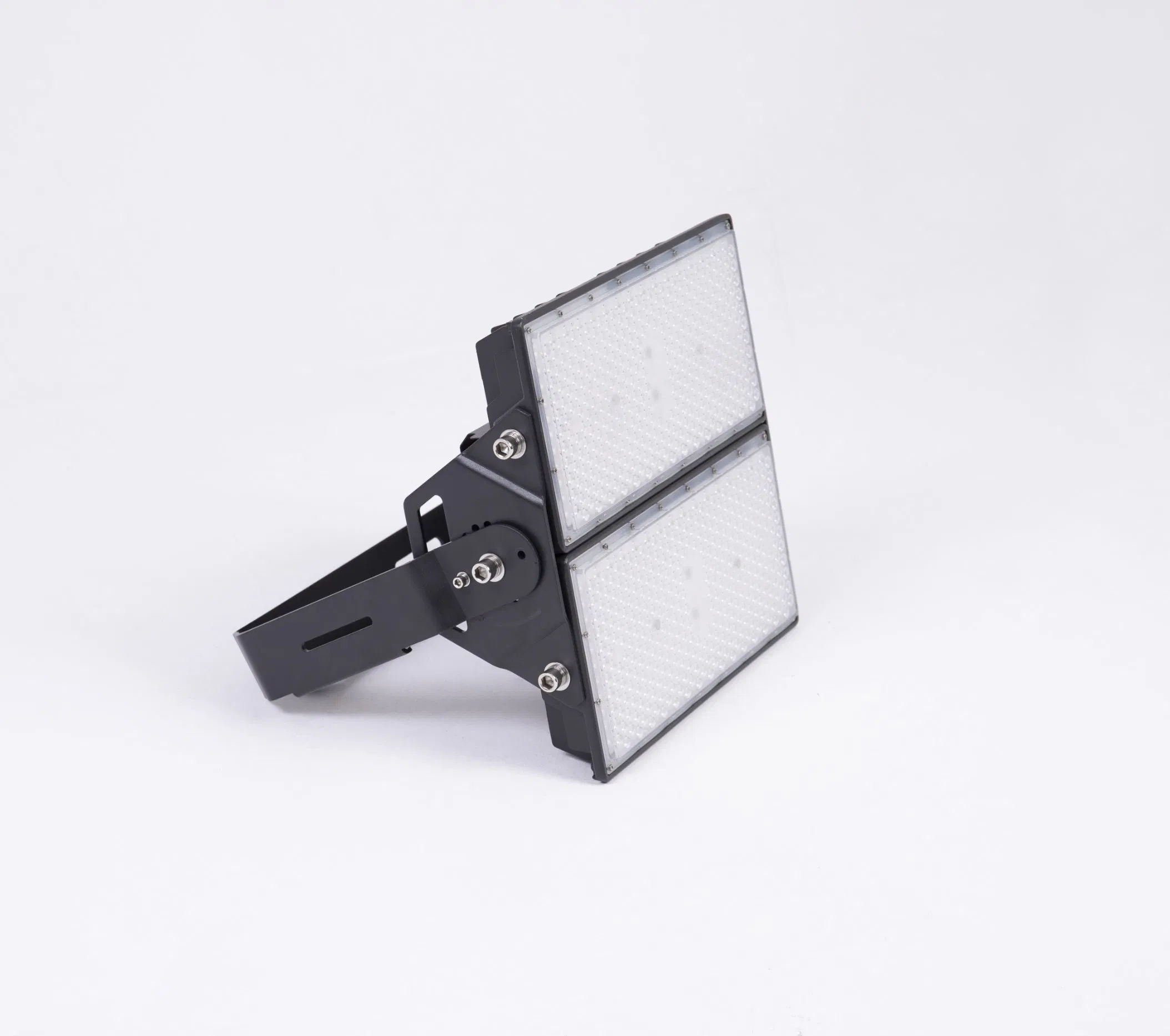

80m Znkj Carton + Foam Marine Outdoor Projection Light with CE

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info.

Model NO.
ZN-TGD-001
Pole Height
25-30m
Projection Distance
80m
Usage
Public Works
IP Rating
IP65
Certification
CCC, CE, CQC
Input Voltage
220V
LED Chips Brand
CREE
Transport Package
Carton + Foam
Specification
584*121*146
Origin
China

Detailed Parameter Table

Product model ZN-TGD-200W-1500w Power brand Mingwei, Maoshuo, Songsheng, Jiansen, Infinite
Input Voltage 100-240V Whole lighting effect 130-170LM
LED chip brand Corey, Puri Intelligent system PLC/Mobile phone
Warranty 2-5 years Power efficiency >0.97
Surge protection 10KV Operating voltage AC100V-480V
Specifications 200W/400W/600W/800W/1000W/1200W/1500W Product material Die-cast aluminum
Color temperature 3000K, 4000K, 5000K, 6500K Protection Level IP66
Work hours >50,000 Hour Beam angle 20° 30° 40° 60° 90°

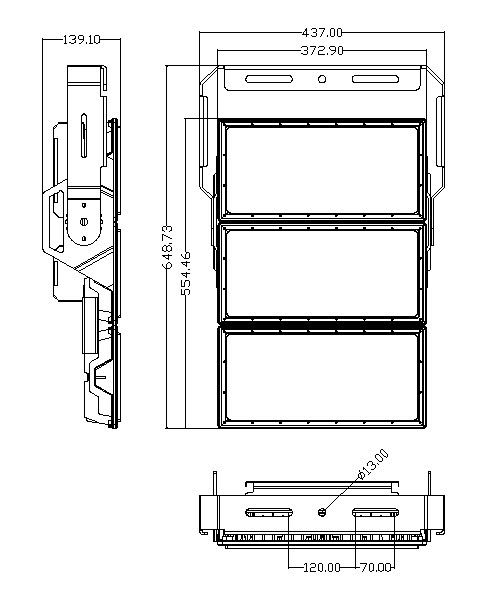

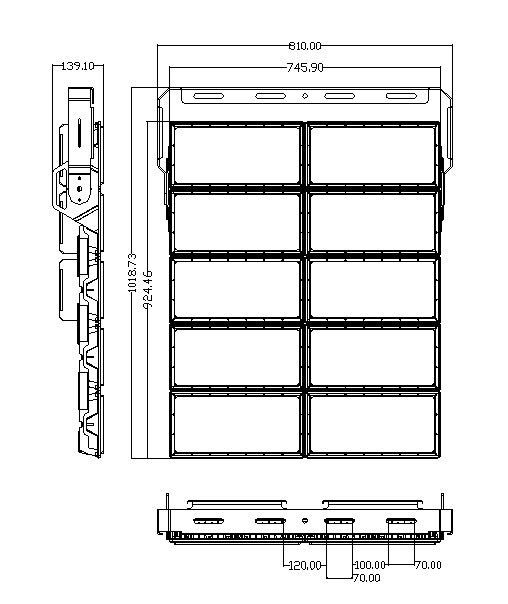

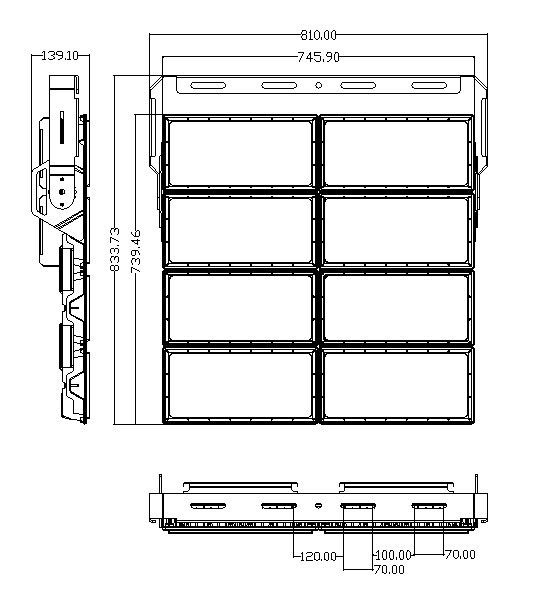

Product and Packaging Dimensions

Power Product size LED Quantity Net weight Package size
200W 584*121*146 252 Self 4kg 630*170*315
400W 584*246*146 504 Self 6.5kg 610*345*200
600W 584*371*146 756 Self 8.5kg 610*470*200
800W 584*496*146 1008 Self 11.5kg 610*560*200
1000W 584*621*146 1260 Self 14kg 610*720*200

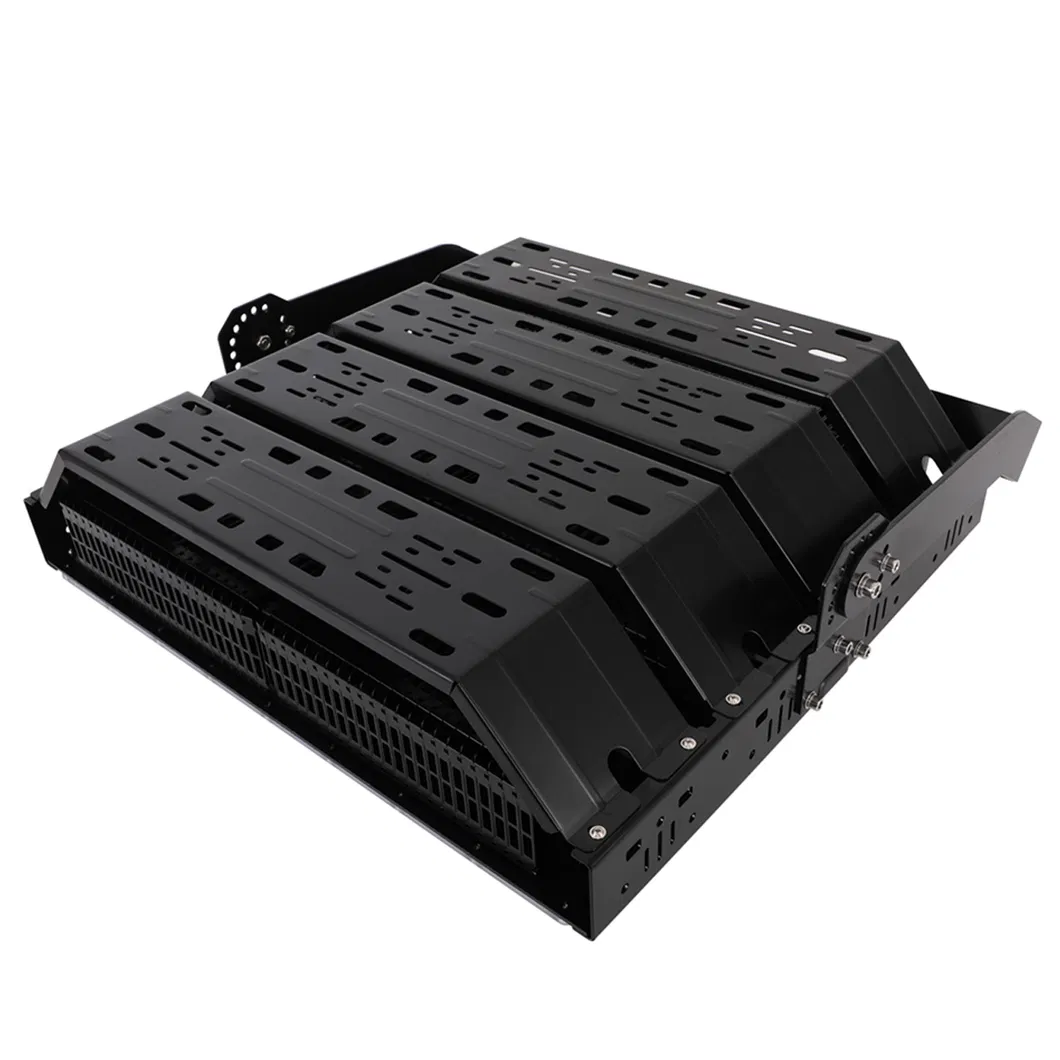

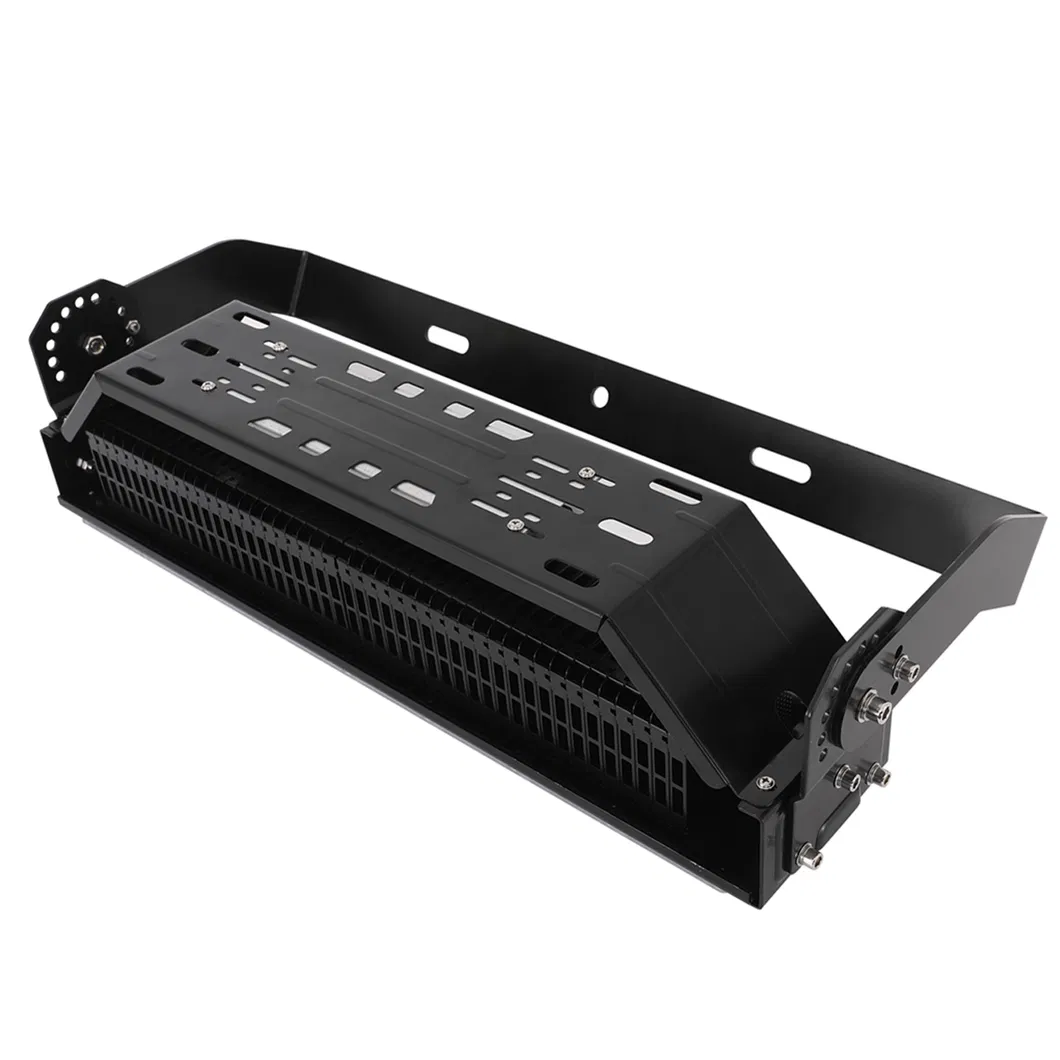

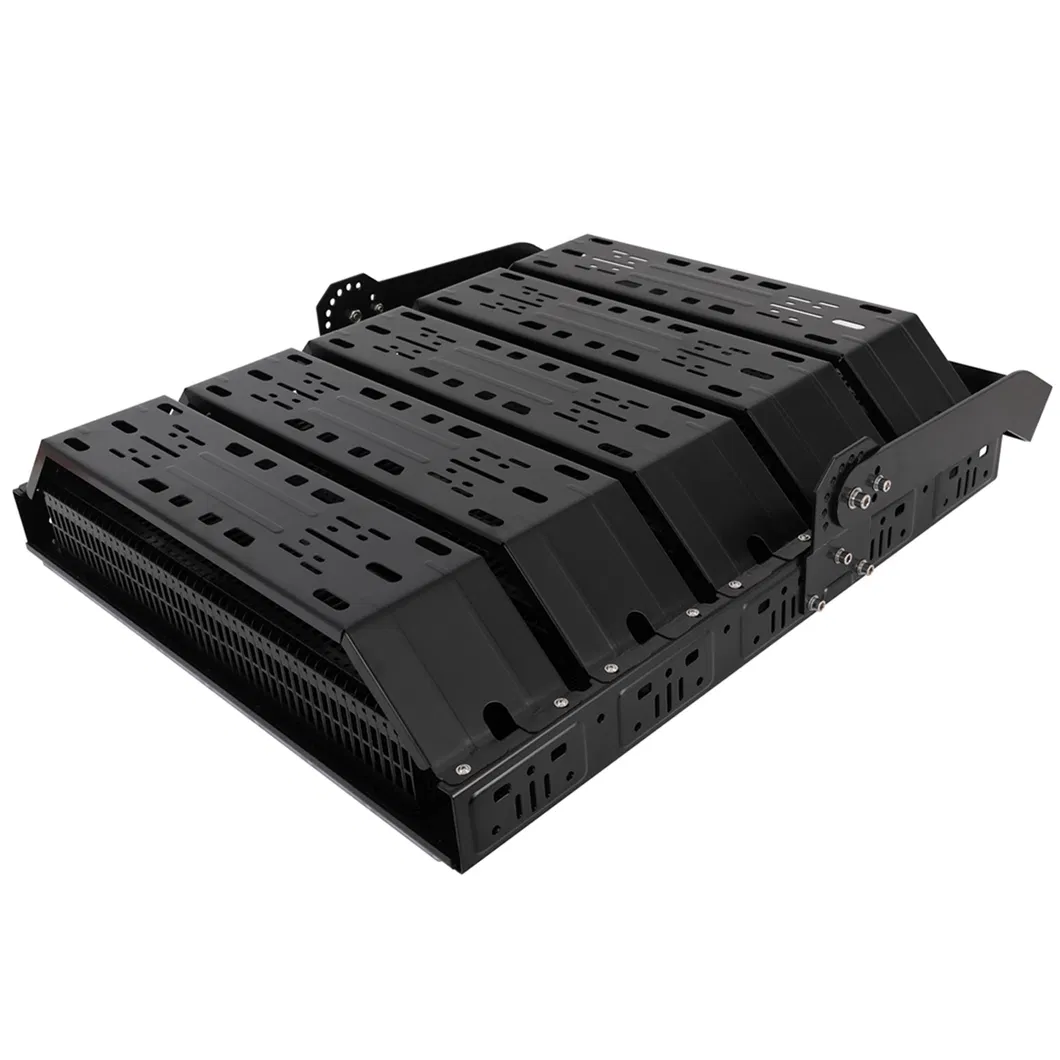

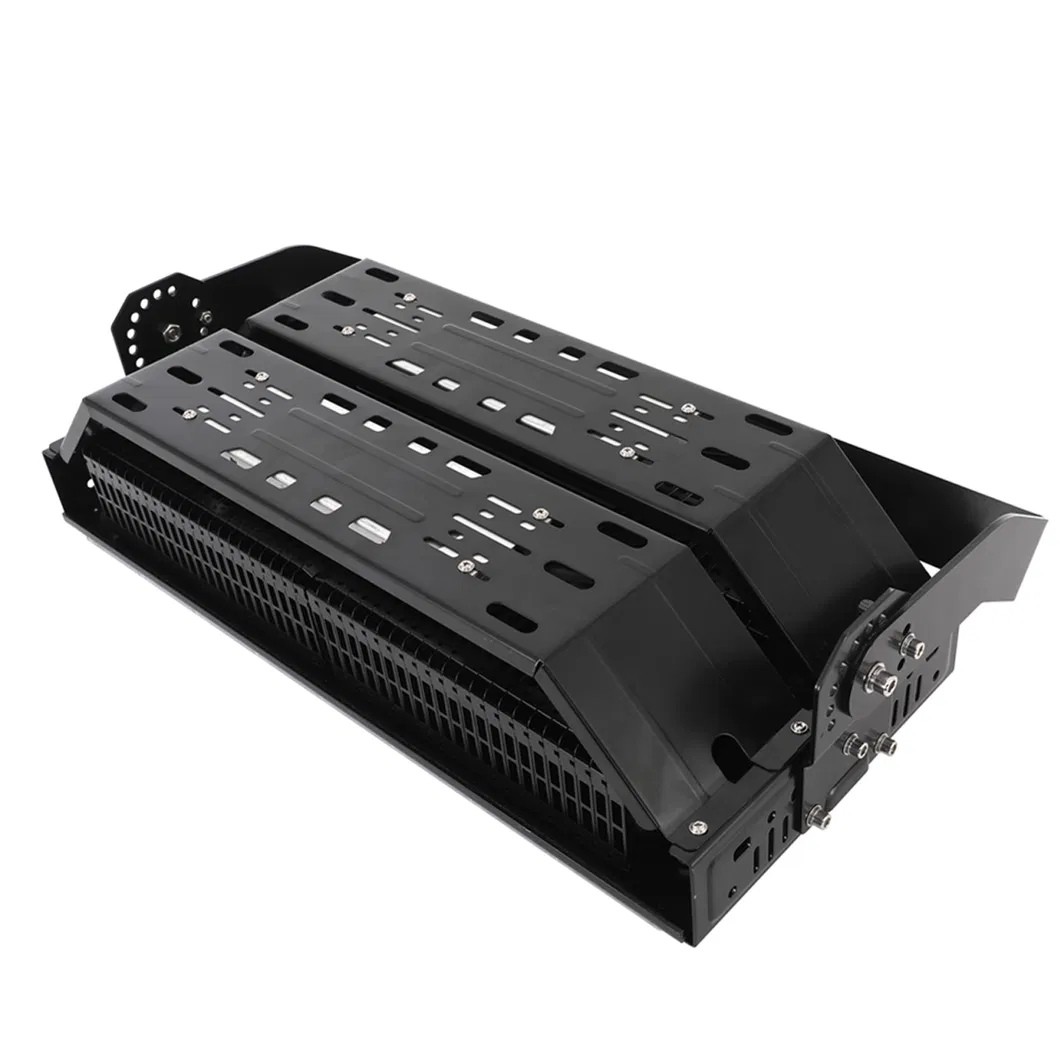

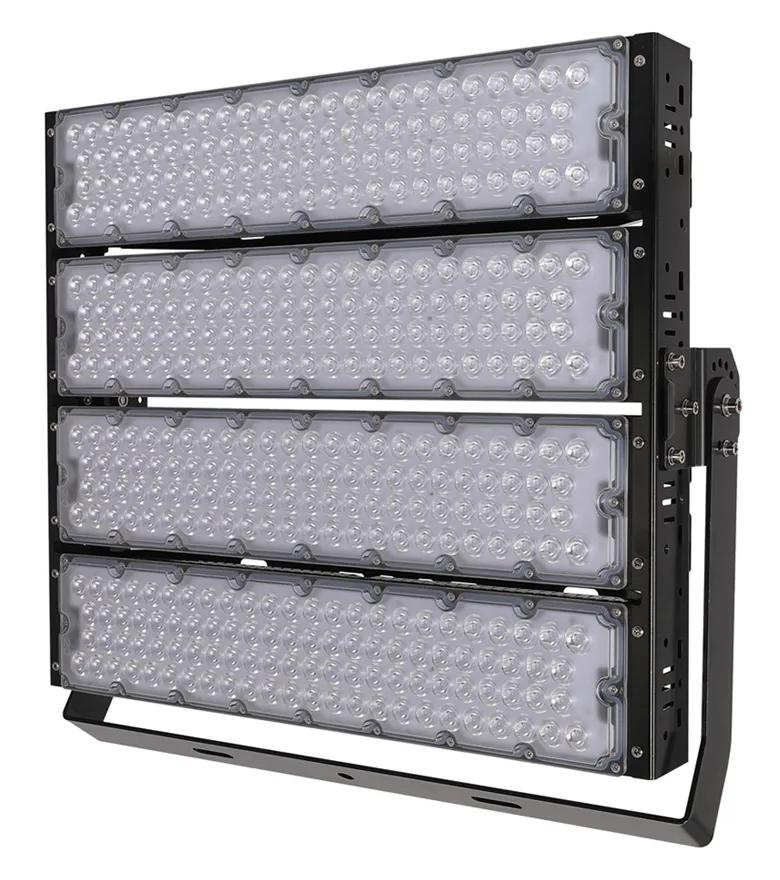

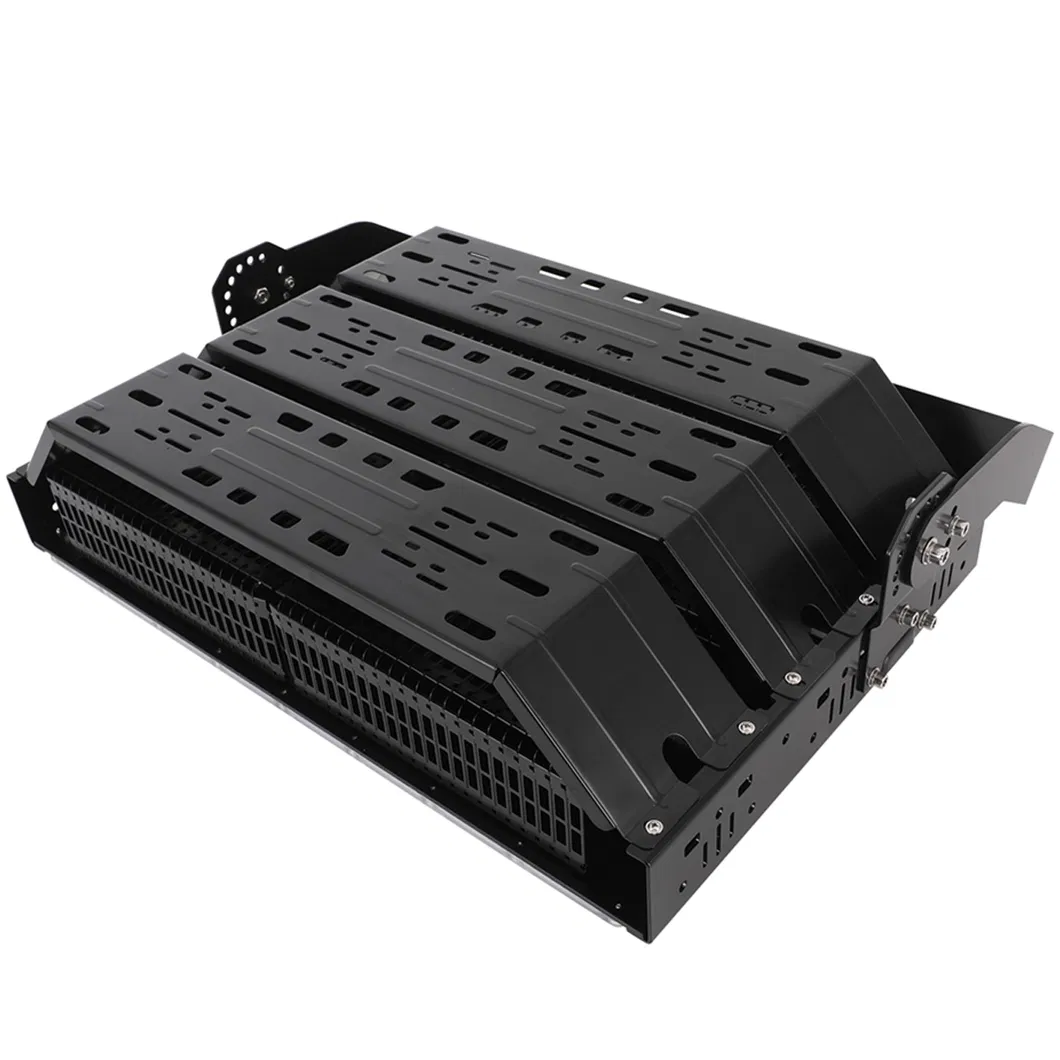

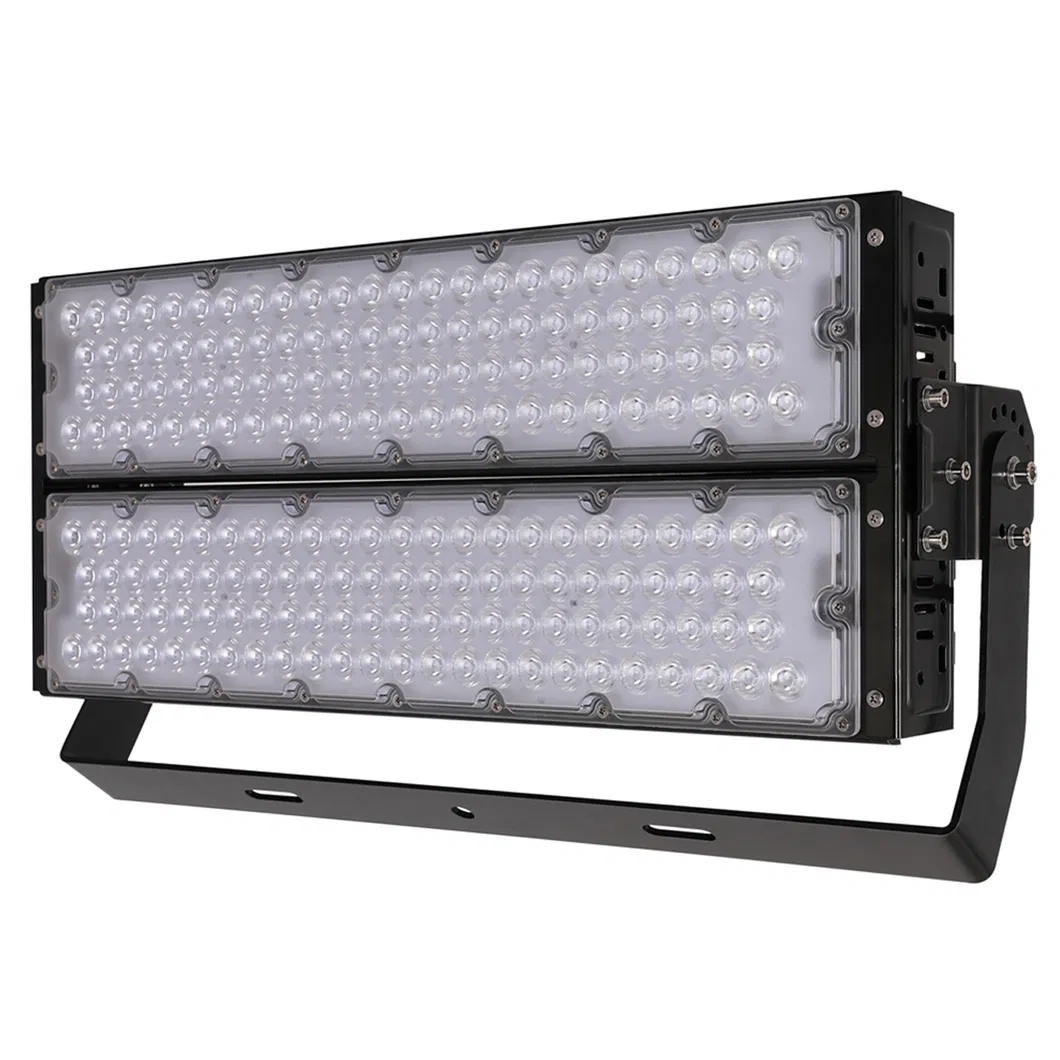

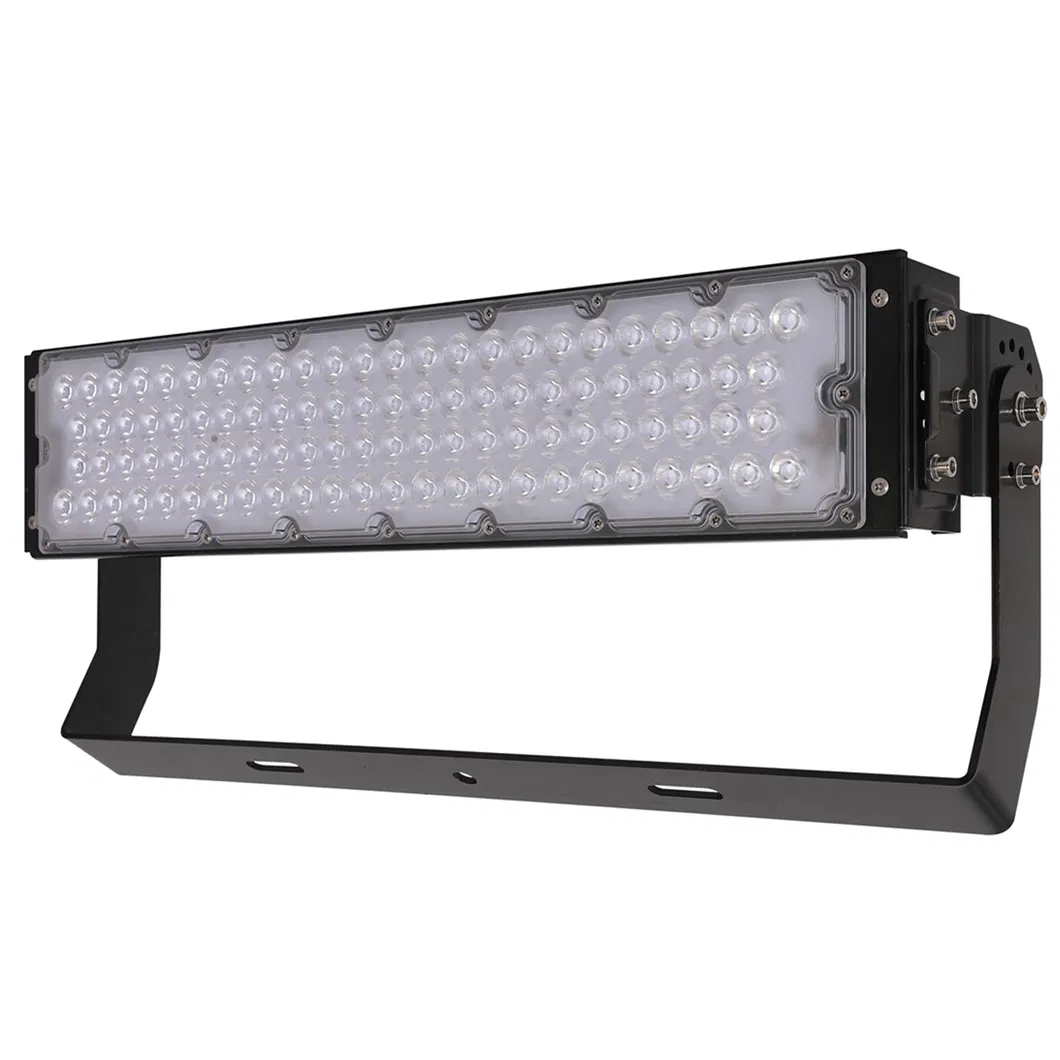

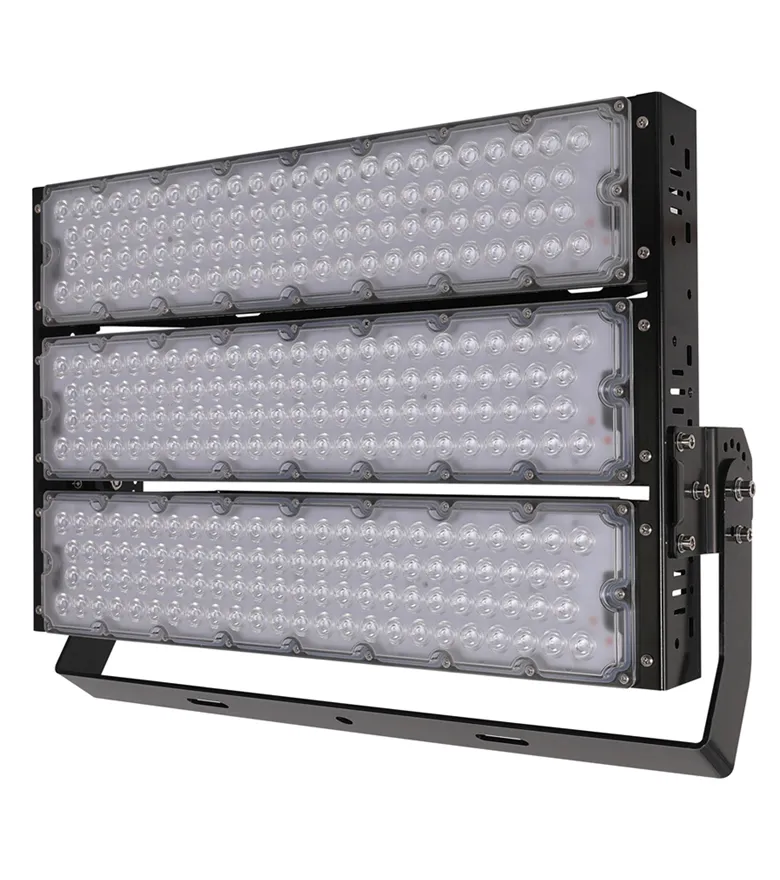

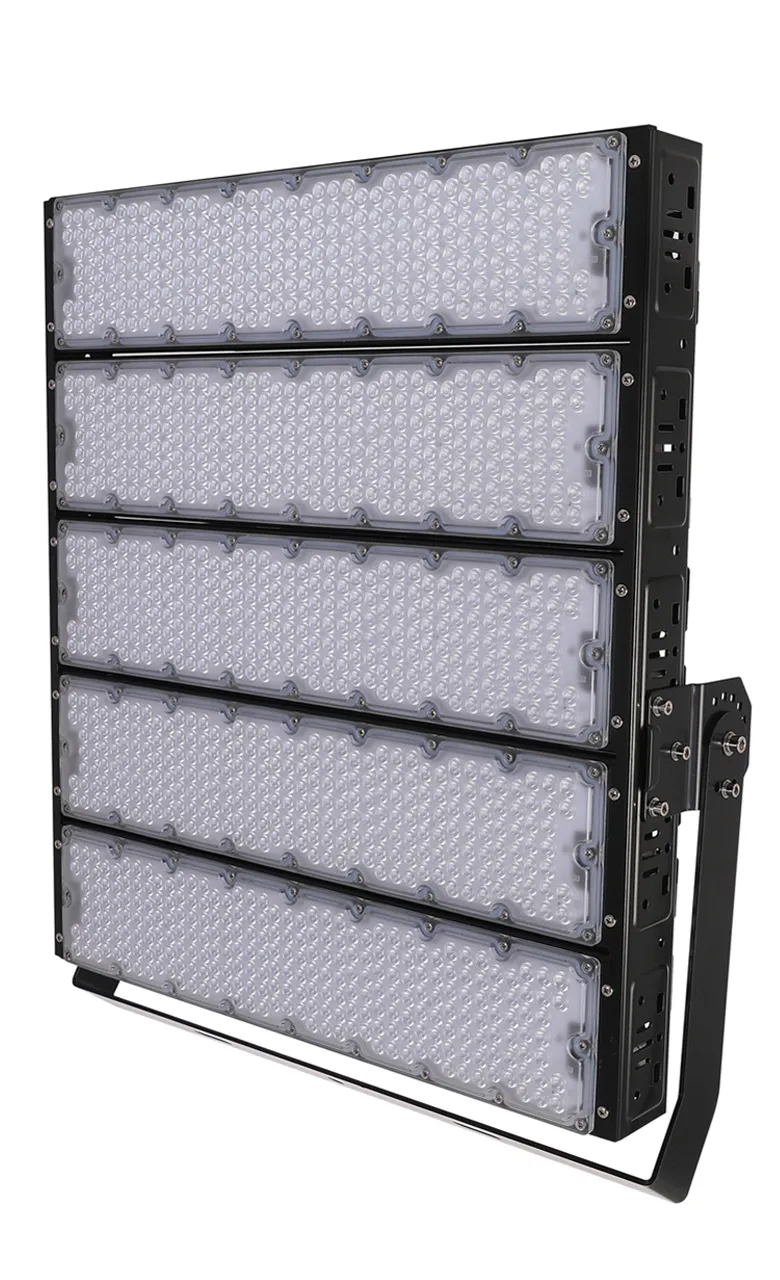

Product Gallery

Features and Advantages

1
Adaptable to lamp poles of different heights. The lamp body is constructed from aluminum sheet for highly efficient heat dissipation.
2
Multiple models available ranging from 200W to 1000W power output.
3
High brightness 3030 SMD LEDs, delivering 120 LM/watt efficiency, paired with Mingwei drives.
4
Certified quality: IP65, CE, RoHs with a 50,000-hour lifespan and 3-5 years warranty.

Scope of Application

Airport Football Field Gym Parking Lot Square Stadium

Frequently Asked Questions

Q: What is the typical lifespan of these LED lights? A: These lights are designed for long-term durability with a working life of over 50,000 hours.
Q: Are the lights waterproof for outdoor use? A: Yes, they carry an IP65/IP66 rating, making them ideal for marine and outdoor environments.
Q: What kind of warranty is provided? A: We offer a 3 to 5-year warranty depending on the specific model and configuration.
Q: Can these lights be used for high-pole lighting? A: Absolutely. They are specifically designed for pole heights between 25-30 meters with a projection distance of 80 meters.
Q: What materials are used for heat dissipation? A: The lamp body is made of die-cast aluminum which provides excellent thermal management to ensure LED longevity.
Q: Do you support intelligent dimming systems? A: Yes, our systems are compatible with PLC and mobile phone intelligent control systems.
