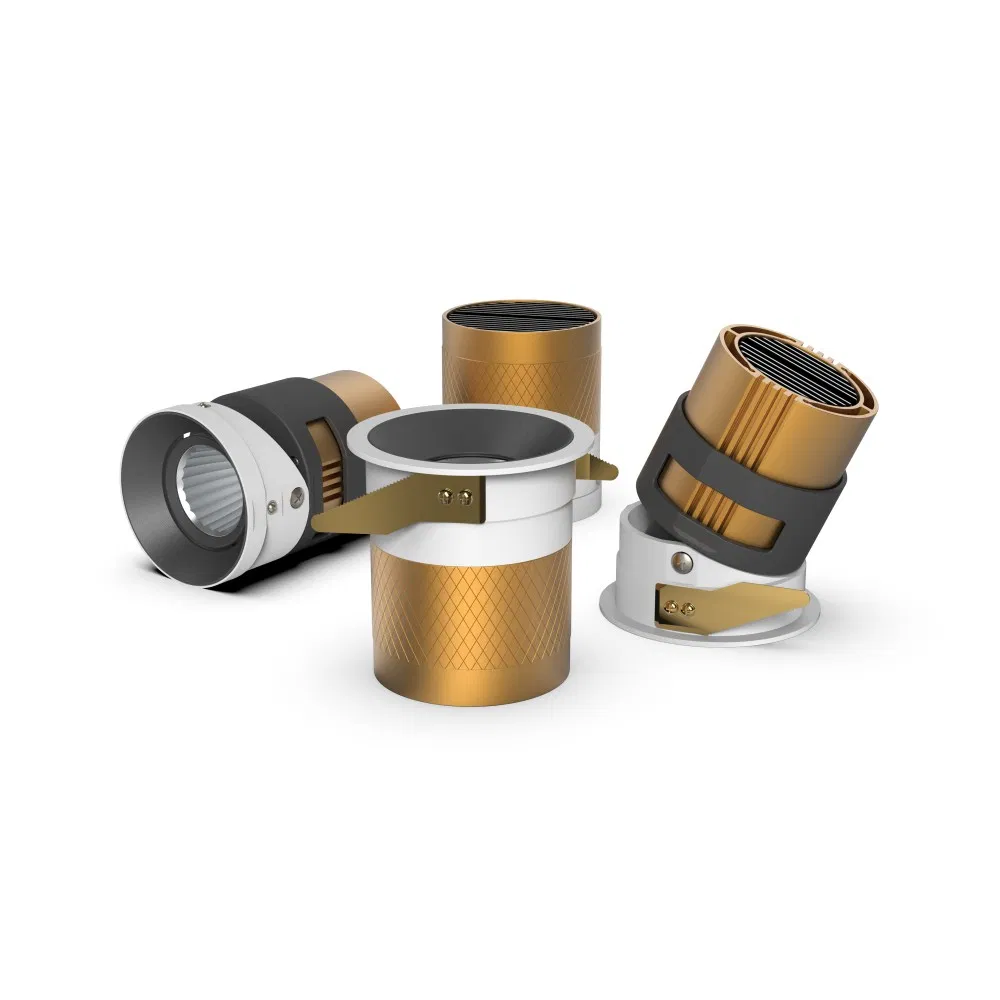

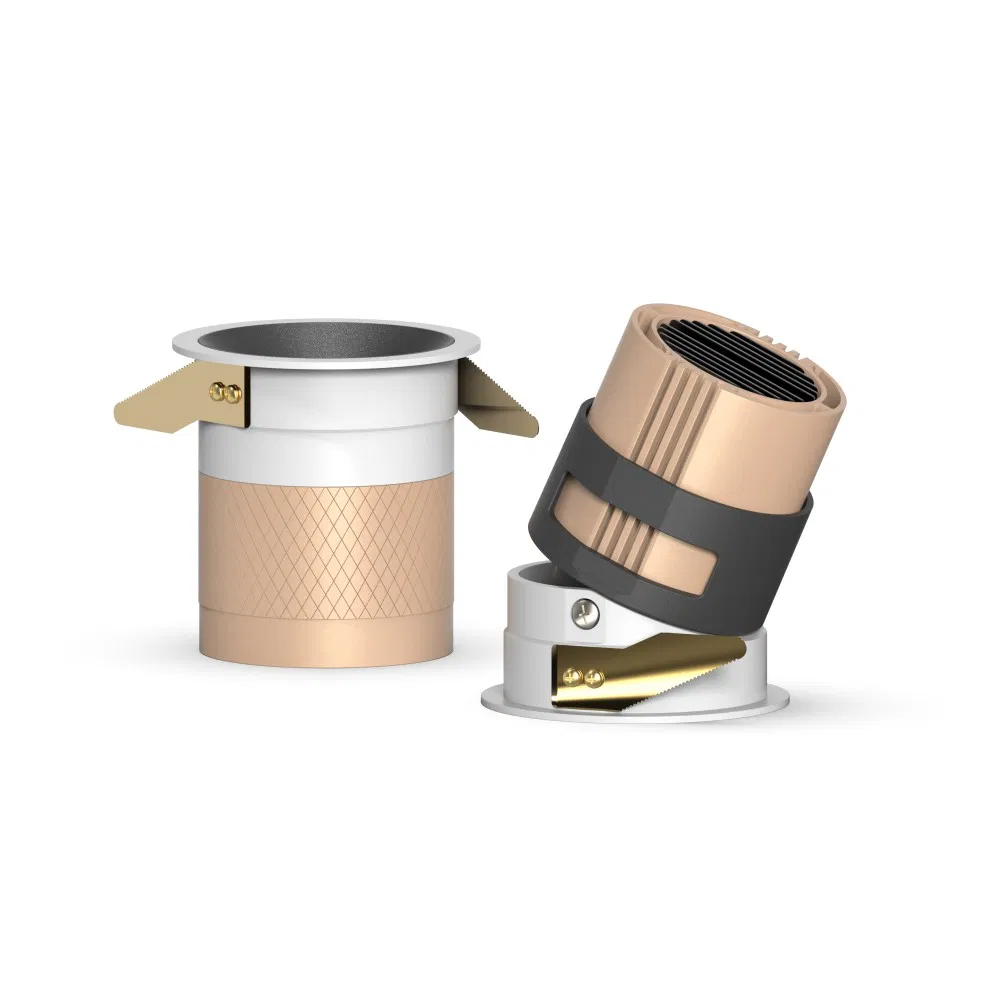

| Recessed Mounted Trim/Trimless LED Downlight Specifications | |
|---|---|
| Input Voltage | AC110V, AC220V, DC24V, DC48V |
| Lighting Efficiency | 140lm/W |

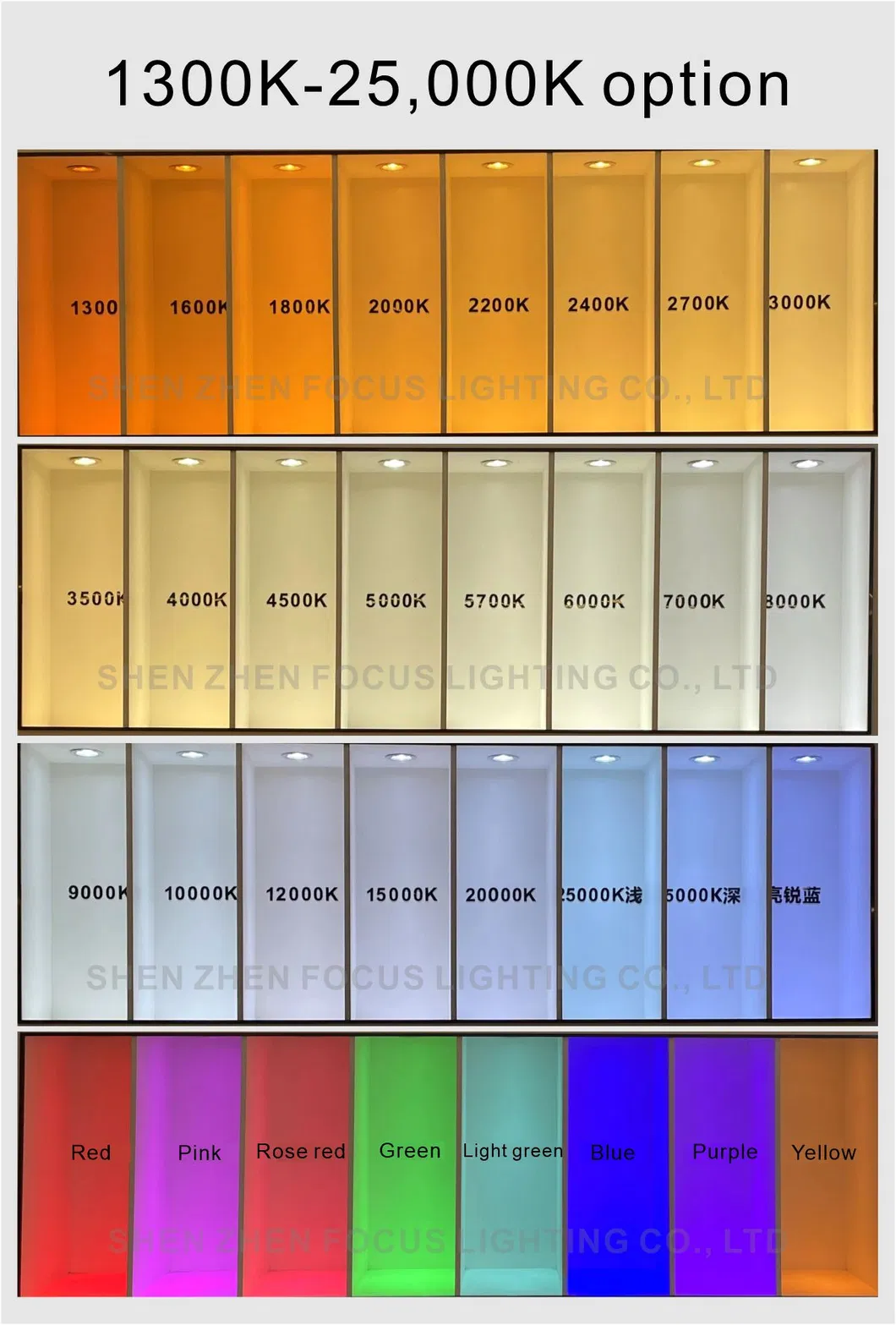

| CCT Options | 2700K - 5000K, CCT tunable |
| Working Temperature | -25ºC to 45ºC |
| IP Rating | IP20 (IP65 customized) |

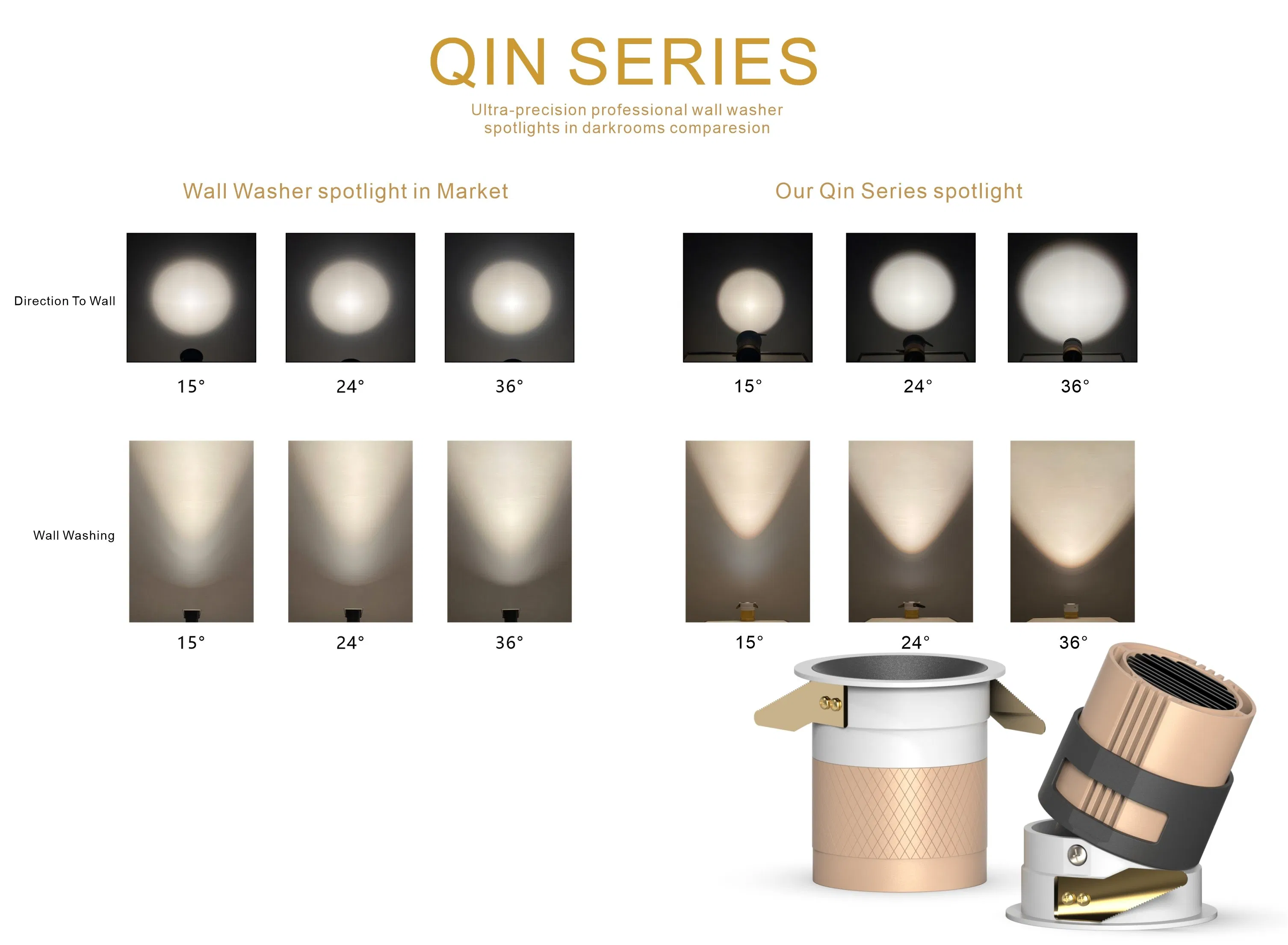

| Beam Angle | 15°, 24°, 36° |
| Dimming Functions | ON-OFF, 1-10V/ Triac/ PWM/ DALI/ Tuya ZigBee |
| Housing Color | White, Black |
| Power Type | Dimension | Cuthole | Direction | Beam Angle |
|---|---|---|---|---|
| 12W (Trim) | φ82*H83mm/H72mm/H63mm | φ75mm | Fixed | 15°/24°/36° |
| 12W (Trimless) | φ70*H83mm/H72mm/H63mm | Fixed | 15°/24°/36° | |
| 12W (Trim Adj.) | φ82*H105mm/H89mm/H80mm | φ75mm | Adjustable | 15°/24°/36° |
| 12W (Trimless Adj.) | φ70*H105mm/H89mm/H80mm | Adjustable | 15°/24°/36° |

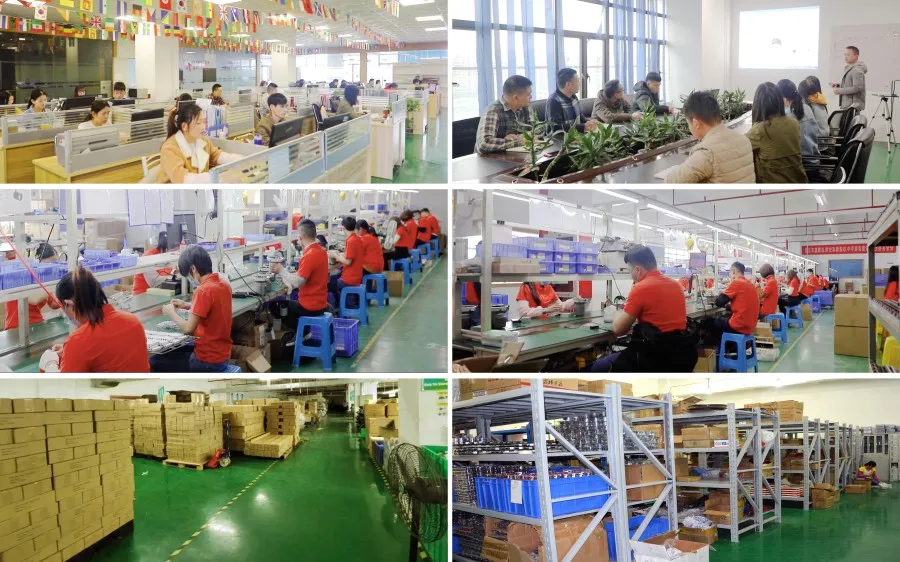

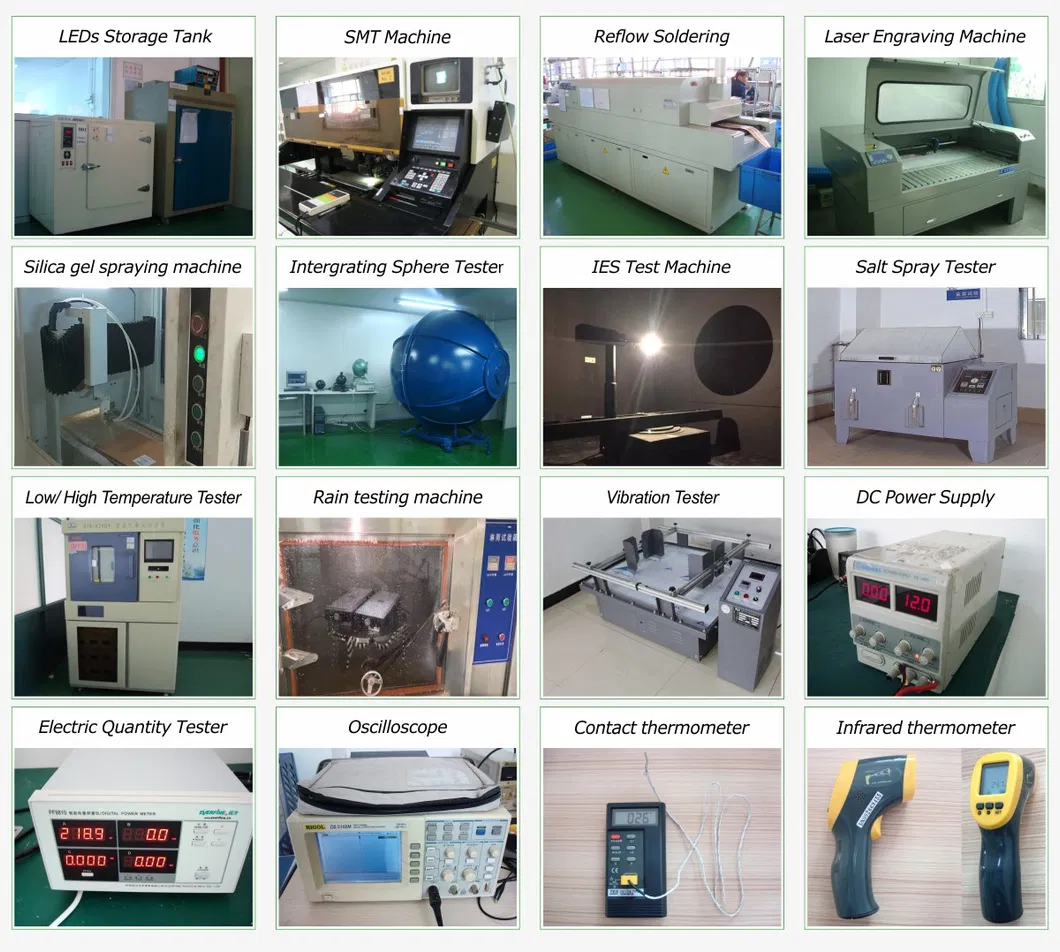

Our company specializes in LED lighting with an experienced and professional R&D team. We utilize perfect testing instruments and equipment to manage products from initial research to final delivery, ensuring a complete quality control system.
Since 2010, we have produced LED track lights, downlights, and industrial lighting with extensive OEM experience. Our products are exported globally to Europe, America, Canada, Australia, and Singapore, receiving strong market recognition.
