Product Description

Product Overview

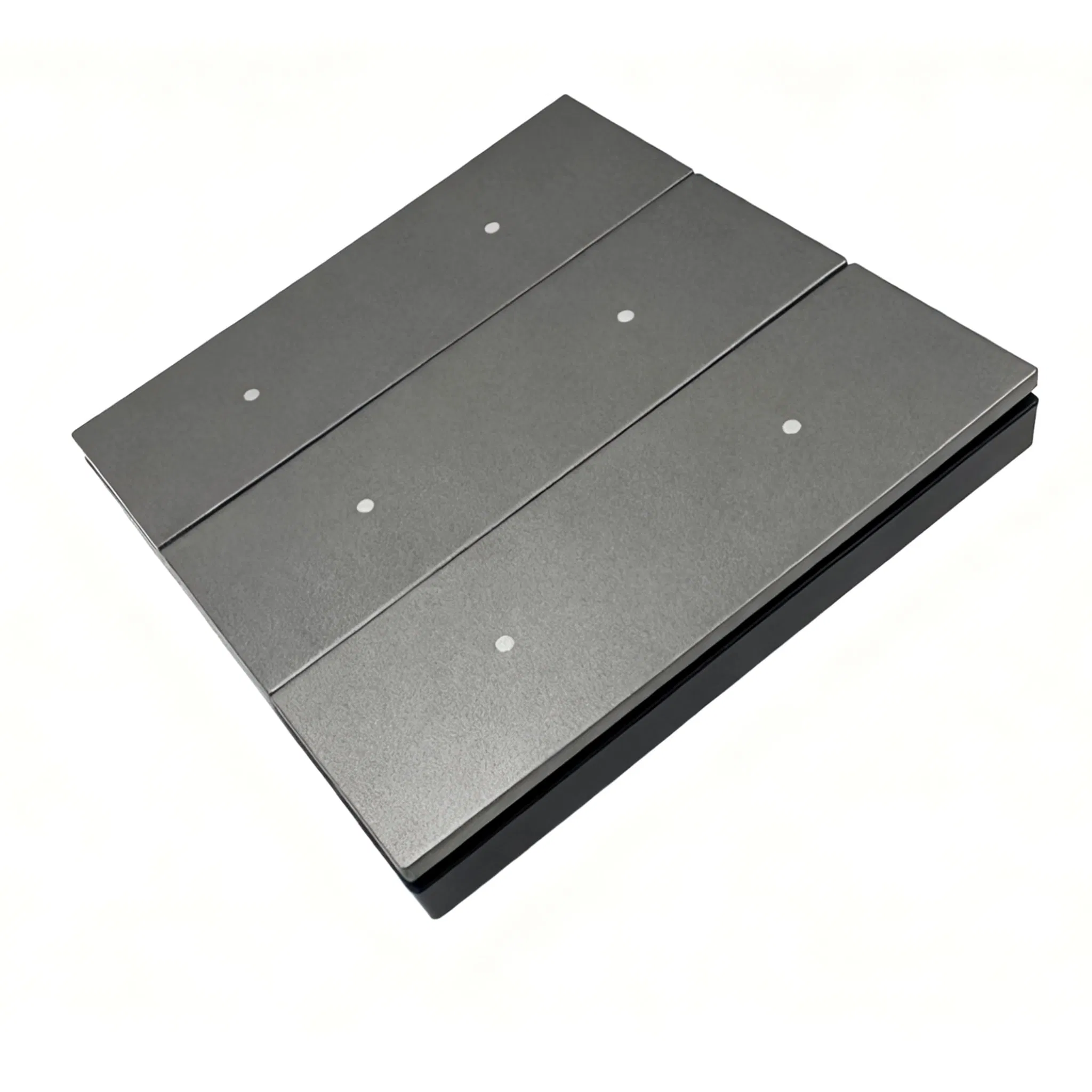

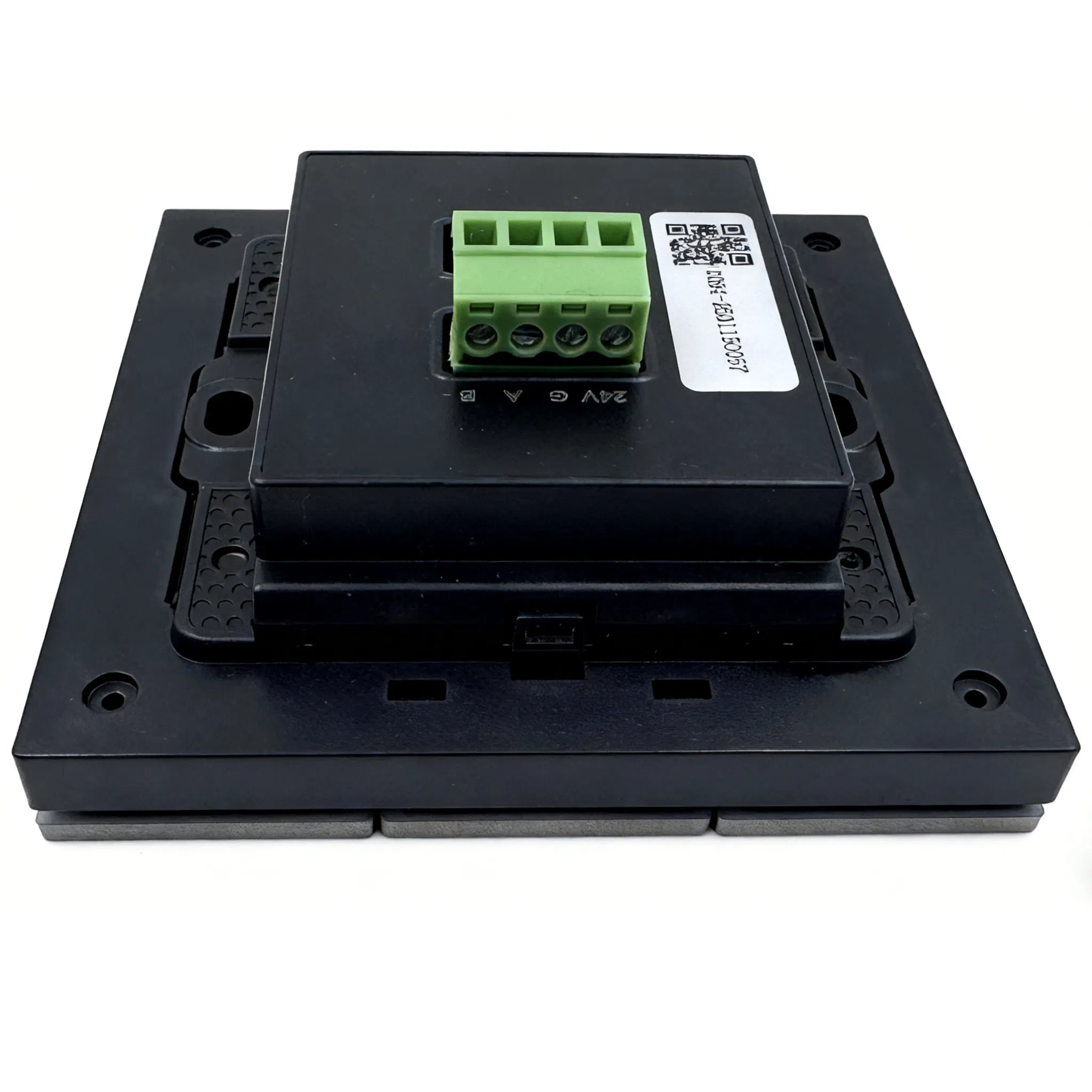

The control panel is designed for advanced building control systems, integrated with bus devices to provide an intuitive operation experience. Users can customize and execute functions based on specific environmental needs.

This panel effectively controls switches, dimming, and blinds. Each channel features dedicated buttons and LED indicator lights for clear status feedback.

Designed for standard 86-box installation, it offers 1-8 button outputs. It connects to EIB/KNX systems via the EIB bus, utilizing ETS software (version 4 or above) for physical addressing and parameter settings. The device is powered directly by the bus with 24VDC auxiliary support.

Basic Specifications

Model NO.

VSU-MK1201

Function

APP Control, Energy Monitoring, Remote Control, Scene Modes, Security, Smart Linkage, Timer, Voice Control

Material

Metal + ABS + PC

Certification

Bus Voltage

21-30 VDC, Powered by KNX Bus

Weight

0.1kg

Installation

86-Box Installation

Humidity

Max 90%

Key Functions

✔ Versatile control for lighting, curtains, and projection screens with long/short press actions.
✔ Relative and absolute dimming output support.
✔ 8-bit scene control for calling pre-set environmental modes.
✔ LED indicators with multiple states (On, Off, Flashing).
✔ LED interlocking grouping and brightness adjustment features.
✔ Intelligent backlight wake-up via button press or object trigger.

Technical Parameters

Bus Current	≤12mA
Bus Power	<360mW
Dimensions	86 x 86 x 33 mm
Operation Temp	-5℃ to +45℃
Storage Temp	-25℃ to +55℃
Auxiliary Voltage	24VDC
Auxiliary Current	≤27.5mA
Auxiliary Power	≤660mW

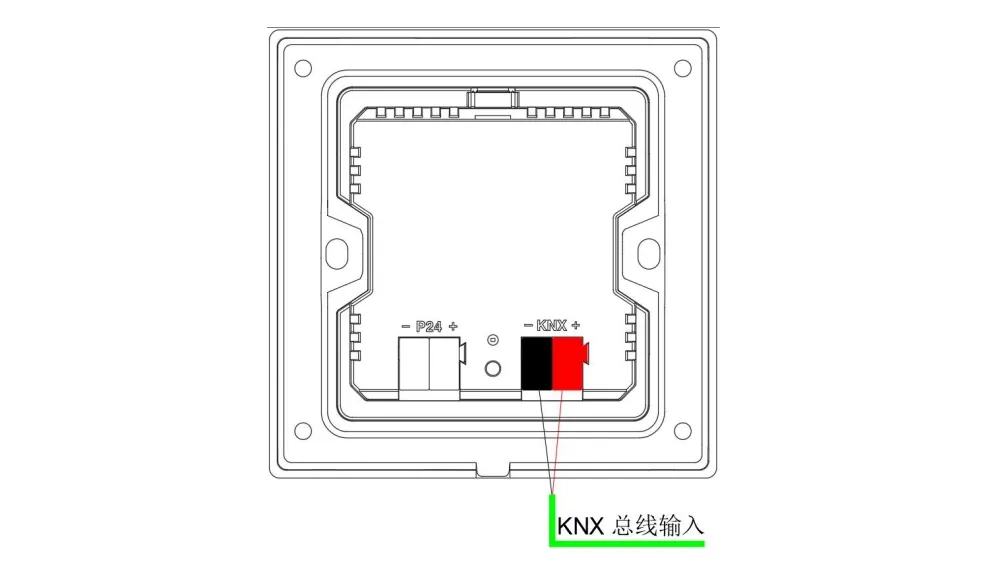

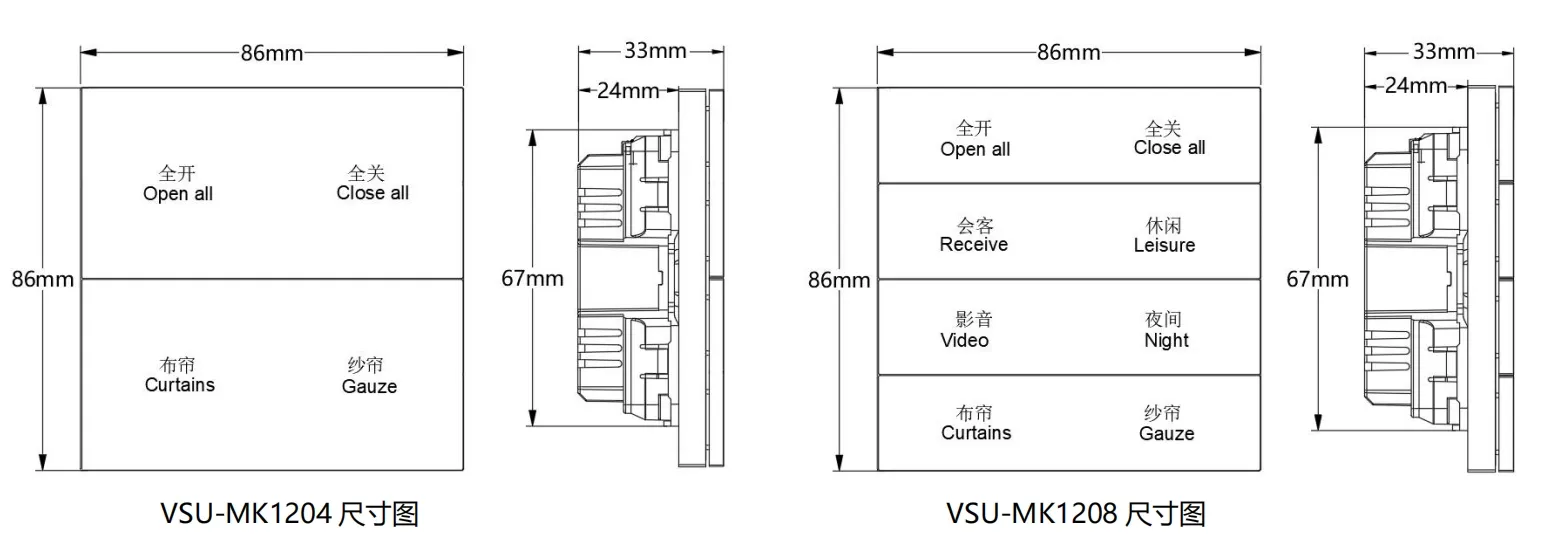

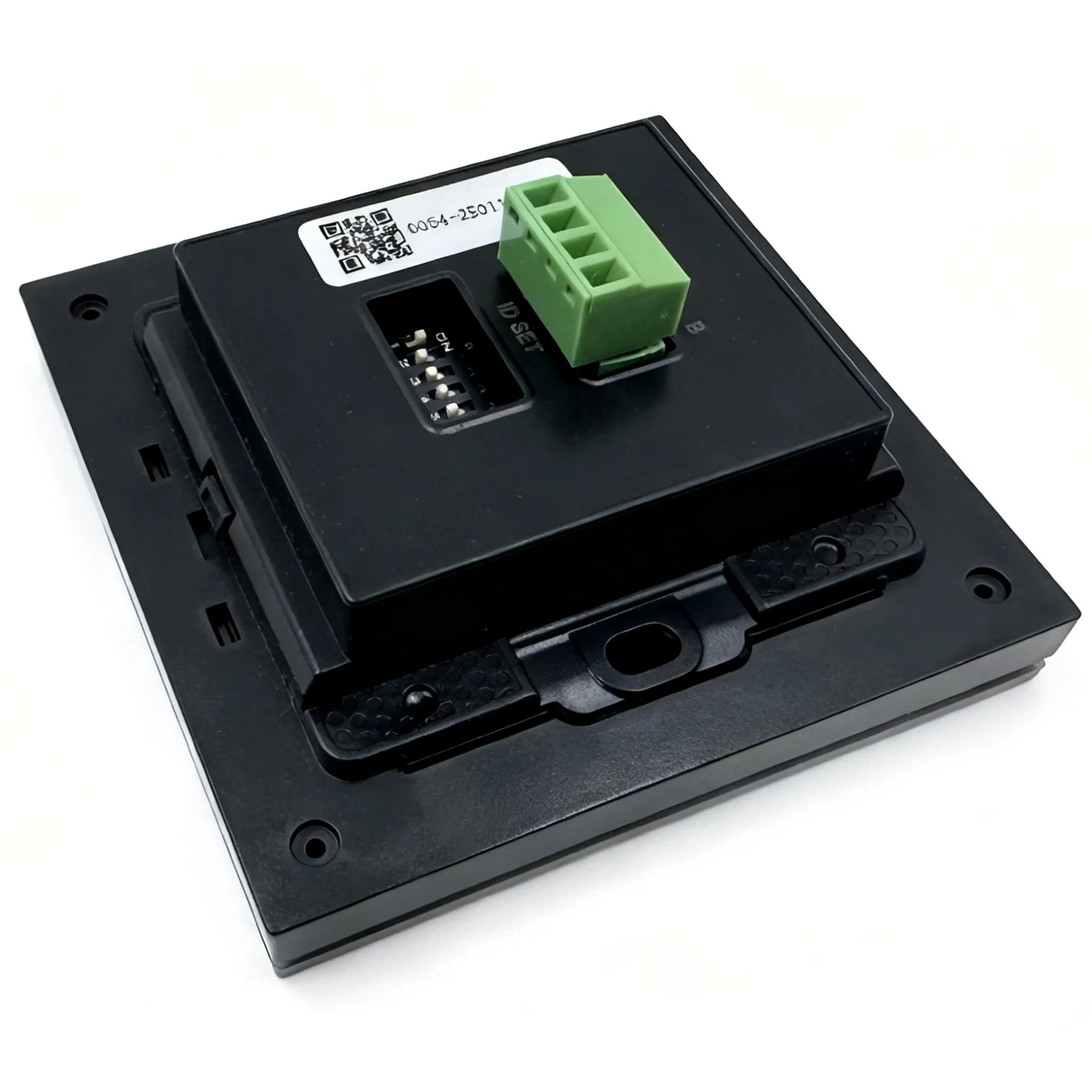

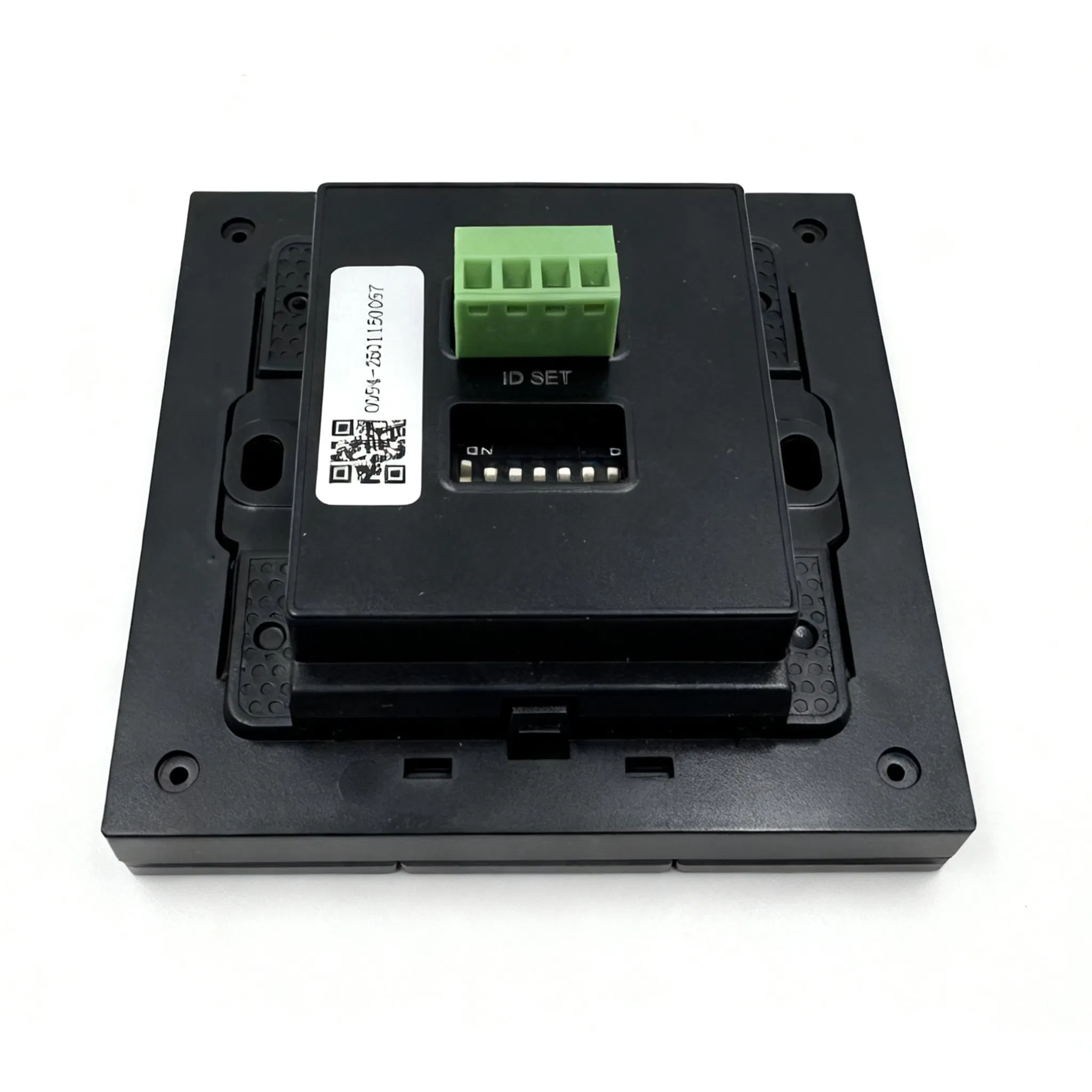

Dimensions & Wiring

Frequently Asked Questions

Q1: What are the main applications of this control panel? The control panel is primarily used in smart building systems to manage lighting (on/off and dimming), motorized blinds, projection screens, and custom scene settings.

Q2: Is this device compatible with standard electrical boxes? Yes, it is specifically designed for standard 86-type bottom box installations, making it a versatile choice for most residential and commercial projects.

Q3: How is the device configured? Configuration is handled through the standard engineering design tool software ETS (version ETS4 or above), where you can set physical addresses, group addresses, and specific channel parameters.

Q4: What are the power requirements? The panel is powered by the KNX bus (21-30 VDC). Additionally, it typically requires a 24VDC auxiliary power supply for full functional performance.

Q5: What is the lead time for product delivery? For stock items or small quantities (1-100 pieces), the lead time is approximately 3 days. Larger orders are subject to negotiation.

Q6: Do the LED indicators have adjustable settings? Yes, the LED indicators support various states such as normally on, normally off, or flashing, and include brightness adjustment and delayed extinguishing features.
