Product Description
Manufacturing Advantages
Lower PriceCompetitive pricing as a direct manufacturer.
Lead Time GuaranteeDirect oversight of production to ensure timely delivery.
Professional ExpertiseDeep knowledge of production processes for expert advice.
One-Stop PurchasingFull range of light equipment for all project needs.
Technical Features
| Product |
Spec. |
Qty |
Remarks |
| LED Light |
DC40W |
1 |
High power LED chips, 3 years warranty. 4000lm, 3000~6000k. |
| Lamp Pole |
6m |
1 |
Q235B hot-dip galvanized & sprayed. Wind resistant grade 10. Life >20 years. |
| Foundation Cage |
Φ16 Steel / 75cm |
1 |
Q235B Material |
| Built-in Cable |
10m |
1 |
RVV 2*1.5m² |
System Specifications
| Protection Class: IP67 |
| Light Source: 20W-200W LED |
| Rated Voltage: 12-24-220V (±10%) 50Hz |
| Caliber: 60mm |
| Shock Protection: Type 1 |
| Casing: Die-cast aluminum with anti-corrosive powder coating |
| Fasteners: Stainless steel screws |
| Installation Height: 4m - 13m |
Pole Recommendations
| Height |
Aperture (mm) |
Thickness (mm) |
Flange (mm) |
| 6M | 65~140 | 2.75 | 260*260*12 |
| 8M | 70~160 | 3 | 280*280*14 |
| 10M | 80~185 | 3.25 | 320*320*16 |
| 12M | 85~200 | 4 | 400*400*20 |

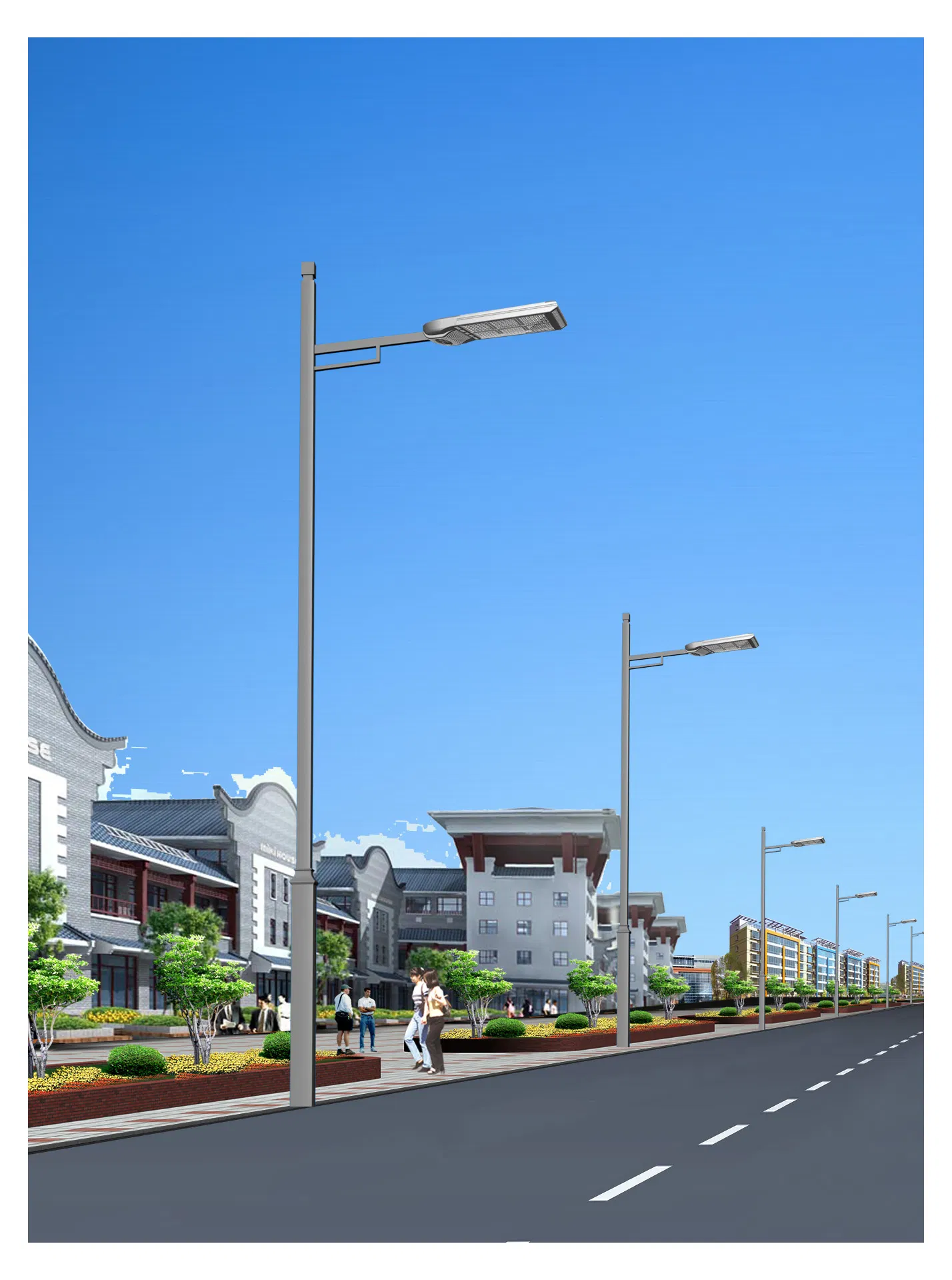

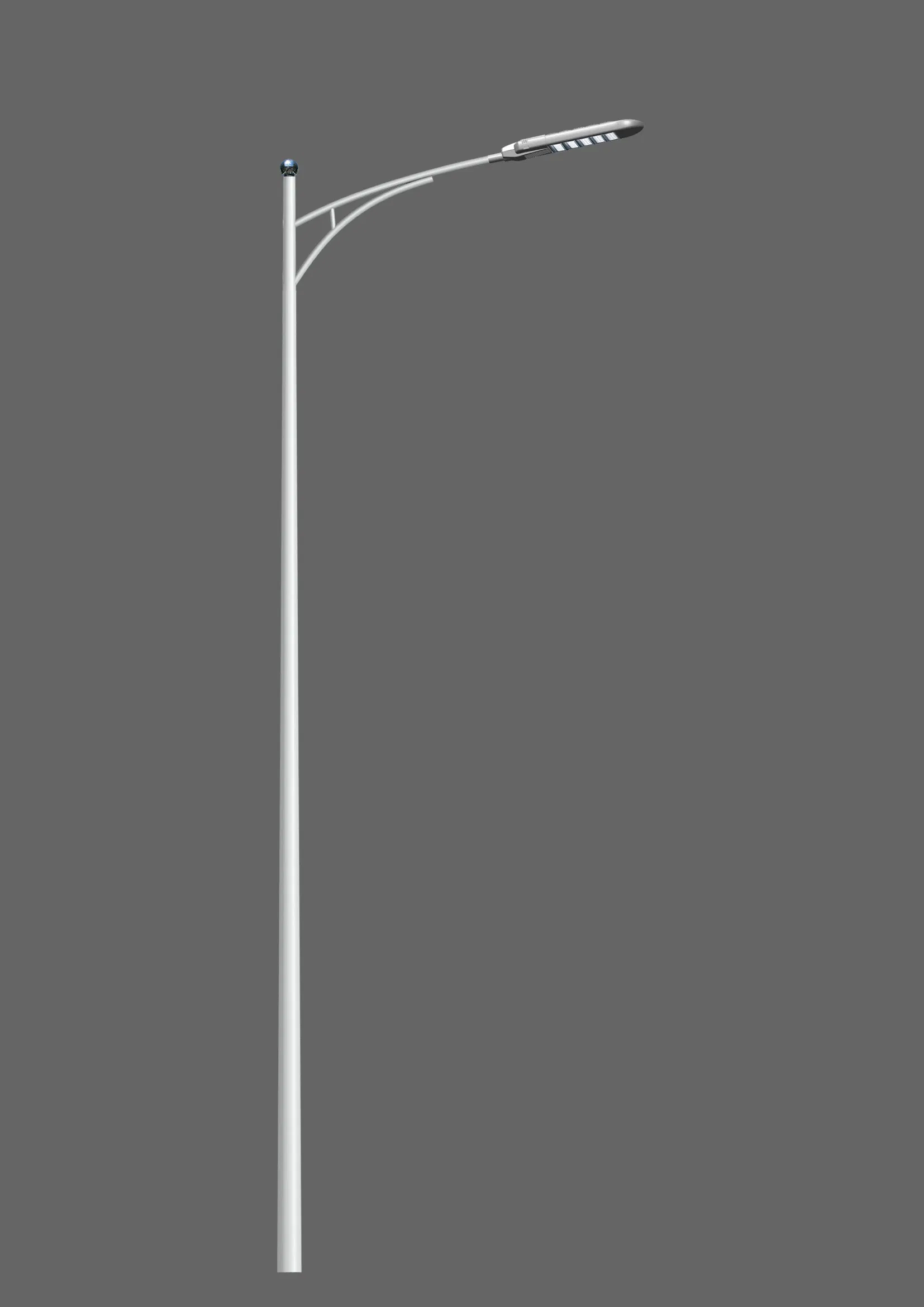

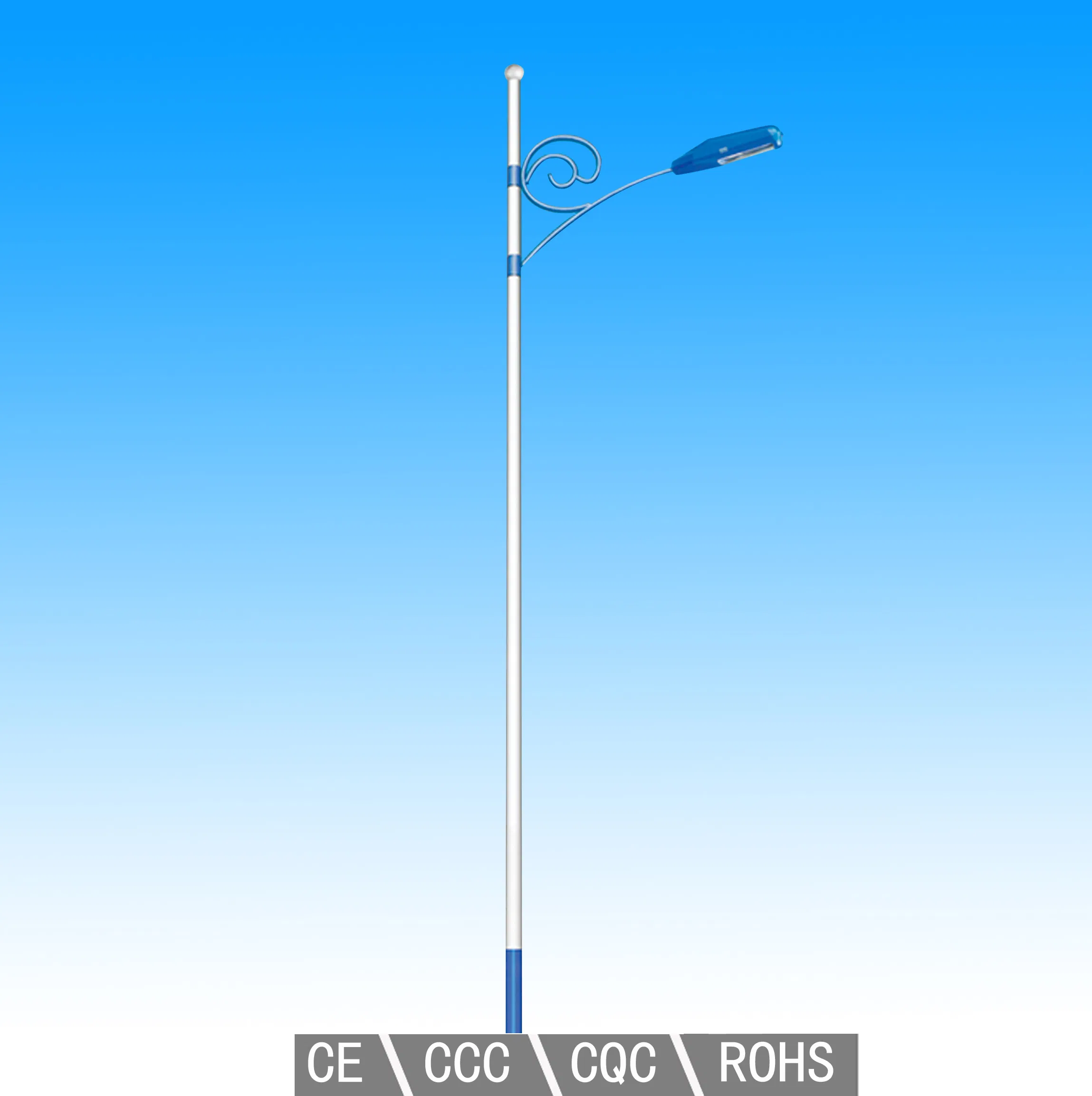

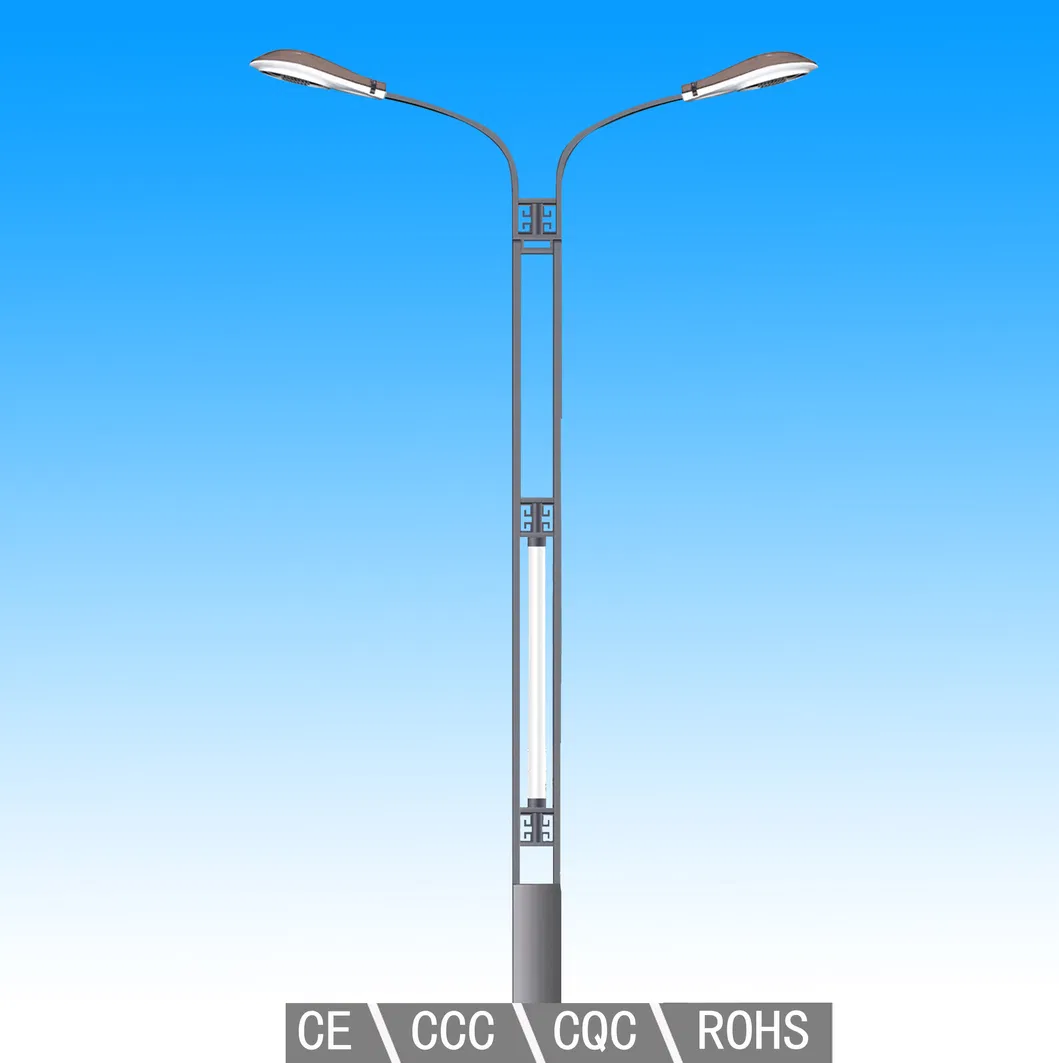

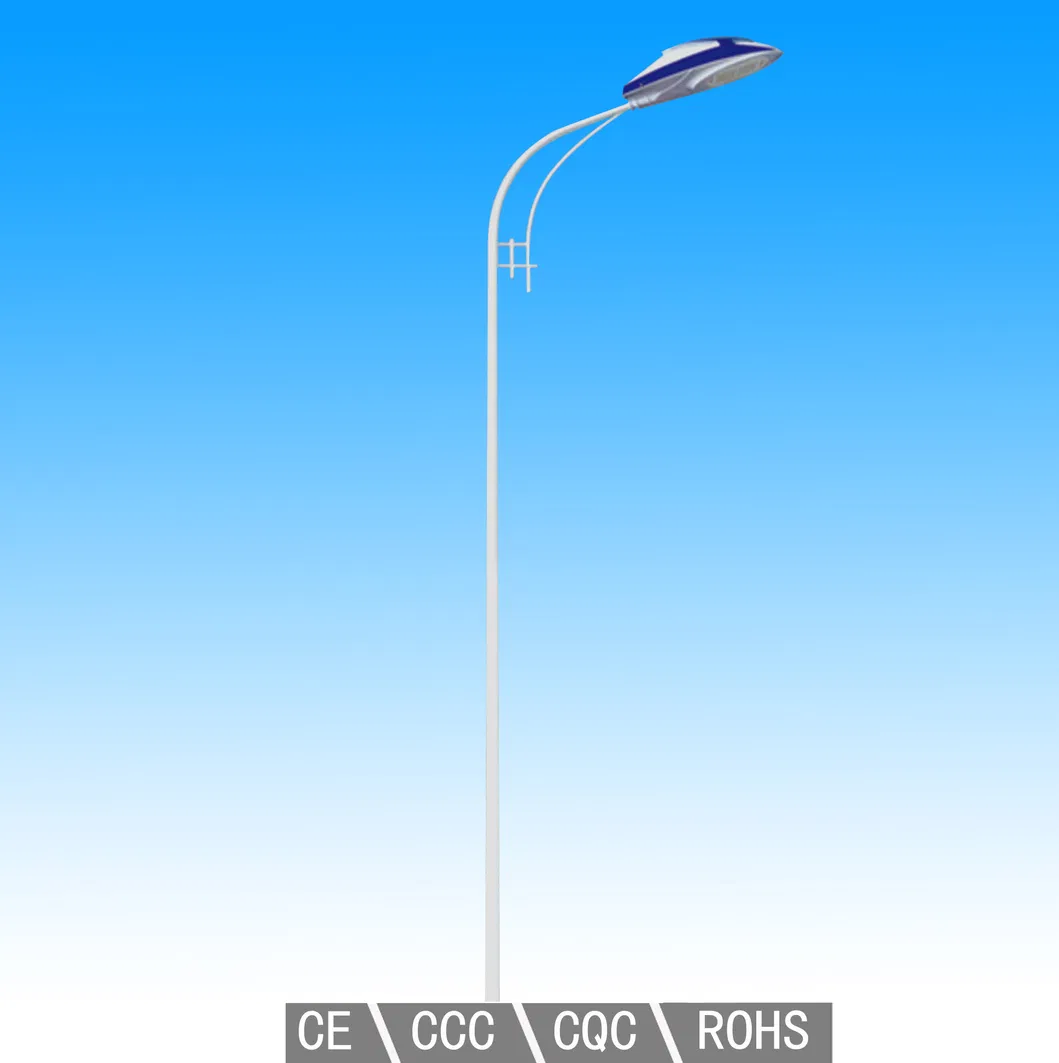

Product Gallery

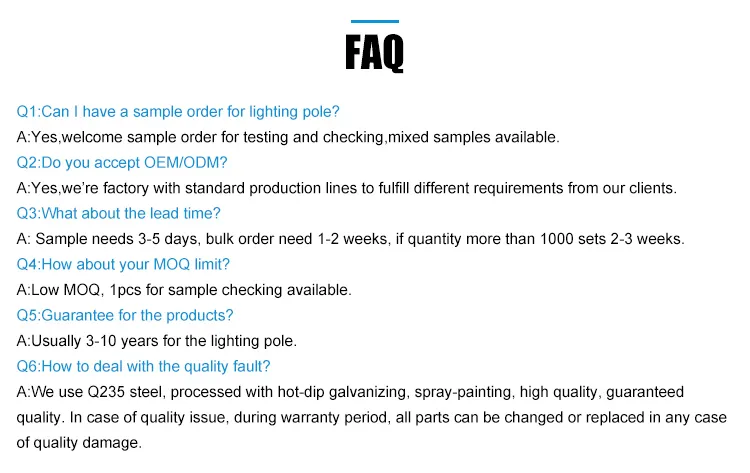

Frequently Asked Questions
What is the weather resistance rating of this street light?
The product features an IP65/IP67 rating, ensuring it is dust-tight and protected against powerful water jets, making it suitable for all outdoor weather conditions.
What materials are used for the lamp pole?
The lamp poles are made of high-quality Q235B steel. The entire surface undergoes hot-dip galvanizing and spray treatment for superior corrosion resistance and a lifespan of over 20 years.
What is the warranty period for the LED light source?
The high-power LED chips come with a 3-year warranty, while the hot-dip galvanized support structures can offer up to a 10-year warranty.
Can the installation height be customized?

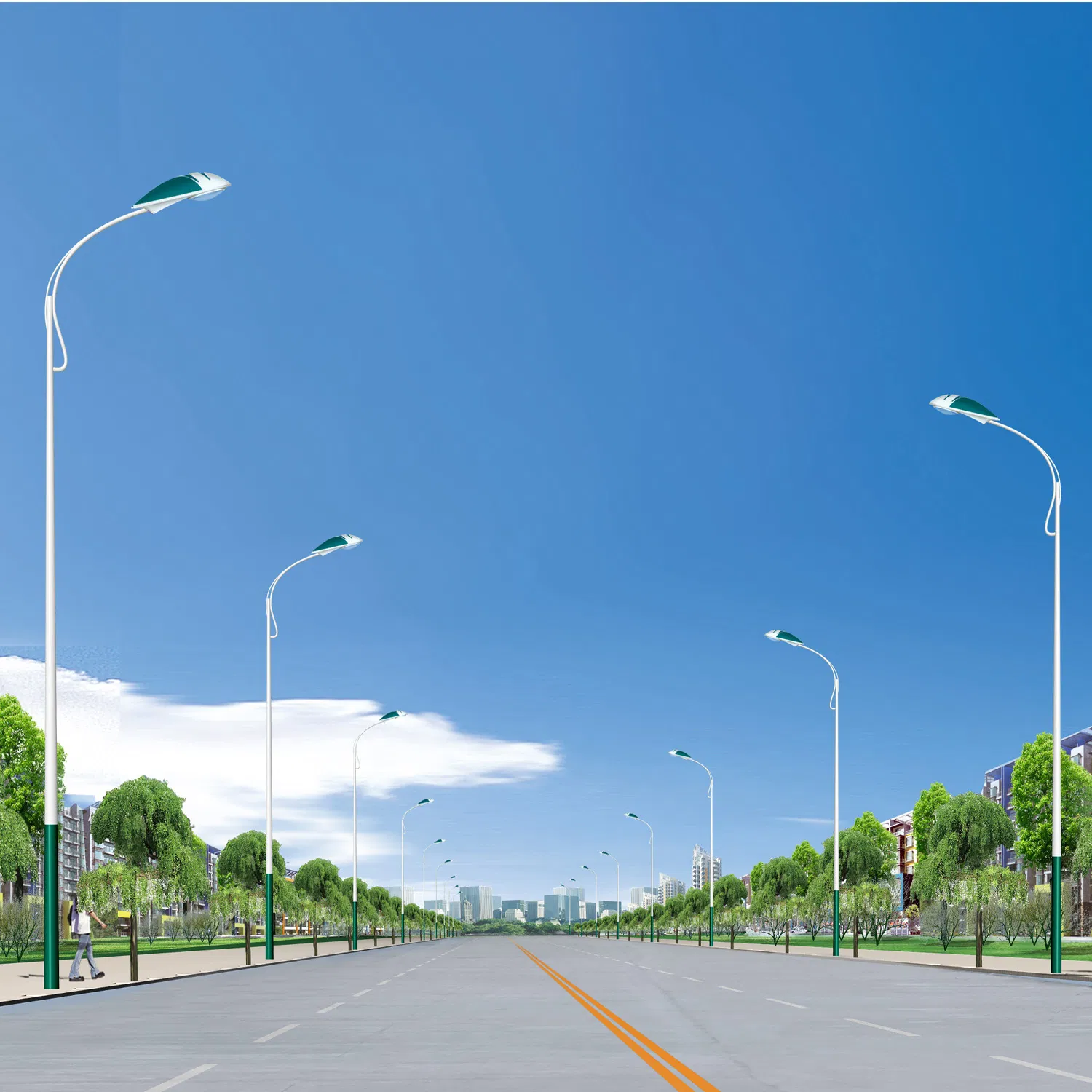

Yes, we provide recommended specifications for poles ranging from 4 meters to 13 meters to suit various applications like highways, gardens, and parking lots.
What certifications does the product hold?
Our street lighting fixtures are certified by CCC, CE, CQC, Energy Star, and FCC, ensuring compliance with international quality and safety standards.
What are the input voltage options?
The fixtures support a wide range of input voltages including 100-240V AC for standard power grids and 12-24V DC for solar-powered systems.
