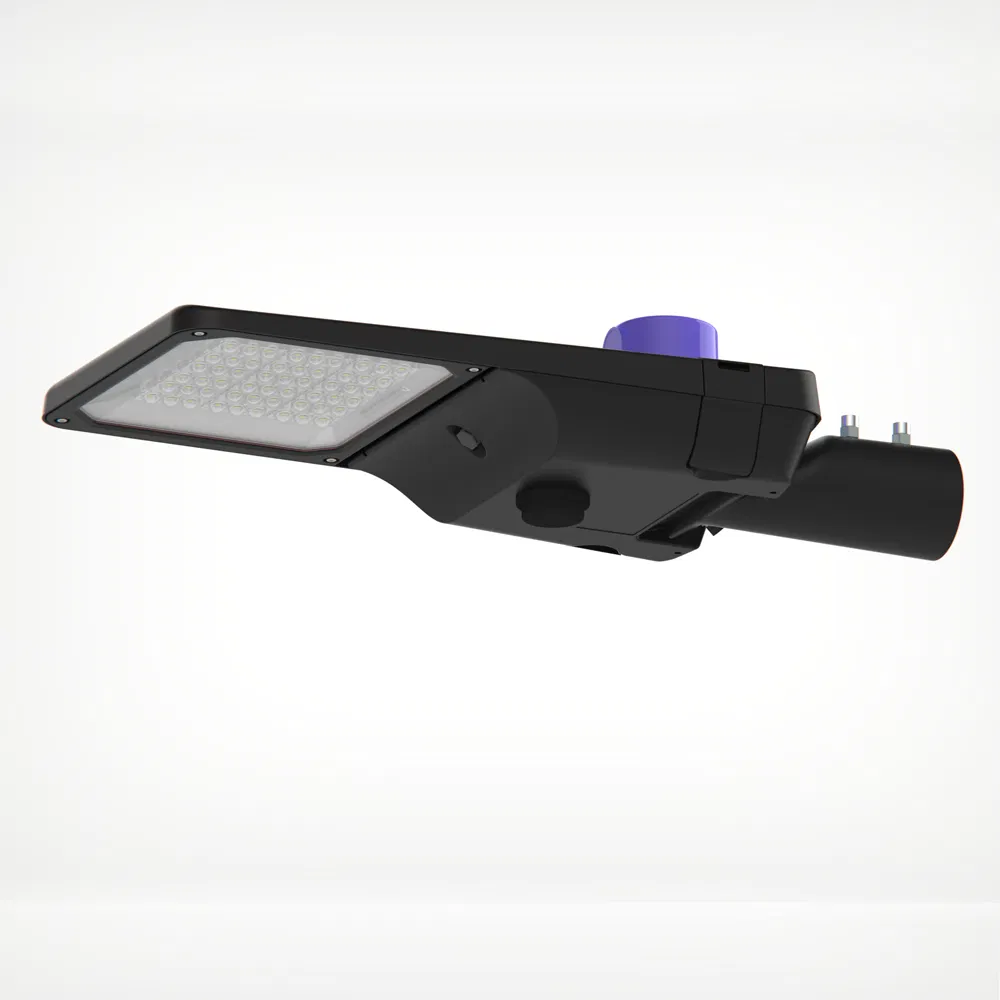

The YASL-29 street lights series provides a 5-year warranty and carries multiple certifications including CE, ENEC, CB, EMC, TM21, and RoHS.
Class I or Class II options available. Input Voltage: AC90-305V, 50/60Hz. PF >= 0.90.
IP66 waterproof and IK09 impact resistance. Operating temperature range from -40°C to +55°C.

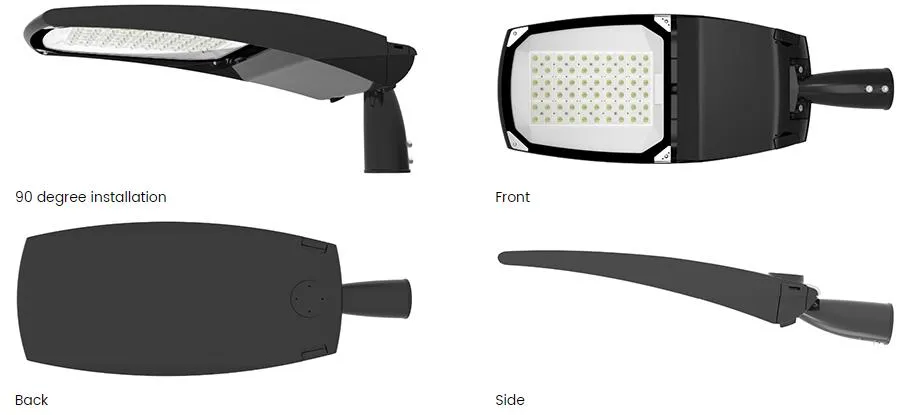

Both horizontal and vertical mounting supported. Spigot tilted from -15° to +15°.

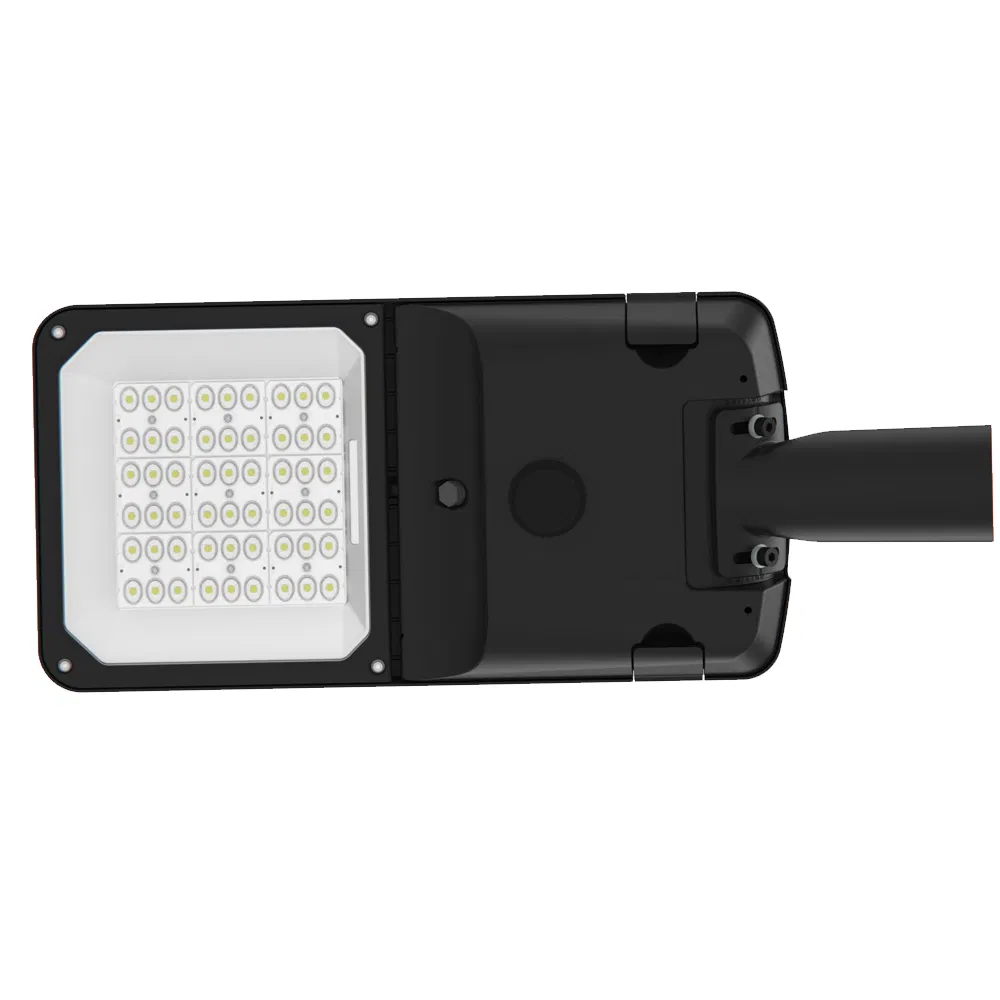

High luminous efficiency using SMD 3030/5050 LEDs (Ra>70). Various lighting distributions available.
Tool-free maintenance with disconnector knife switch for automatic power interruption when opened.
Supports Time control, Dali, Dali Zhaga, 1-10V, Photocell, and Microwave sensors.

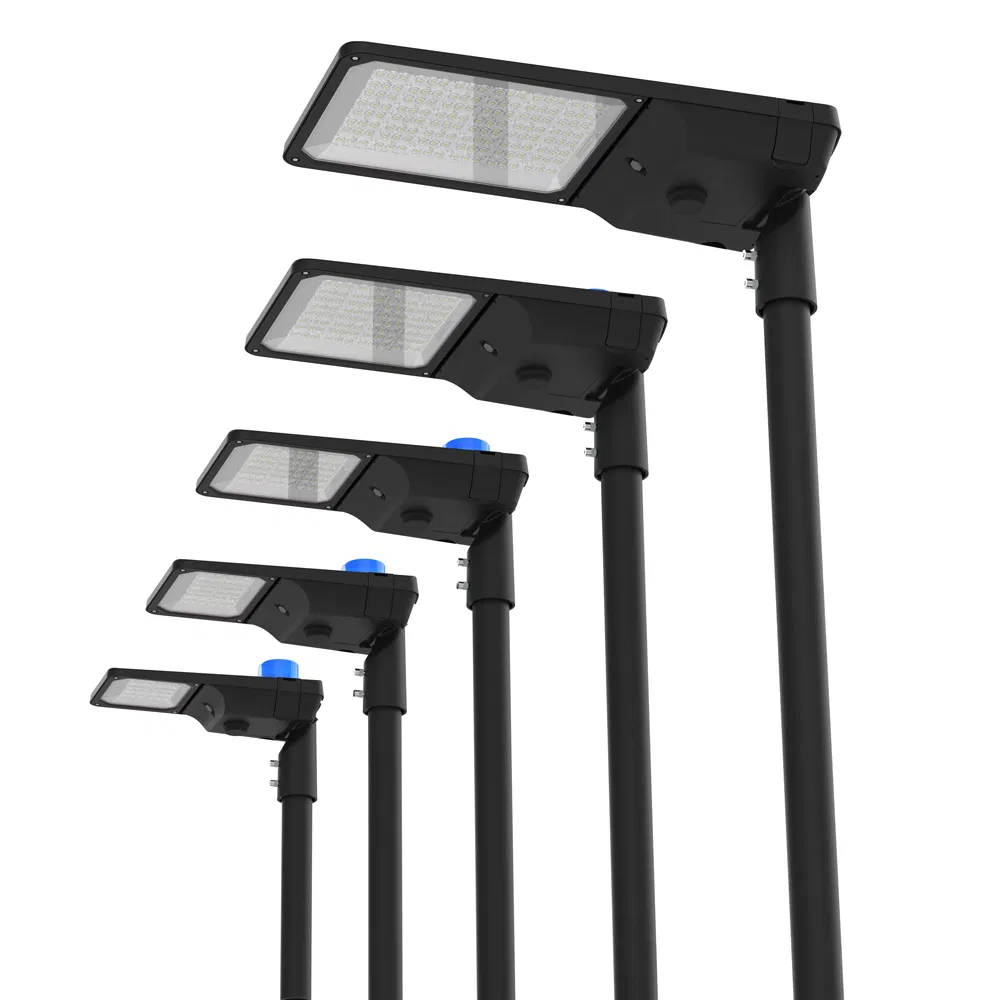

| Product Code | YASL-29-40 | YASL-29-60 | YASL-29-100 | YASL-29-160 | YASL-29-240 |
|---|---|---|---|---|---|
| Lamp Power | 30~60W | 50~90W | 80~140W | 130~200W | 200~300W |
| Installation Height | 3-6m | 4-8m | 6-10m | 8-14m | 12-14m |
| Product Size (mm) | 576x209x89 | 593x263x89 | 646x263x89 | 709x315x89 | 812x315x89 |
| Net Weight | 3.8kg | 4.1kg | 4.6kg | 7.4kg | 9.5kg |
| Efficiency | Options from 130 lm/w up to 180 lm/w | ||||
| CCT | 2700K - 6500K Available | ||||
| Materials | Housing: ADC12 Aluminum; Cover: Toughened Glass; Screws: 304 Stainless Steel | ||||

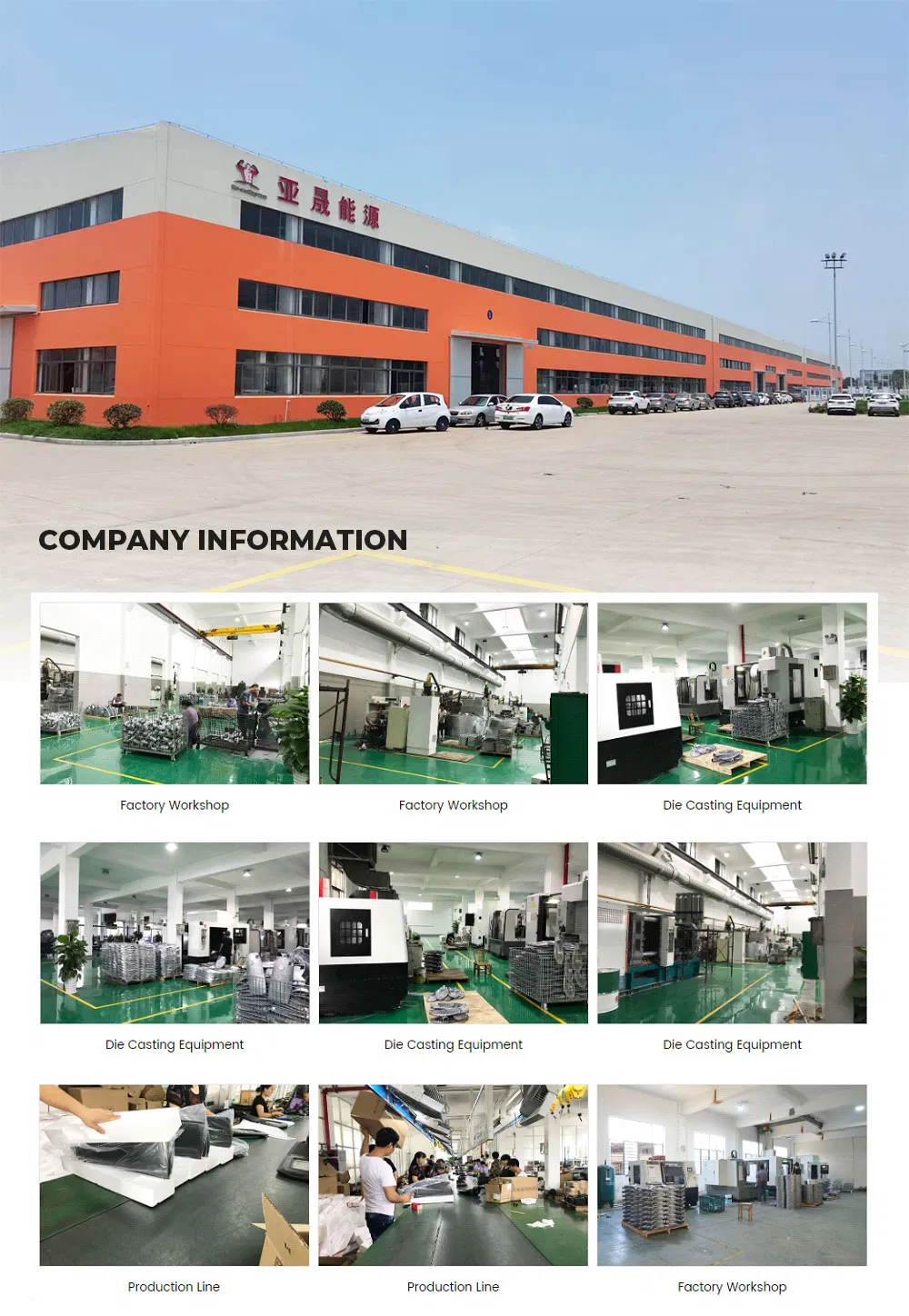

Established in 1996, the facility focuses on lighting design, development, production, and testing. A comprehensive range of products includes street lights, high bay lights, and die-casting OEM components. We offer full-service solutions or SKD supply according to customer requirements.
All products are developed with practicality and reliability in mind, ensuring they meet all EU requirements. Rigorous performance testing is conducted in recognized laboratories throughout the development process.
