Senning Lights
1 / 5

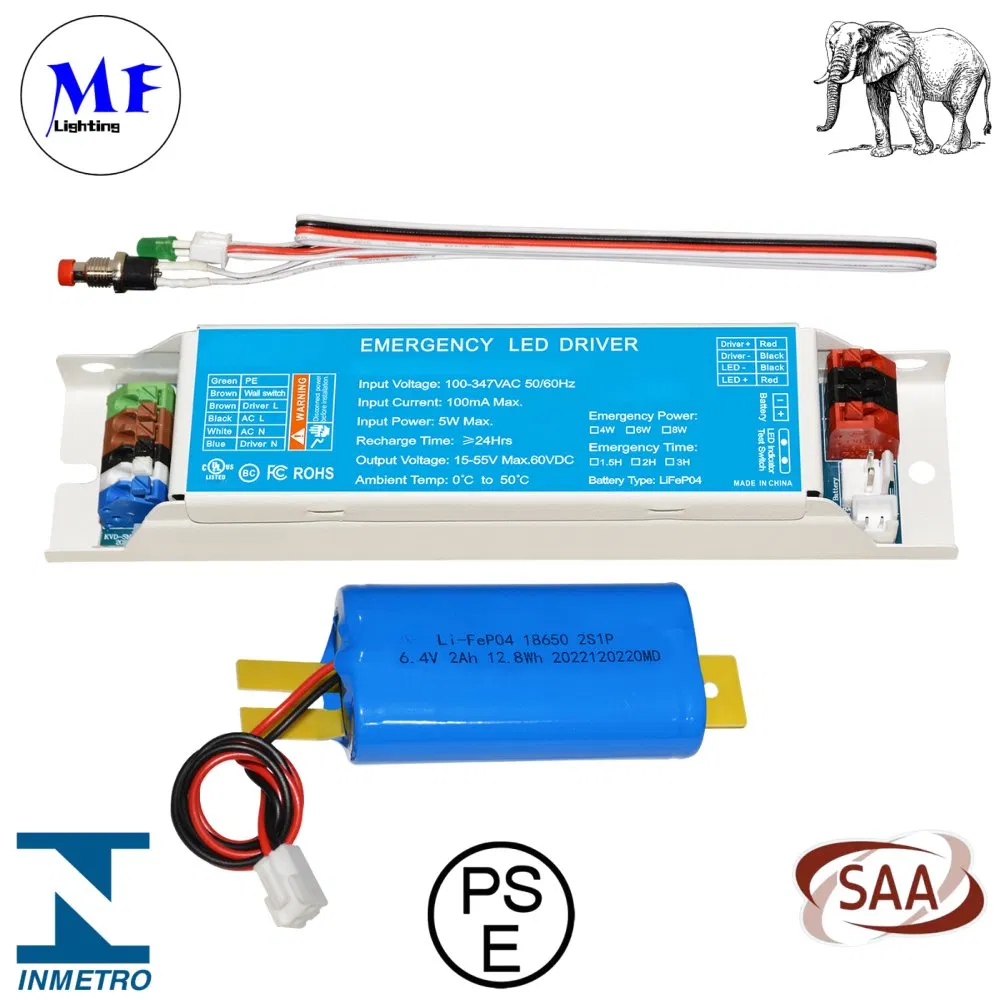

| Model NO. | MF-SM-XXW-YYY |
| Input Voltage | 100-277 VAC 50/60Hz |
| AC Input Current | 100mA Max. |
| AC Input Power Rating | 5.0W Max. |
| Battery Charging Current | 250mA |
| Charging Time | ≥24hours |
| Output Current and Voltage | 15-55VDC/60-240VDC |
| Emergency Time | ≥1.5h |
| Battery | Li-FEP04 3000mAh-6.4V |
| Output Power | 6/8W |
| Full Warranty | 5 Years |
| Temperature Rating Ambient | Li-FEP04 0°c to 60°c (32°f to 104°f) |
| Origin | China |
| HS Code | 9405499000 |

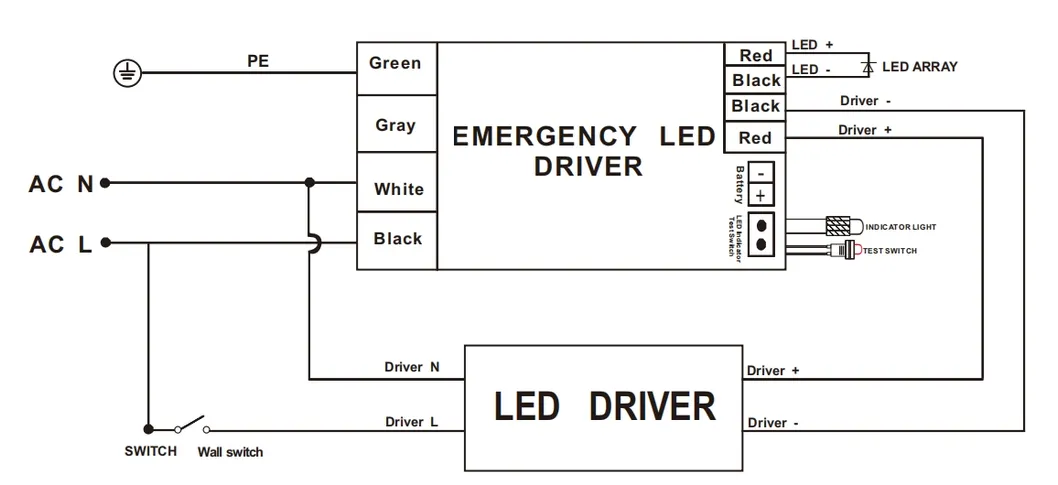

Wiring Diagram:

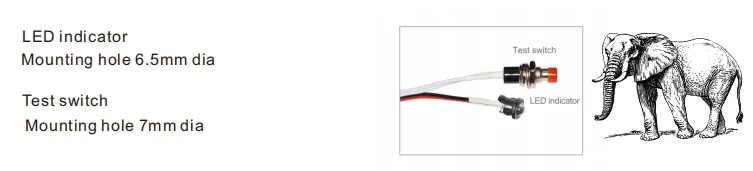

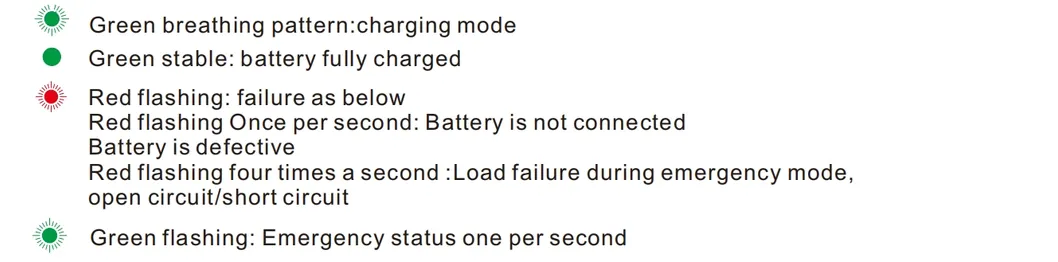

LED Indicator Status:
Self-test Function: Every 180 days, the emergency driver automatically enters the emergency state until the battery is discharged, then returns to normal status.

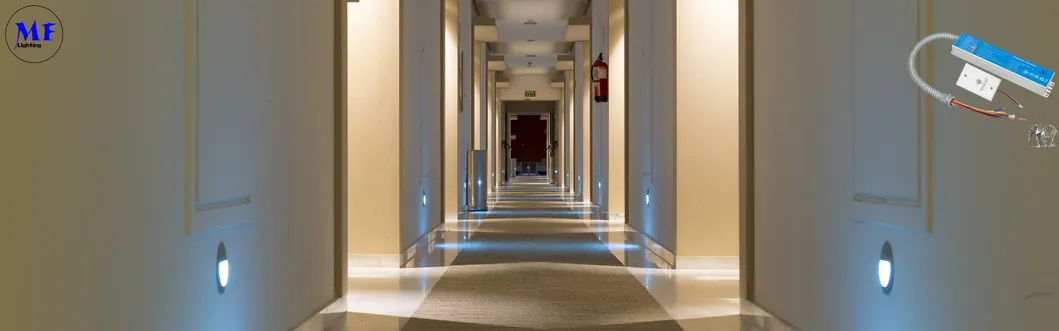

1. Offices: Ensures emergency illumination in workspaces, corridors, and exits.
2. Exhibition Halls & Museums: Critical switchover protecting exhibits and ensuring safety.
3. Hotels: Integrates with fire systems for safe evacuation lighting.
4. Residential: Maintains lighting for stairs and entrances during power outages.

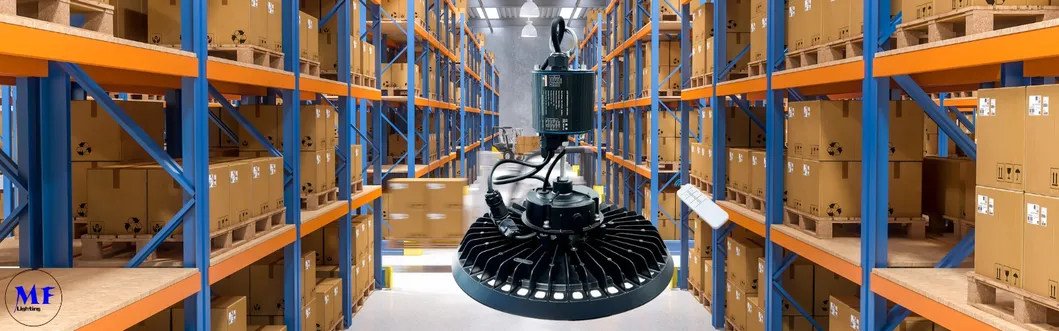

5. Commercial & Industrial: Reliable activation in harsh environments for warehouses and retail hubs.

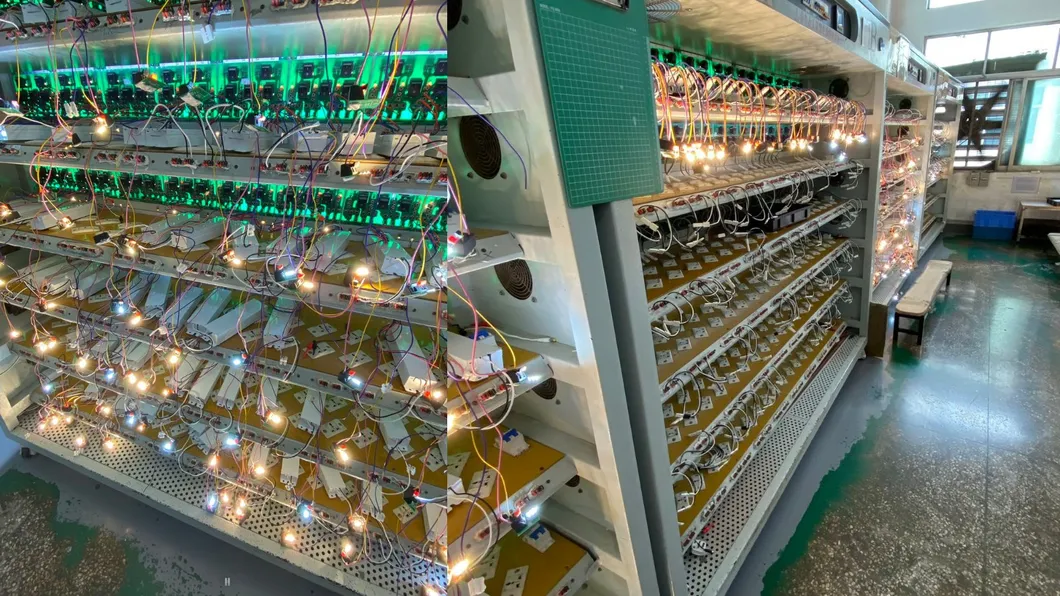

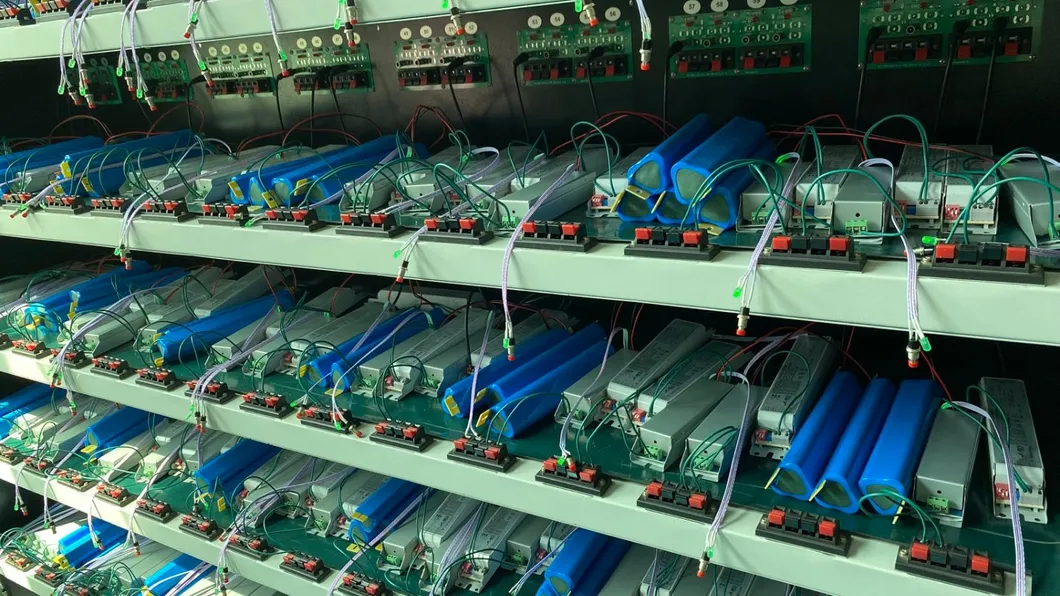

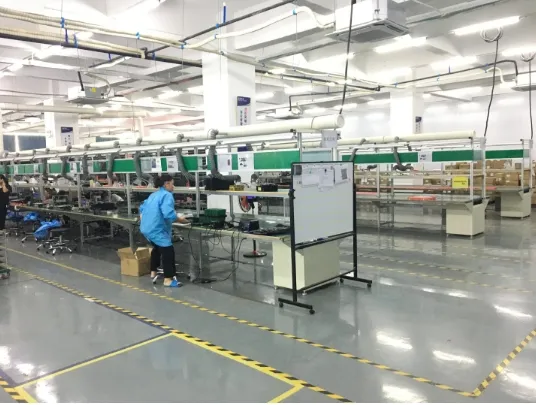

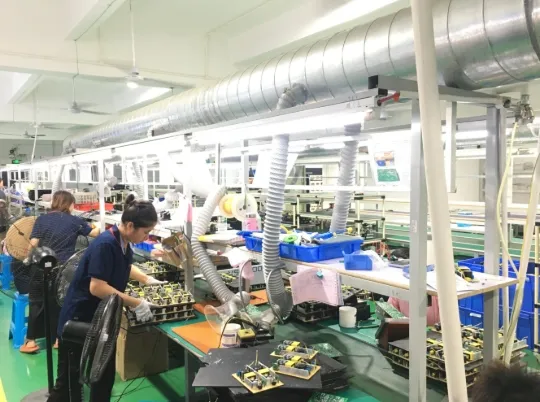

Our manufacturing facility is a leading LED lighting manufacturer with its own factory. We specialize in the design, production, and distribution of high-quality LED emergency driver systems and lighting solutions. With years of experience and a team of skilled professionals, we are dedicated to providing the best technology and customer satisfaction.
