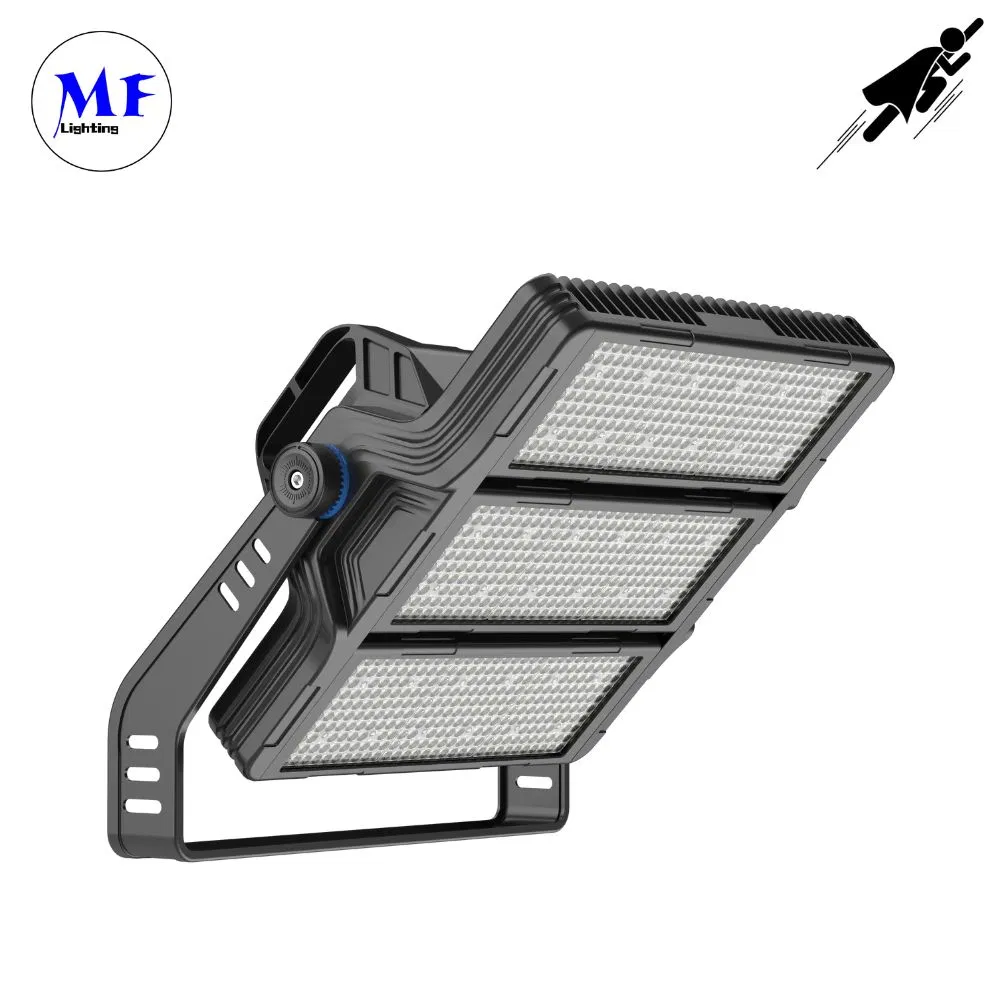

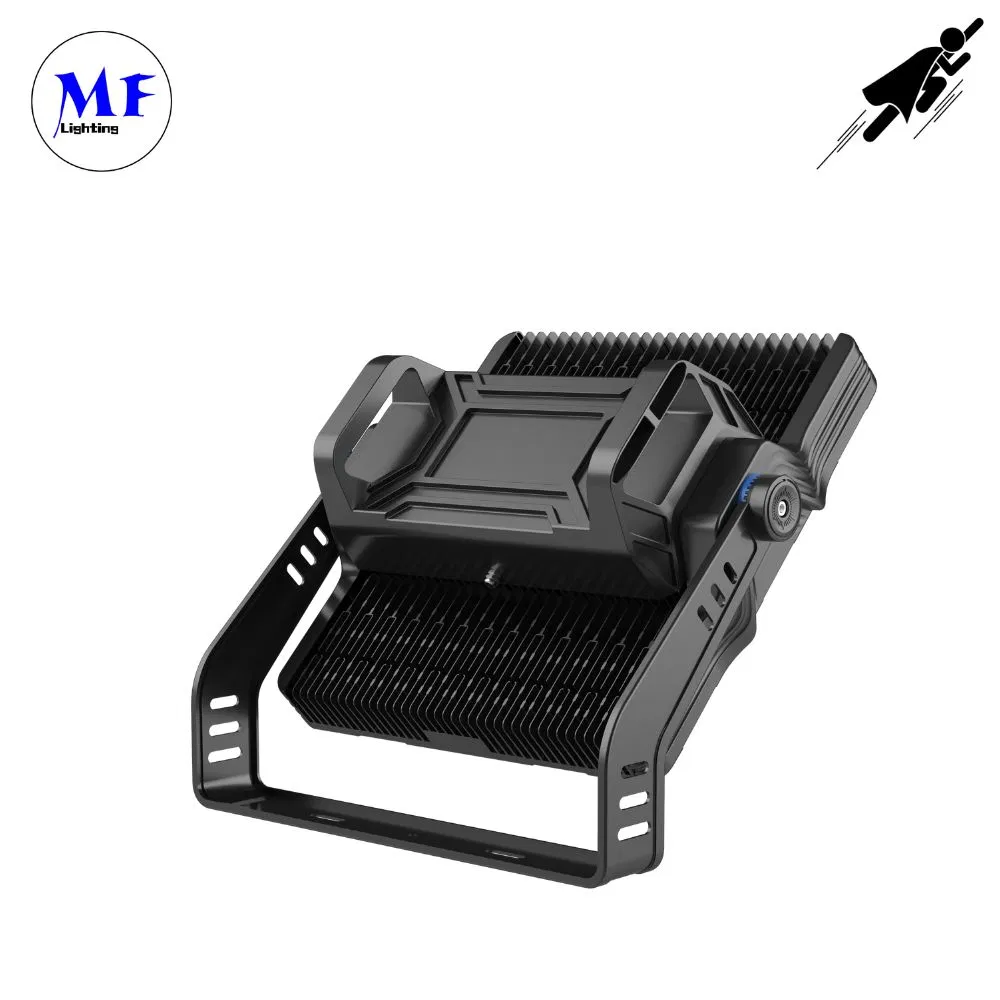

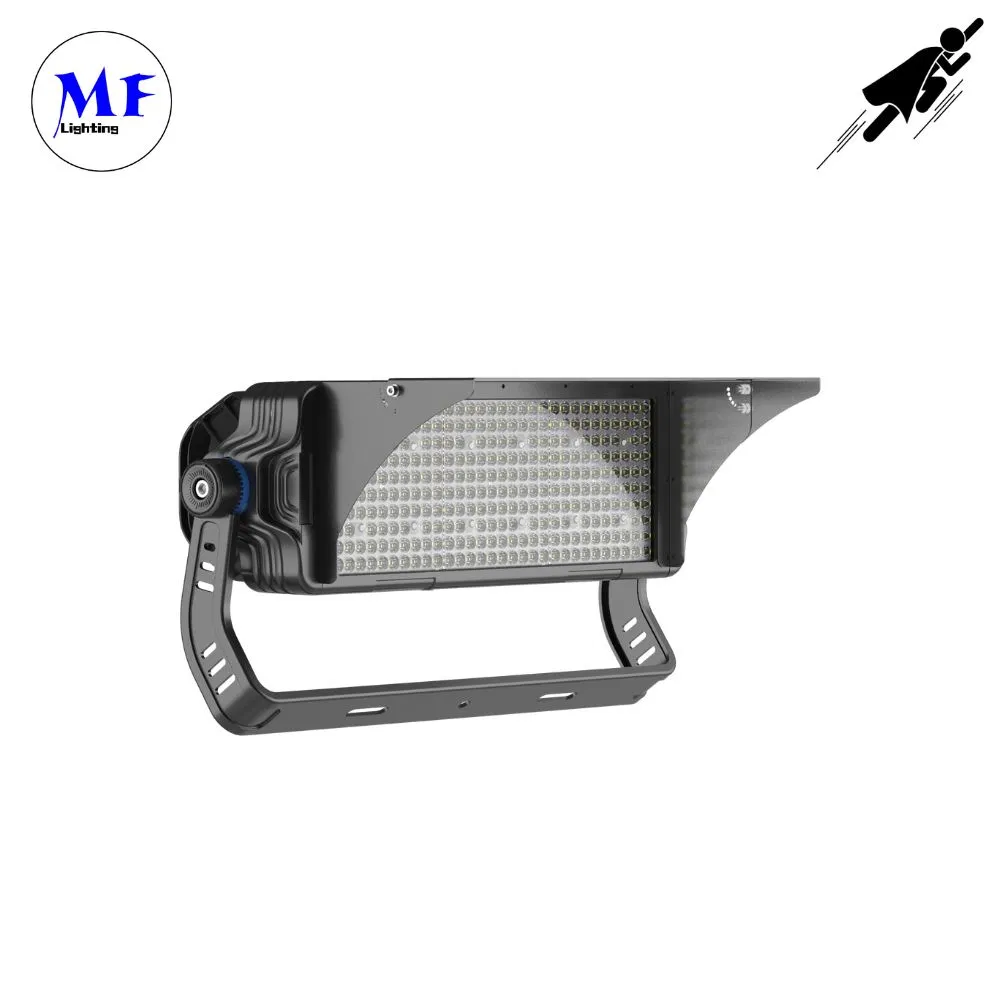

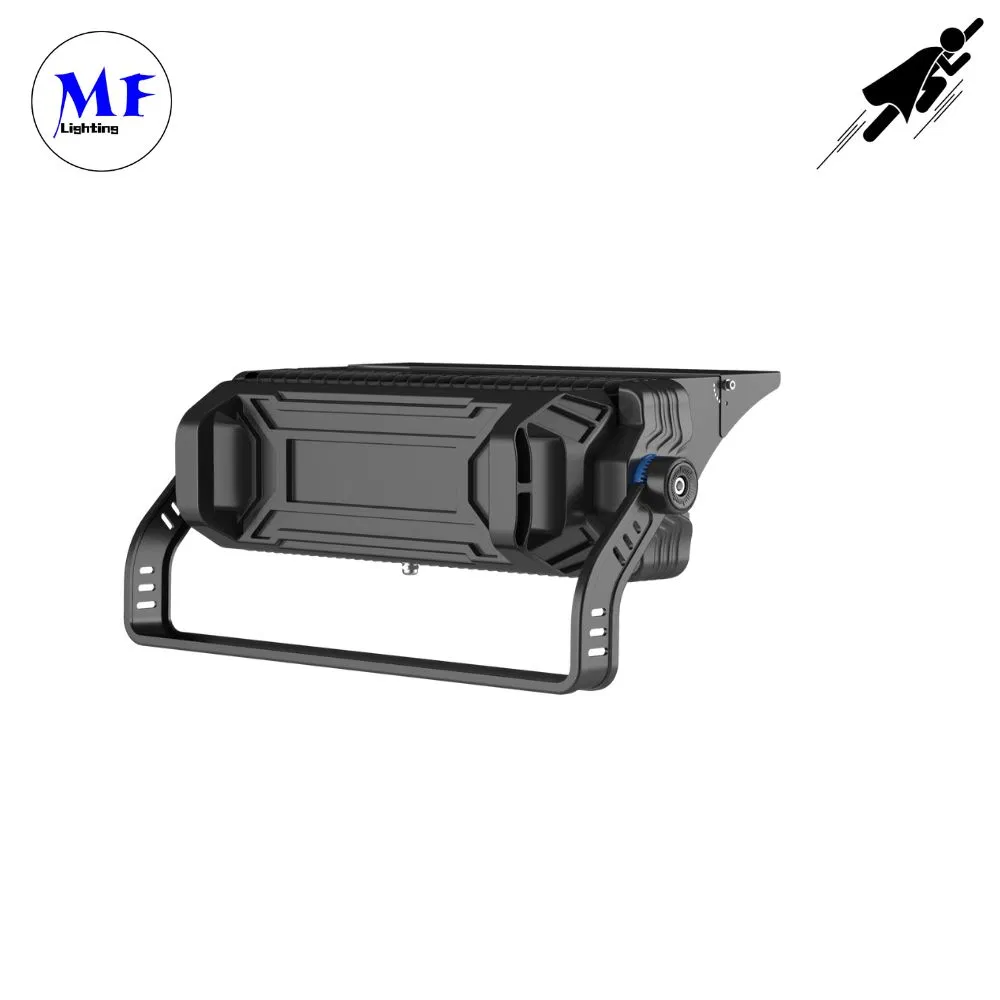

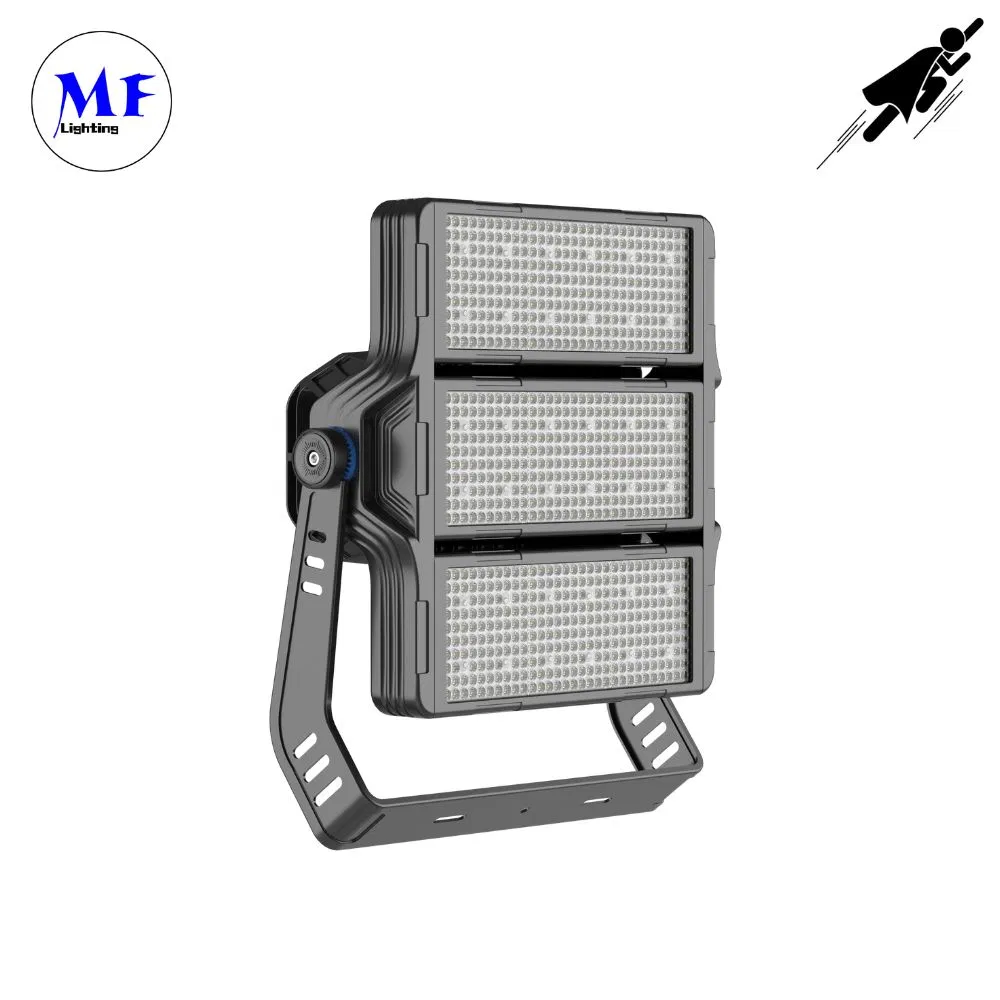

High Lumen 170lm/W 6500K 800W 1000W 1200W 1800W IP66 Ik08 Water Proof High Power Stadium Sport High Mast LED Flood Light for Tennis Football Court

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model
Superman High mast 800-1200W
Power
400W/500W/600W/800W/1000W/1200W/1800W
Usage
Stadium/Wharf/Airport/Aproan/Highway/etc
IP Rating
IP66 / IK08
Luminous Efficacy
150-170lm/W
Input Voltage
AC100-277V, 50-60Hz
LED Chips
Lu-Mileds/O-Sram
Beam Angle
10/25/45/60/90, Asymmetric 60°
Life Span
>50,000hrs
Driver Brand
MW/Sosen/Inven-Tronics
Product Features
High Lumen 170lm/W IP66 IK08 High Power Stadium Sport LED Flood Light
  • Lu-miled chips: High brightness, low light decay, and exceptionally long lifetime.
  • International driver brand: Overheat protection, high conversion efficiency, high PF & surge protection (1-10V, DALI2.0).
  • Die-casting technology: ADC12 aluminum for excellent thermal management, balancing internal/external temperatures to reduce chip Tj.
  • Optical UV resistant PC lens: 94% light transmittance, IK08 rated. Various distributions: 10°/15°/25°/45°/60°/90°/Asymmetrical 60°.
  • Robust Bracket Installation: Stable operation in temperatures ranging from -35°C to +50°C.
Feature Overview
Technical Specifications
Model Power 400W 600W 800W 1000W 1200W 1800W
Input Voltage AC100-277V
Luminous Flux 60,000lm 90,000lm 120,000lm 150,000lm 180,000lm 270,000lm
Qty of LEDs 840 PCS 840 PCS 1680 PCS 1680 PCS 1680 PCS 2520 PCS
Net Weight 19.15kg 20.05kg 32.00kg 33.00kg 34.00kg 47.30kg
Size (mm) 718*214*222 718*214*222 732*439*290 732*439*290 732*439*290 732*666*290

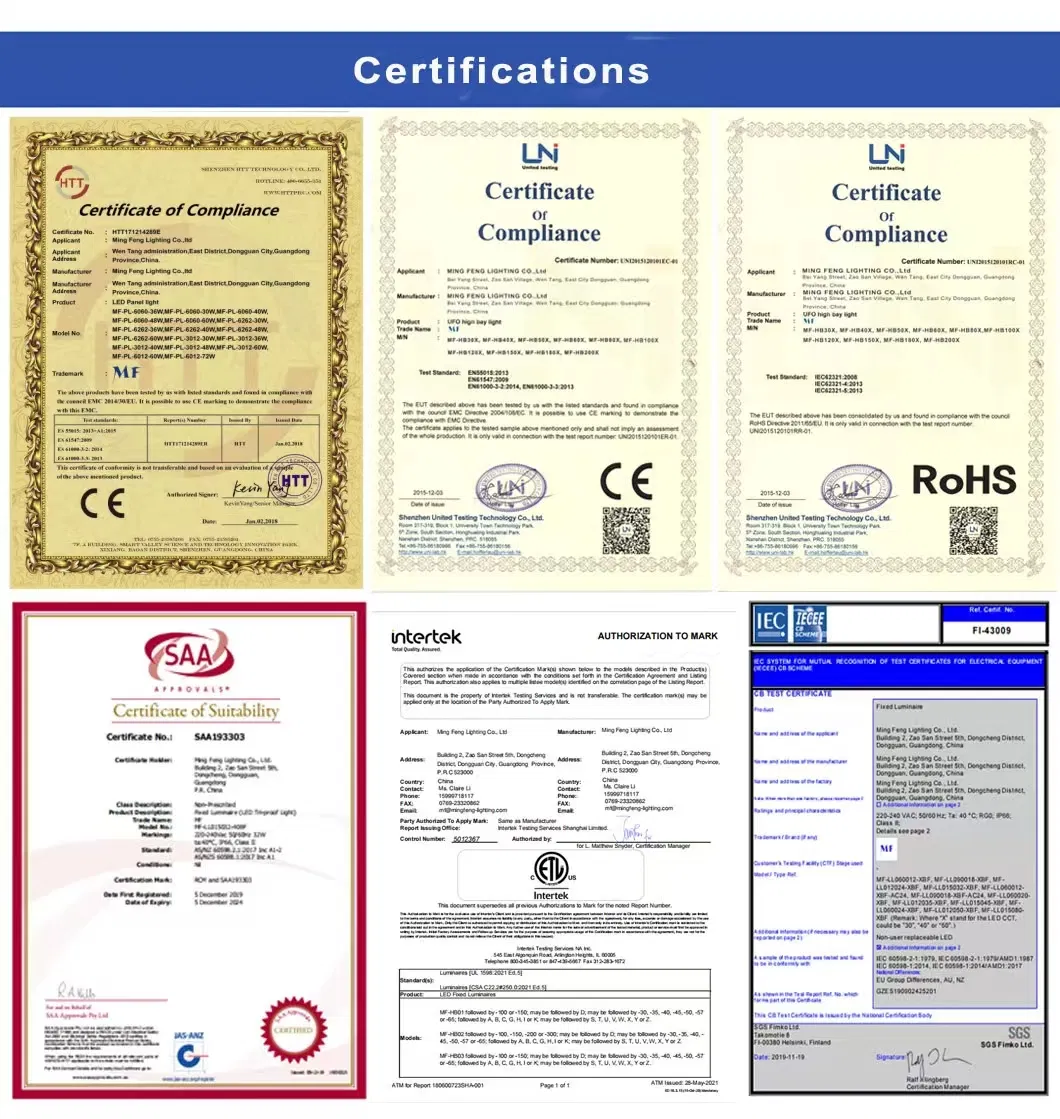

Certification UL/ETL/DLC/TUV/CB/ENEC/CE/SAA/FCC/RoHS
Installation Guide

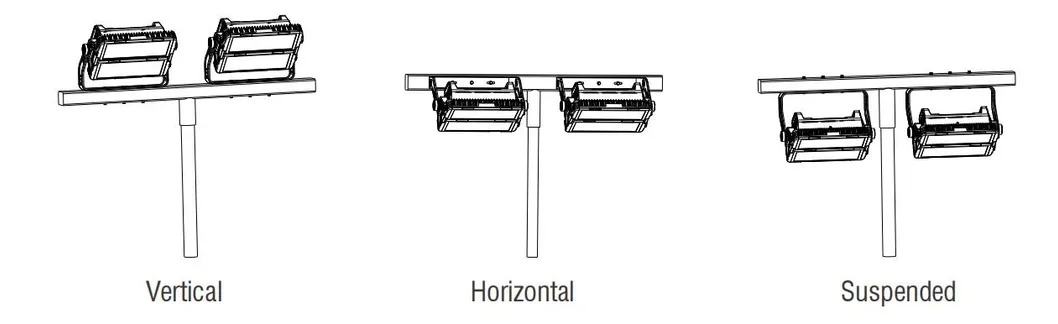

Installation Method
Product Dimensions

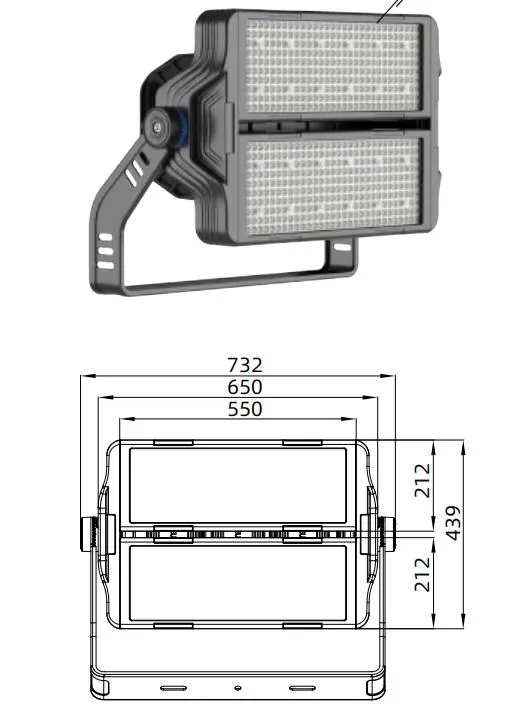

Dimension 1

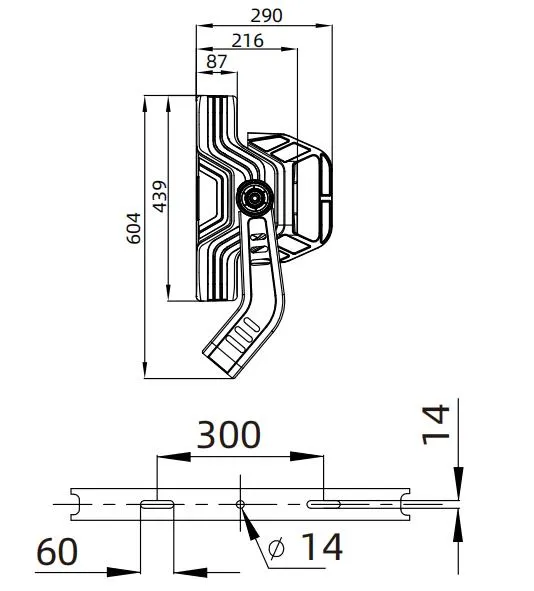

Dimension 2
Dimension 3

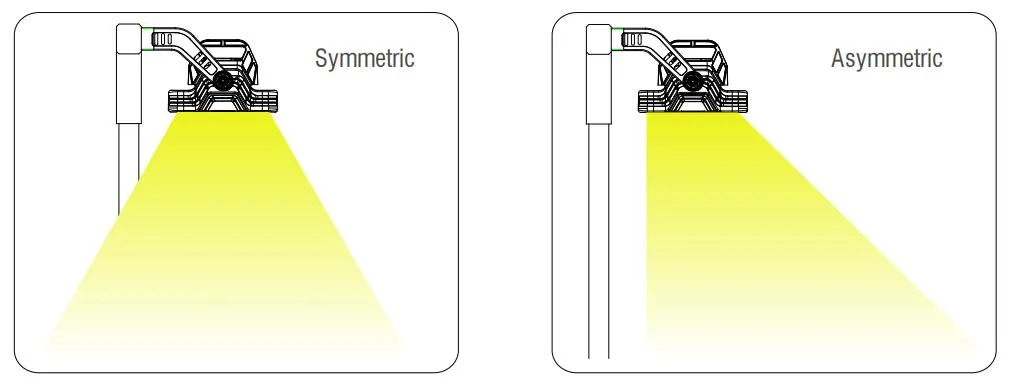

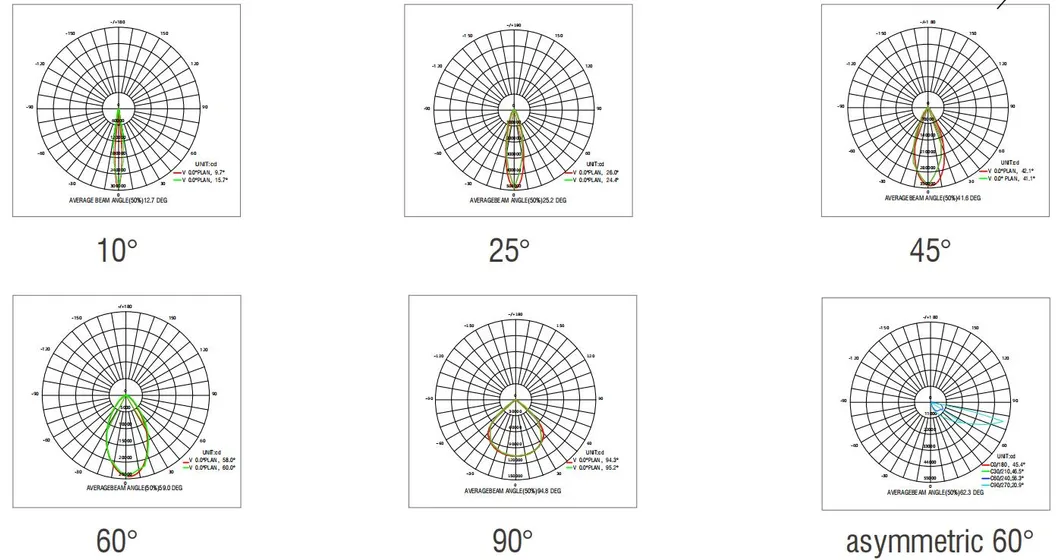

Photometric Data
Photometry 1
Photometry 2

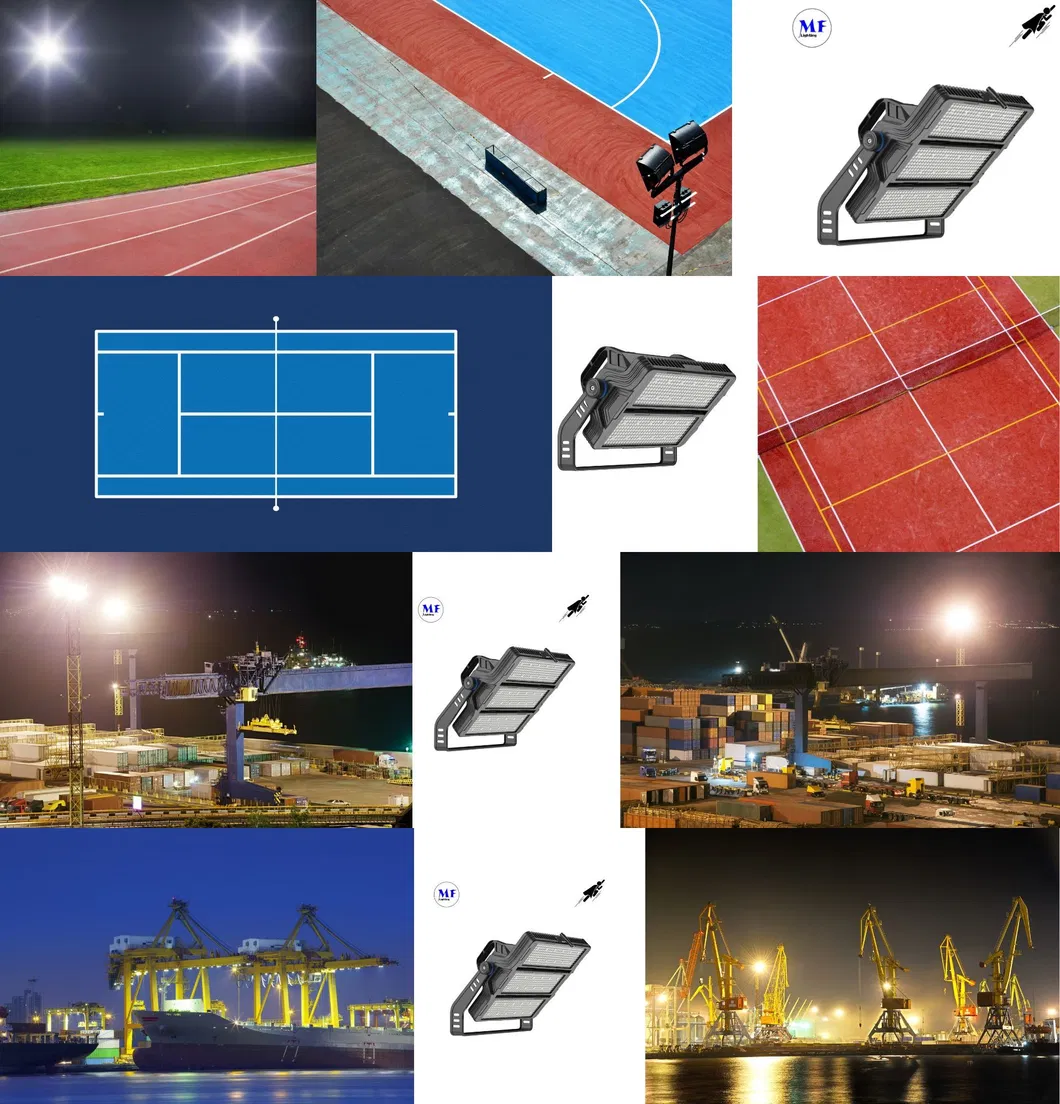

Applications

Stadium, Wharf, Airport, Dock, Tower Crane, Large Outdoor Parking Lot,
Football Field, Basketball Court, Tennis Court, Golf Course, etc.

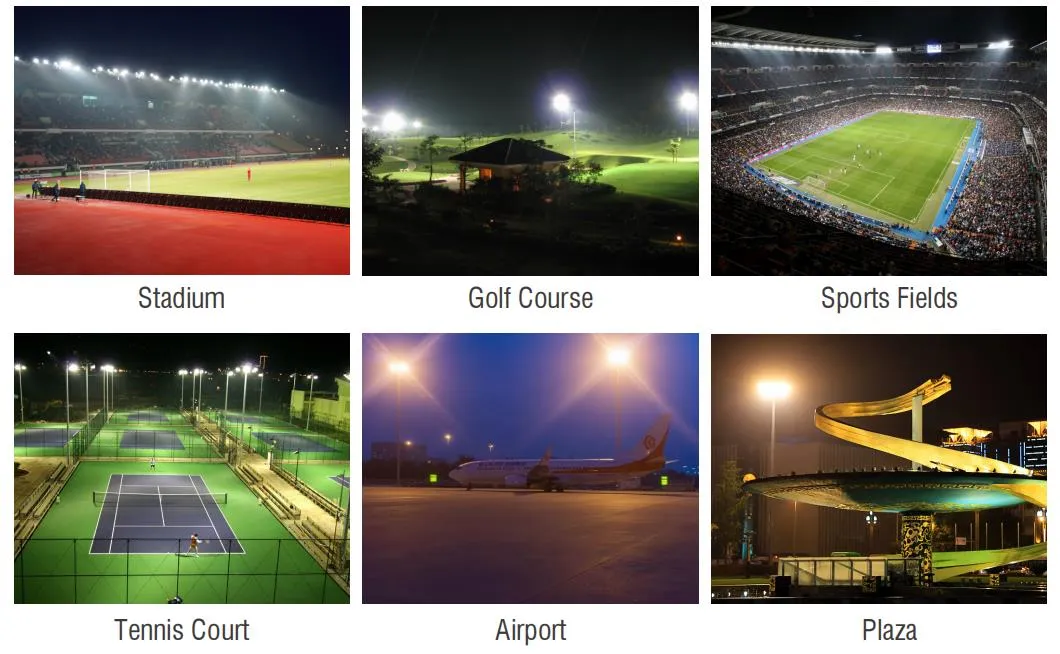

Application 1
Application 2

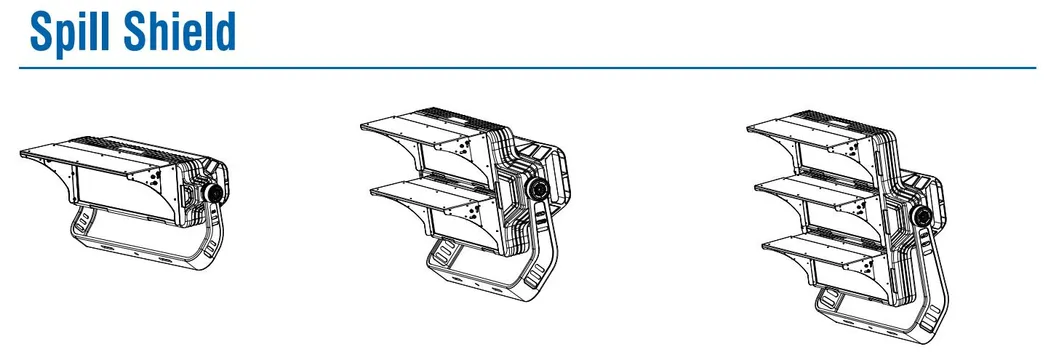

Extra Accessories & Packaging
Accessories

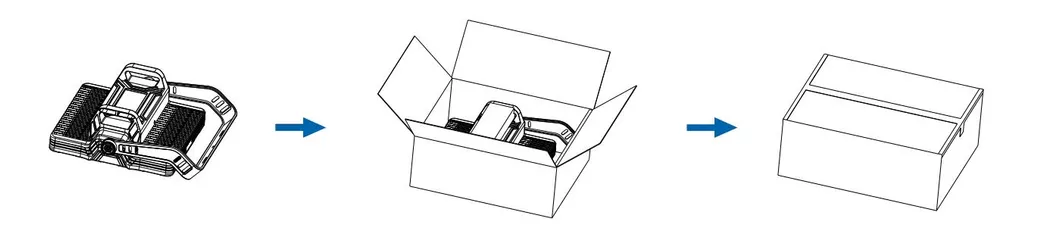

Shipping Info

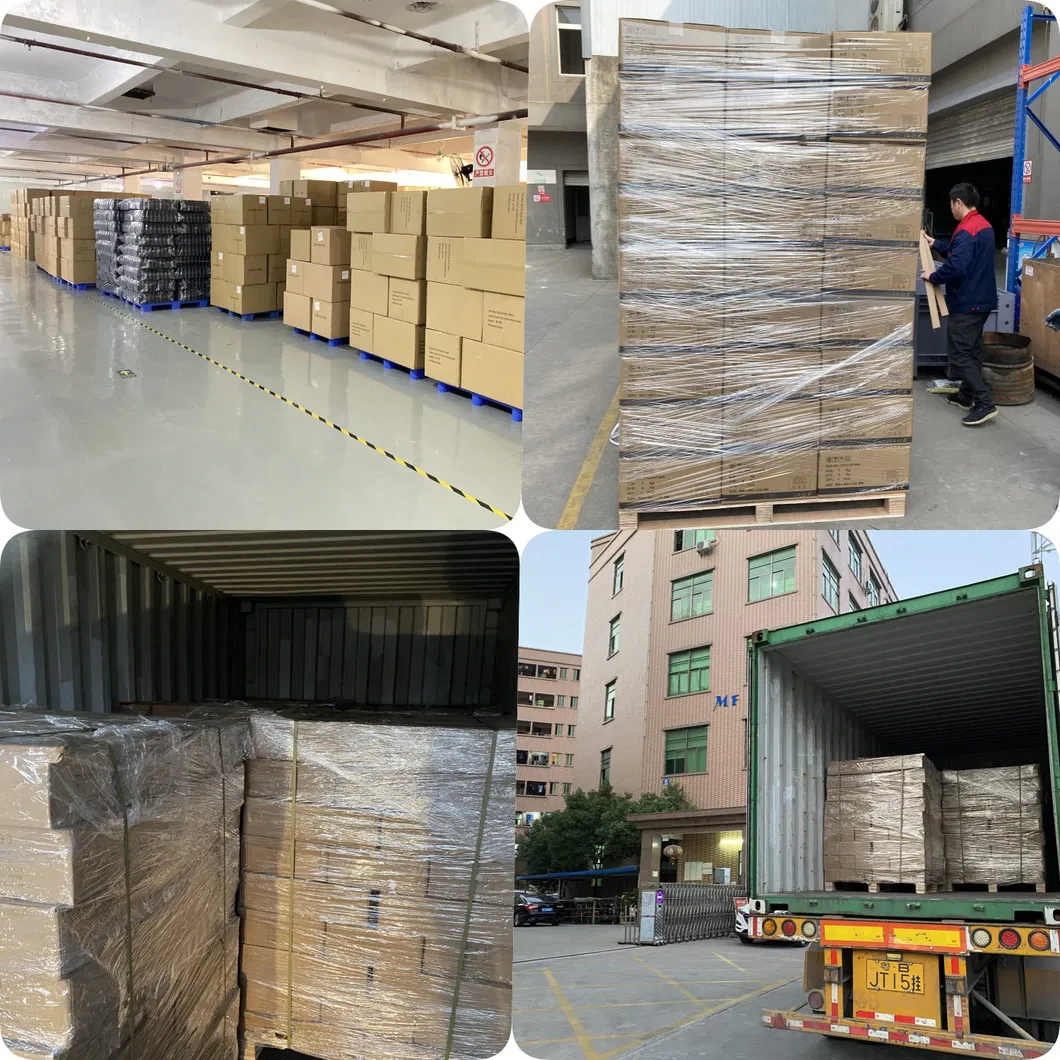

Packaging 1
Packaging 2
Packaging 3
Frequently Asked Questions
1. What is the luminous efficacy of this high mast light?

The light offers high efficiency ranging from 150 to 170lm/W, ensuring maximum brightness with lower energy consumption.

2. Is this light suitable for outdoor sports stadiums?

Yes, it is specifically designed for stadiums, football courts, tennis courts, and airports, featuring an IP66 waterproof rating and IK08 impact resistance.

3. What beam angles are available for light distribution?

We offer various optical lenses with beam angles of 10°, 25°, 45°, 60°, 90°, and an Asymmetrical 60° option to suit different mounting heights and area requirements.

4. Which LED chips and drivers are used in this product?

We use high-quality Lu-mileds or O-sram chips combined with reliable driver brands like Meanwell (MW), Sosen, or Inven-tronics.

5. What mounting options are supported?

The product supports flexible installation methods including vertical mounting, wall mounting, and hanging mounting via its adjustable bracket.

6. What certifications does this LED flood light have?

It is fully certified with UL, ETL, DLC, TUV, CB, ENEC, CE, SAA, FCC, and RoHS to meet international safety and performance standards.
