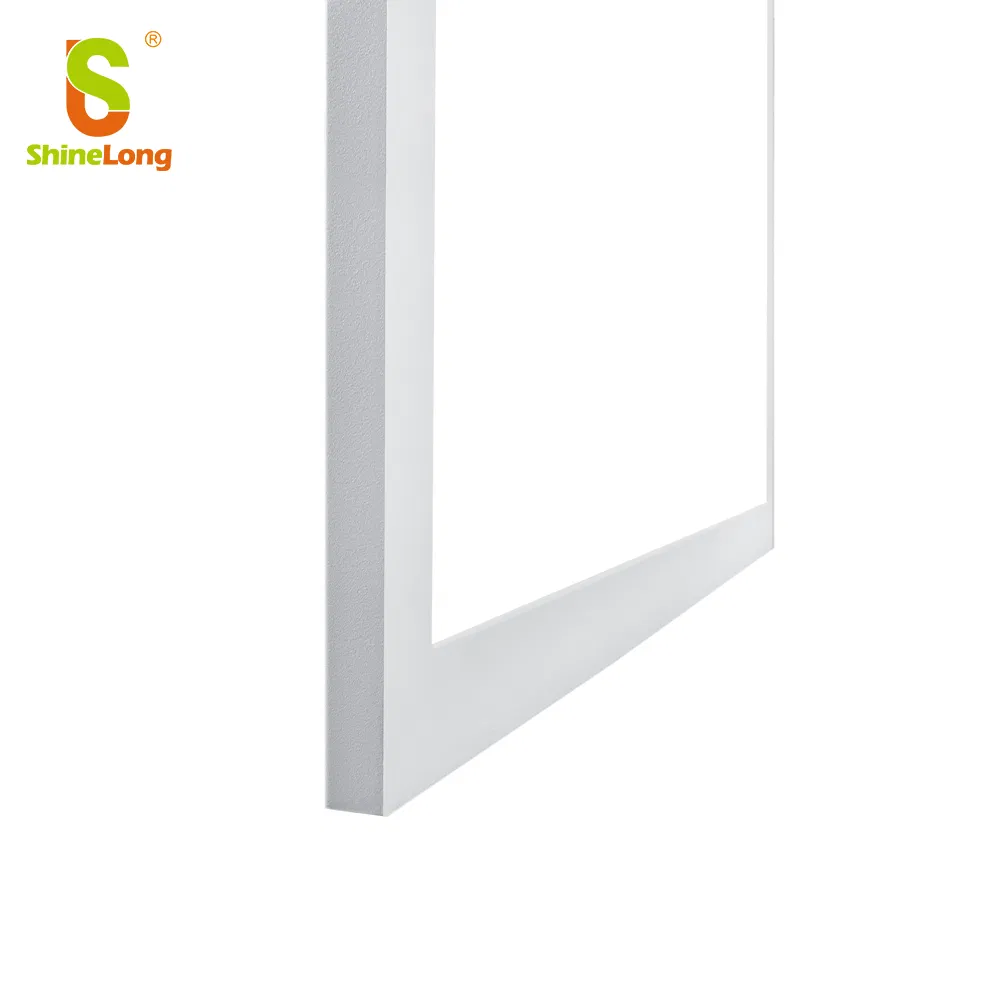

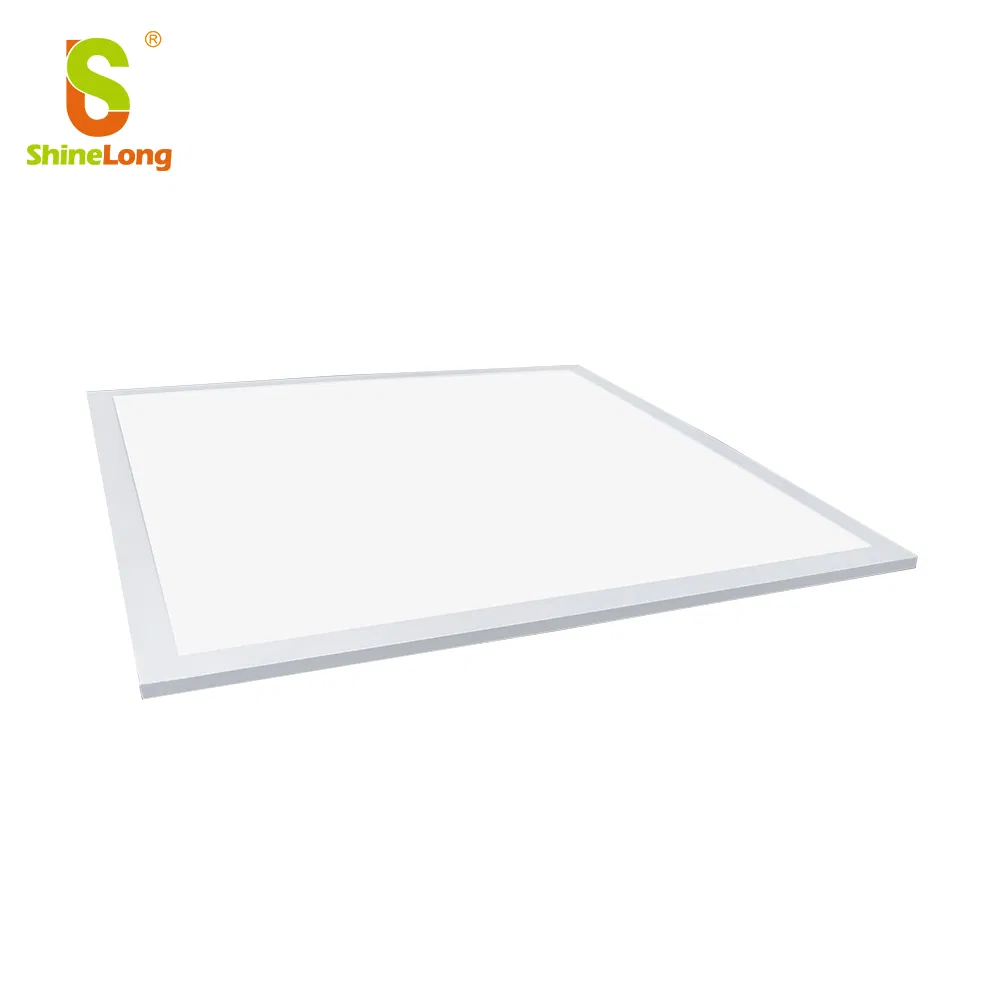

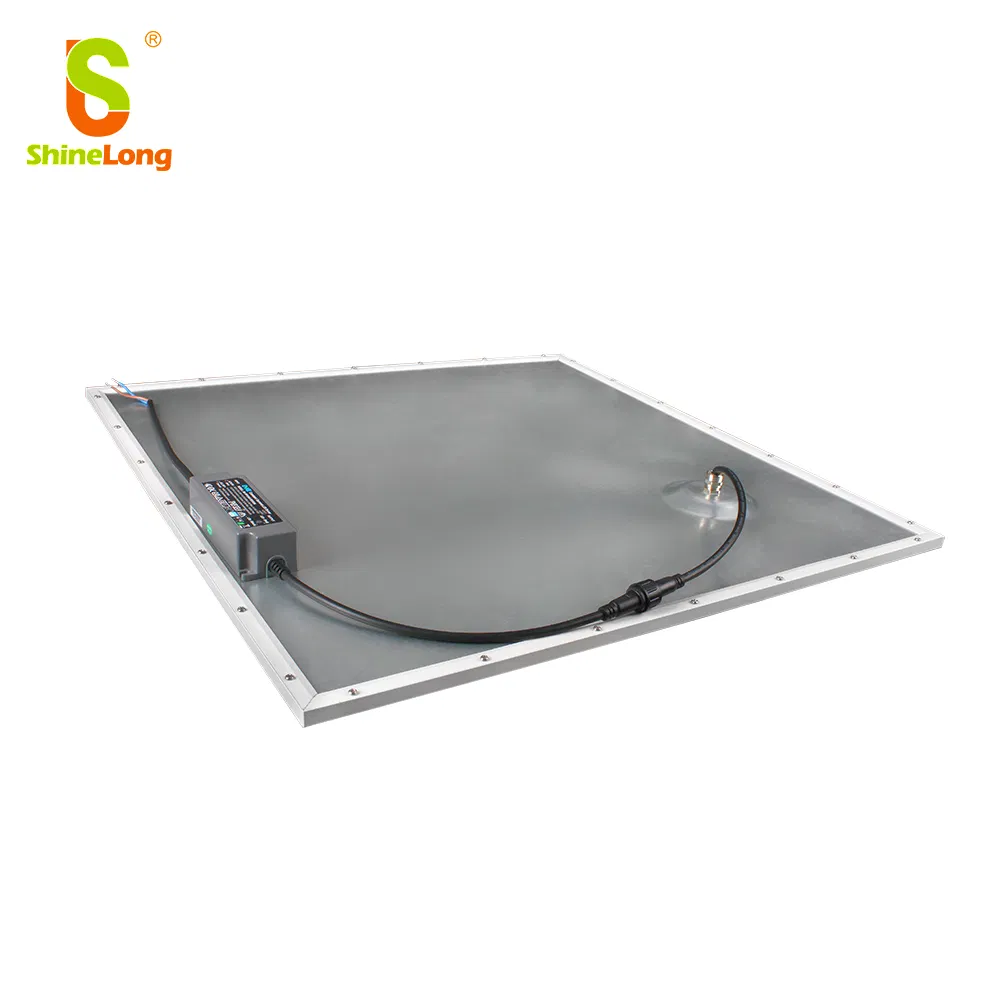

High-Performance IP65 LED Panel Light with 5000K for Wet Areas

i

Basic Information

Model NO.

SL-P1120/SL-P2240/SL-P1440

Emitting Color

White

Dimmable

With Dimmable

Appearance

Square

Type

Ceiling

Base Material

Metal

Certification

CE, RoHS, ISO9001

Voltage

200-240V

Beam Angle

120°

Wattage

20W, 40W

CRI

>80

CCT

3000K/4000K/5000K/6000K

Waterproof

IP65

Warranty

5 Years

Efficacy

100lm/W ± 10%, up to 120lm/W ± 10%

Power Factor

>0.90

★

Product Features

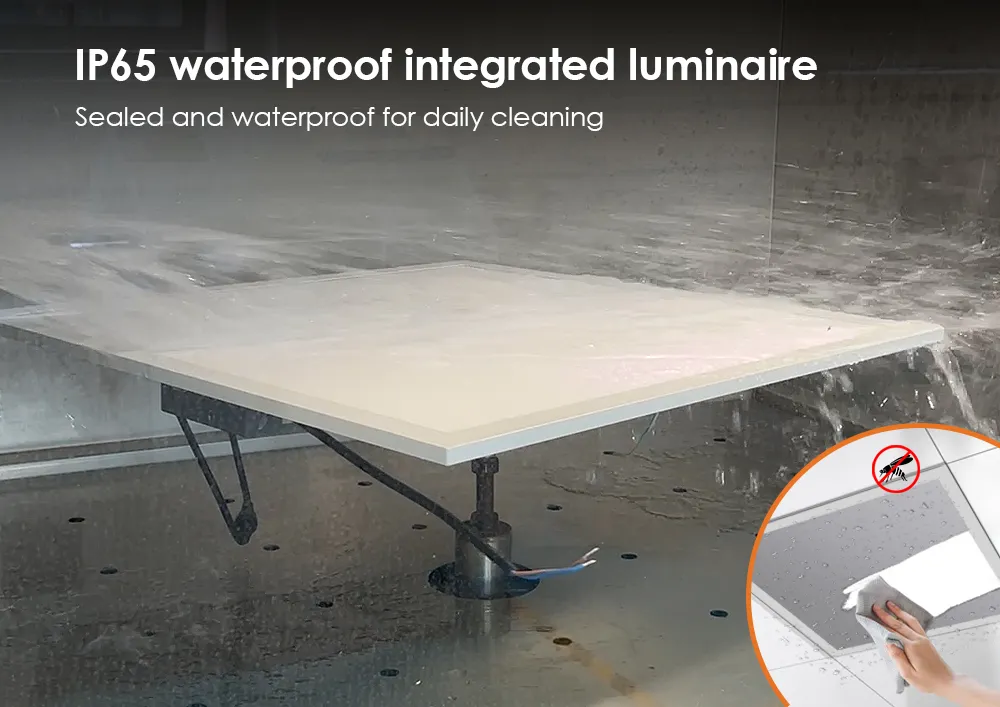

IP65 Waterproof Performance
One-time stretching process
High CRI: Ra>80, SDCM<4

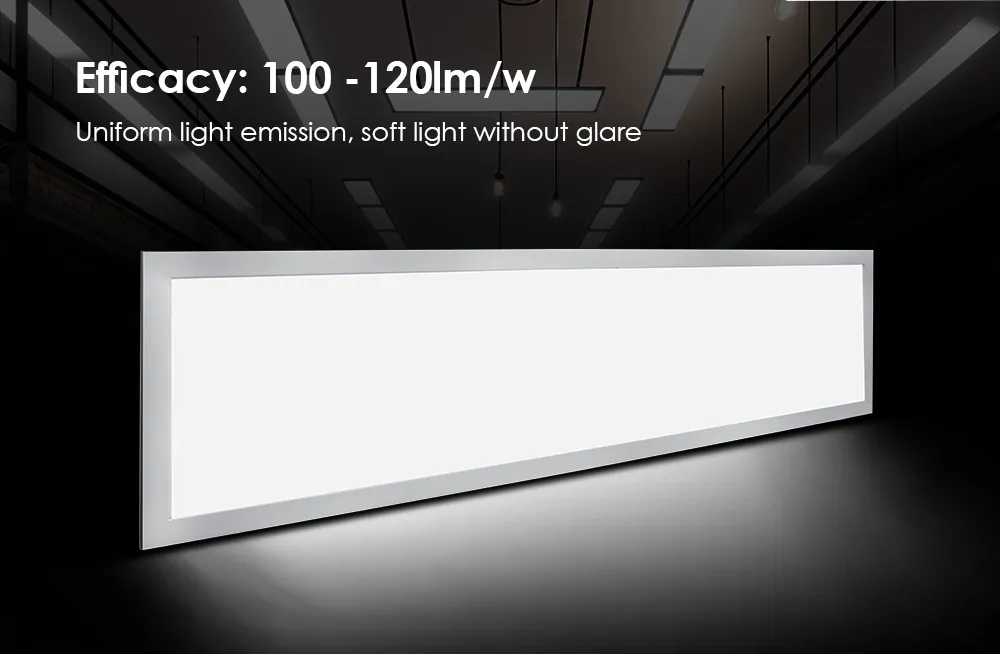

High Efficacy: 100lm/w to 120lm/w ± 10%
Flicker-free IP65 waterproof driver
High Power factor: >0.90
Input Voltage: AC200-240V 50/60Hz

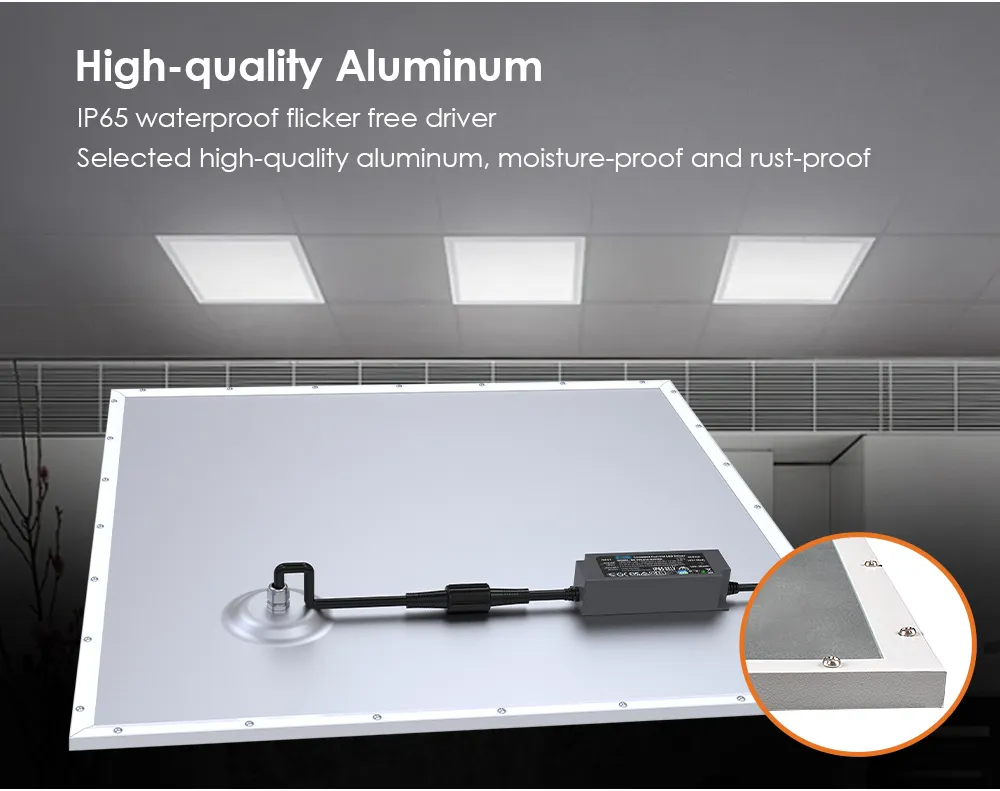

Premium Aluminum Material
5-year reliability warranty
Versatile Installation: Suspending, Ceiling mounted, or Recessed

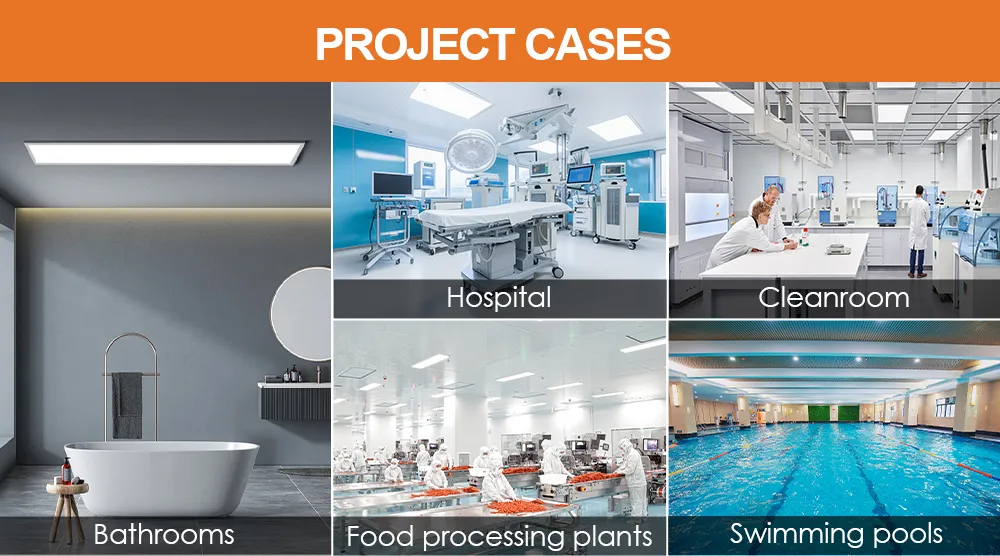

Application: Perfectly suited for wet environments like swimming pools, bathrooms, kitchens, food processing plants, cleanrooms, hospitals, etc.

📋

Data Sheet

Item Number	Dimension (mm)	Power (W)	Lumen (lm)
SL-P1120-X-FS	29529511	20	2000lm
SL-P2240-X-FS	59559511	40	4000lm
SL-P2240-X-FS-2	62062011	40	4000lm
SL-P1440-X-FS	119529511	40	4000lm

*The 'X' represents CCT: W(3000K/4000K), P(5000K), C(6000K)

Efficacy Version:

Frosted Cover: Standard 100lm/W | Premium 120lm/W

📐

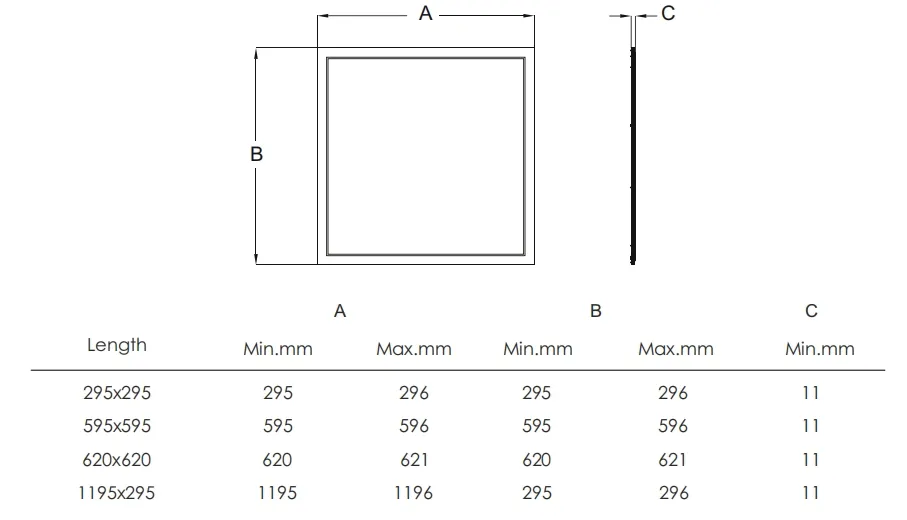

Product Dimensions

🔍

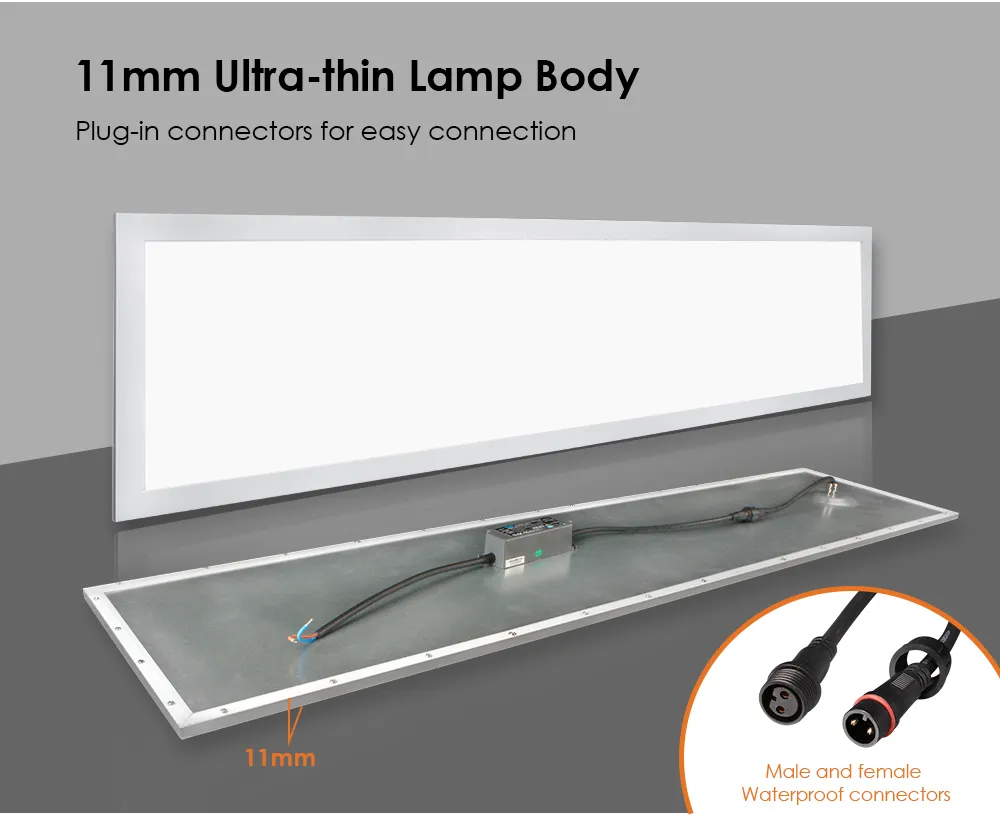

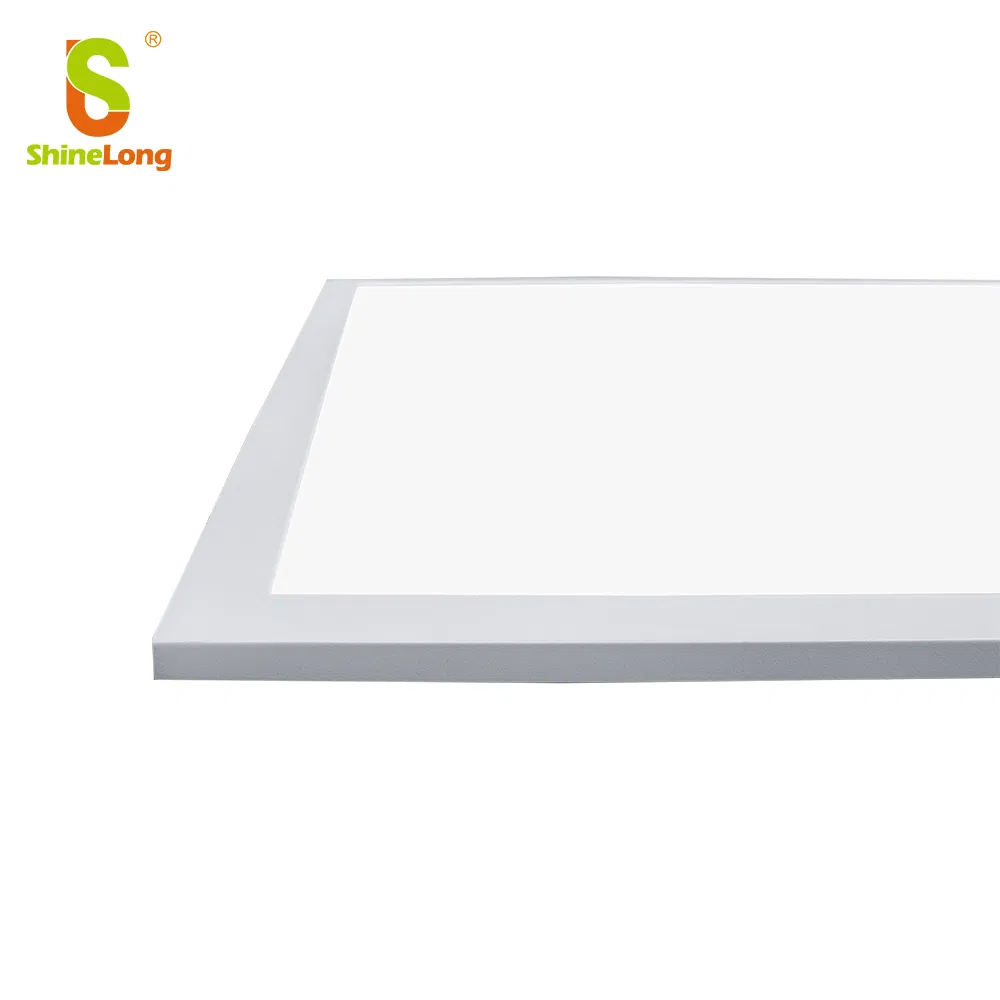

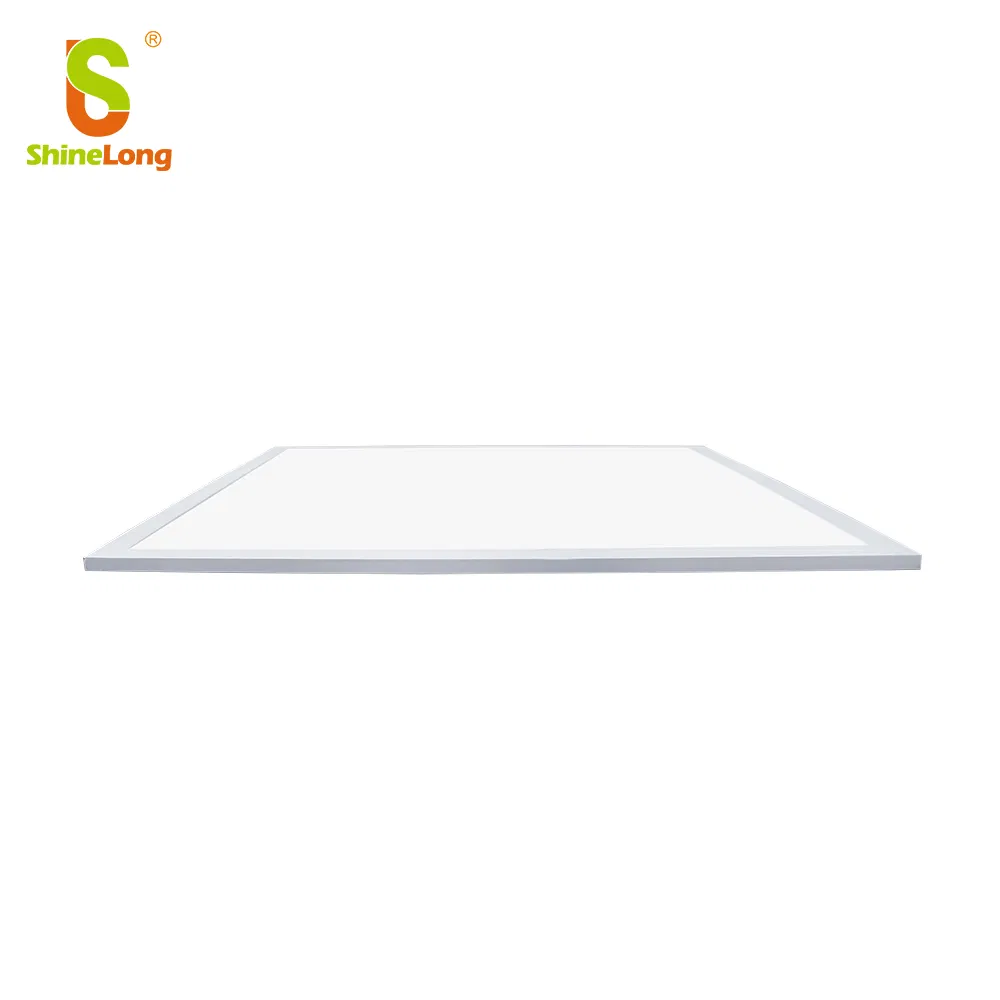

Product Details

🛠

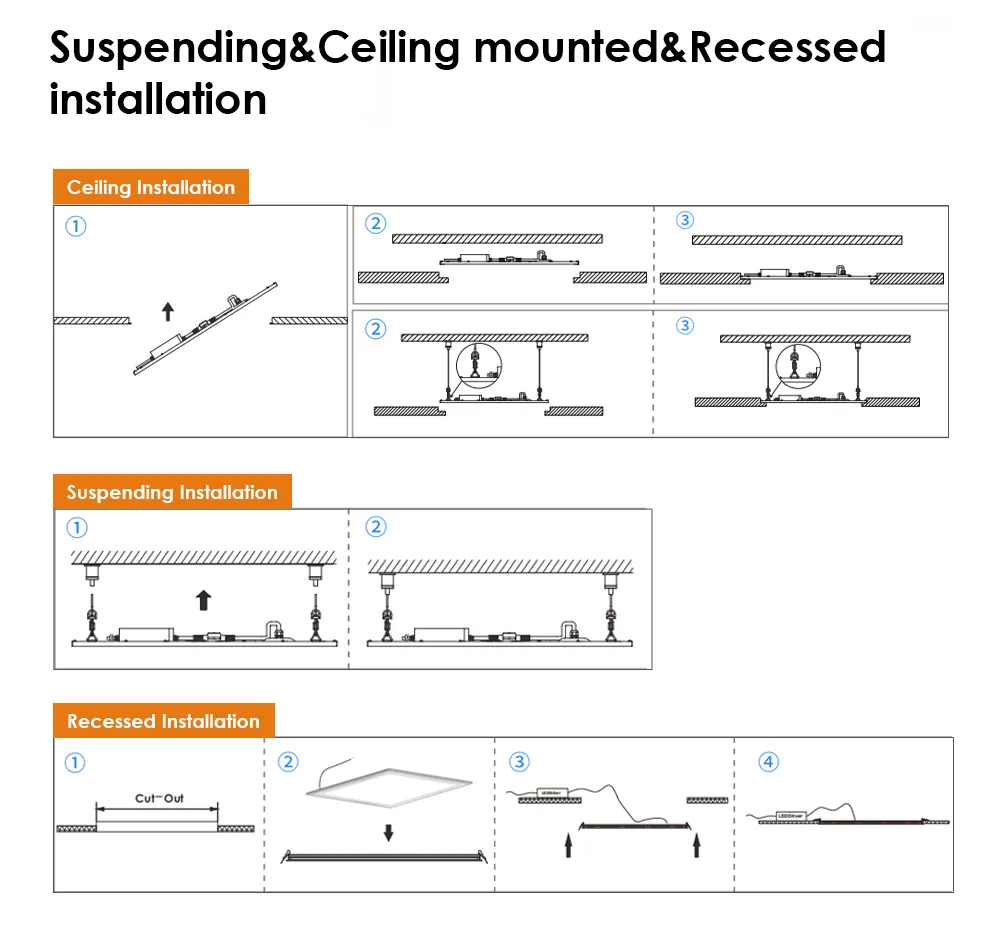

Installation Instructions

📦

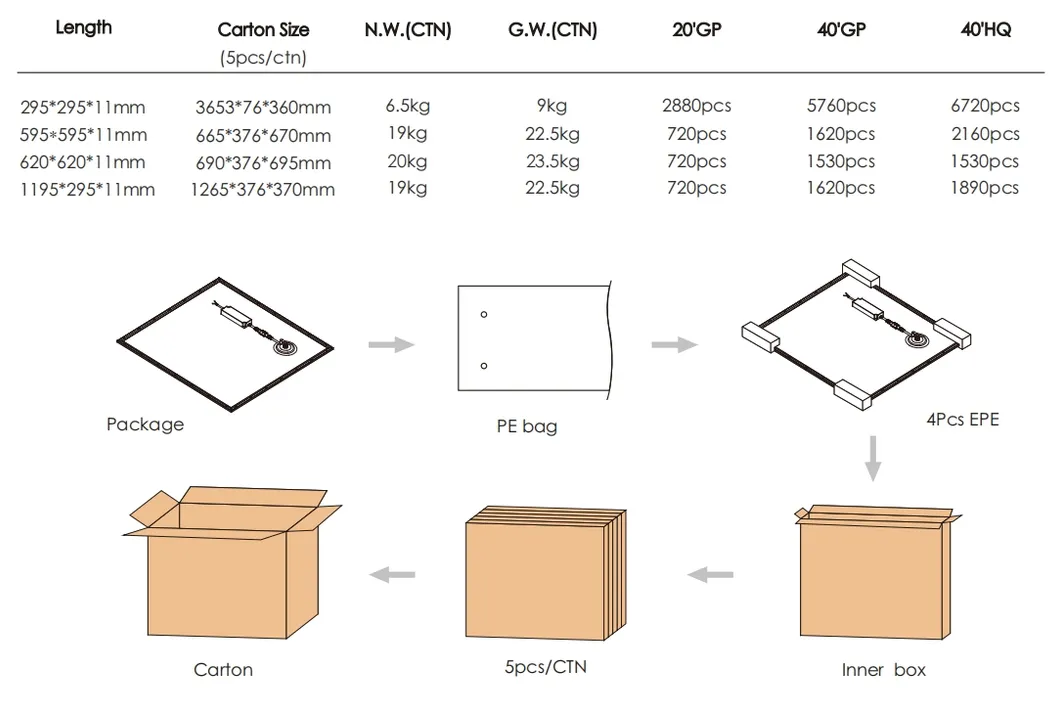

Packaging & Shipping

🏢

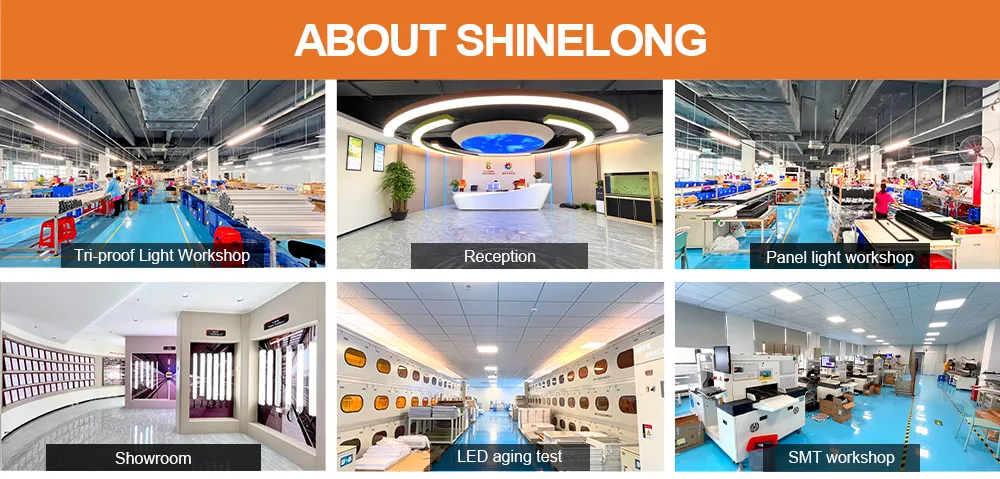

Company Profile

Our company was founded in 2010 and covers an expansive area of more than 20,000 square meters. We are devoted to the research, development, and manufacturing of cutting-edge high-performance LED lighting solutions. With our robust R&D team and production capabilities, we have swiftly evolved into a prominent leader in the global LED lighting industry. Our expertise spans LED tri-proof lamps, explosion-proof lamps, and panel lights, catering to industrial, commercial, and public sectors. Our products have illuminated spaces in over 80 countries worldwide.

We have constructed an efficient and adaptable supply chain system, encompassing a comprehensive production chain from SMT, injection molding, and power supply production to mold development and hardware processing. All our products have achieved prestigious international certifications including TUV, VDE, UL, ETL, SAA, UKCA, DLC, and CE. Our production and testing processes utilize internationally advanced equipment, ensuring stringent quality control at every stage.

?

Frequently Asked Questions

What does the IP65 rating mean for this panel light, and can it be used in fully wet areas?

The IP65 rating means the light is 100% dust-tight and protected against powerful water jets. It's ideal for wet environments like swimming pool edges, bathrooms, and kitchens, but it is not designed for long-term full submersion in water.

Does this IP65 panel light meet international safety or environmental standards?

Yes. It complies with CE (European safety standard) and RoHS, ensuring it's safe for global markets. Additional certifications such as UL or SAA can be provided upon request.

Can I customize the specifications of this panel light?

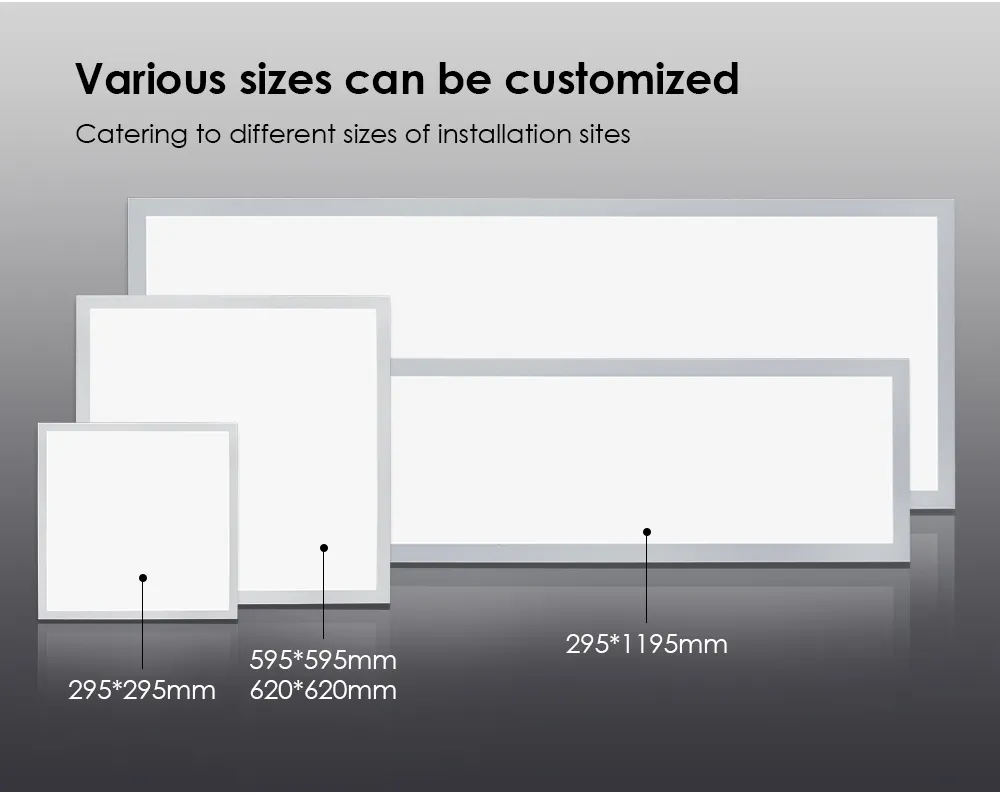

Absolutely. We offer customization for sizes (600x600mm, 1200x300mm, etc.), color temperatures (3000K, 4000K, 5700K), and optional dimming functions like DALI or 1-10V for smart control.

What's the difference between 100lm/W and 120lm/W versions?

The 100lm/W version is cost-effective for general use. The 120lm/W version is more energy-efficient and brighter, ideal for large commercial spaces that require strong, uniform lighting while reducing electricity costs.

How is the panel light installed?

It supports ceiling recessed mounting and surface mounting. A detailed installation manual with step-by-step photos is included in the package for guidance.

What is the warranty period for these lights?

All our high-performance IP65 panel lights come with a standard 5-year warranty, ensuring long-term reliability and peace of mind for your projects.
