💡 Key Features
All-In-One Design New generation sports lighting with energy saving and cutting-edge optical management.
Flicker-Free Technology Supports 4K camera slow motion replay up to 2000fps without flickering.

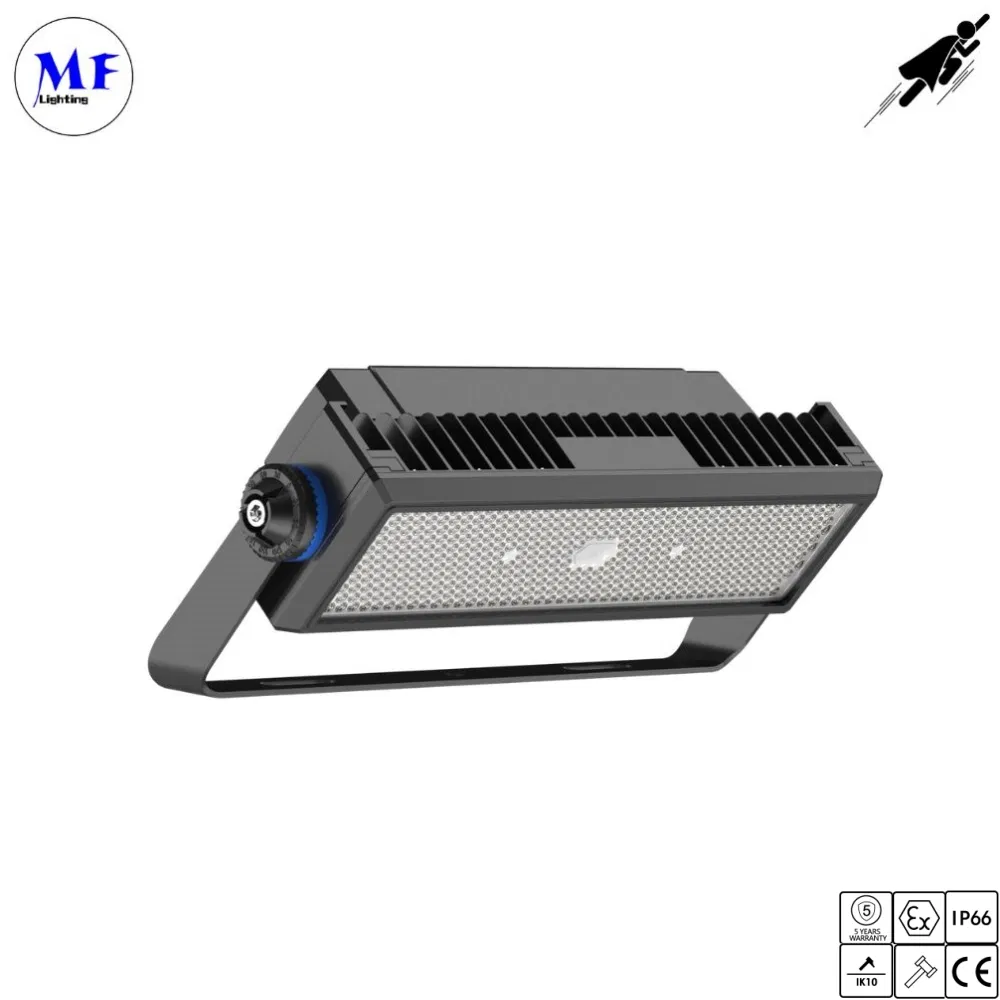

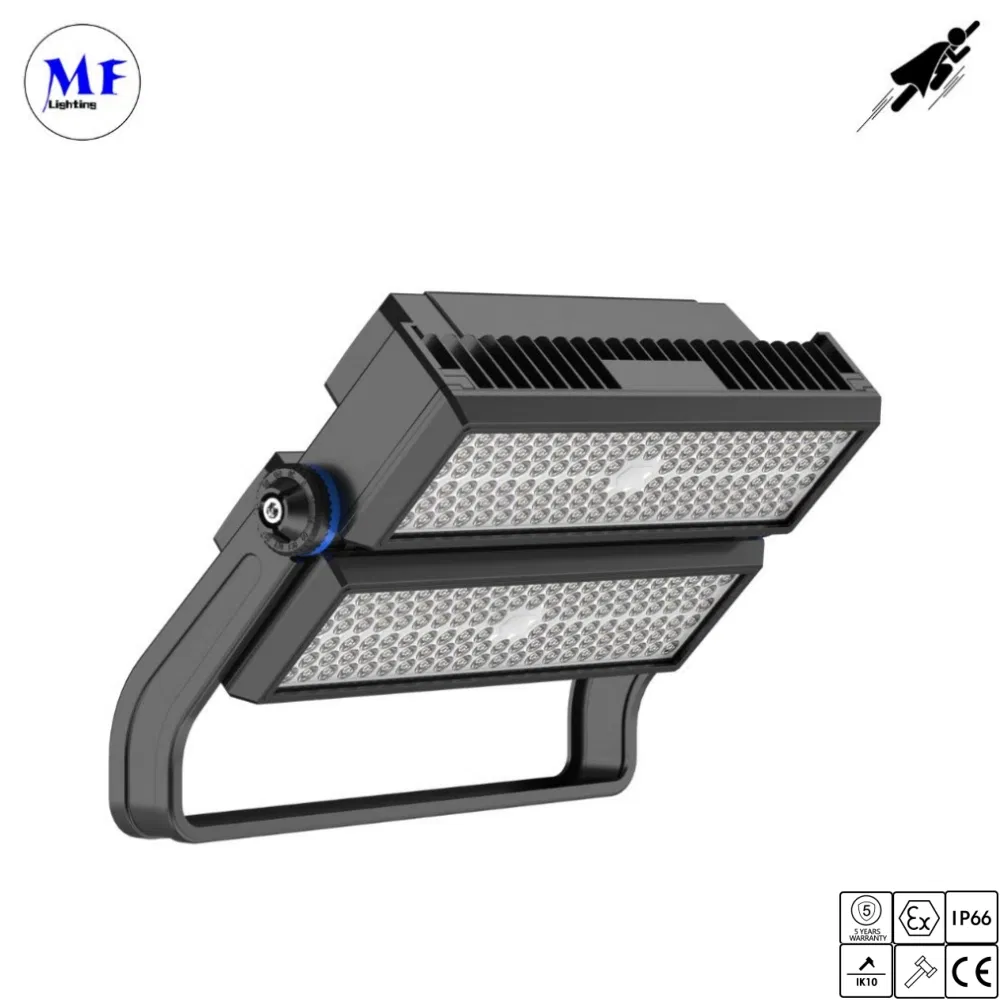

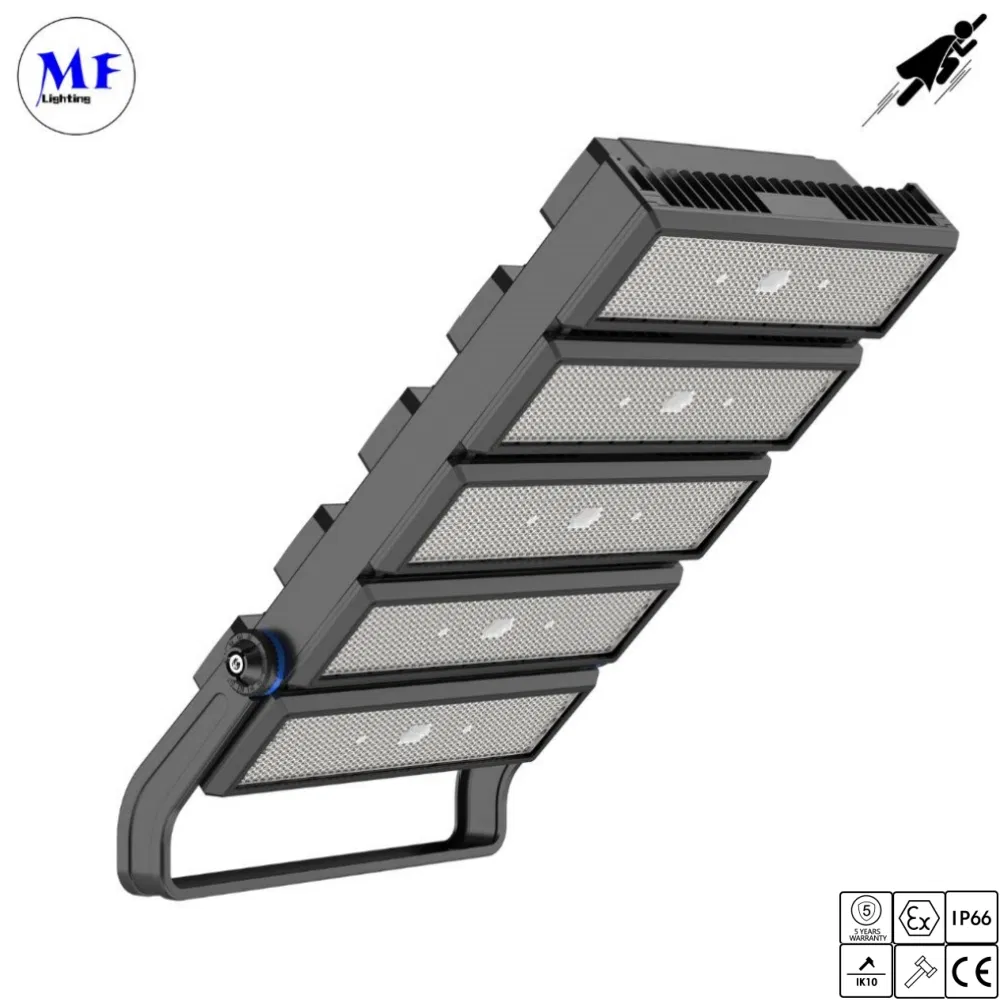

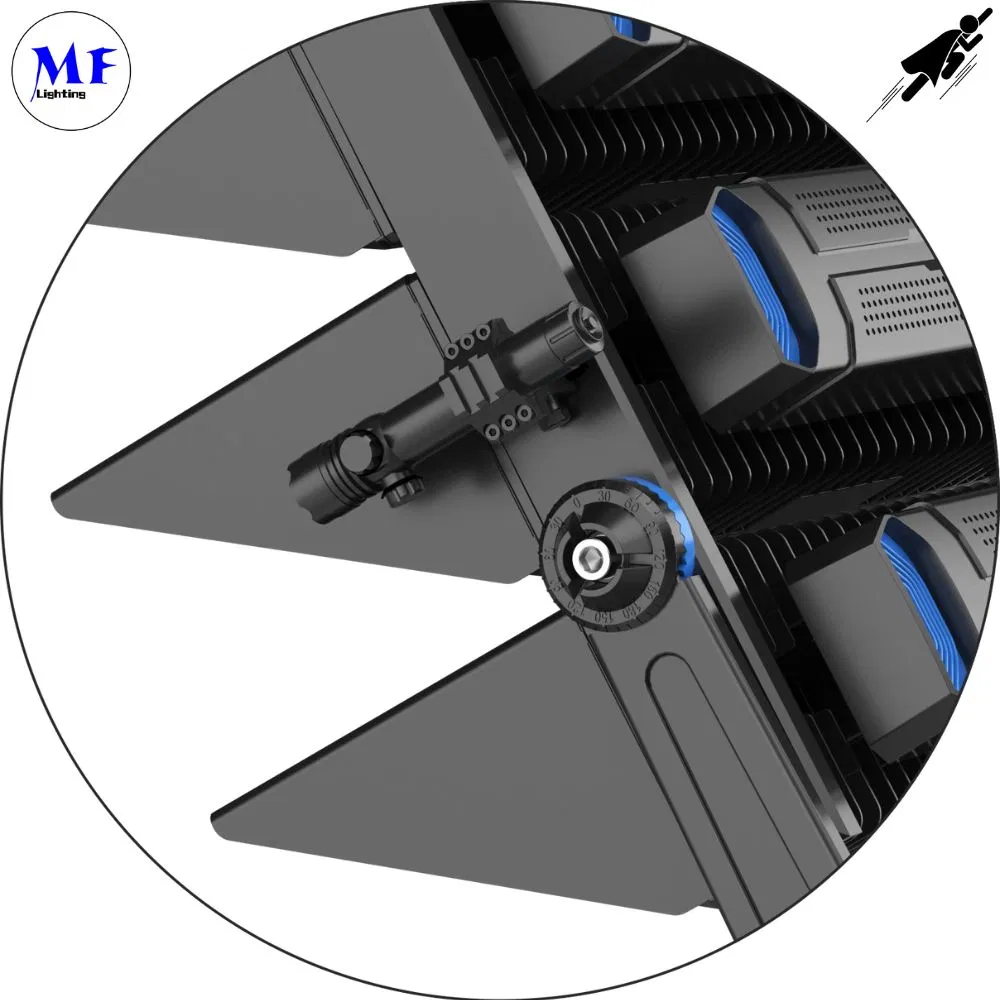

Modular Concept Flexible 250-300W modules allowing configurations up to 1500W with laser aimer precision.
High Protection IP66 waterproof and IK10 impact resistance with built-in 10KV-20KV surge protection.

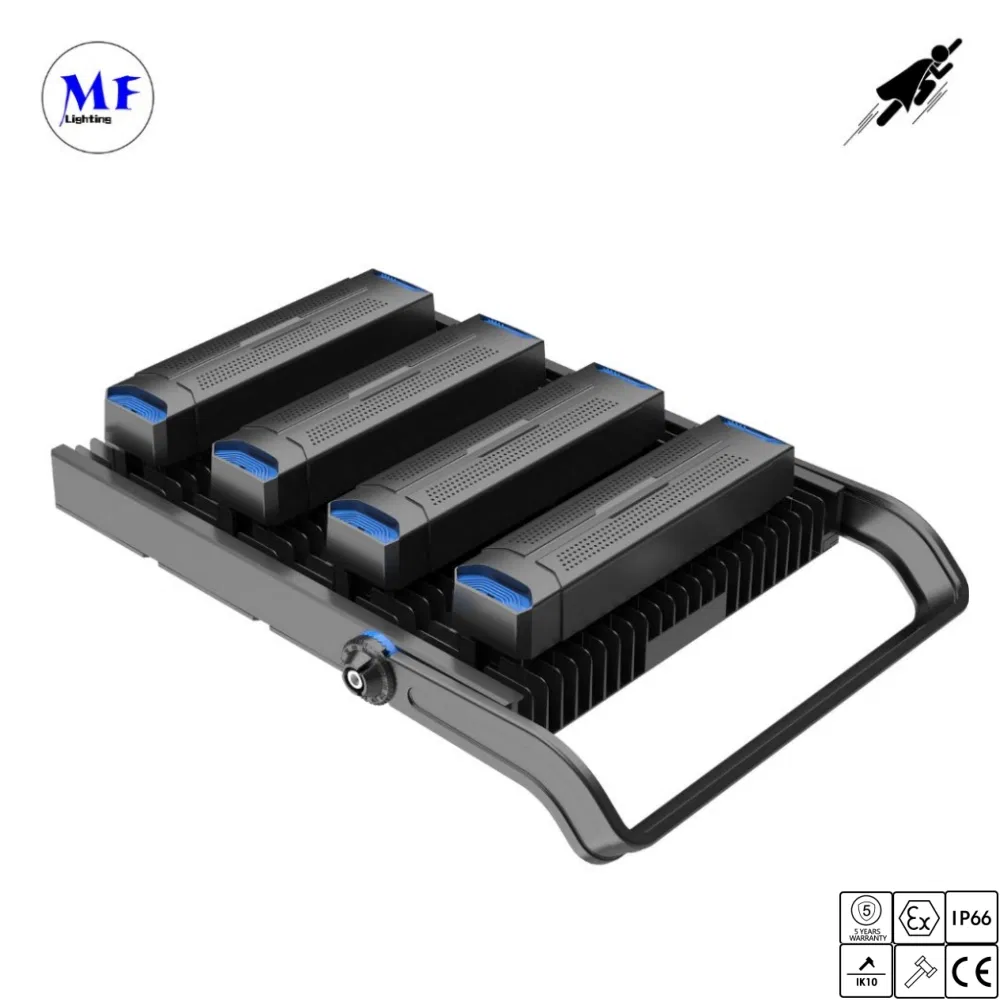

Thermal Management Passive cooling with fin-design for maximum heat dissipation and long lifespan.

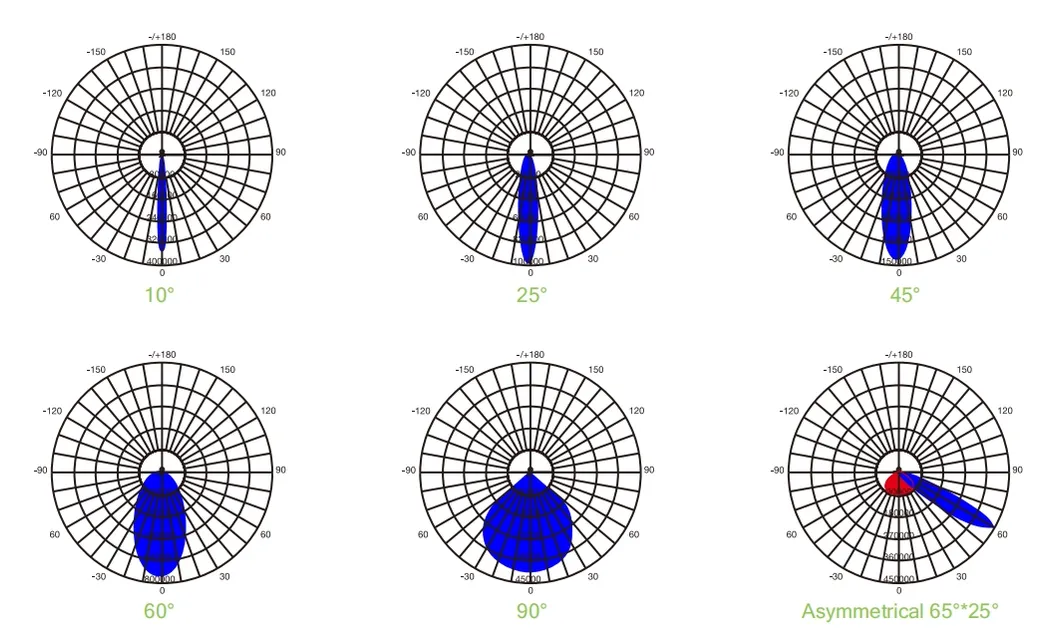

No Spill Light Asymmetrical optical lens focus light strictly on the field, avoiding residential areas.
Glare-Free Experience Excellent glare control for better visual experience for athletes and audiences.
Corrosion Resistance 1000H-3000H neutral salt spray tested for coastal and port environments.
📋 Technical Specifications

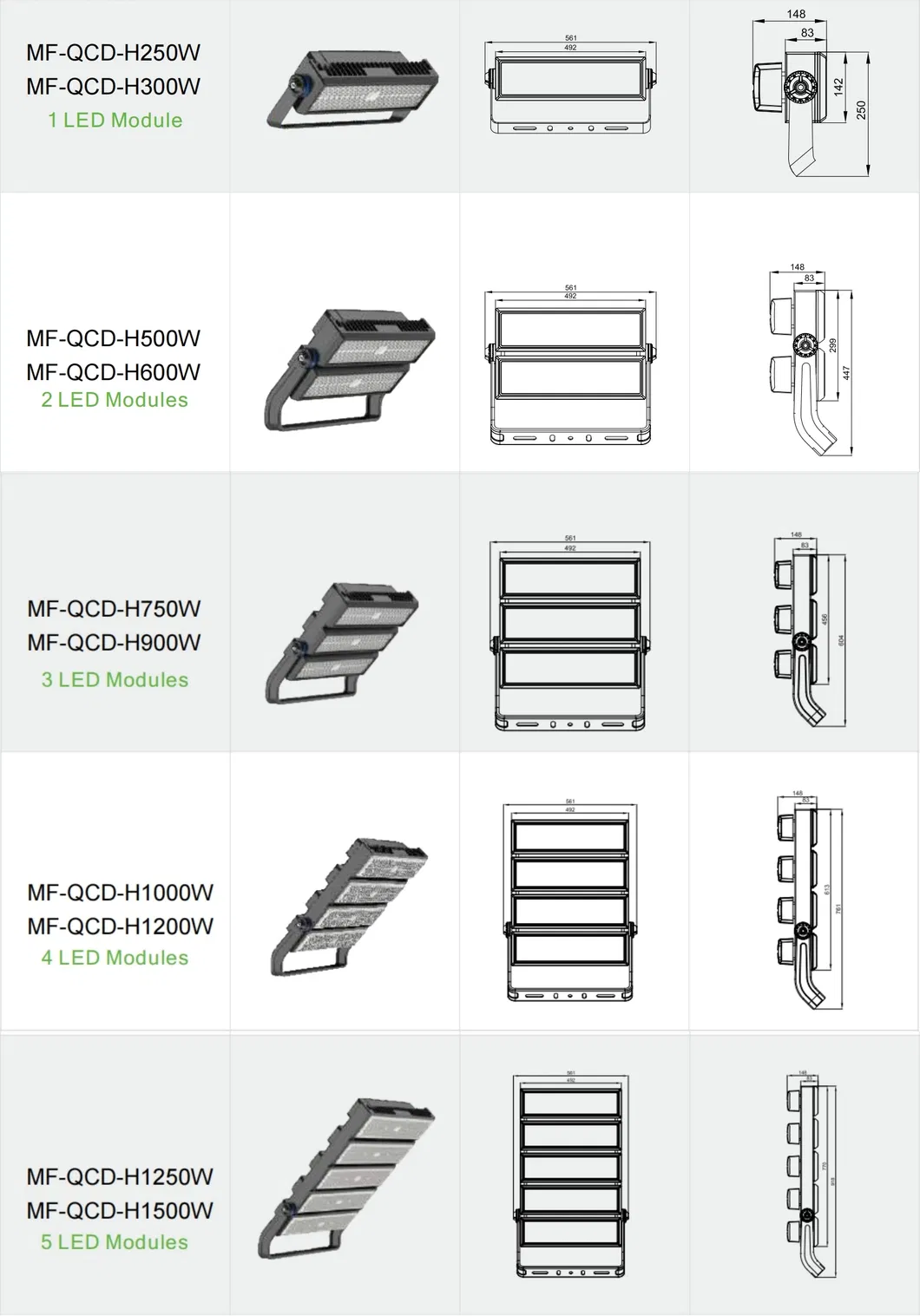

SuperMan II Family - Plan A (150lm/w)
| Model No. |
H250W |
H500W |
H750W |
H1000W |
H1250W |
| Rated Power | 240W | 480W | 720W | 960W | 1200W |
| Luminous Flux | 36,000 lm | 72,000 lm | 108,000 lm | 144,000 lm | 180,000 lm |
| Net Weight | 7 kg | 14 kg | 20 kg | 26 kg | 32 kg |
| Carton Size | 630*330*230 | 630*520*230 | 630*680*230 | 630*840*230 | 630*1000*230 |
SuperMan II Family - Plan B (170lm/w)
| Light Source |
H250W |
H500W |
H750W |
H1000W |
H1200W |
| Flux (lm) | 40,800 | 81,600 | 122,400 | 163,200 | 204,000 |
| Input Voltage | 100-305Vac 50/60Hz |
⚠️ Installation Notice
1. Must be installed by a certified electrician according to local regulations.
2. Always turn off the power and ensure the lamp is cooled before maintenance.
3. Check local voltage requirements before installation (AC 100-305V).
4. Clean using a soft cloth and PH neutral detergent only.
5. Do not cover the fixture with flammable materials.
❓ Frequently Asked Questions
What is the maximum power available for this stadium light?
The SuperMan II series offers a wide range of power options, from a single module of 250W/300W up to a maximum of 1500W using five modular units.
Is this light suitable for high-definition TV broadcasting?
Yes, the fixture is designed to be flicker-free. It supports high-definition 4K camera technology and slow-motion replay at up to 2000fps, making it perfect for professional sports venues.
How does the light handle extreme outdoor weather?
The light is IP66 rated for waterproof protection and IK10 rated for impact resistance. It also features a modular design that reduces wind resistance and includes 10KV-20KV surge protection.
Can these lights be used in coastal areas with high salt spray?
Absolutely. These flood lights undergo multi-stage anti-corrosion treatments, including electrophoresis and triple powder coating, passing up to 3000H neutral salt spray tests.
What is the light efficiency of the SuperMan II series?
We offer different plans based on your needs: Plan A and C provide 150lm/w, while Plan B offers a high-efficiency output of 170lm/w.
Does the light cause pollution to nearby residential areas?
No, the light uses asymmetrical optical lenses designed to focus illumination specifically on the field, preventing spill light from affecting the surrounding environment or residential homes.
