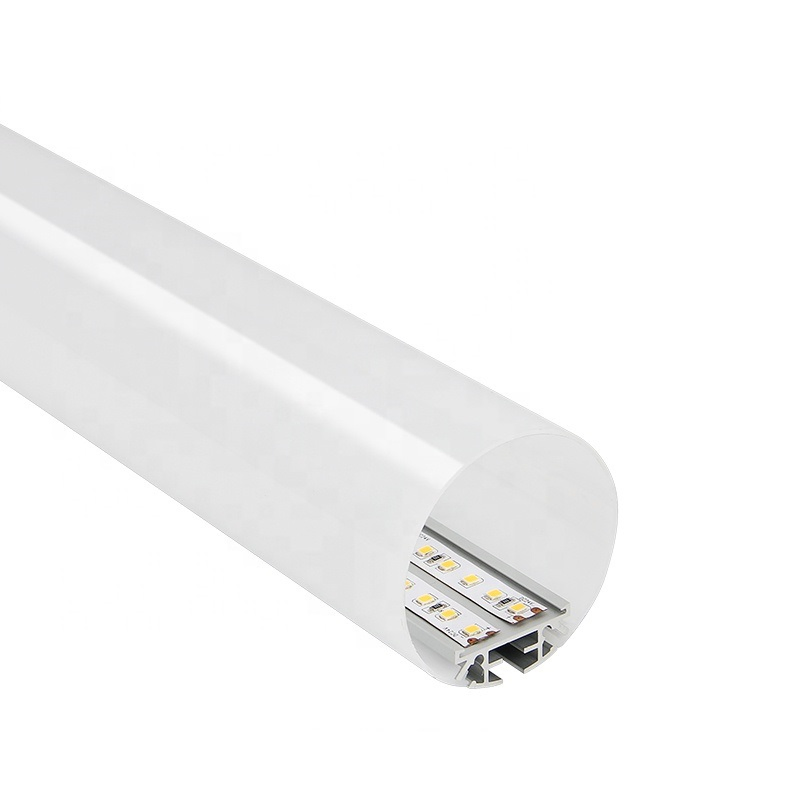

High Power Commercial Round Shape Aluminum Extrusion LED Linear Light Fixture

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Application
Door & Window, Heat Sink, Decoration
Surface Treatment
Anodized
Installation
Pendant/Suspension
Dimension
60mm Diameter
Accessories
Suspended Wire + End Cap + Screws
Cover
Milky Cover / Clear Cover
Color
Silver/White/Black
Material
6063 T3-T8 Aluminium Alloy
Suitable for LED
8mm, 10mm, 15mm, 20mm
Beam Angle
250°
Production Capacity
50,000 meters/Week
Origin
China
Product Description
High power commercial round shape aluminum extrusion led linear light fixture

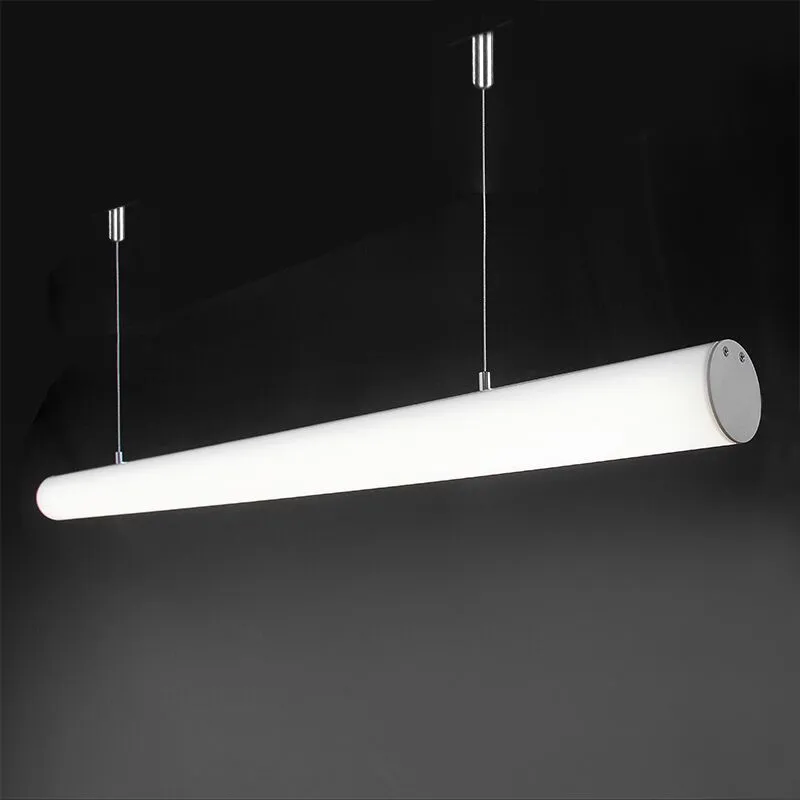

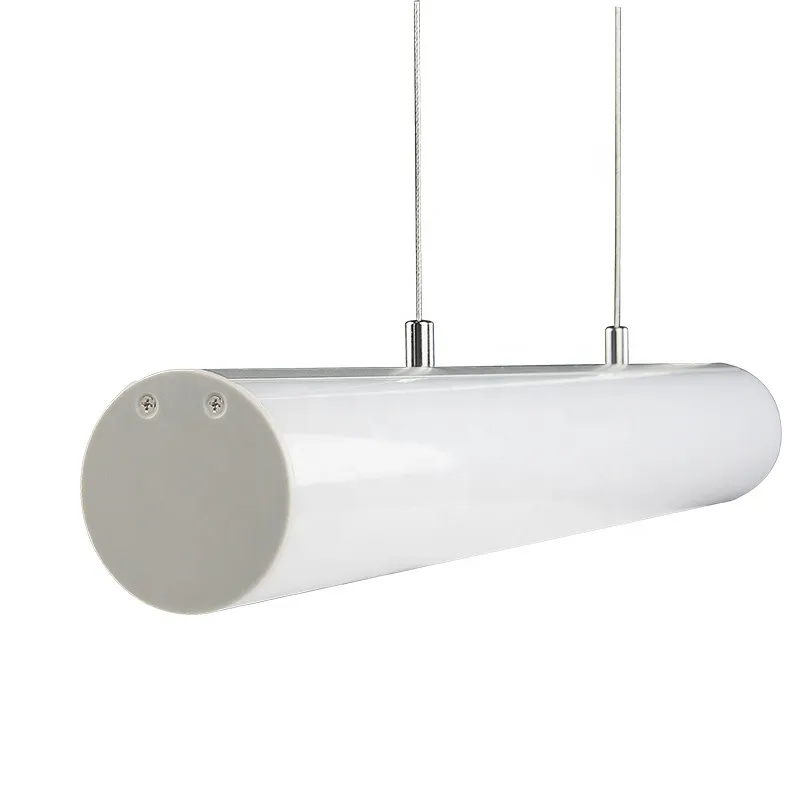

This large 60mm Diameter Circular Channel is ideal for creating bespoke and modern designs. They are designed to be hung using our suspension kit to create a stunning environment. With up to 32mm of internal width it is possible to house two LED strips side-by-side.

These aluminium channels not only act as a heat sink which reduces the light decay dramatically from the LEDs over their lifetime, but they also improve the visual finish of linear lighting installations by reducing spotting and manipulating the light output to suit an application.

By using the associated opal diffuser it is possible to soften the light output and reduce any glare. As the aluminium sits quite deep it should help to eliminate the spotting effect between the LEDs.

The channel is available in lengths of 2 and 3 metres or in custom bespoke lengths, mitred and at an angle. We are experienced in delivering a wide range of projects involving extrusion cut to bespoke sizes and have equipment that allows us to delivery large quantity of cut sizes quickly and efficiently.

Product Name Customise Large Circular 60mm Suspended LED Aluminium Profile
Material 6063 Aluminum Alloy
Surface Treatment Anodized
Length 0.5~4 meters
Color Silver, White, Can be custom-made

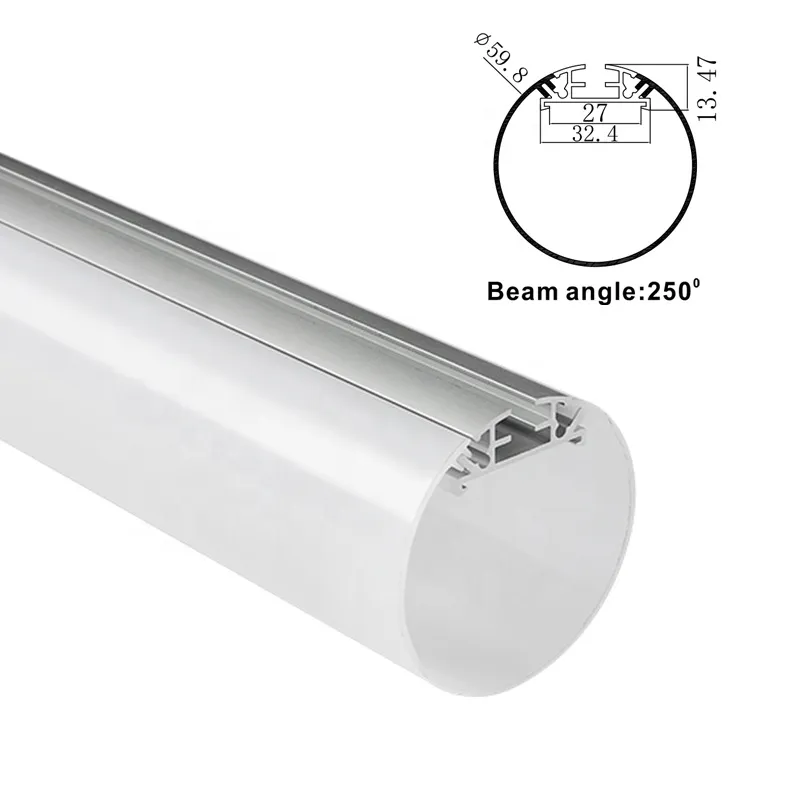

OD 60mm
PC Cover Transparent/Diffuser/Opal
Product Visuals
Material Specifications
Heat Sink: 6063-T5 aerial aluminum
Has good corrosion resistance and toughness. Easy polishing, color firm and anodic oxidation. Widely used in building profiles, platforms, furniture, etc.
PC cover: Mitsubishi PC from Japan
Amorphous thermoplastic resin with excellent electrical insulation, extensibility, and chemical corrosion resistance. High strength, heat resistance and cold resistance.
Accessories:
ABS material for anti-aging end caps, Stainless steel (201/304) clips for anti-rusting, and Stainless steel suspended cables (standard 1 meter).

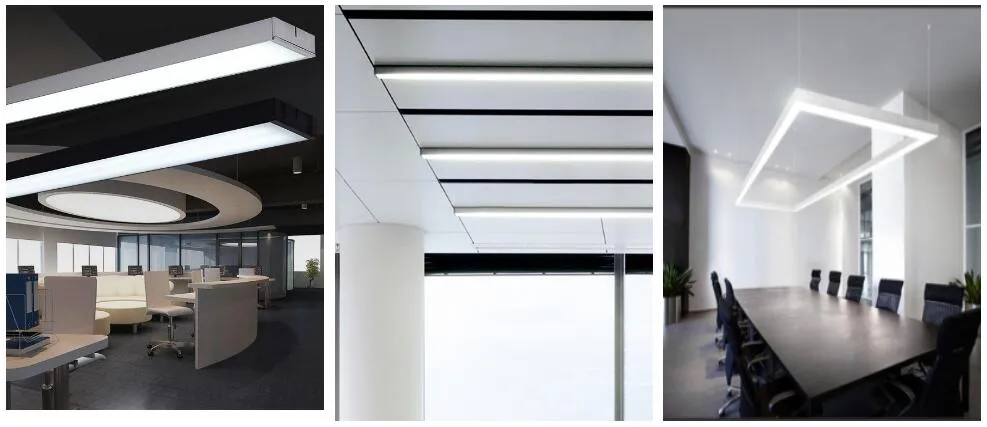

Certificates & Applications
Certificates
Why Choose Us
Fast Lead Time
Large inventory held in warehouse with most orders shipped in 3-10 business days.
High Quality
Extrusions made with high quality double anodized aluminum and certified covers.
Certified Products
Innovators of LED extrusions holding patents and meeting high customer expectations.
Technical Support
Dedicated technical support and professional customer service for every project.
Frequently Asked Questions
Q1: What are the standard lengths available in stock? A1: We typically stock lengths of 2 meters and 2.5 meters.
Q2: Is it possible to order custom lengths? A2: Yes, we have in-house cutting facilities to prepare any specific length and quantity you require.
Q3: What is the maximum length for shipping? A3: The maximum length is 3 meters for air shipment and up to 5 meters for sea shipment.
Q4: What materials are used for the light diffusers? A4: Our diffusers are made from high-quality PC (Polycarbonate) or PMMA.
Q5: Can you provide assembly services for LED strips? A5: Yes, we provide a comprehensive one-stop assembly service including LED strips and drivers.
Q6: Are free samples available for quality evaluation? A6: Yes, we can provide free short-piece samples for your quality approval.
