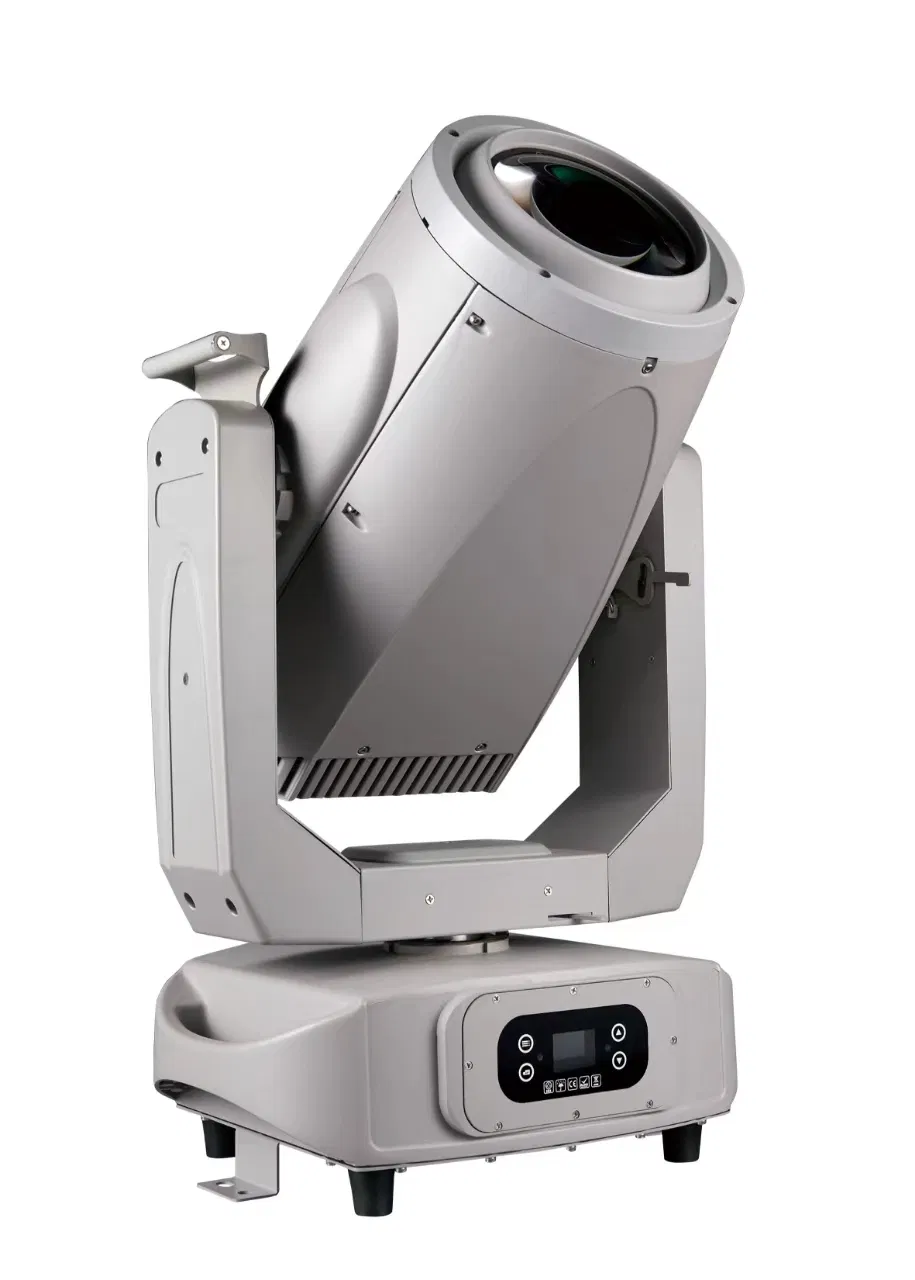

421W High Power DMX512 IP66 Waterproof for Landscape Stage Outdoor Moving Head Beam Performance Light
421W High Power DMX512 IP66 Waterproof for Landscape Stage Outdoor Moving Head Beam Performance Light
421W High Power DMX512 IP66 Waterproof for Landscape Stage Outdoor Moving Head Beam Performance Light
421W High Power DMX512 IP66 Waterproof for Landscape Stage Outdoor Moving Head Beam Performance Light
421W High Power DMX512 IP66 Waterproof for Landscape Stage Outdoor Moving Head Beam Performance Light
1 / 5
421W High Power DMX512 IP66 Waterproof for Landscape Stage Outdoor Moving Head Beam Performance Light
421W High Power DMX512 IP66 Waterproof for Landscape Stage Outdoor Moving Head Beam Performance Light
421W High Power DMX512 IP66 Waterproof for Landscape Stage Outdoor Moving Head Beam Performance Light
421W High Power DMX512 IP66 Waterproof for Landscape Stage Outdoor Moving Head Beam Performance Light
421W High Power DMX512 IP66 Waterproof for Landscape Stage Outdoor Moving Head Beam Performance Light

421W High Power DMX512 IP66 Waterproof for Landscape Stage Outdoor Moving Head Beam Performance Light

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Info.
Model NO.
RG-M420BN-KH24
Emitting Color
Changeable
Control Channel
24CH
Strobe
Adjustable Speed Strobe
Control Mode
Dmx Signal Control
IP Rating
IP66
Certification
CE, RoHS
Voltage
220V
Weight
33kg
Flight Case
105kg
Specification
40*30*68cm
Origin
Made in China
HS Code
8528591090
Capacity
1000
Packaging & Delivery
Package Size
40.00cm * 31.00cm * 70.00cm
Gross Weight
33.000kg
Lead Time
10 days (1 - 30 Pieces); To be negotiated (> 30 Pieces)
Product Description
Model: RG-M420BN-KH24
Power: 600W
Light Source: Ushio lamp 421W High Pressure Mercury Lamp
Color: 14+ white light, bidirectional rotation, adjustable speed
Gobo: 13+ white fixed patterns, support pattern shaking
Prism: 16 prism, bidirectional rotation, adjustable speed
Focus: 0~100% linear focus
Frost: Supported
Dimmer: 16-bit linear dimming
Strobe: 1-25 Hz adjustable speed
Scan Area: X axis 540°, Y axis 270° with auto error correction
Beam Angle: 2°
Control: DMX512, Master-slave, Voice-activated, Self-propelled
DMX Channel: 16/20 channel modes
Lens: 6-layer coating high-precision glued optical lens
Protection: IP65/IP66 waterproof grade design
Product Gallery

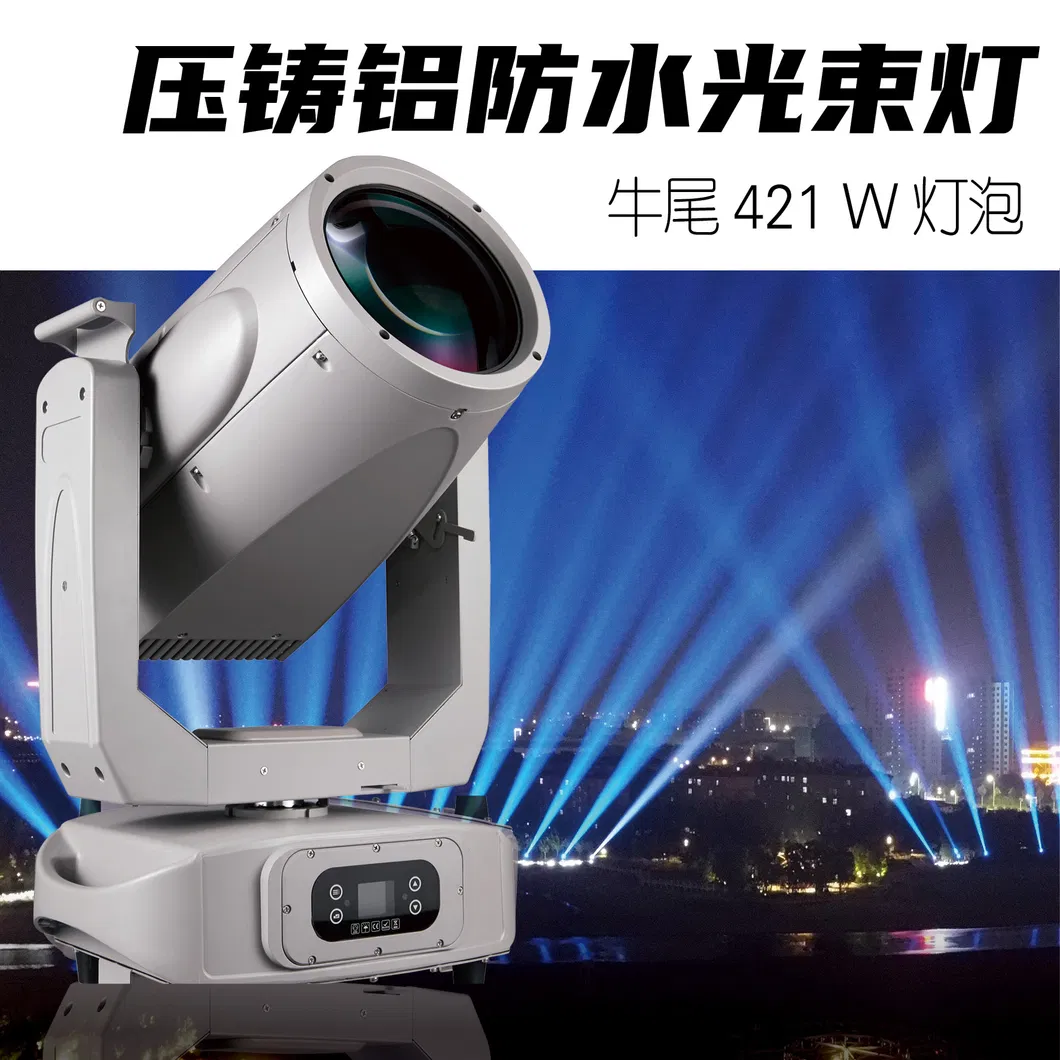

Moving Head Beam 1

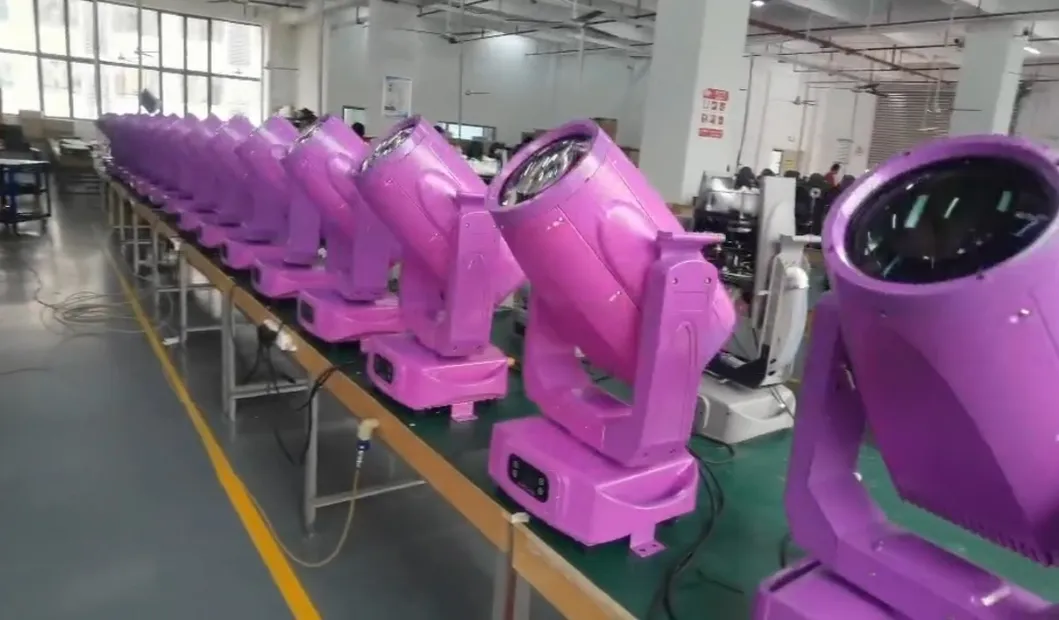

Moving Head Beam 2

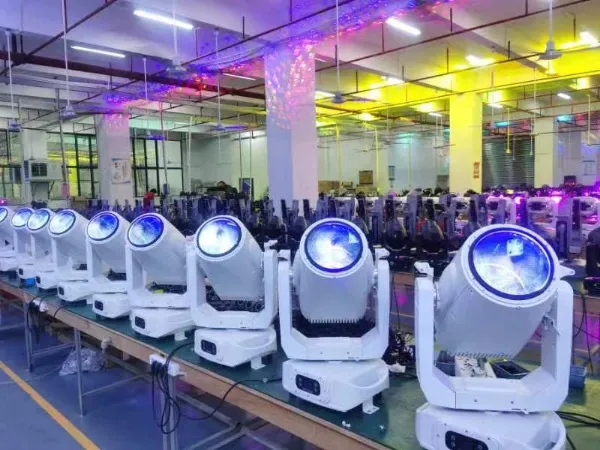

Moving Head Beam 3
Moving Head Beam 4

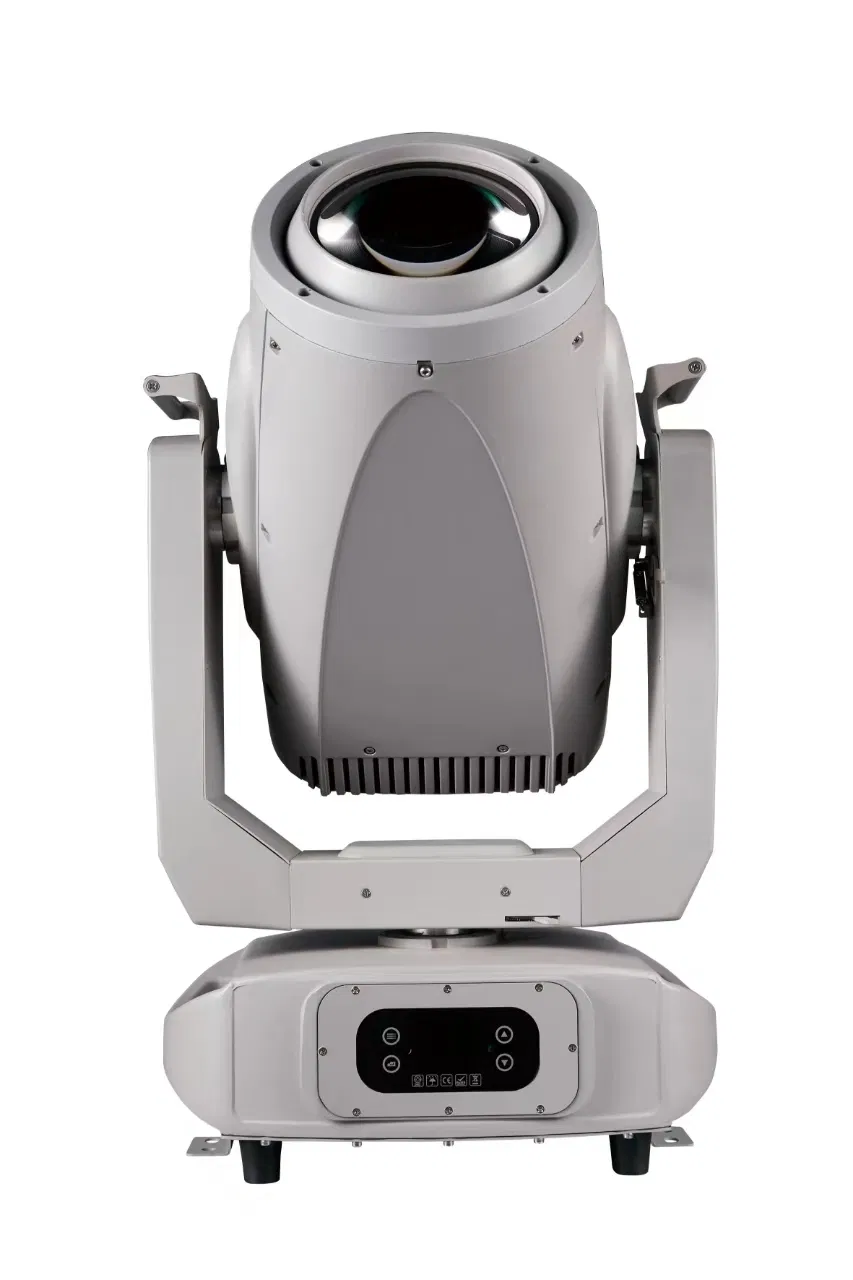

Moving Head Beam 5

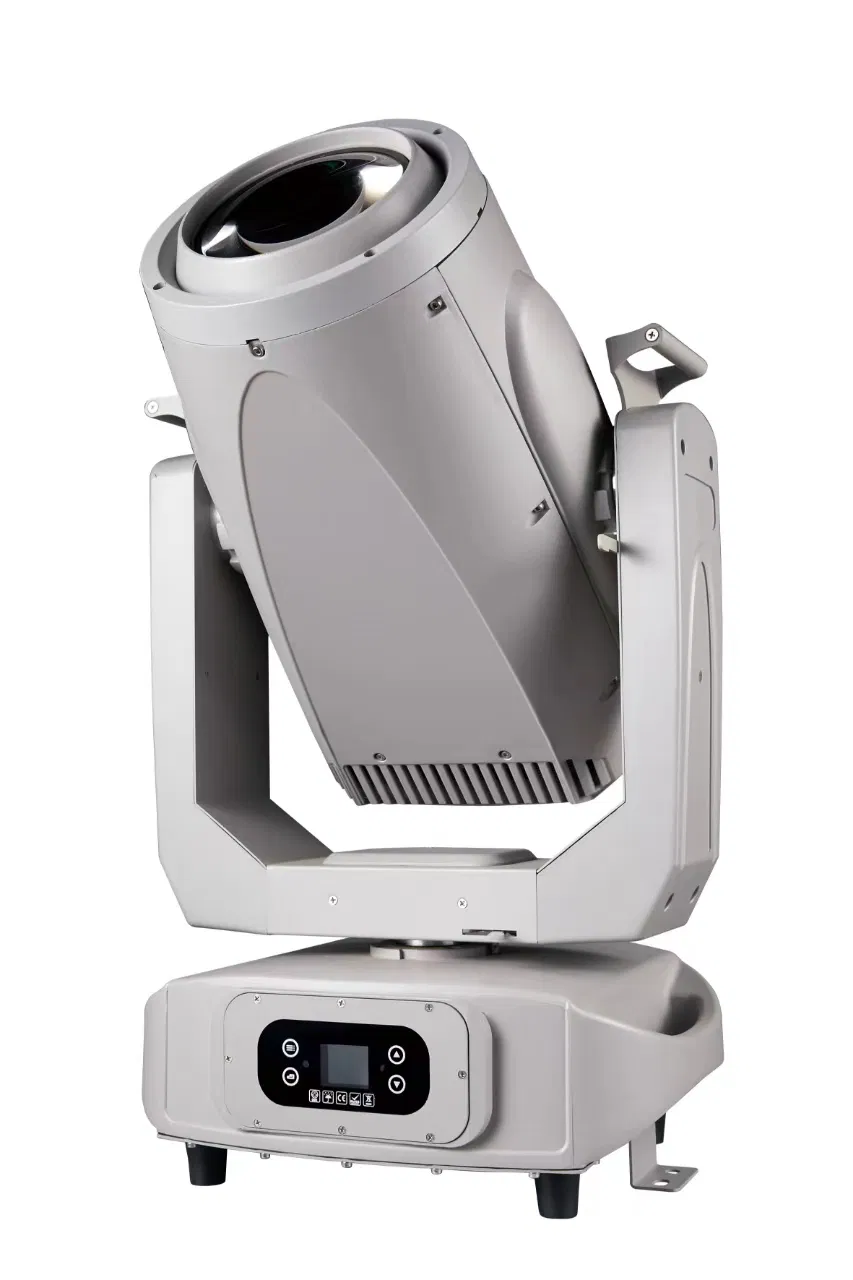

Moving Head Beam 6

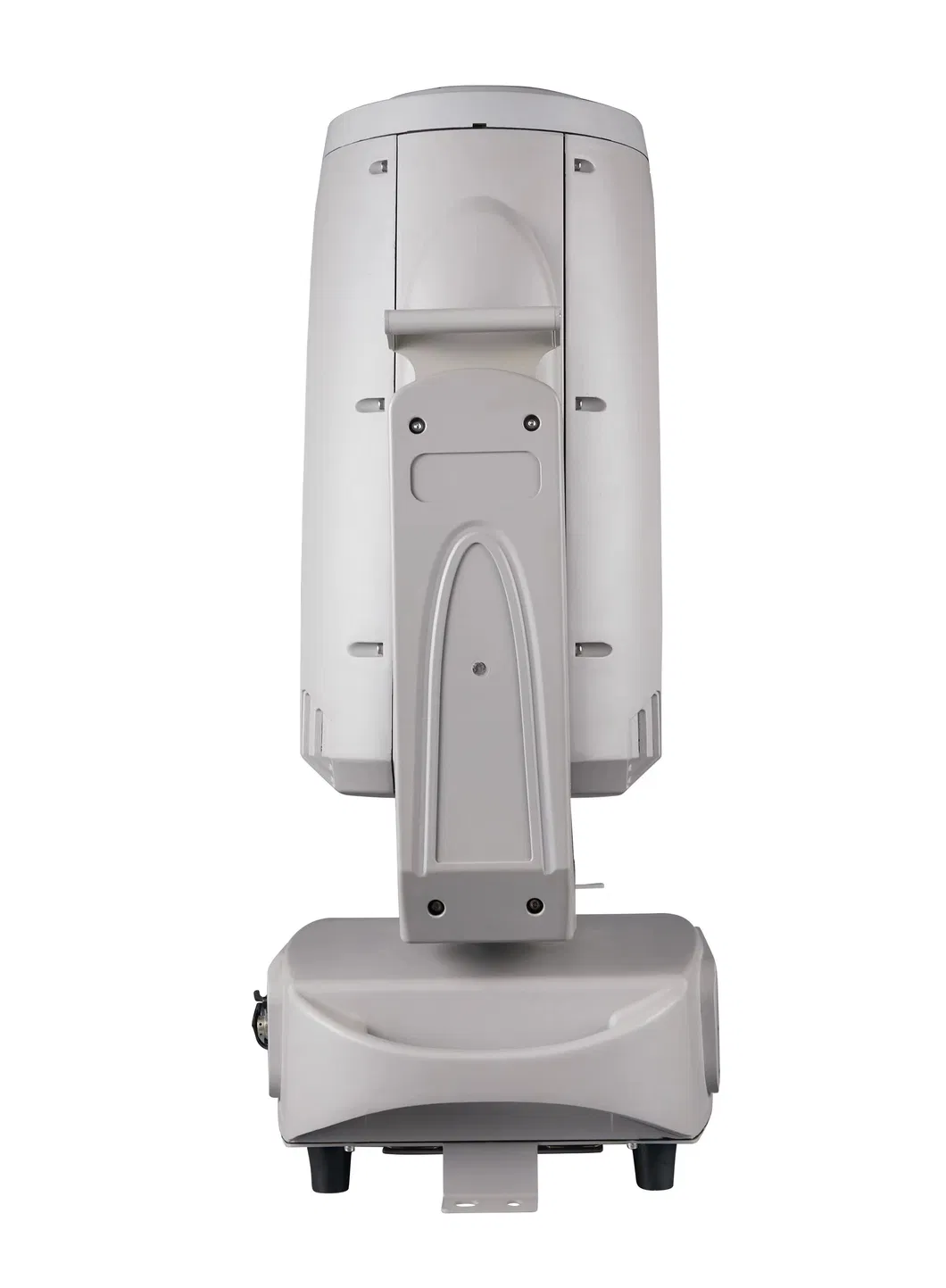

Moving Head Beam 7

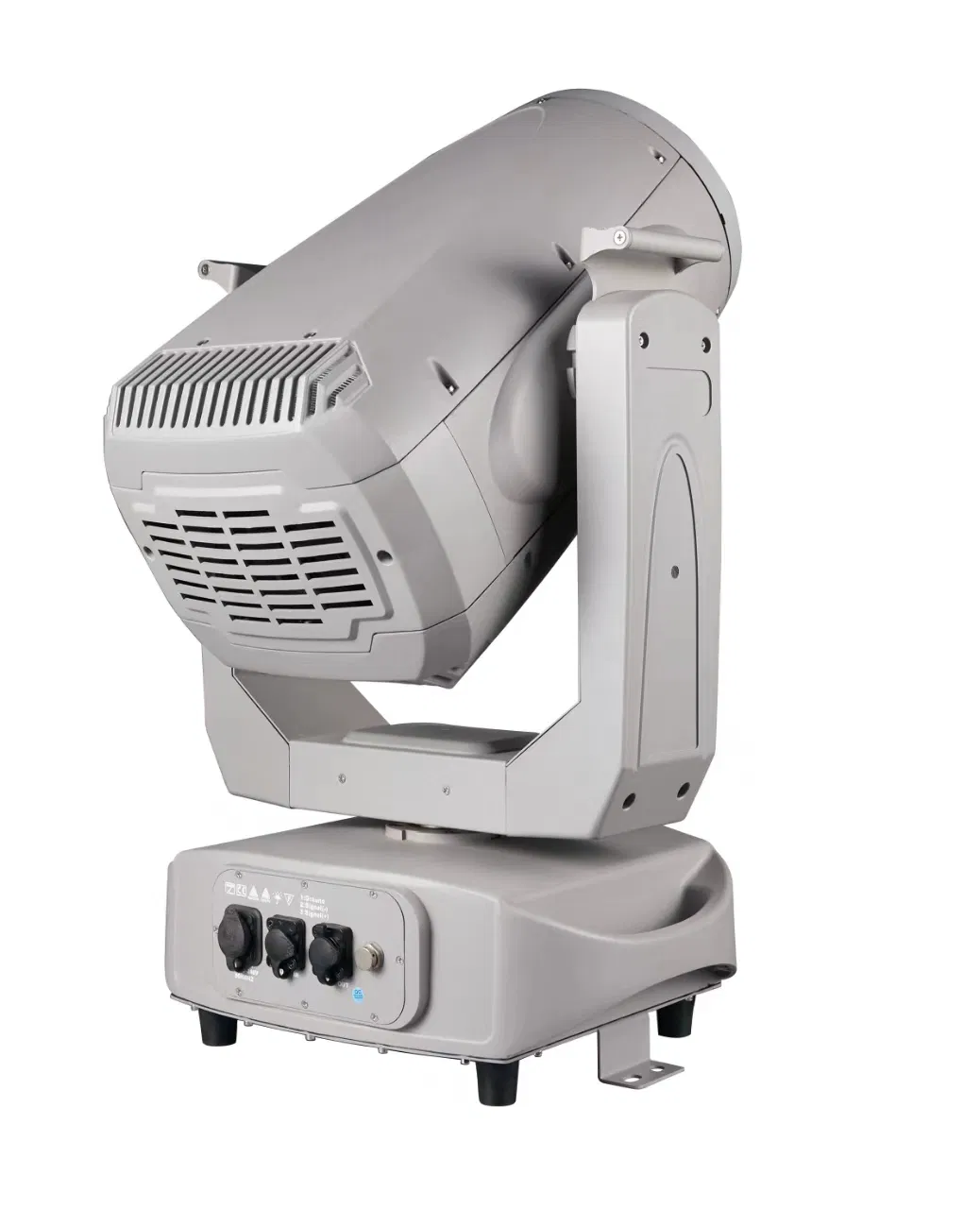

Moving Head Beam 8
Feature Image 1
Feature Image 2
Feature Image 3
Feature Image 4
Frequently Asked Questions
What is the light source of this moving head light?
It uses a high-power Ushio 421W High Pressure Mercury Lamp, providing intense brightness for large-scale performances.
Is this equipment suitable for outdoor use?
Yes, it features a high-strength engineering resistance casting aluminum chassis with an IP65/IP66 protection grade design, making it ideal for outdoor landscape and stage use.
What control modes are available?
The light supports DMX512 (16/20 channel modes), Master-slave mode, voice-activated (sound), and self-propelled (auto) modes.
What are the special effects of the prism and colors?
It includes a 16-facet prism with bidirectional rotation and adjustable speed, plus a color wheel with 14 colors + white that can achieve half-color effects.
Does it have an automatic correction function?
Yes, it features an XY positioning automatic error correction function and the ability to automatically reduce power by 50% when the light is closed mechanically.
What is the expected lead time for orders?
For orders between 1 to 30 pieces, the standard lead time is approximately 10 days. Larger quantities are subject to negotiation.
