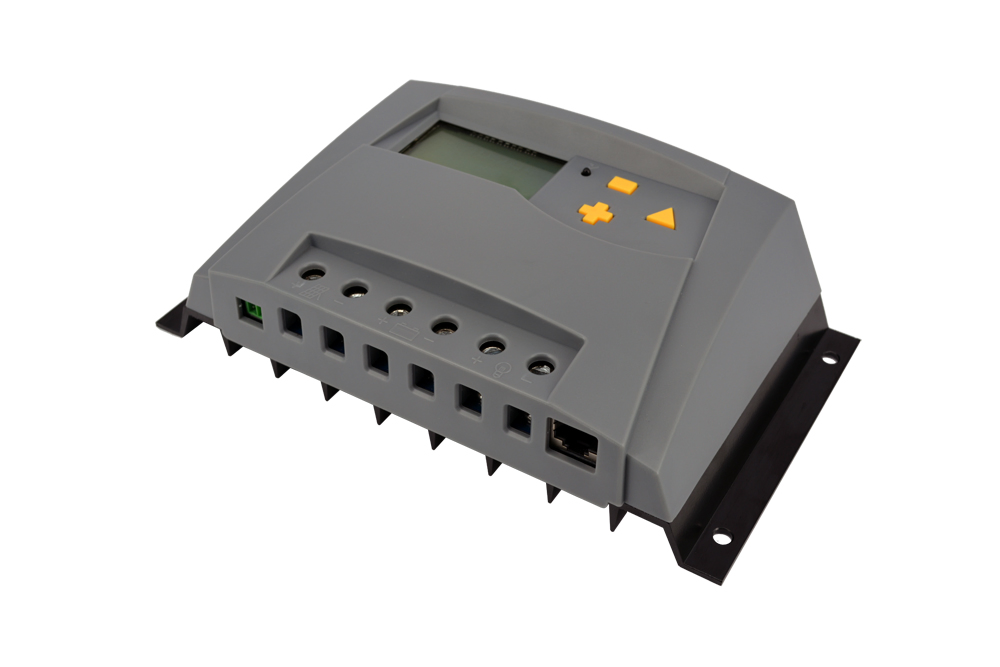

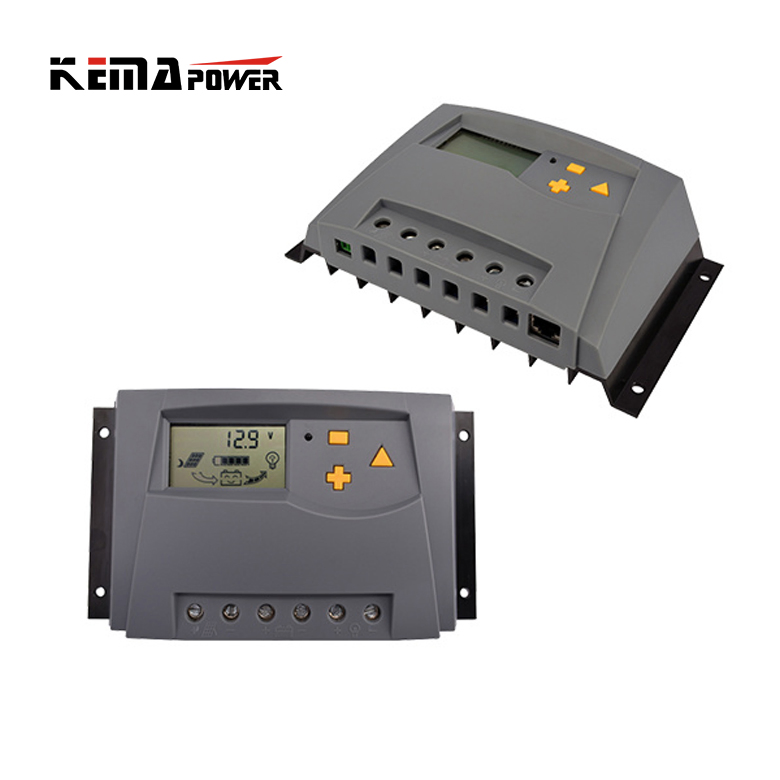

HS PWM Three Stages Charging Solar Power Controller with LCD
HS PWM Three Stages Charging Solar Power Controller with LCD
HS PWM Three Stages Charging Solar Power Controller with LCD
HS PWM Three Stages Charging Solar Power Controller with LCD
HS PWM Three Stages Charging Solar Power Controller with LCD
1 / 5
HS PWM Three Stages Charging Solar Power Controller with LCD
HS PWM Three Stages Charging Solar Power Controller with LCD
HS PWM Three Stages Charging Solar Power Controller with LCD
HS PWM Three Stages Charging Solar Power Controller with LCD
HS PWM Three Stages Charging Solar Power Controller with LCD

HS PWM Three Stages Charging Solar Power Controller with LCD

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Model NO.
HS
Condition
New
Certification
ISO, CE
Rated Voltage
48V
Product Name
PWM LCD Solar Power Charge Controller
Specification
80Amp 100Amp
HS Code
9032899090
Capacity
50000PCS/Year
Product Description
PWM Solar Charge Controller
HS80D 80A, 12/24V

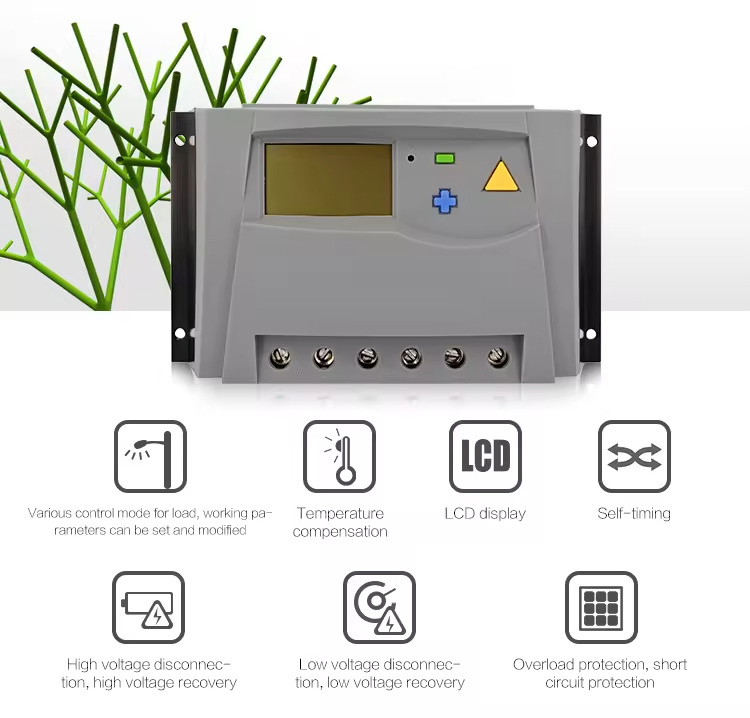

KEY FEATURES
  • ✓PWM solar charge controller 12/24V 80A, 48VDC 80A
  • ✓LCD display: generated energy, fault code and battery, PV, Load, charge, discharge details
  • ✓Bigger terminal, safer and easier for installation
  • ✓Selectable Battery type, 4 stage Charge, adjustable charge parameter
  • ✓Temperature compensation Charge and clock function
  • ✓Load working mode, Normal, Light Control, Light and Double time control
  • ✓Protection for over charge, over discharge, overload, and short circuit, reverse polarity
  • ✓Communication with computer by RJ45, RS232 or RS485 option
Technical Specifications
ITEM / MODEL HS80D-8024 HS80D-8048
Rated Charge Current80A80A
Rated Load Current80A80A
System Voltage12/24V AUTO12/24/48VDC AUTO
Over Load Protection≥120% 60s; ≥150% 10s
Over Voltage15.5V(12V) / 31V(24V) / 62V(48V)
LVD (Low Voltage Disconnection)10.7V(12V) / 21.4V(24V) / 42.8V(48V)
Static Current≤ 15mA≤ 18mA
Charging Control ModePWM 4-stage (Bulk, Absorption, Float, Equalized)
Operating Temperature-20 ~ +55 °C
Protection ClassIP30
Product Size (mm)187*98.5*49.5
Product Display

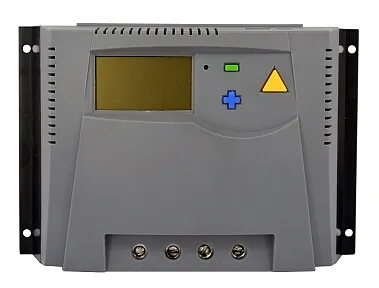

Solar Controller View 1
Solar Controller View 2
Solar Controller View 3
Detailed Features 1

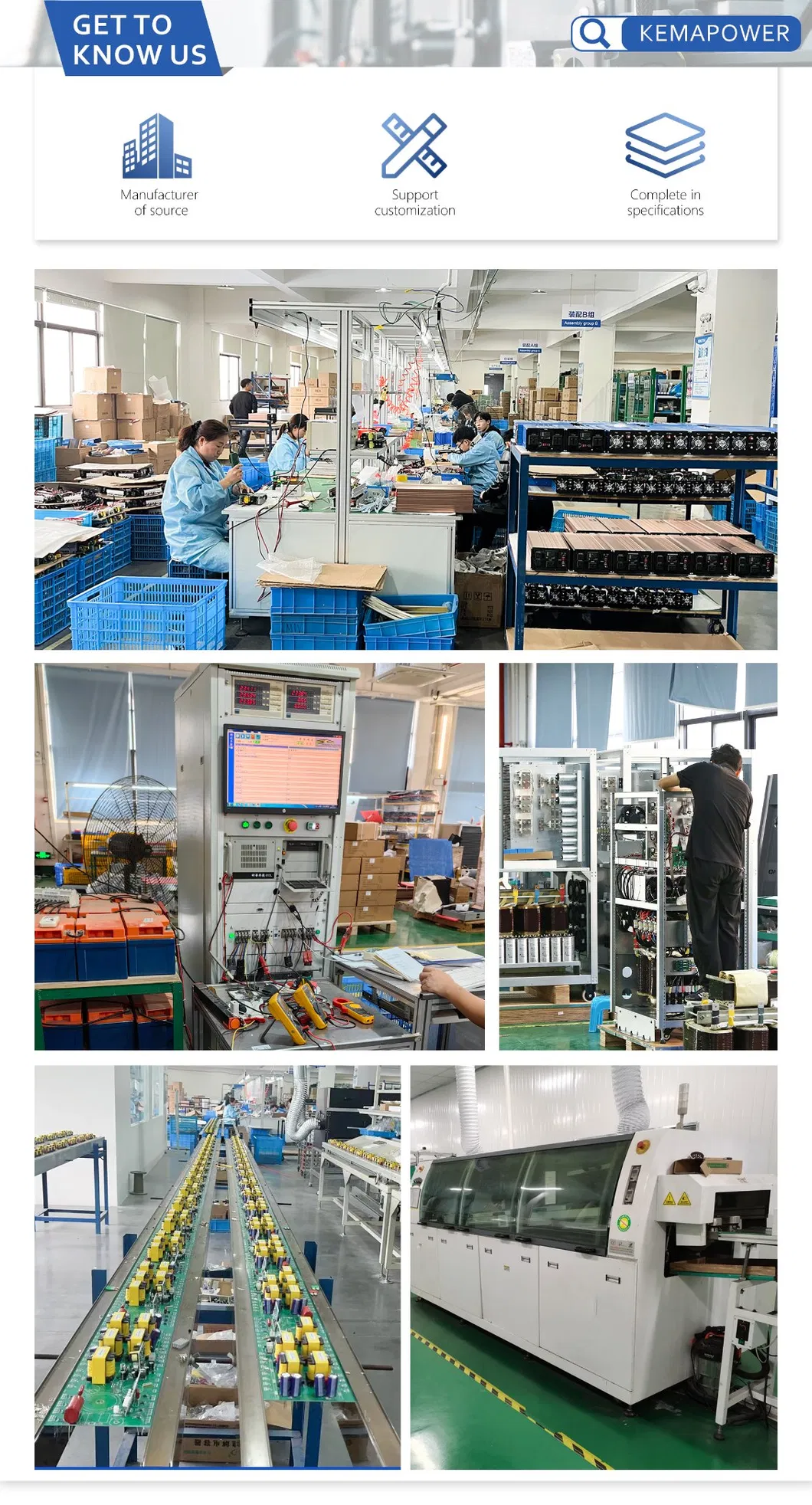

Detailed Features 2
Detailed Features 3
Detailed Features 4
Frequently Asked Questions
What is the maximum rated current for this controller?
The HS80D series is designed to handle a rated charge and load current of up to 80 Amps.
Does this solar controller support 48V systems?
Yes, the HS80D-8048 model supports 12V, 24V, and 48VDC automatic system voltage detection.
What kind of charging technology does it use?
It utilizes a professional 4-stage PWM charging control mode, including bulk, absorption, float, and equalized stages.
What information is displayed on the LCD screen?
The LCD displays generated energy (KWH), battery voltage, PV output, load wattage, charge/discharge details, internal temperature, and fault codes.
What safety protections are built-in?
It includes comprehensive protection against over charge, over discharge, overload, short circuit, and reverse polarity for the solar panel and battery.
Can I connect this controller to a computer?
Yes, it supports communication with computers via RJ45, with options for RS232 or RS485 interfaces.
