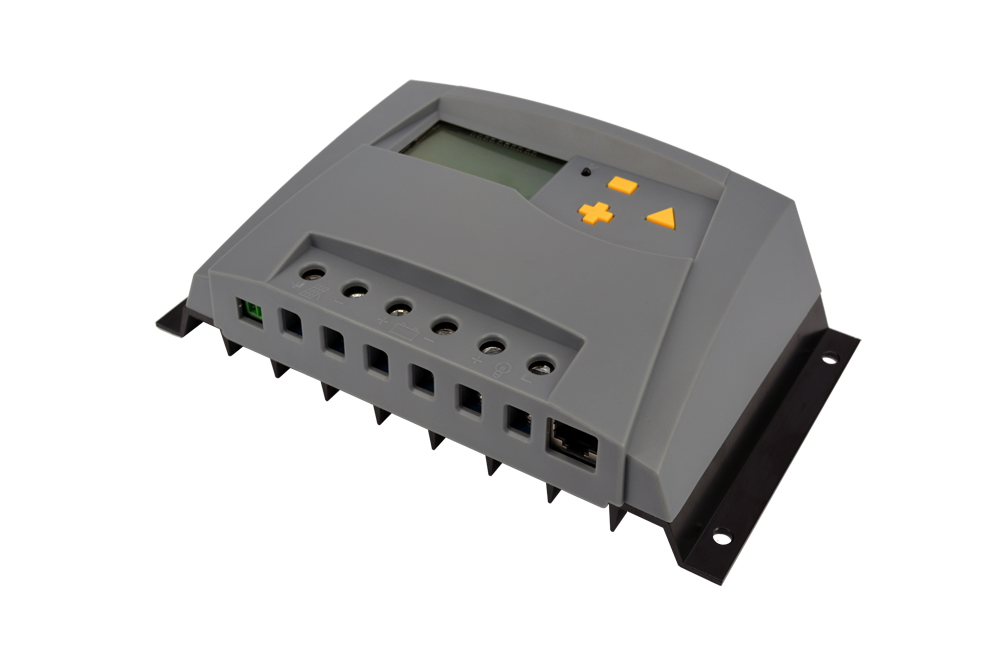

HS Series 80AMP Solar Power Charge Controller with 4 Stage
HS Series 80AMP Solar Power Charge Controller with 4 Stage
HS Series 80AMP Solar Power Charge Controller with 4 Stage
HS Series 80AMP Solar Power Charge Controller with 4 Stage
HS Series 80AMP Solar Power Charge Controller with 4 Stage
1 / 5
HS Series 80AMP Solar Power Charge Controller with 4 Stage
HS Series 80AMP Solar Power Charge Controller with 4 Stage
HS Series 80AMP Solar Power Charge Controller with 4 Stage
HS Series 80AMP Solar Power Charge Controller with 4 Stage
HS Series 80AMP Solar Power Charge Controller with 4 Stage

HS Series 80AMP Solar Power Charge Controller with 4 Stage

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

Basic Specifications

Model NO.
HS80D
Condition
New
Certification
ISO, CE
Rated Voltage
48V
Product Name
PWM LCD Solar Charge Controller
Specification
80Amp 100Amp
HS Code
9032899090
Capacity
50000PCS/Year

PWM Solar Charge Controller HS80D

High-Efficiency 80A Controller (12/24/48V Adaptive)

PWM solar charge controller supporting 12/24V 80A and 48VDC 80A configurations.

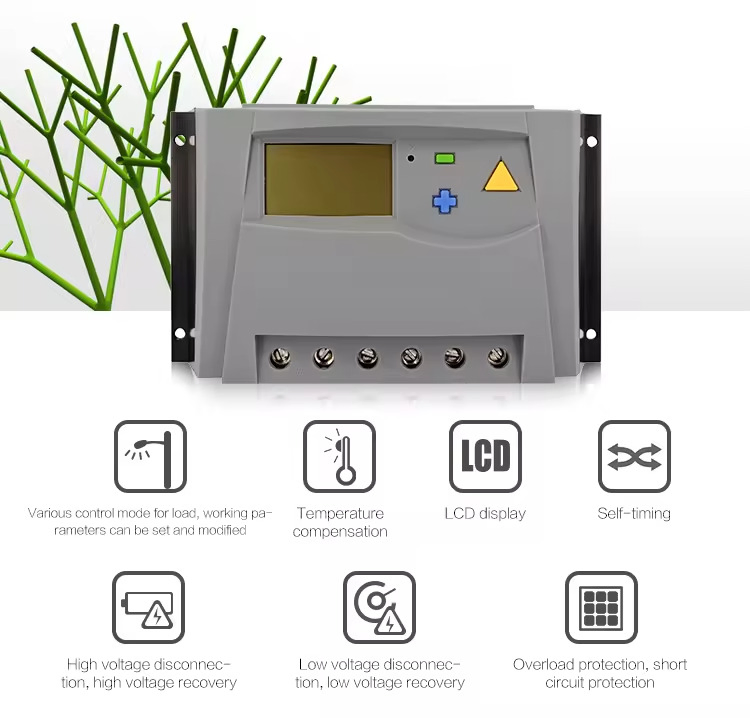

Advanced LCD display for monitoring generated energy, fault codes, battery, PV, Load, and charge/discharge details.
Enhanced terminal design for increased safety and simplified installation.
Selectable battery types with 4-stage charging and adjustable parameters.
Automatic temperature compensation and built-in clock functions.
Versatile load working modes: Normal, Light Control, and Double Time Control.
Comprehensive protection: overcharge, over-discharge, overload, short circuit, and reverse polarity.
Optional communication interfaces: RJ45, RS232, or RS485.
Support for external temperature sensor options.

Technical Specifications

ITEM / MODEL HS80D-8024 HS80D-8048
Rated Charge/Load Current80A80A
System Voltage12/24V AUTO12/24/48VDC AUTO
Over Voltage Protection15.5V(12V) / 31V(24V) / 62V(48V)
LVD (Low Voltage Disconnect)10.7V(12V) / 21.4V(24V) / 42.8V(48V)
Static Current≤15mA≤18mA
Charging ModePWM 4-stage (Bulk, Absorption, Float, Equalized)
Solar Panel Max Voltage (VOC)12V/24V ≤50V; 48V ≤100V
Temperature Compensation-4m V/Cell/ºC
Operating Temperature-20 ~ +55 °C
Dimensions / Material187*98.5*49.5 mm / ABS Shell

Product Display

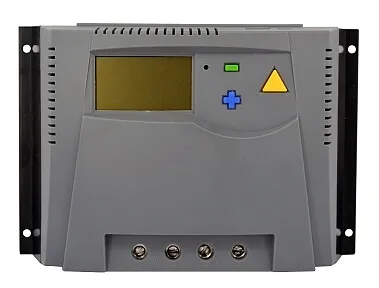

Solar Charge Controller Front
Solar Charge Controller Ports
Solar Charge Controller Profile
Technical Info Graphic 1
Technical Info Graphic 2
Technical Info Graphic 3
Technical Info Graphic 4

Frequently Asked Questions

Does this controller support 48V systems?
Yes, the HS80D-8048 model is specifically designed to support 12V, 24V, and 48VDC systems with automatic recognition.
What information is shown on the LCD display?
The LCD provides comprehensive data including battery voltage, PV output, charging/discharging energy (KWH/AH), internal temperature, and fault codes.
What safety protections are built into the device?
It features multiple protection layers including overcharge, over-discharge, overload, short circuit, and reverse polarity protection for solar panels, batteries, and loads.
What are the 4 stages of the PWM charging process?
The controller utilizes a high-efficiency 4-stage charging cycle: Bulk, Absorption, Float, and Equalized charging to extend battery life.
Can I connect this controller to a computer for monitoring?
Yes, the controller supports communication with a computer through optional RJ45, RS232, or RS485 interfaces.
Is it possible to adjust the charging parameters?
Absolutely. The HS80D allows for selectable battery types and adjustable charging parameters to match your specific power requirements.
