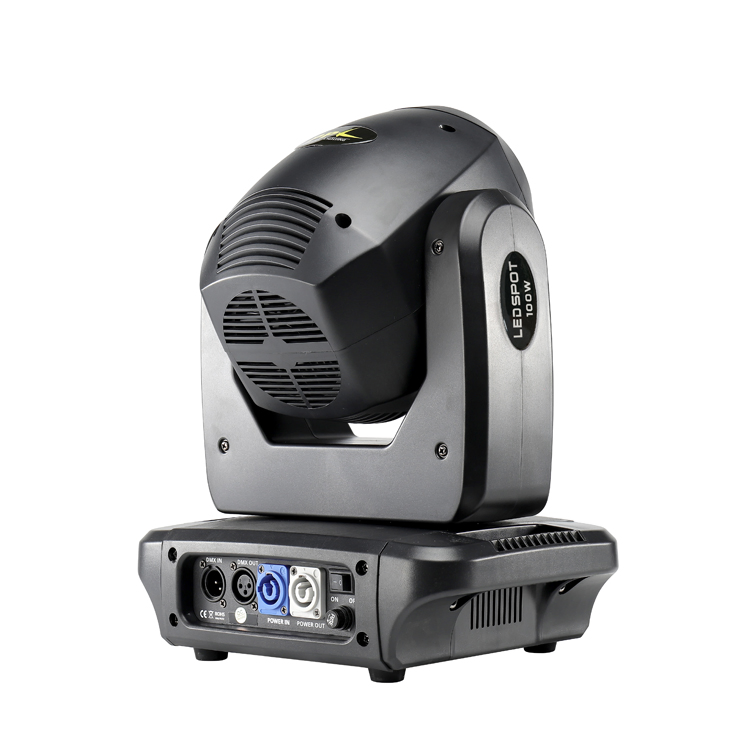

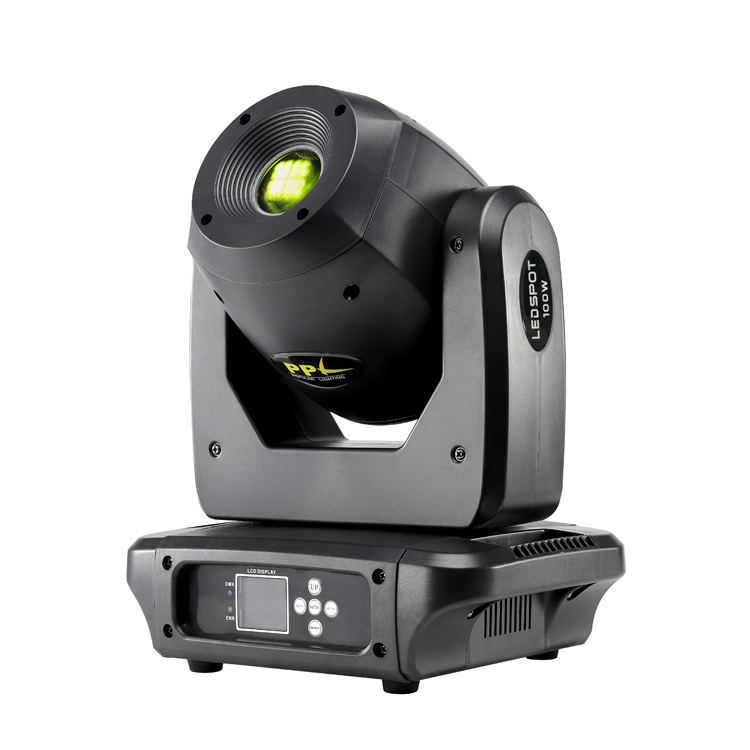

Intelligent 100W LED Spot Moving Head Light for Lighting Designers
Intelligent 100W LED Spot Moving Head Light for Lighting Designers
Intelligent 100W LED Spot Moving Head Light for Lighting Designers
Intelligent 100W LED Spot Moving Head Light for Lighting Designers
Intelligent 100W LED Spot Moving Head Light for Lighting Designers
1 / 5
Intelligent 100W LED Spot Moving Head Light for Lighting Designers
Intelligent 100W LED Spot Moving Head Light for Lighting Designers
Intelligent 100W LED Spot Moving Head Light for Lighting Designers
Intelligent 100W LED Spot Moving Head Light for Lighting Designers
Intelligent 100W LED Spot Moving Head Light for Lighting Designers

Intelligent 100W LED Spot Moving Head Light for Lighting Designers

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Info.
Model NO.:LED-M100SP
Emitting Color:Changeable
Control Channel:14CH
Strobe:Adjustable Speed Strobe
Control Mode:Master Slave Mode
IP Rating:IP20
Certification:CE, RoHS
Voltage:240V
Total Power:150W
Color Temperature:8500K
Color Wheel:7 Colors + White
Gobo Wheel:7 Fixed Gobos + Blank
Net Weight:10.45kg
Prism:3-Faced and 6-Faced Prism
Focus:Motorized Focus
Rotation Gobo:6 Gobos + Blank
💡 Product Description

Specification: 100W LED Moving Head Light Spot

VoltageAC100-240V, 50/60Hz
Power130W
Light Source100W LED
Lamp Lifetime1500H
Beam Angle1.8°
Lens Diameter152mm
High Output580,000lux @ 10 meter
DMX Channel14CH
Control ModeDMX 512, Master/Slave, Auto, Sound active
MovementPan 540° / Tilt 270°, 16bit Fine control
Color Wheel7 colors + white, half-color, rainbow effect
Gobo Wheel7 fixed gobo + blank, Gobo shake
Rotation Gobo6 fixed gobo + blank, Gobo shake
7 Colors EffectIndependent wheel with 6 colors for rainbow effect
PrismDouble Prisms (8 facet rotate & 24 facet), Bi-direction rotation
Frost0-100%
Dimmer0-100% linear adjustment
Focus0-100% linear adjustment
Strobe1-20 times/s, pulse and random strobe
Size28*21.5*37cm
Weight5.9kgs
LED Spot Moving Head Light 1
LED Spot Moving Head Light 2

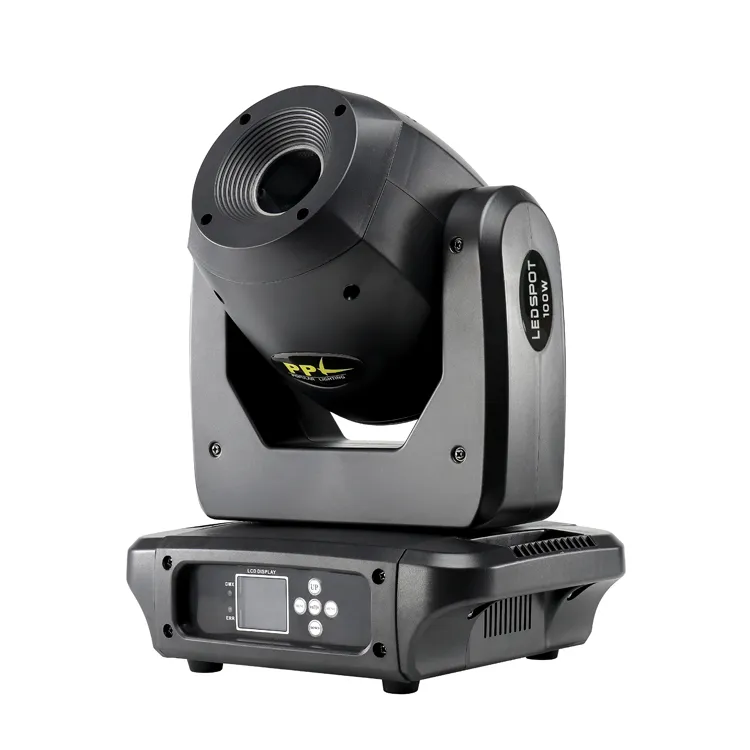

LED Spot Moving Head Light 3

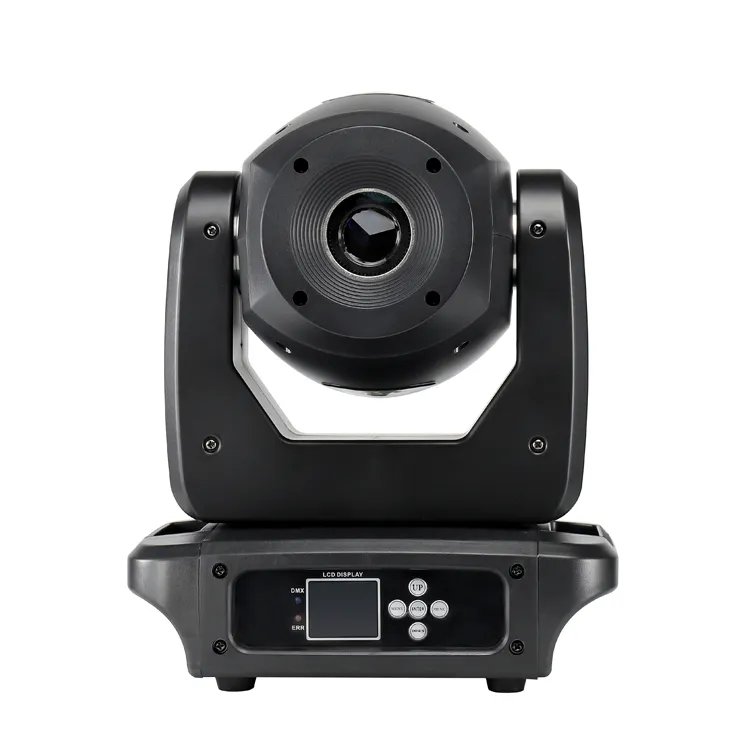

LED Spot Moving Head Light 4
LED Spot Moving Head Light 5

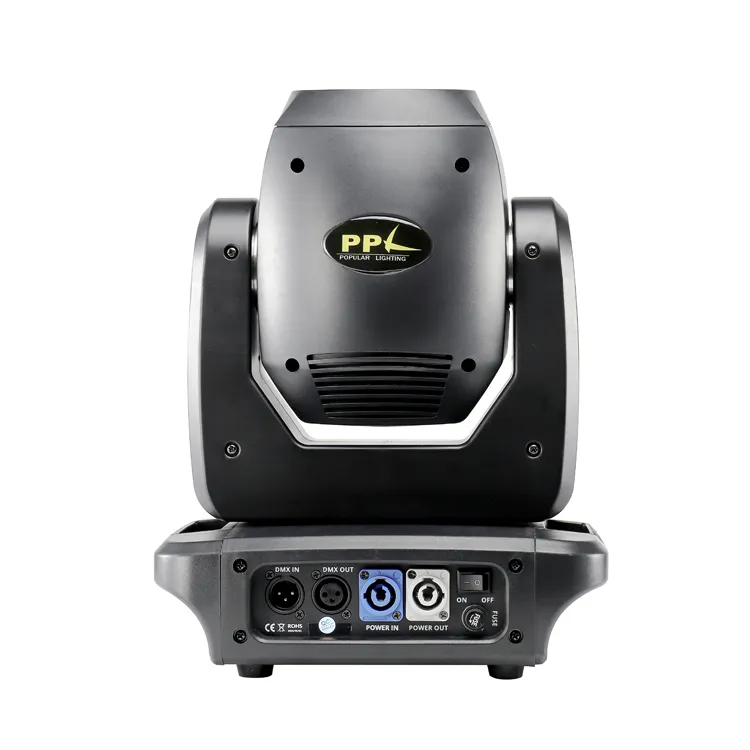

LED Spot Moving Head Light 6
Product Performance
Product Features
Effect Display 1
Effect Display 2
Internal Components
Control Interface
Lighting Effect
Dimensions
Application Scenario
❓ Frequently Asked Questions
What is the light source and its expected lifetime?
The unit utilizes a high-output 100W LED source with an approximate lifetime of 1500 hours.
How many DMX channels are required for control?
This moving head light operates on a 14-channel (14CH) DMX configuration.
Does this light include prism effects?
Yes, it features double prisms including a 6-faced prism and a 3-faced prism, capable of bi-directional rotation and overlapping effects.
What are the movement capabilities of the LED-M100SP?
It offers a Pan movement of 540° and a Tilt of 270°, both with 16-bit fine control for accurate positioning.
Is this fixture suitable for outdoor use?
The light has an IP20 rating, which means it is designed for indoor use and should be protected from moisture and dust.
What kind of color and gobo effects are available?
It features a color wheel with 7 colors plus white (including rainbow effects) and two gobo wheels (7 fixed and 6 rotation gobos) with shake functions.
