30A 40A 50A 60A Intelligent Reverse Polarity Protection PWM Solar Controller Solar Three Stage Charging System Solar Controller
30A 40A 50A 60A Intelligent Reverse Polarity Protection PWM Solar Controller Solar Three Stage Charging System Solar Controller
30A 40A 50A 60A Intelligent Reverse Polarity Protection PWM Solar Controller Solar Three Stage Charging System Solar Controller
30A 40A 50A 60A Intelligent Reverse Polarity Protection PWM Solar Controller Solar Three Stage Charging System Solar Controller
30A 40A 50A 60A Intelligent Reverse Polarity Protection PWM Solar Controller Solar Three Stage Charging System Solar Controller
1 / 5
30A 40A 50A 60A Intelligent Reverse Polarity Protection PWM Solar Controller Solar Three Stage Charging System Solar Controller
30A 40A 50A 60A Intelligent Reverse Polarity Protection PWM Solar Controller Solar Three Stage Charging System Solar Controller
30A 40A 50A 60A Intelligent Reverse Polarity Protection PWM Solar Controller Solar Three Stage Charging System Solar Controller
30A 40A 50A 60A Intelligent Reverse Polarity Protection PWM Solar Controller Solar Three Stage Charging System Solar Controller
30A 40A 50A 60A Intelligent Reverse Polarity Protection PWM Solar Controller Solar Three Stage Charging System Solar Controller

30A 40A 50A 60A Intelligent Reverse Polarity Protection PWM Solar Controller Solar Three Stage Charging System Solar Controller

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info

Model NO.:HT
Condition:New
Certification:ISO, CB, CE
Rated Voltage:12/24/48V
Color:Green
HS Code:9032899090
Specification:188*125*48.5MM
Capacity:50000PCS/Year
Origin:China

Product Key Features

PWM Solar Charge Controller
LCD HT Series
  • LCD PWM Solar Charge Controller HT series 12/24/48V, 30/40/50/60A
  • 12/24V automatic recognition or 48VDC
  • Equipped with 2*1A USB Charger
  • Fully adjustable charging and discharging parameters
  • Time and Light Control function selectable for street light applications
  • Preset charging parameters for three battery types
  • Built-in Temperature compensation function

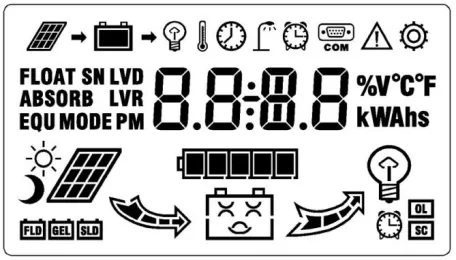

  • LCD display for energy capacity, fault codes, battery, PV, and Load details

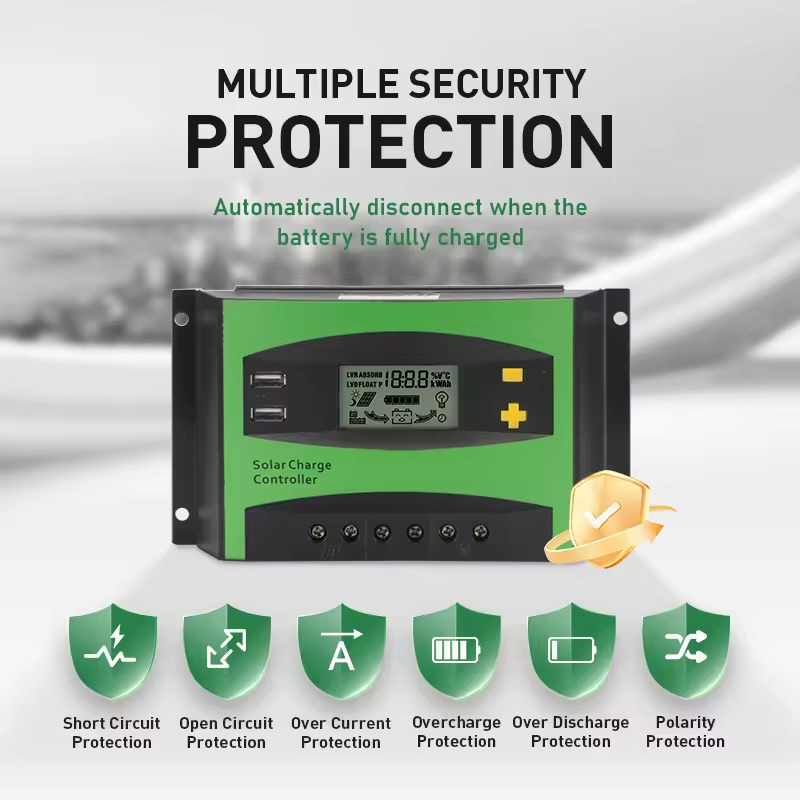

  • Comprehensive protection: PV reverse polarity, battery overcharge/discharge, load overload, and short circuit
  • Communication capability with computer via RJ45 option

Technical Specifications

ITEM MODEL HT4830DU HT4840DU HT4850DU HT4860DU HT2450DU HT2460DU
Rated charge current 30A 40A 50A 60A 50A 60A
Rated load current 30A 40A 50A 60A 50A 60A
System voltage 12/24/48V AUTO work 12/24V AUTO work
Protection Over Load ≥120%, 60s; ≥150%, 10s; ≥180%, 0.2s

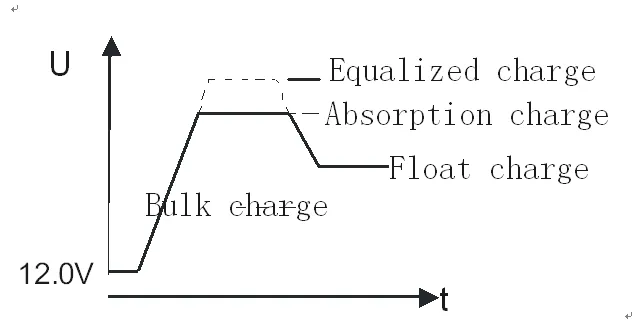

Charging mode PWM 4-stage (bulk, absorption, float, equalized)
Battery type Sealed, GEL, Flood and User (default)
USB Charge 2*5V 1.0A
Protection class IP32
Case material ABS

Product Display

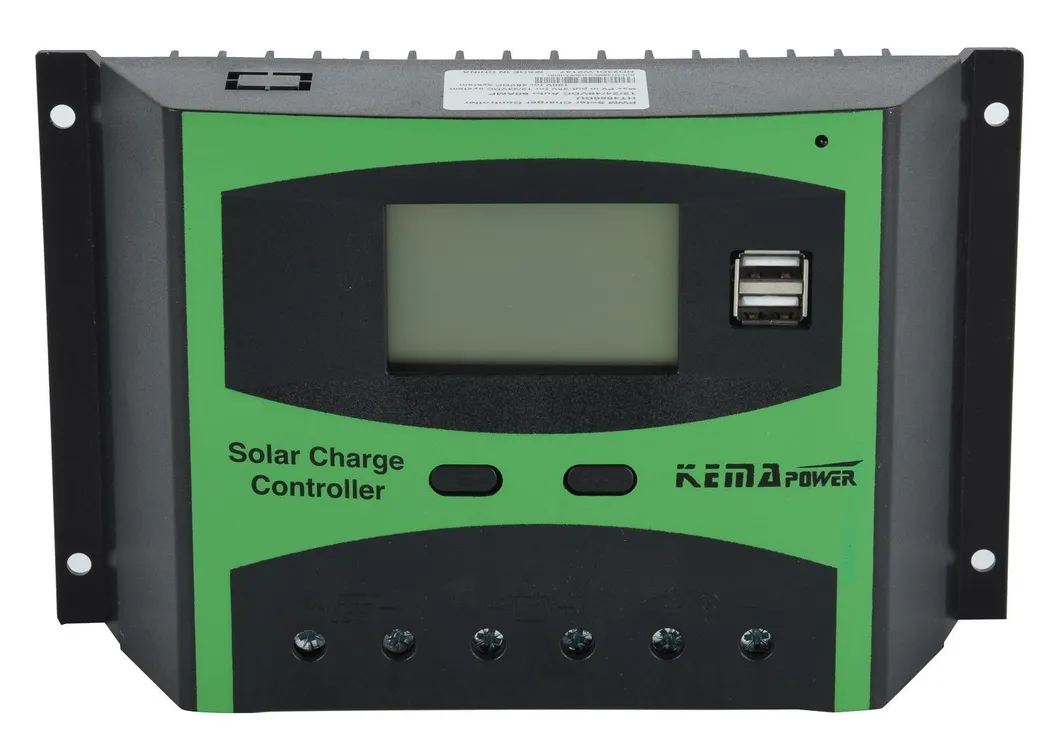

Solar Controller View 1

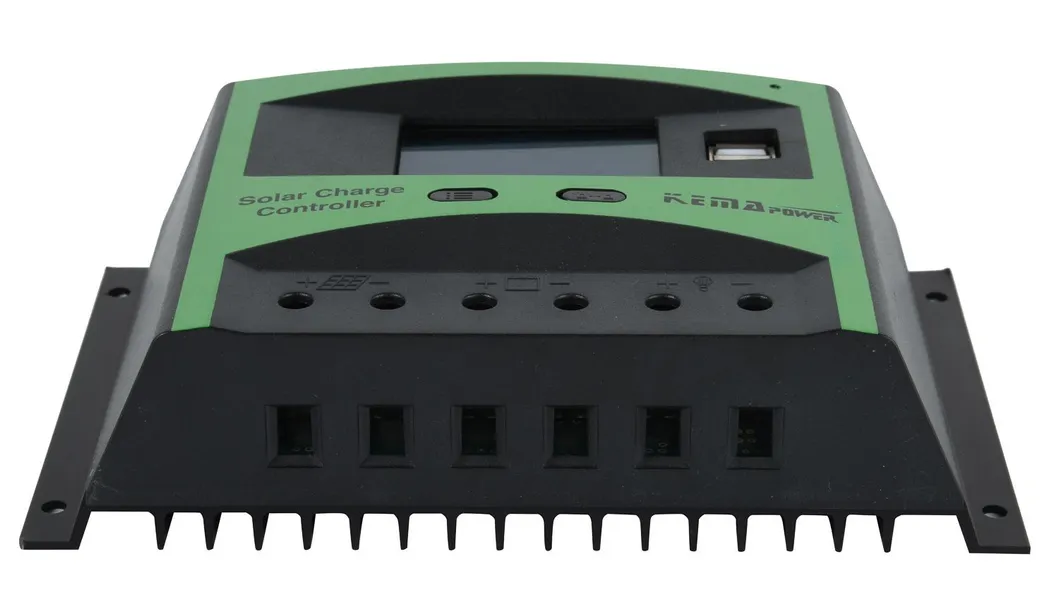

Solar Controller View 2

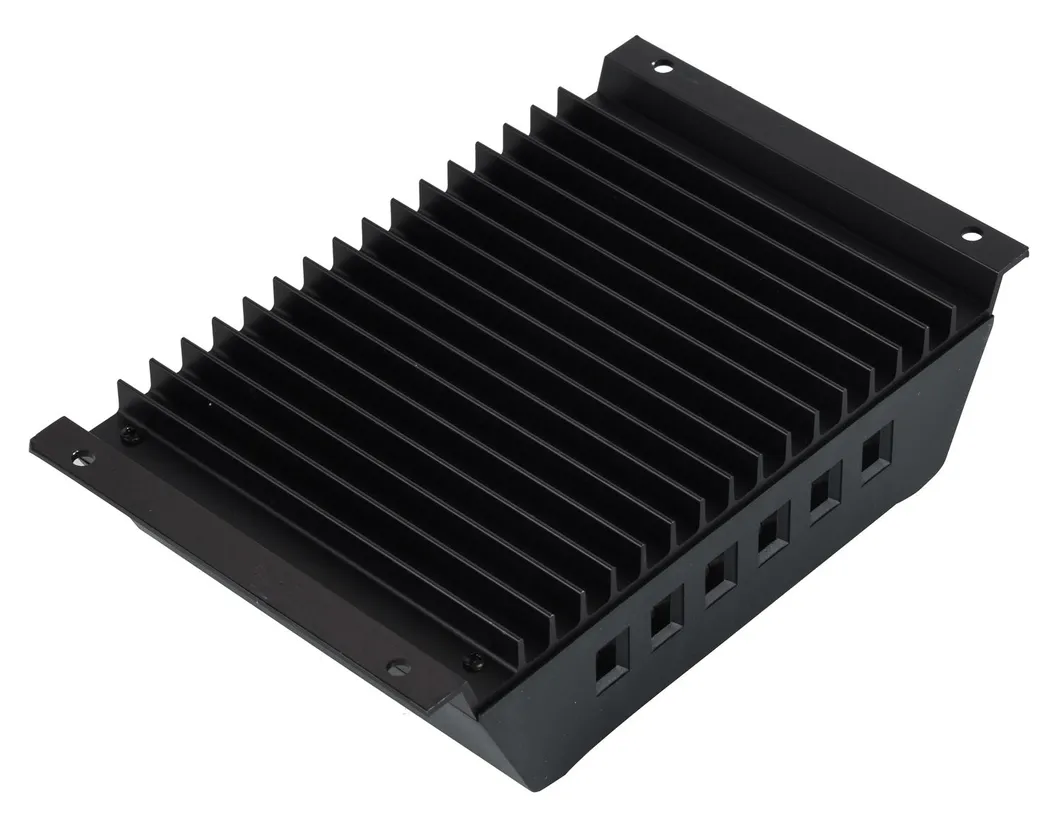

Solar Controller View 3
Solar Controller Detail 1
Solar Controller Detail 2
Solar Controller Detail 3
Technical Info 1 Technical Info 2 Technical Info 3 Technical Info 4

Frequently Asked Questions

Q1: What are the compatible system voltages for the HT series? A: The HT series supports 12V/24V automatic recognition or 48VDC system voltages depending on the specific model.
Q2: Can I charge my phone using this controller? A: Yes, the controller features 2*1A USB ports for charging mobile devices and other electronics.
Q3: Which battery types are compatible with this solar controller? A: It is compatible with Sealed, GEL, and Flooded batteries. Users can also customize parameters for other battery types.
Q4: Does the controller provide protection against solar panel reverse polarity? A: Yes, it includes comprehensive protection for solar panel reverse polarity, battery overcharge, and load short circuits.
Q5: Can it be used for outdoor street lighting control? A: Yes, it includes both Light Control and Time Control functions, making it ideal for solar street light systems.
Q6: What is the protection rating and case material? A: The controller has an IP32 protection rating and is housed in a durable ABS case.
