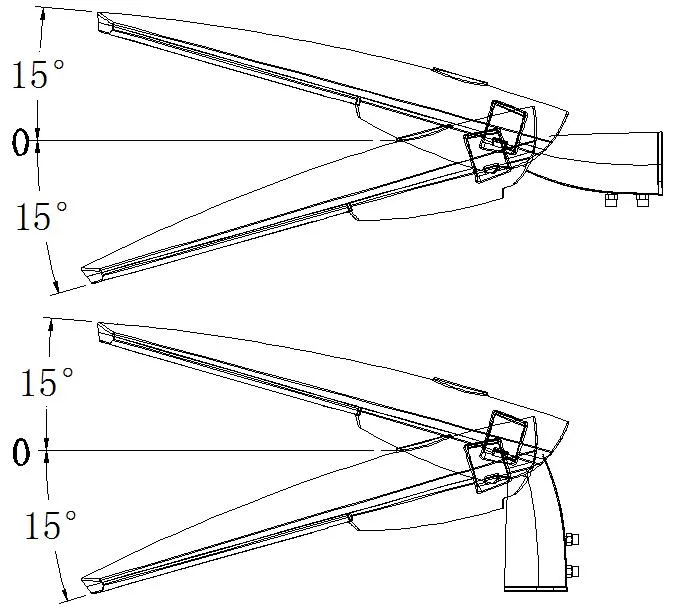

Installing Ways: Both Horizontal and Vertical available and adjustable angle -15° to +15°.

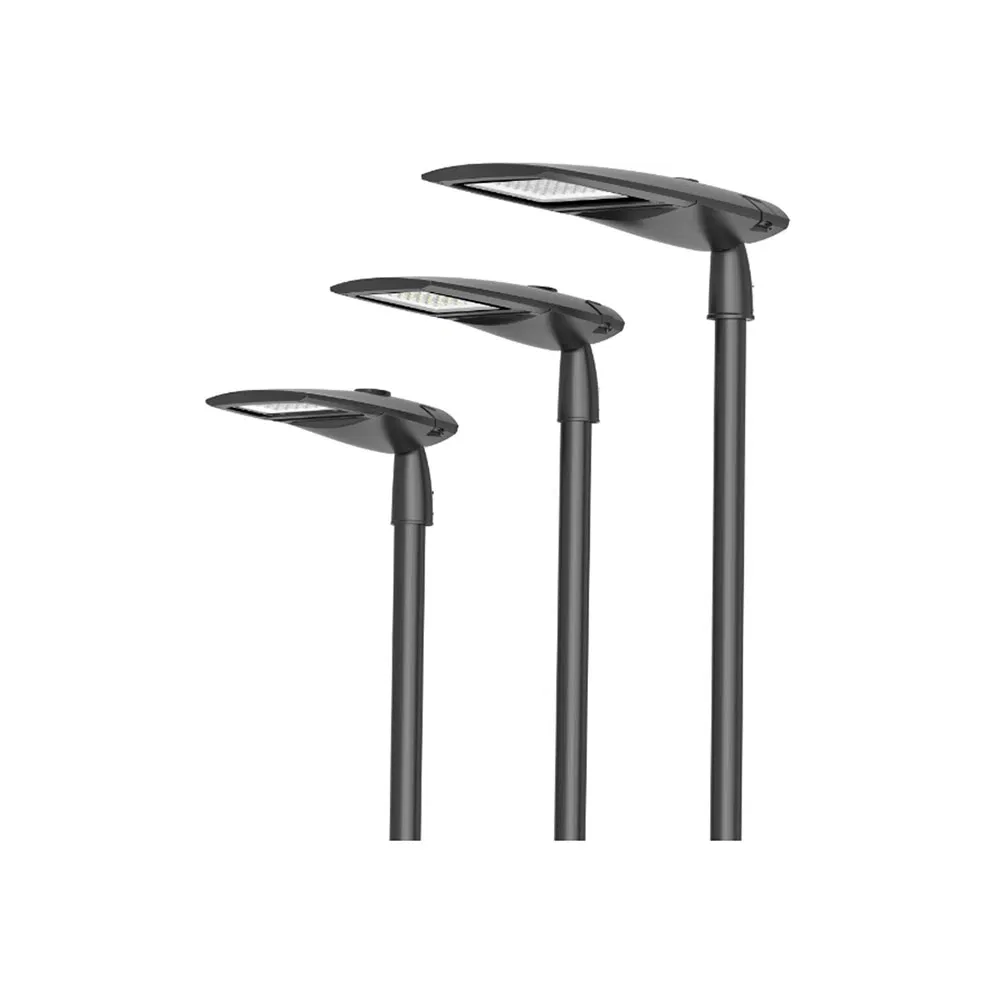

This series is a high-performance street lighting available in three sizes. The luminaire is manufactured from high pressure die-casting aluminum. It features an efficiency up to 130 lm/w and is capable of producing up to 26000 luminaire lumens at 4000K. Standard finish available in Grey or Black.
Certification: IP66 CE ROHS

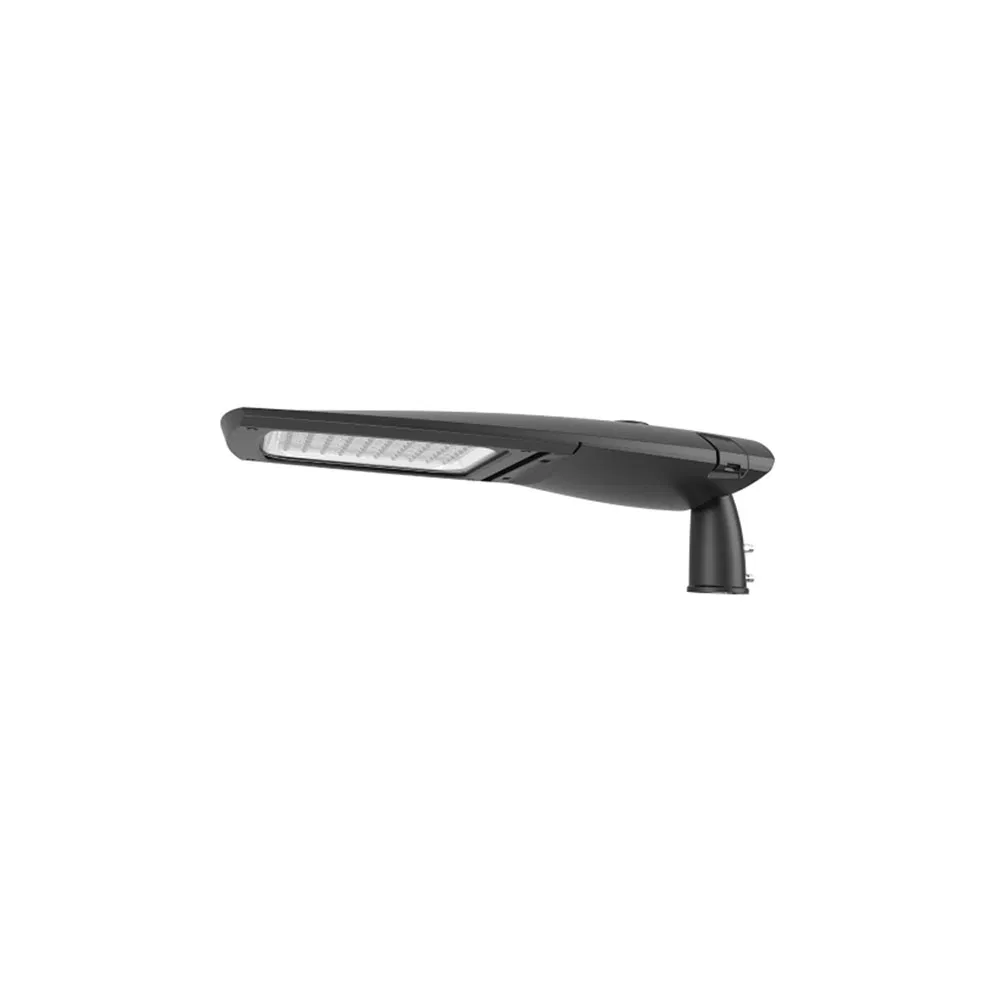

90 Degree Installation

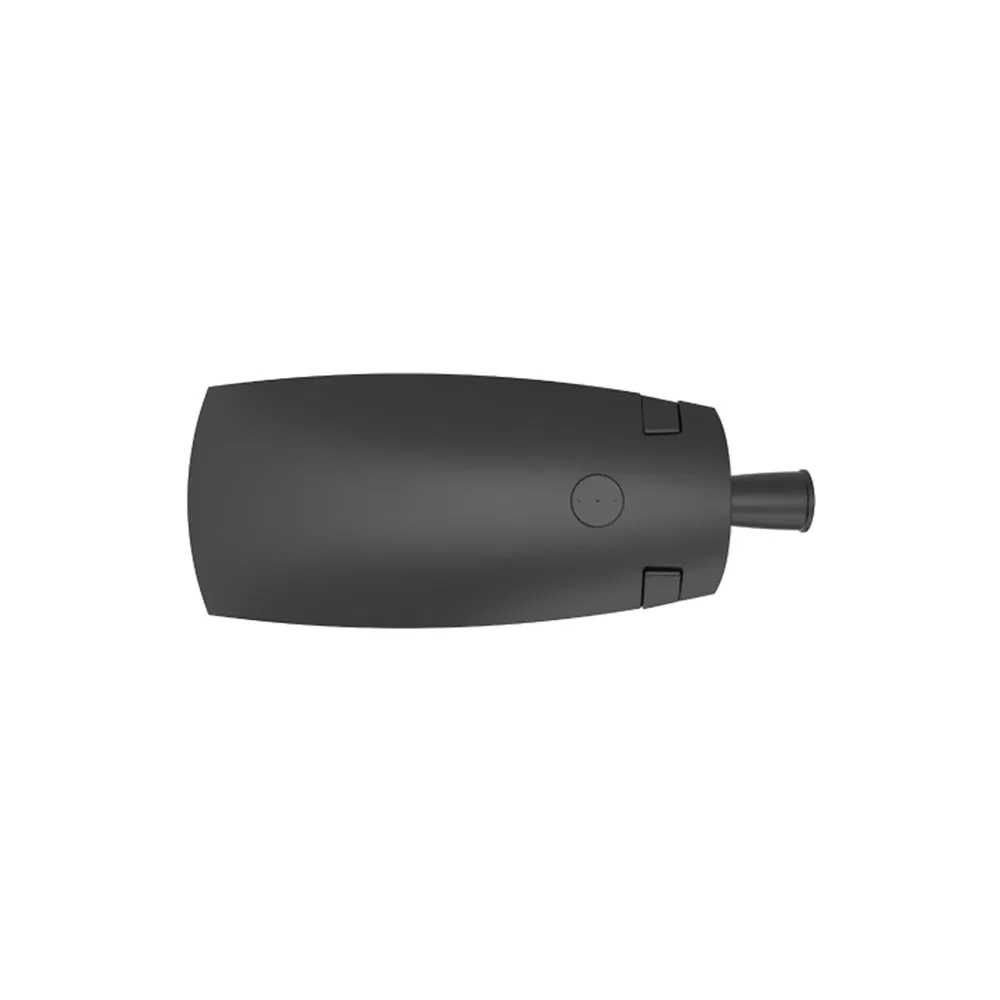

Back View

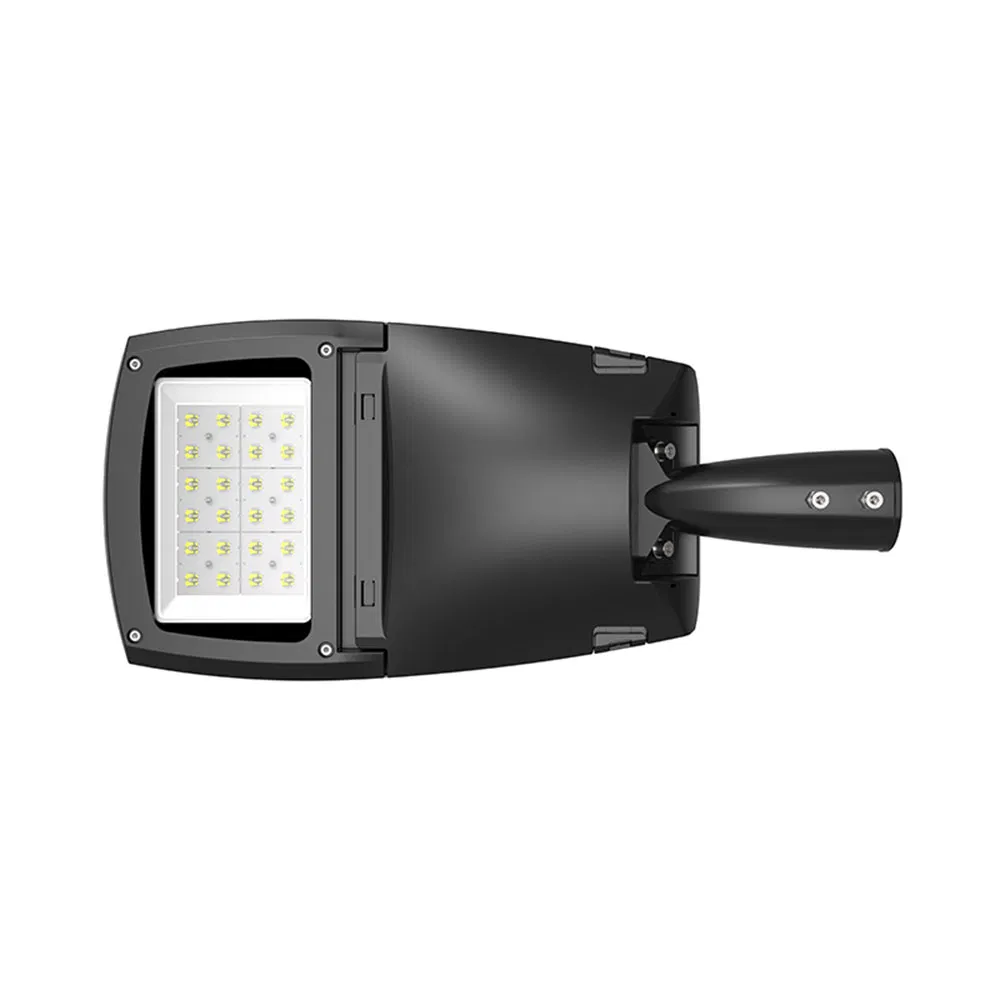

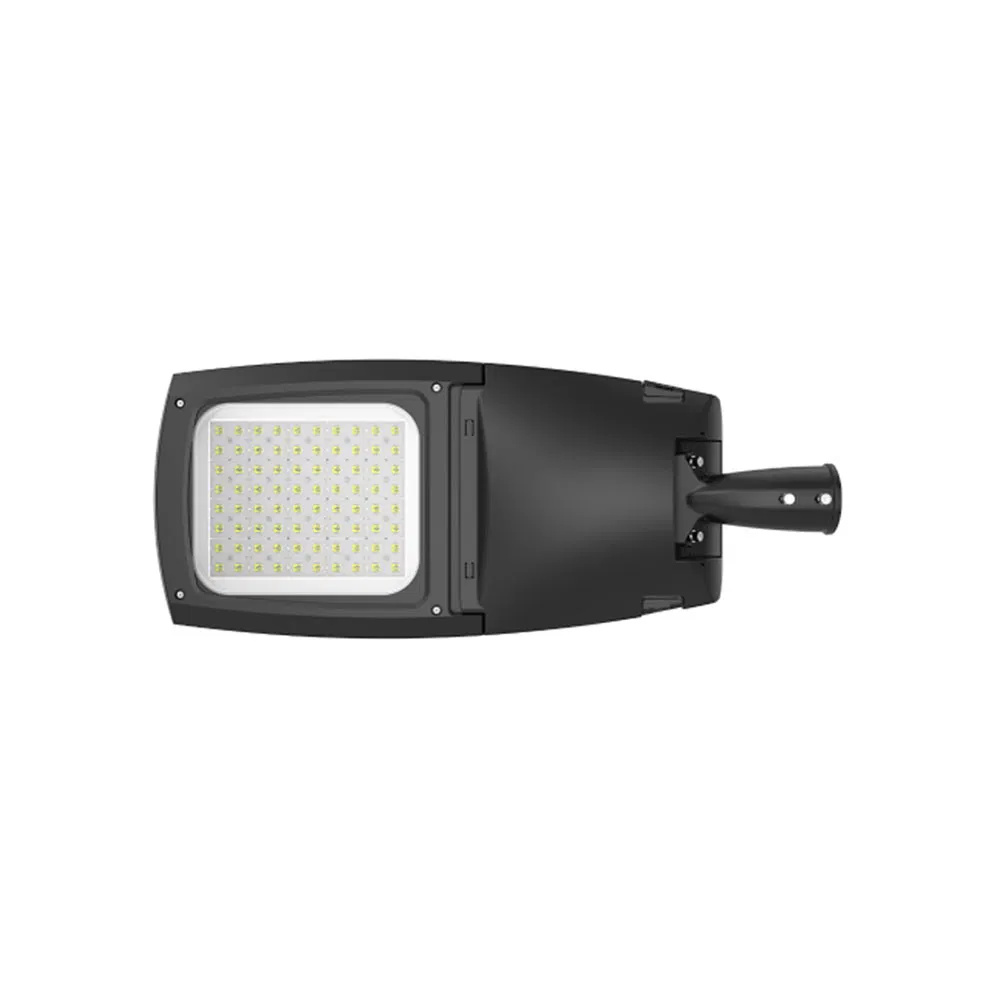

Front View

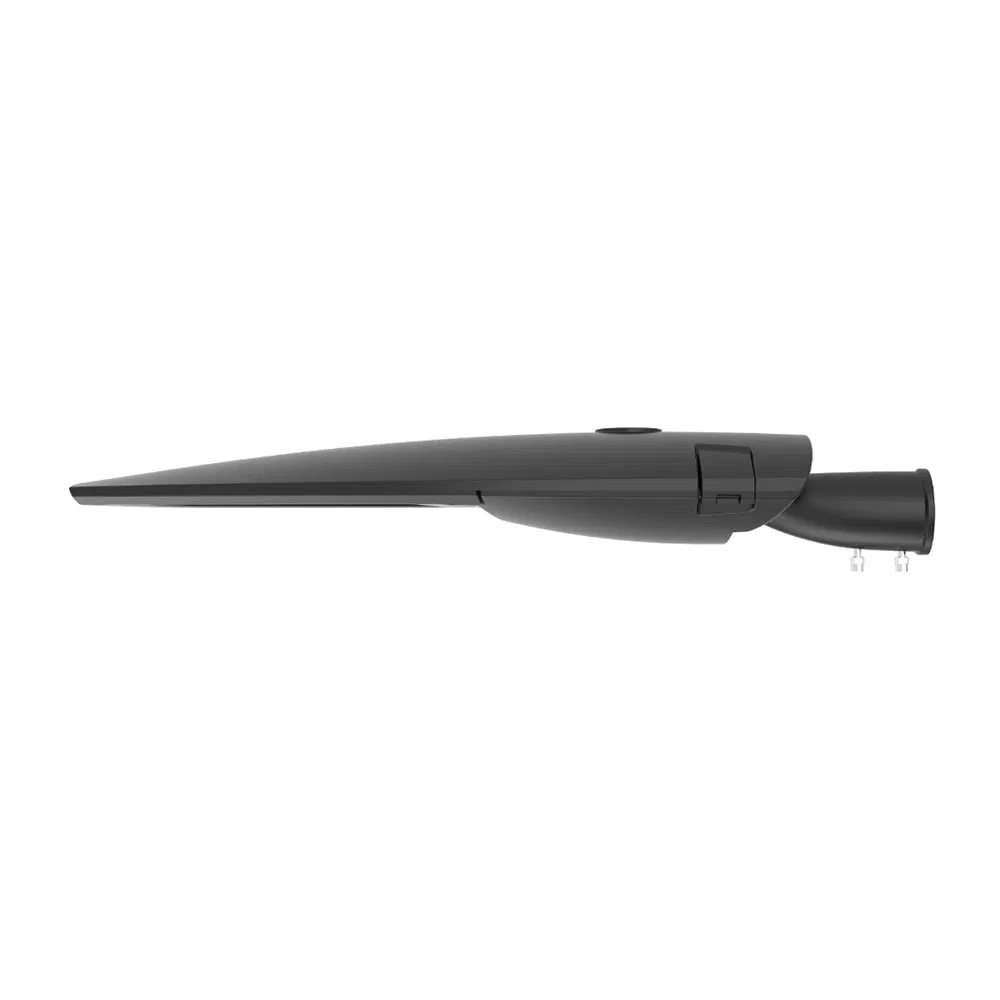

Side View
| Parameter | Details |
|---|---|
| Product Code | YASL-14-40 |
| Input Wattage | 60W |
| Luminous Flux | 7800-9000lm |
| Power Factor | PF≥0.95 |
| CRI | Ra≥70 |
| Operating Temperature | -40~50ºC |
| LED Lifetime | 50000h |
| Protection Grade | IP66 / IK08/09/10 |
| Installation Height | 4-6m |
| Packing Size | 670*315*190 mm |

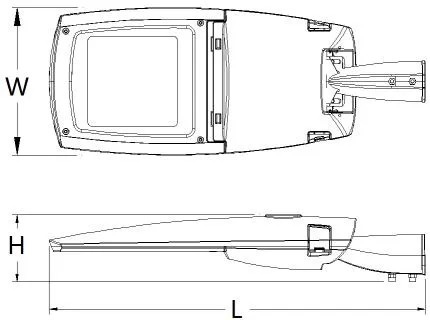

| Dimension | Measurement (mm) |
| Length (L) | 620 |
| Width (W) | 287 |
| Height (H) | 131 |
