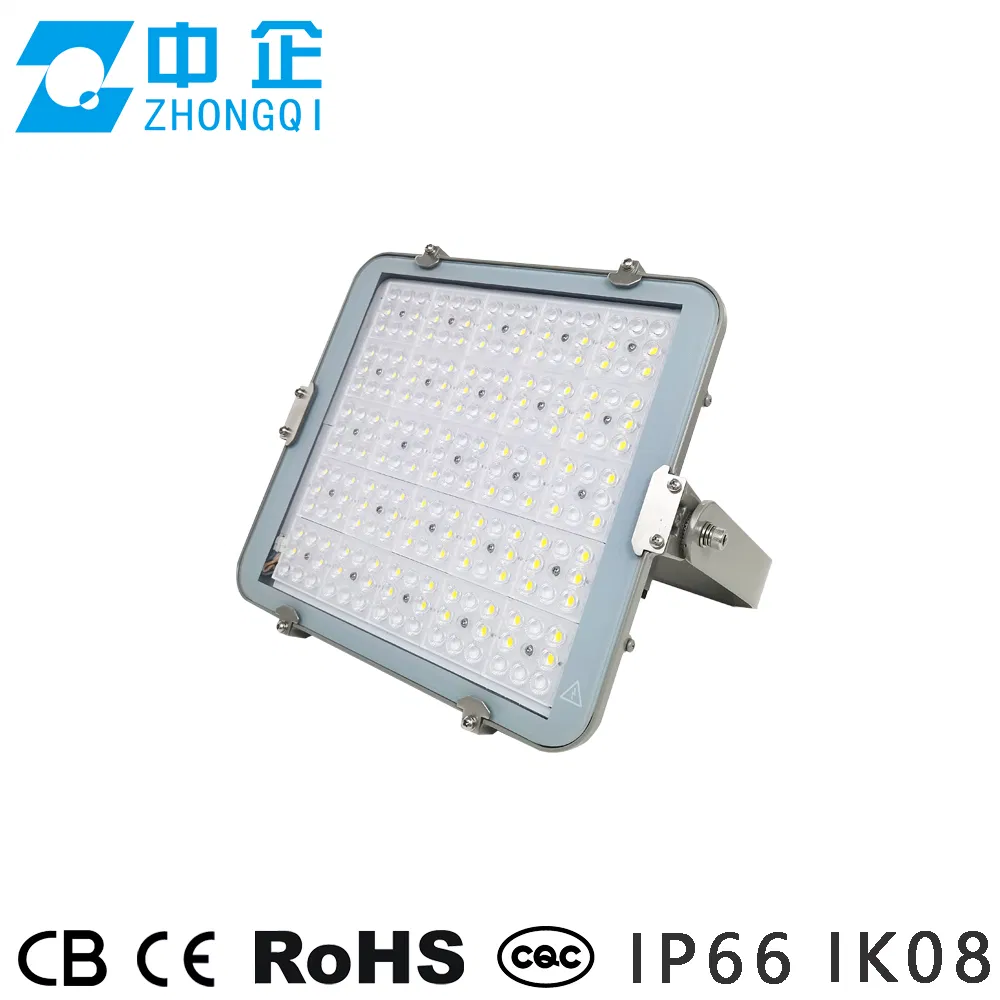

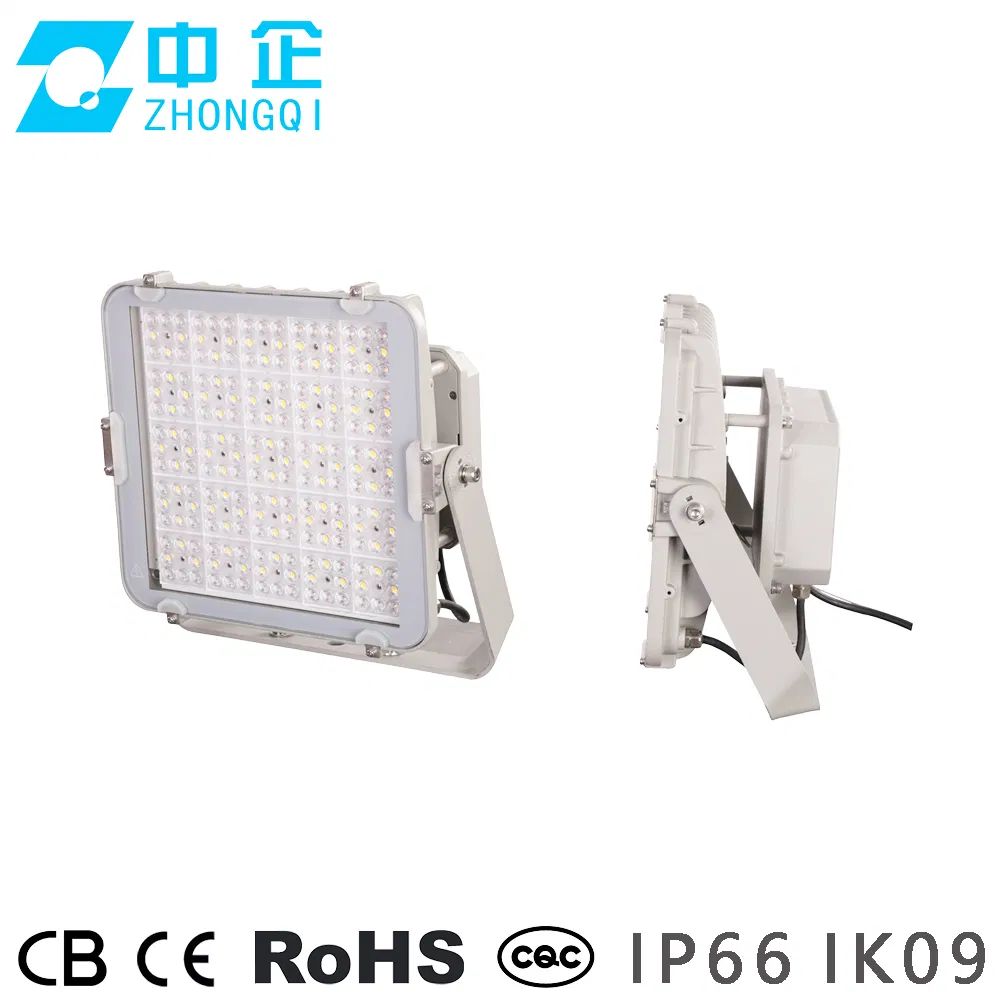

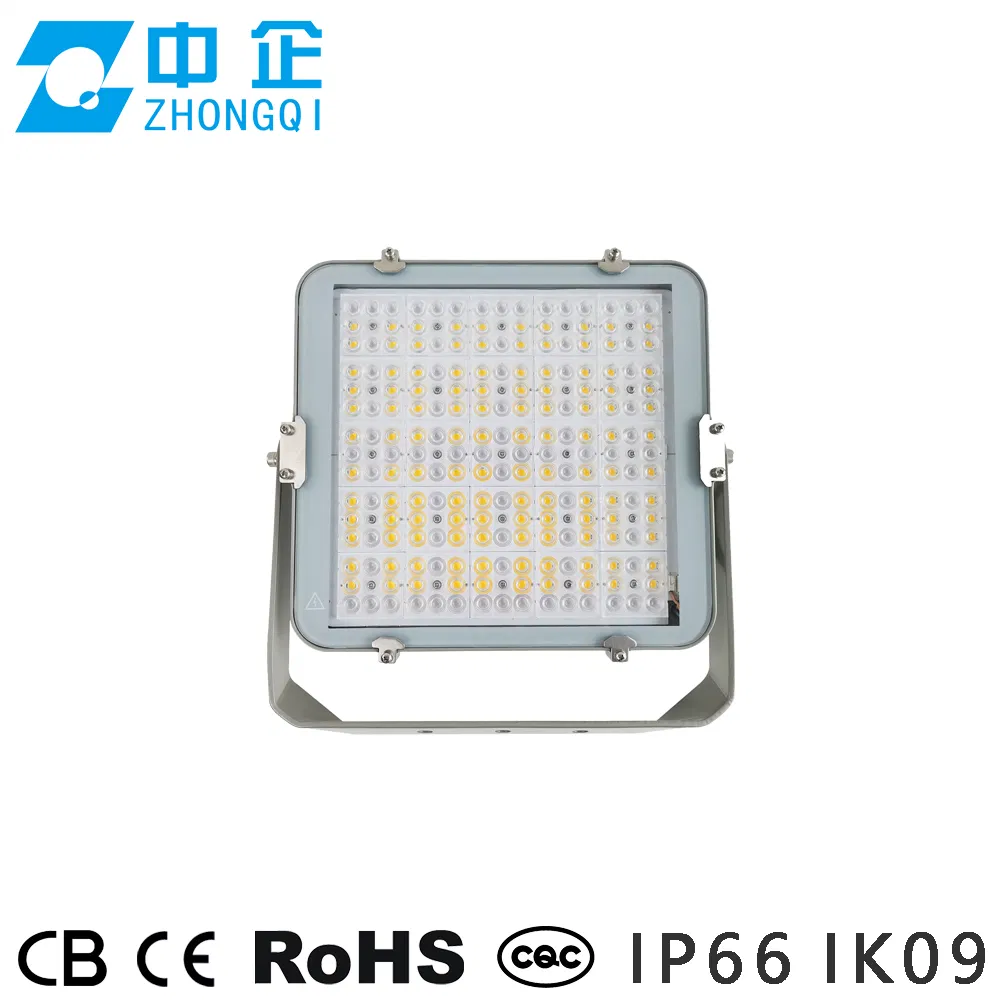

Hot Sale LED Flood Light with Smart LED Driver Motion Sensor IP66 Waterproof Projector OEM 220W 240W 300W 360W CE CB RoHS Factory Pirce Outdoor Lighting

Basic Specifications

Model NO.

TYZQ-FD019-M

Power

50-400W

IP Rating

IP66

Input Voltage

90-305V

LED Chips

Osram / 5050 / 3030 / 3535

Beam Angle

8° to 120° Asymmetric

Luminous Efficacy

120lm/W - 200lm/W

Material

Die-Casting Aluminum & Tempered Glass

Vibration Rating

3G / 5G Vibration Approved

Surge Protection

10kv / 20kv SPD

Product Highlighting Features

Designed for harsh environments: high vibration and salt fog.

5G vibration test approved (ANSI C136.31 & JIS C 60068-2-64).

1000 hours salt spray resistance, IP66 and IK09 rated.

Wide power range from 100W up to 1200W.

Professional optics: 8°, 15°, 25°, 30°, 60°, 90°, and asymmetric.

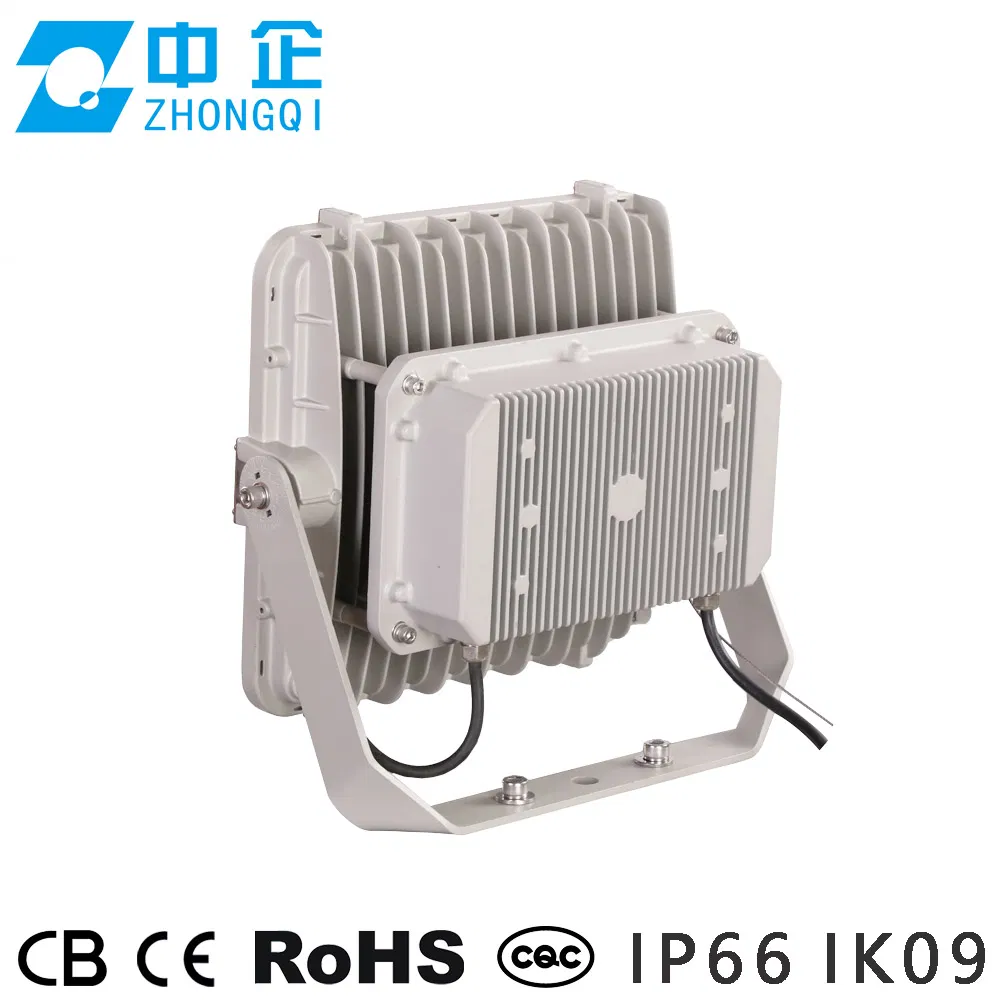

Separate IP66 driver chamber for superior heat dissipation.

Tempered glass protection for UV, moisture, and dust resistance.

Multiple dimming options: 1-10V, PWM, 3-Timer-Modes, and DALI.

Technical Parameters

Model	Power(W)	Premium LPW	Standard LPW	N.W.(kg)	Fixture Size(mm)	Package Size(mm)
TYZQ-FD019-100	100W	150 lm/W	130 lm/W	7.10	346370152	430400220
TYZQ-FD019-150	150W	150 lm/W	130 lm/W	7.10	346370152	430400220
TYZQ-FD019-200	200W	150 lm/W	130 lm/W	7.30	346370152	430400220
TYZQ-FD019-300	300W	150 lm/W	130 lm/W	17.30	605408204	650525235
TYZQ-FD019-400	400W	150 lm/W	130 lm/W	17.40	605408204	650525275
TYZQ-FD019-600	600W	150 lm/W	130 lm/W	14.3	605408204	650540240
TYZQ-FD019-1200	1200W	150 lm/W	130 lm/W	30.0	790653263	895695230

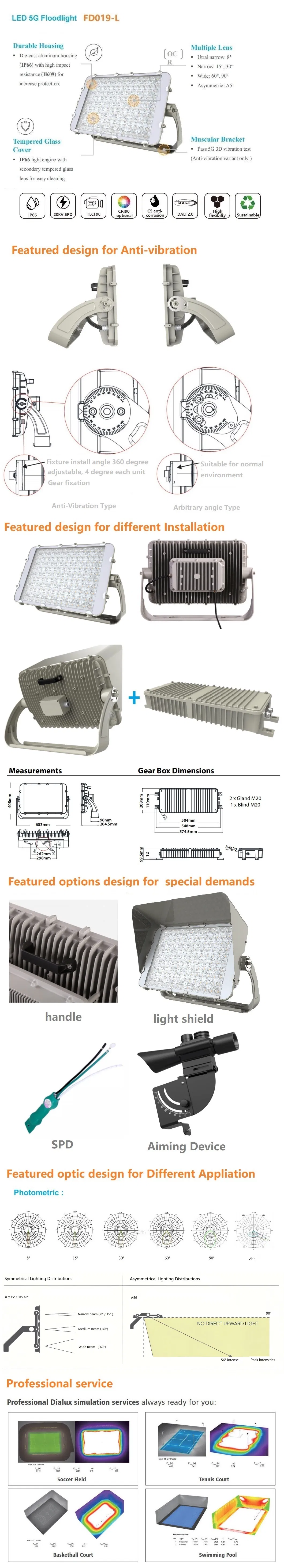

Product Applications & Details

Frequently Asked Questions

Q1: Can I have a sample before placing quantity orders?

Yes, we welcome sample orders for testing and quality approval.

Q2: What is the typical lead time?

Samples usually take 3-5 days, while quantity orders require approximately 25-30 days.

Q3: Is ODM or OEM service accepted?

Yes, we provide full ODM and OEM services to meet your specific requirements.

Q4: How long is the warranty period for your products?

We offer a warranty range of 2 to 5 years depending on the project specifications.

Q5: What are the payment terms?

Our standard terms are a 30% TT deposit, with the remaining 70% due before shipment.

Q6: Are these lights suitable for high-vibration environments like cranes?

Absolutely. This series has passed the 5G vibration test and 1000-hour salt spray test, making it ideal for cranes and seaports.

Hot Sale LED Flood Light with Smart LED Driver Motion Sensor IP66 Waterproof Projector OEM 220W 240W 300W 360W CE CB RoHS Factory Pirce Outdoor Lighting

Product Description
