Product Description

📋 Basic Information
Model NO.VSU-MK1201
MaterialPlastic / Metal + ABS + PC
CertificationCE
Bus Voltage21-30 VDC (KNX Bus)
Installation86-Box Installation
ProtectionSmart Linkage & Security
💡 Product Overview

The control panel is designed for advanced building control systems, working seamlessly with other bus-connected devices. It offers a simple and intuitive interface for users to execute functions such as switching, dimming, and blind control. This standard 86-box device features 1-4 or 1-8 button outputs and integrates with EIB/KNX systems via ETS software for precise parameter setting and addressing.

🛠️ Core Functions
Versatile control for lighting, curtains, and projection screens with long/short press and reverse functions.
Advanced dimming capabilities including relative and absolute dimming output.
8-bit scene control for calling pre-set environmental modes instantly.
Customizable LED indicators with multiple states: normally on, off, or flashing.
LED interlocking grouping and intelligent brightness adjustment.
Backlight wake-up via button press or object triggering with delayed extinguishing.
📊 Technical Parameters
Bus Current≤12mABus Power≤360mW
Operating Temp-5°C to +45°CStorage Temp-25°C to +55°C
Auxiliary Voltage24VDCAuxiliary Current≤27.5mA
Dimensions86 x 86 x 33 mmRelative HumidityMax 90%
WeightApprox. 0.1kgTransportation Temp-25°C to +70°C
🖼️ Visuals & Wiring Diagrams

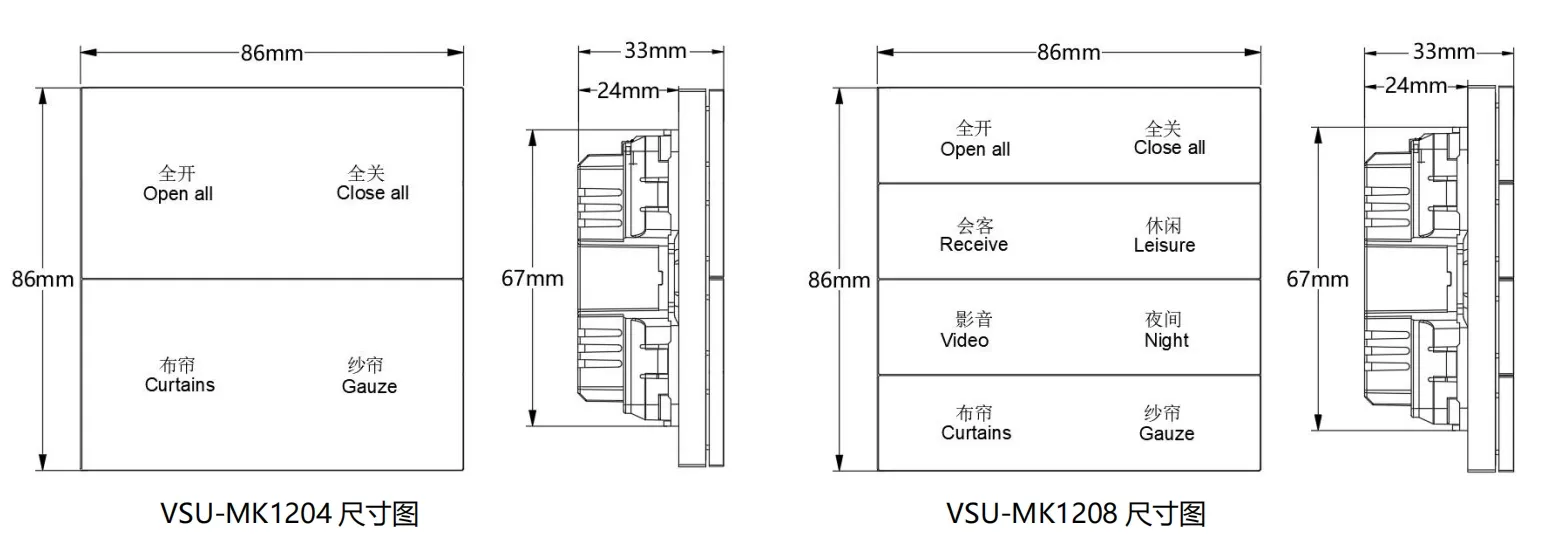

Dimensional Diagram

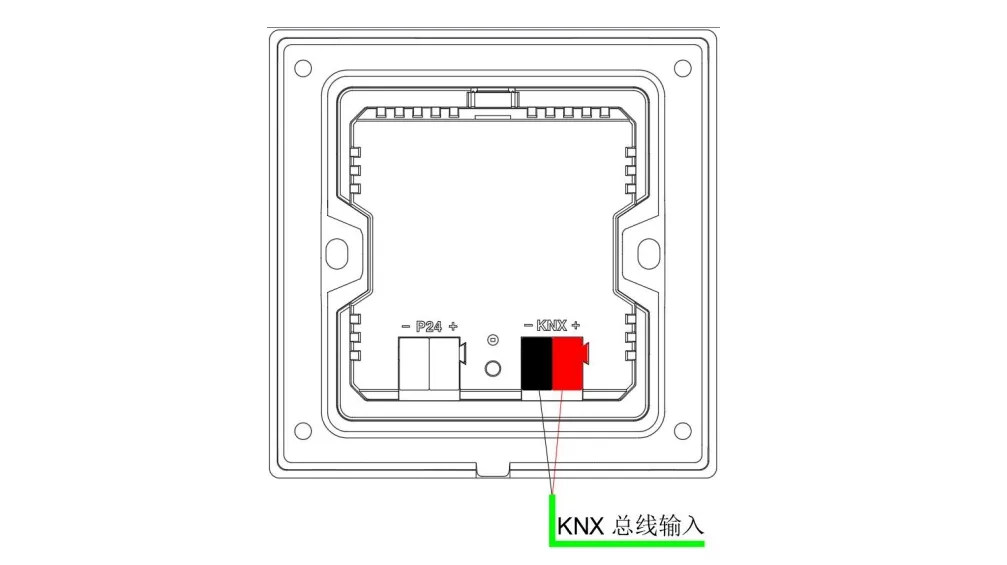

Wiring Setup

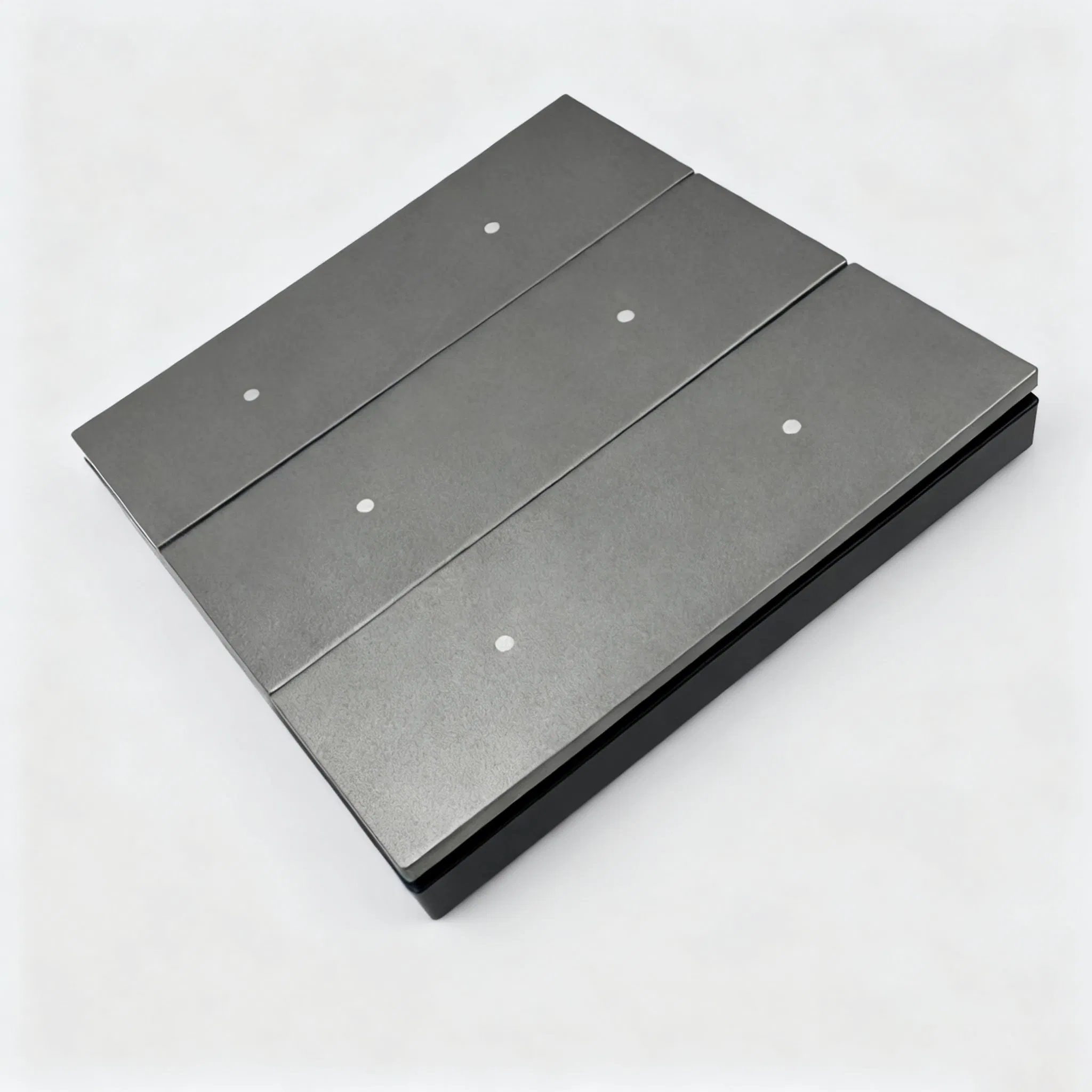

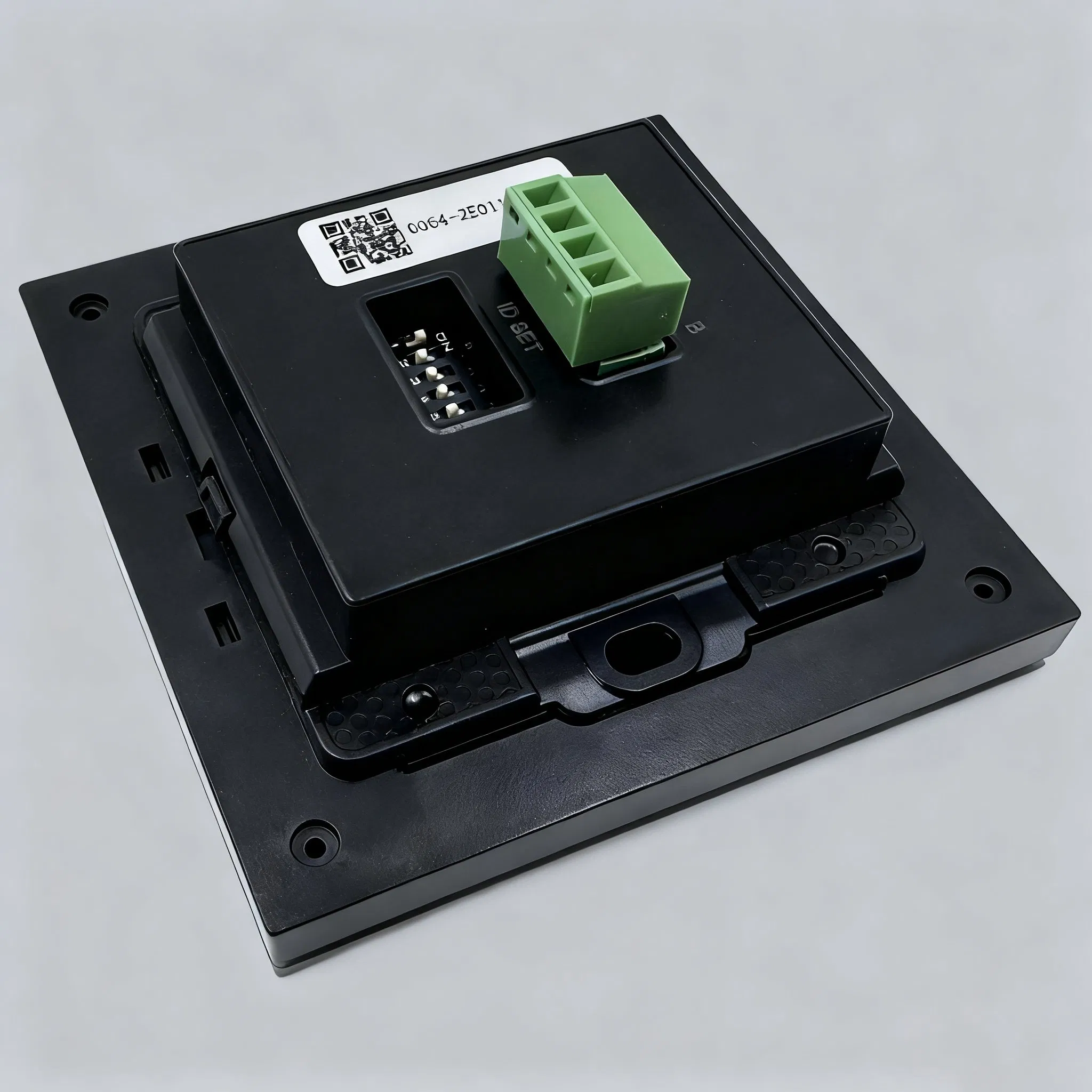

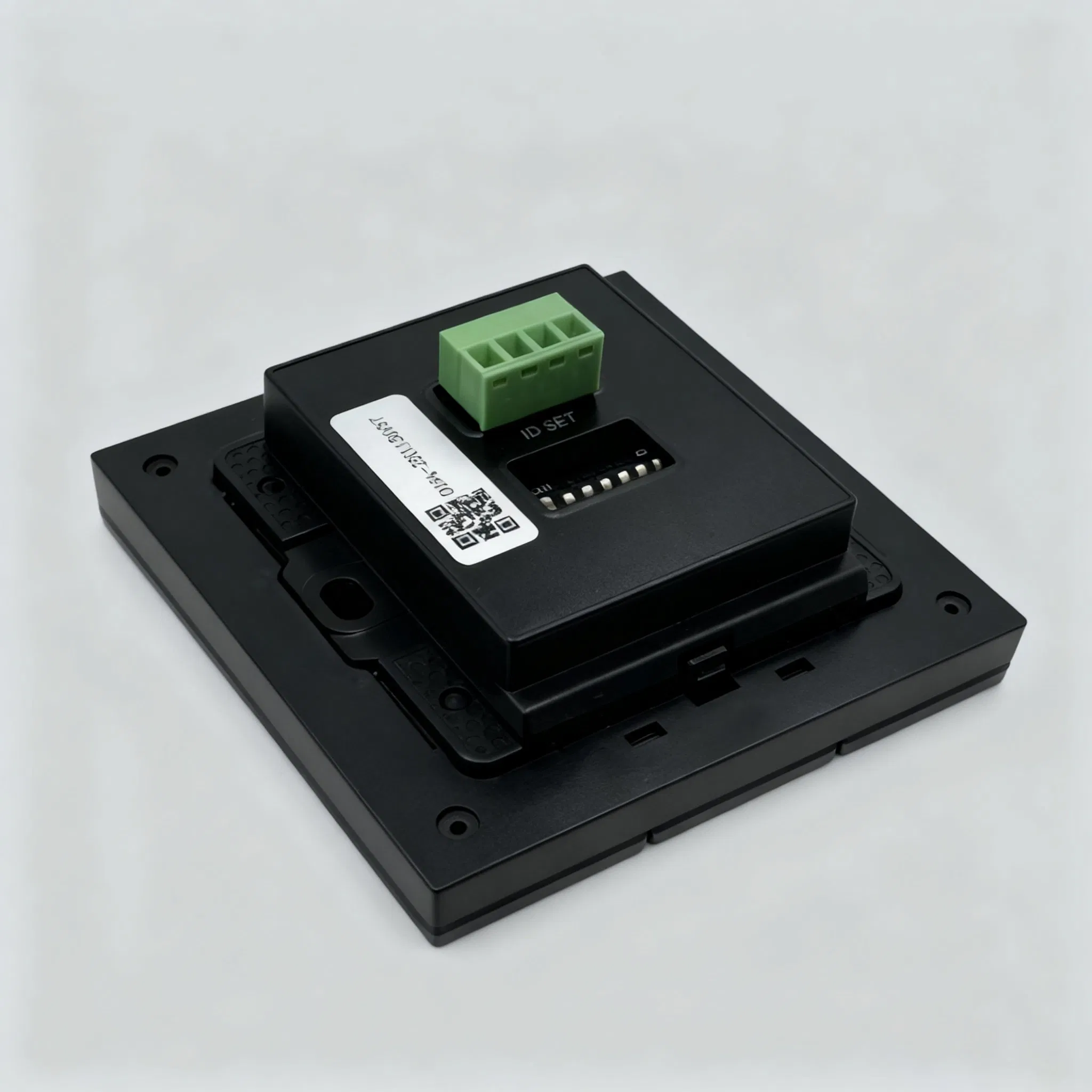

Product Display

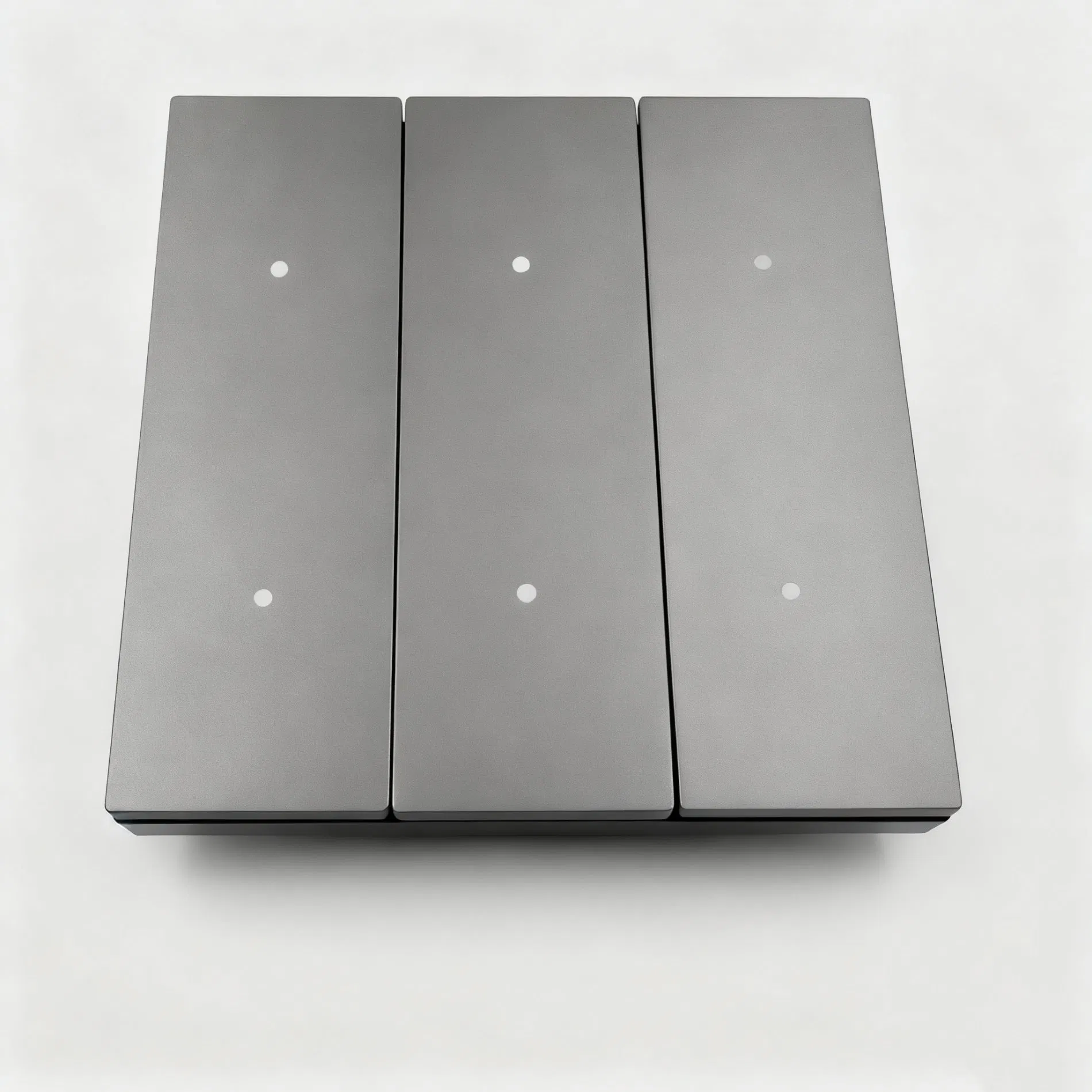

Smart Control Panel
Installation View
❓ Frequently Asked Questions
What systems is this control panel compatible with?
The panel is fully compatible with EIB/KNX systems and can be configured using ETS4 or above software.
What types of lighting can this device control?
It can control standard switching for lights, as well as relative and absolute dimming for compatible smart LED systems.
Does the panel require an external power supply?
Yes, it is powered by the KNX bus (21-30VDC) and requires a 24VDC auxiliary power supply for full functionality.
Can the LED indicator lights be customized?
Absolutely. You can select states such as normally on, off, or flashing, and adjust the brightness or set wake-up conditions.
Is it suitable for motor-driven equipment like curtains?
Yes, it supports the control of motorized blinds, curtains, and projection screens with specific lift and stop functions.
What is the standard installation method?
The device is designed for standard 86-type bottom box installation, making it compatible with most architectural electrical setups.
