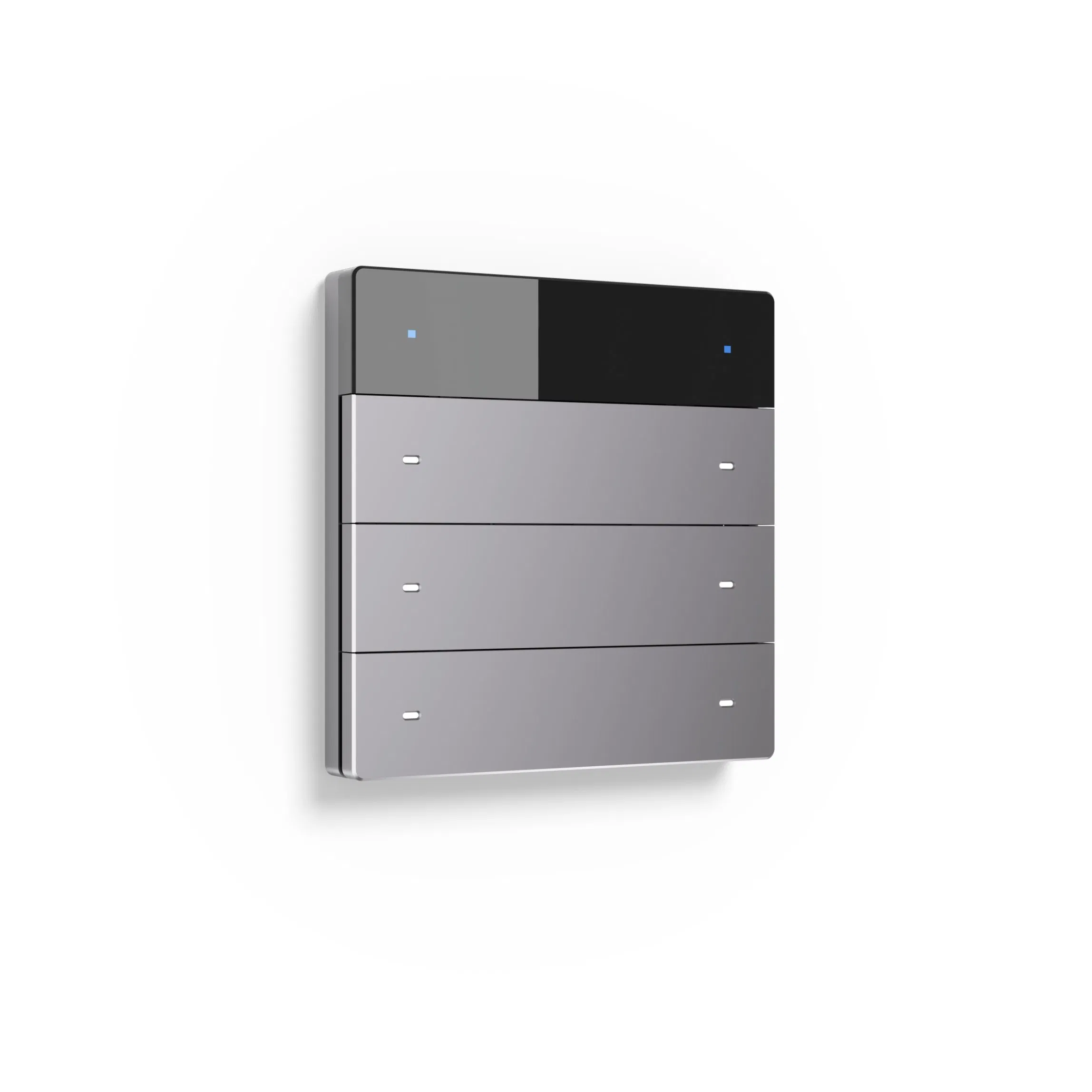

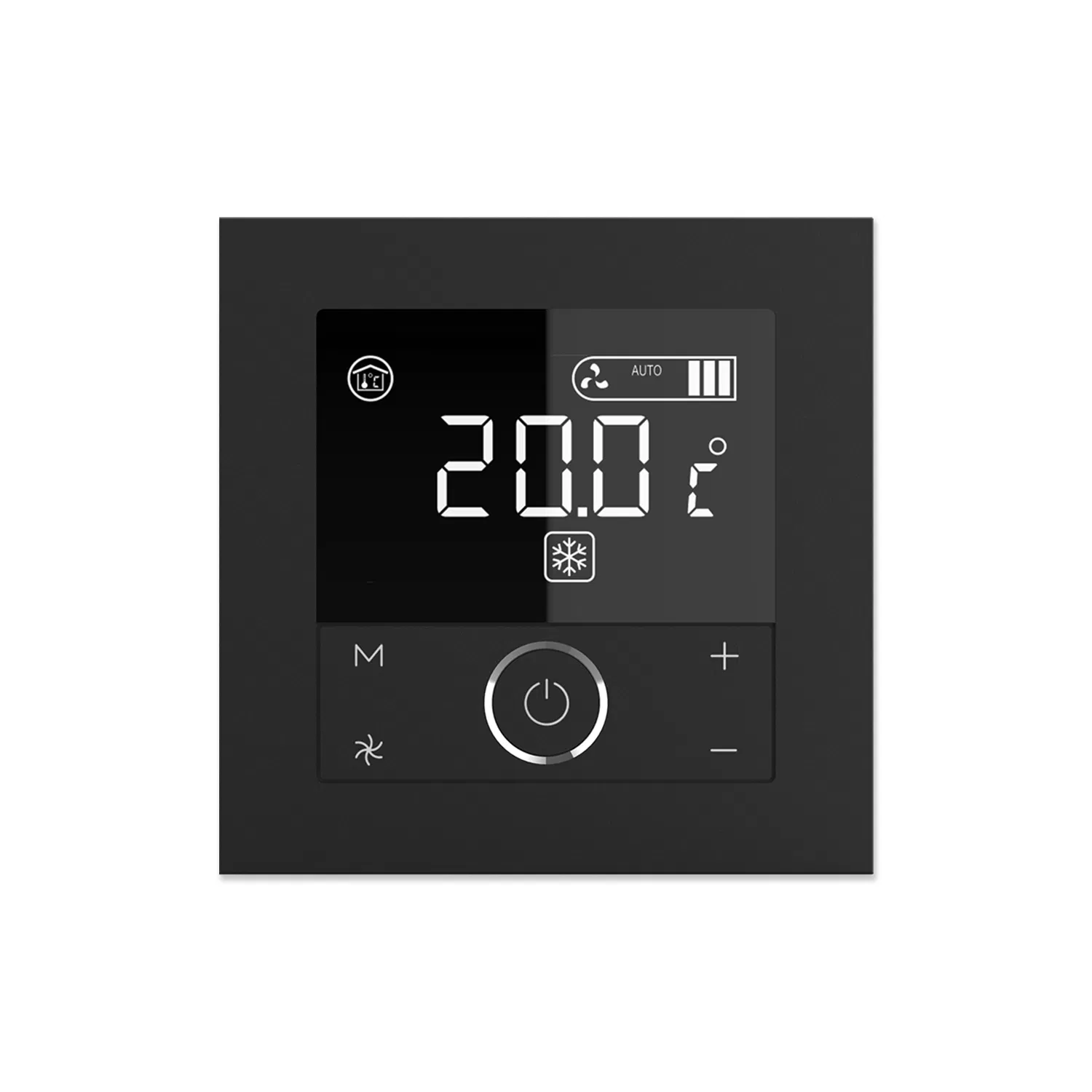

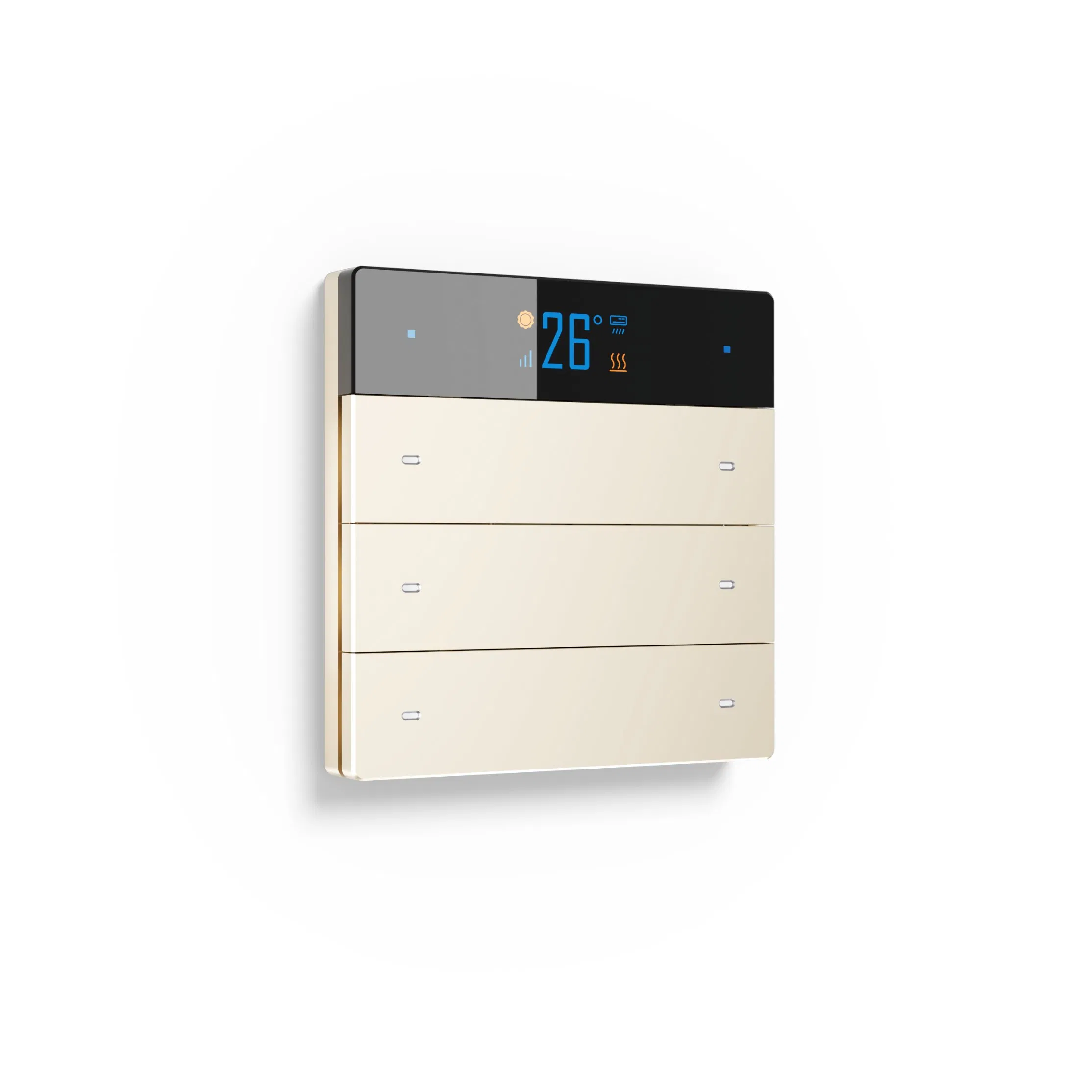

Remote Controlled Smart Lighting System for LED Lights
Remote Controlled Smart Lighting System for LED Lights
Remote Controlled Smart Lighting System for LED Lights
Remote Controlled Smart Lighting System for LED Lights
Remote Controlled Smart Lighting System for LED Lights
1 / 5
Remote Controlled Smart Lighting System for LED Lights
Remote Controlled Smart Lighting System for LED Lights
Remote Controlled Smart Lighting System for LED Lights
Remote Controlled Smart Lighting System for LED Lights
Remote Controlled Smart Lighting System for LED Lights

Remote Controlled Smart Lighting System for LED Lights

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
VSU-MK1208
Function
APP Control, Energy Monitoring, Remote Control, Scene Modes, Security, Smart Linkage, Timer, Voice Control
Material
Plastic / Metal+ABS+PC
Certification
CE
Bus Voltage
21-30 VDC, Powered by KNX Bus
Installation
86-Box Installation
Dimensions
86mm X 86mm X 10.5 mm
Lead Time
3 days (1-100 Pieces)
🔍

Product Overview

The control panel is primarily utilized in building control systems, designed to be installed alongside other devices on the bus to create a cohesive smart network. Its intuitive interface allows users to execute complex functions simply and effectively.

This panel provides comprehensive control over lighting switches, dimming, and motorized blinds. Each channel features dedicated buttons and LED indicator lights. It connects directly to EIB/KNX systems, utilizing ETS software for physical addressing and parameter configuration.

⚙️

Function Description

🔹
Supports switching for lighting, curtain control, and projection screen lifting with long/short press logic.
🔹
Advanced dimming capabilities including relative and absolute dimming output functions.
🔹
8-bit scene control allows for the calling and management of pre-set lighting and environment scenes.
🔹
LED indicators with multiple states: normally on, normally off, or flashing modes.
🔹
Intelligent backlight LED with brightness wake-up and delayed extinguishing triggered by button interaction.
🔹
Equipped with LED interlocking grouping and adjustable brightness levels for status feedback.
📊

Detailed Parameters

Bus Voltage21-30 VDC, KNX bus power supply
Bus Current≤12mA
Bus Power<360mW
Shell MaterialMetal + ABS + PC
WeightApprox. 0.1kg
Operating Temp-5℃ to +45℃
Storage Temp-25℃ to +55℃
Relative HumidityMax 90%
Auxiliary Voltage24VDC
Auxiliary Current≤27.5mA
Auxiliary Power≤660mW
🖼️

Diagrams & Gallery

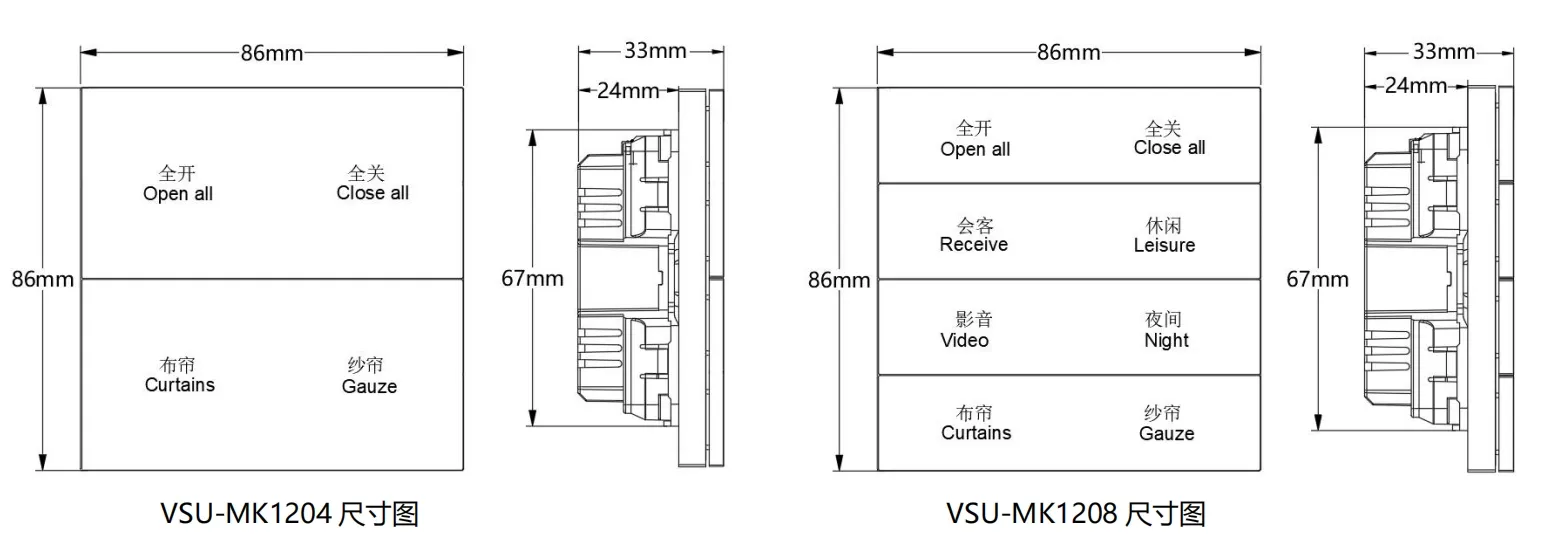

Smart Lighting System Diagram 1

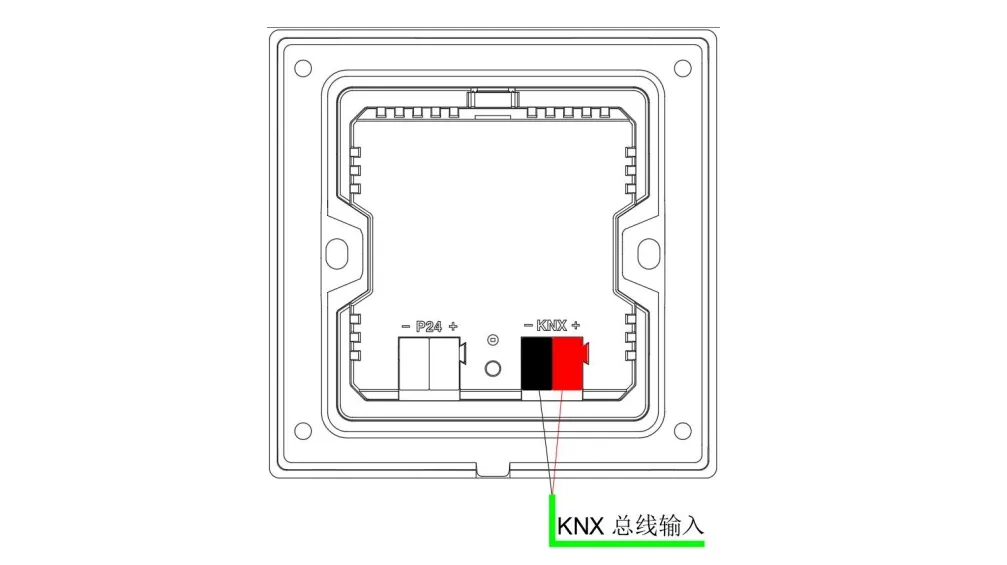

Smart Lighting System Diagram 2
Wiring Diagram
Product Display 1
Product Display 2
Product Display 3
Product Display 4
Product Display 5
Product Display 6
❓

Frequently Asked Questions

Q1: What are the primary control functions of this panel?
A1: It can be used for switching lighting, controlling curtain opening/closing, projection screen lifting, and absolute or relative dimming.
Q2: How is the device powered?
A2: The device is powered by the KNX bus (21-30 VDC) and requires a 24VDC auxiliary power supply.
Q3: Does the panel support scene management?
A3: Yes, it supports 8-bit scene control and the ability to call pre-set scene functions.
Q4: What is the installation requirement for this control panel?
A4: It is designed for standard 86-type bottom box installation.
Q5: Can the LED indicator lights be customized?
A5: Yes, the LEDs feature multiple states including normally on, normally off, or flashing, with adjustable brightness and delayed extinguishing.
Q6: What software is used for configuration?
A6: The engineering design tool software ETS (version ETS4 or above) is used to allocate addresses and set parameters.

Related Products

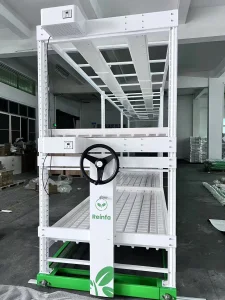

Unifarm Multi-Crop Vertical Hydroponic Racks LED Lighting and Smart Drainage Control System

Unifarm Multi-Crop Vertical Hydroponic Racks LED Lighting and Smart Drainage Control System

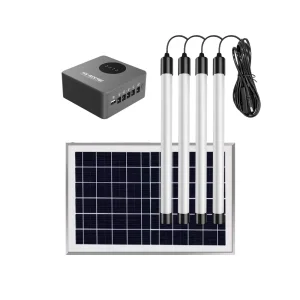

4 LED Tube Light Mini Portable Solar Power System Smart Home Lighting System

4 LED Tube Light Mini Portable Solar Power System Smart Home Lighting System
Smart LED Outdoor Lighting System with Mobile APP Control

Smart LED Outdoor Lighting System with Mobile APP Control

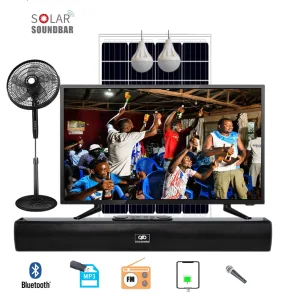

Amazon Hot Selling Solar TV System Kit with 32inch Smart TV DC Fan LED Lighting Phone Charging MP3 FM Radio Bluetooth Singing Function for Home

Amazon Hot Selling Solar TV System Kit with 32inch Smart TV DC Fan LED Lighting Phone Charging MP3 FM Radio Bluetooth Singing Function for Home
Smart LED Home Lighting System for Perfect Ambiance Control

Smart LED Home Lighting System for Perfect Ambiance Control
Modular Vertical Hydroponic System with Smart LED Lighting - Urban Farming Technology

Modular Vertical Hydroponic System with Smart LED Lighting - Urban Farming Technology

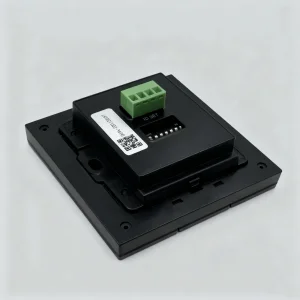

6 Push Button Panel Remote Control Switch for Smart LED Lighting Systems

6 Push Button Panel Remote Control Switch for Smart LED Lighting Systems

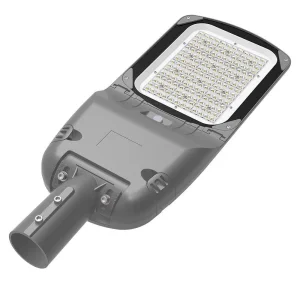

Smart 80W LED Solar All-in-One Road Lamp Energy-Efficient Street Lighting System

Smart 80W LED Solar All-in-One Road Lamp Energy-Efficient Street Lighting System
Smart Motion Sensor LED Lighting System for Indoor and Outdoor Use

Smart Motion Sensor LED Lighting System for Indoor and Outdoor Use

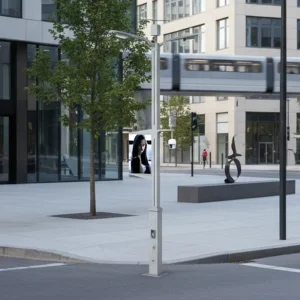

Smart LED Street Lighting System with WiFi Connectivity
