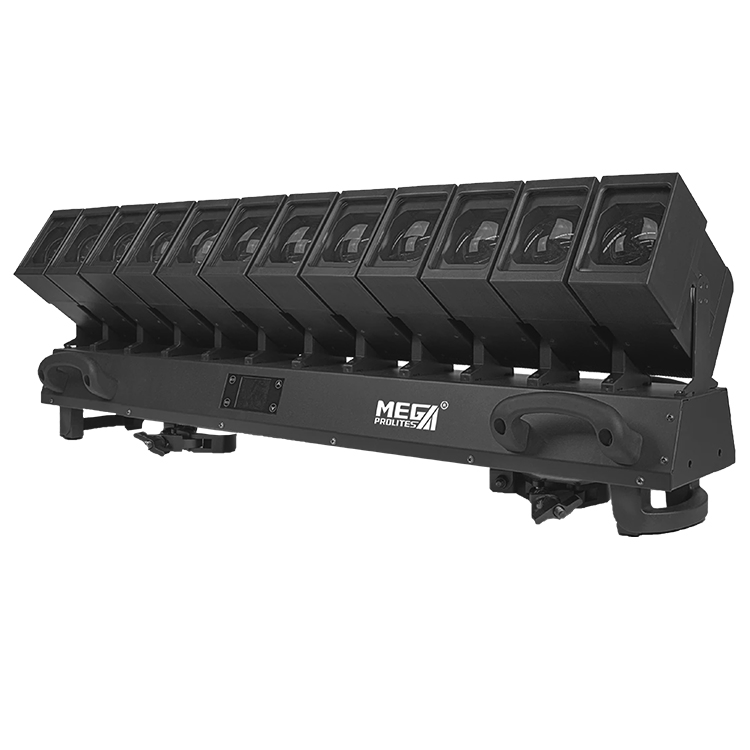

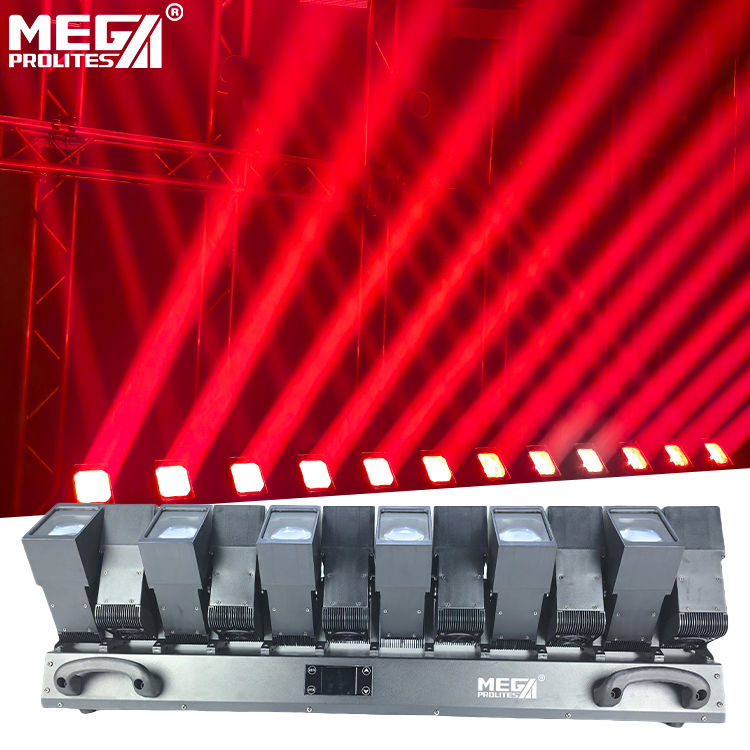

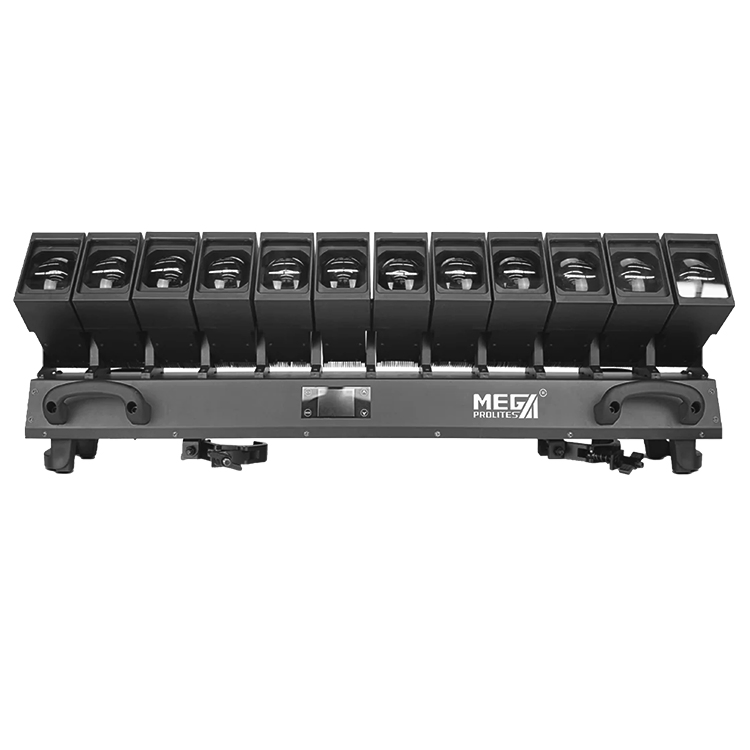

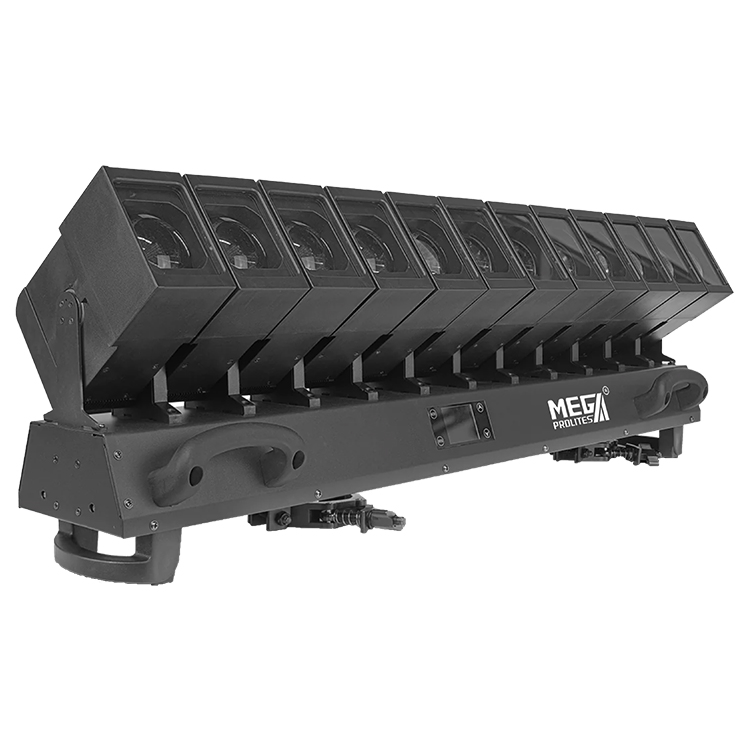

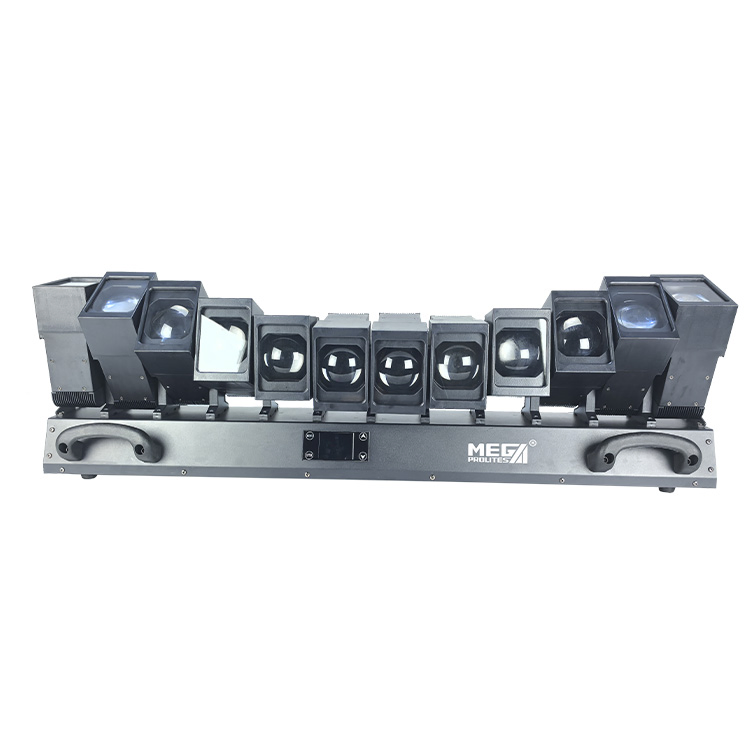

12X60W RGBW LED Pixel Bar Moving Head Light Zoom Beam Wash DMX512 for Concert Event DJ Club Stage Lighting
12X60W RGBW LED Pixel Bar Moving Head Light Zoom Beam Wash DMX512 for Concert Event DJ Club Stage Lighting
12X60W RGBW LED Pixel Bar Moving Head Light Zoom Beam Wash DMX512 for Concert Event DJ Club Stage Lighting
12X60W RGBW LED Pixel Bar Moving Head Light Zoom Beam Wash DMX512 for Concert Event DJ Club Stage Lighting
12X60W RGBW LED Pixel Bar Moving Head Light Zoom Beam Wash DMX512 for Concert Event DJ Club Stage Lighting
1 / 5
12X60W RGBW LED Pixel Bar Moving Head Light Zoom Beam Wash DMX512 for Concert Event DJ Club Stage Lighting
12X60W RGBW LED Pixel Bar Moving Head Light Zoom Beam Wash DMX512 for Concert Event DJ Club Stage Lighting
12X60W RGBW LED Pixel Bar Moving Head Light Zoom Beam Wash DMX512 for Concert Event DJ Club Stage Lighting
12X60W RGBW LED Pixel Bar Moving Head Light Zoom Beam Wash DMX512 for Concert Event DJ Club Stage Lighting
12X60W RGBW LED Pixel Bar Moving Head Light Zoom Beam Wash DMX512 for Concert Event DJ Club Stage Lighting

12X60W RGBW LED Pixel Bar Moving Head Light Zoom Beam Wash DMX512 for Concert Event DJ Club Stage Lighting

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

🔹 Basic Specifications
Model NO.
MJ-1262
Emitting Color
Changeable
Control Channel
14/22CH
Strobe
Electronic Strobe
Control Mode
Dmx Signal Control
IP Rating
IP20
Certification
CE, RoHS
Voltage
100-240V
LED Source
12 X 60W RGBW 4in1 LEDs
Beam Angle
4°-36° Zoom
Net Weight
29kg
Product Size
1000*215*340mm
💡 Product Description

12x60W RGBW LED Pixel Bar Moving Head Light Zoom Beam Wash DMX512 for Concert Event DJ Club Stage Lighting

Input Voltage AC100-240V, 50-60Hz
Power Consumption 1280W (R:290W; G:330W; B:330W; W:330W)
LED Quantity 12 x 60W RGBW 4IN1 LEDs
Control Signal DMX512, RDM, Master-slave, Sound, Internal Program/Manual
Control Channels 20/53/101/155/169/179CH switchable
Zoom System 4°-36° Smooth Zoom
Dimming 0-100% linear dimmer
Tilt Movement 200° Movement
Connectors Power connector in/out; 3-pin XLR connector in/out
Protection Rate IP33
🚀 Outstanding Features
Pixel Control 12 individual light heads with tilt movement, each can be controlled individually for complex patterns.
Ultra Brightness High-power 60W RGBW LEDs providing sharp, saturated beam and wash effects.
Versatile Zoom Adjustable beam angles from a tight 4° beam to a wide 36° wash.
📸 Product Showcase

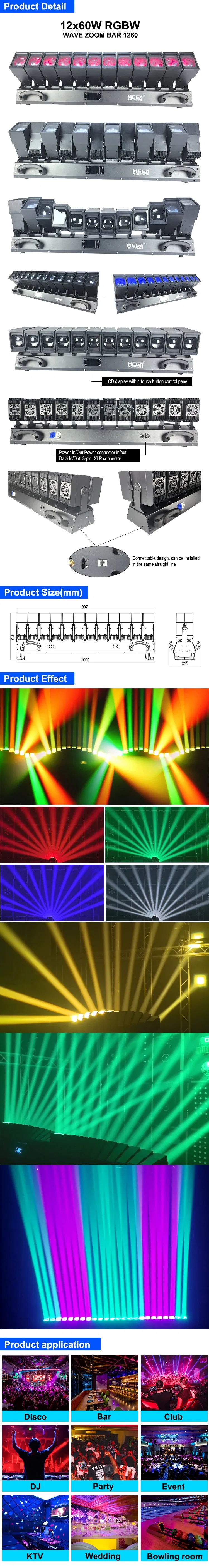

LED Pixel Bar View 1
LED Pixel Bar View 2
LED Pixel Bar View 3
LED Pixel Bar View 4
LED Pixel Bar View 5
LED Pixel Bar View 6
LED Pixel Bar View 7
LED Pixel Bar View 8
LED Pixel Bar View 9
LED Pixel Bar View 10
LED Pixel Bar View 11
❓ Frequently Asked Questions
What are the primary control modes for this light?
The fixture supports DMX512, RDM, Master-Slave, Sound activation, and Internal Programs for manual operation.
Can each LED be controlled individually?
Yes, the 12 individual light heads feature pixel control, allowing each of the 60W RGBW LEDs to be controlled independently for creative effects.
What is the zoom range of the beam?
The moving head light features a professional zoom system with an adjustable range from a sharp 4° beam to a wide 36° wash angle.
What is the tilt movement capability?
This model offers a 200° tilt movement, allowing for dynamic vertical sweeping effects across the stage.
Is this light suitable for large-scale concerts?
Absolutely. With a high power consumption of 1280W and 12x60W LEDs, it provides the brightness and versatility required for concerts, events, and club lighting.
What is the waterproof rating for this fixture?
The product is rated at IP33, making it suitable for indoor stage environments and protected from light water sprays.
