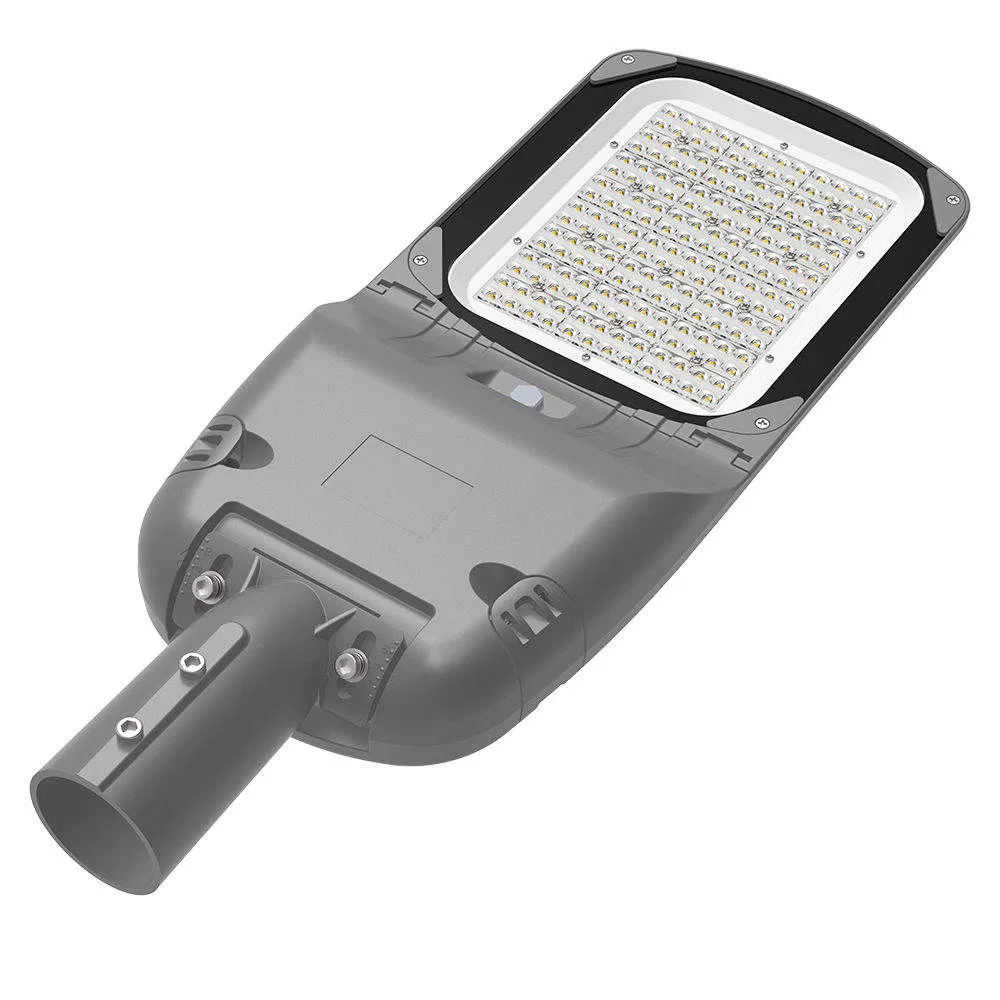

Smart 80W LED Solar All-in-One Road Lamp Energy-Efficient Street Lighting System

ℹ️

Basic Information

Model NO.

BB-LD-80W-S3-V

Material

Aluminum

Power

80W

Application

Square, Highway, Parking Lot, Road

IP Rating

IP65

Certification

CE, ETL, RoHS, SAA

Input Voltage

100-277VAC / 200-480VAC

LED Chips

3030 SMD LED

CRI (Ra>)

85

Working Temp

-40℃ to 40℃

Warranty

5 Years

Working Time

50,000 Hours

💡

Product Description

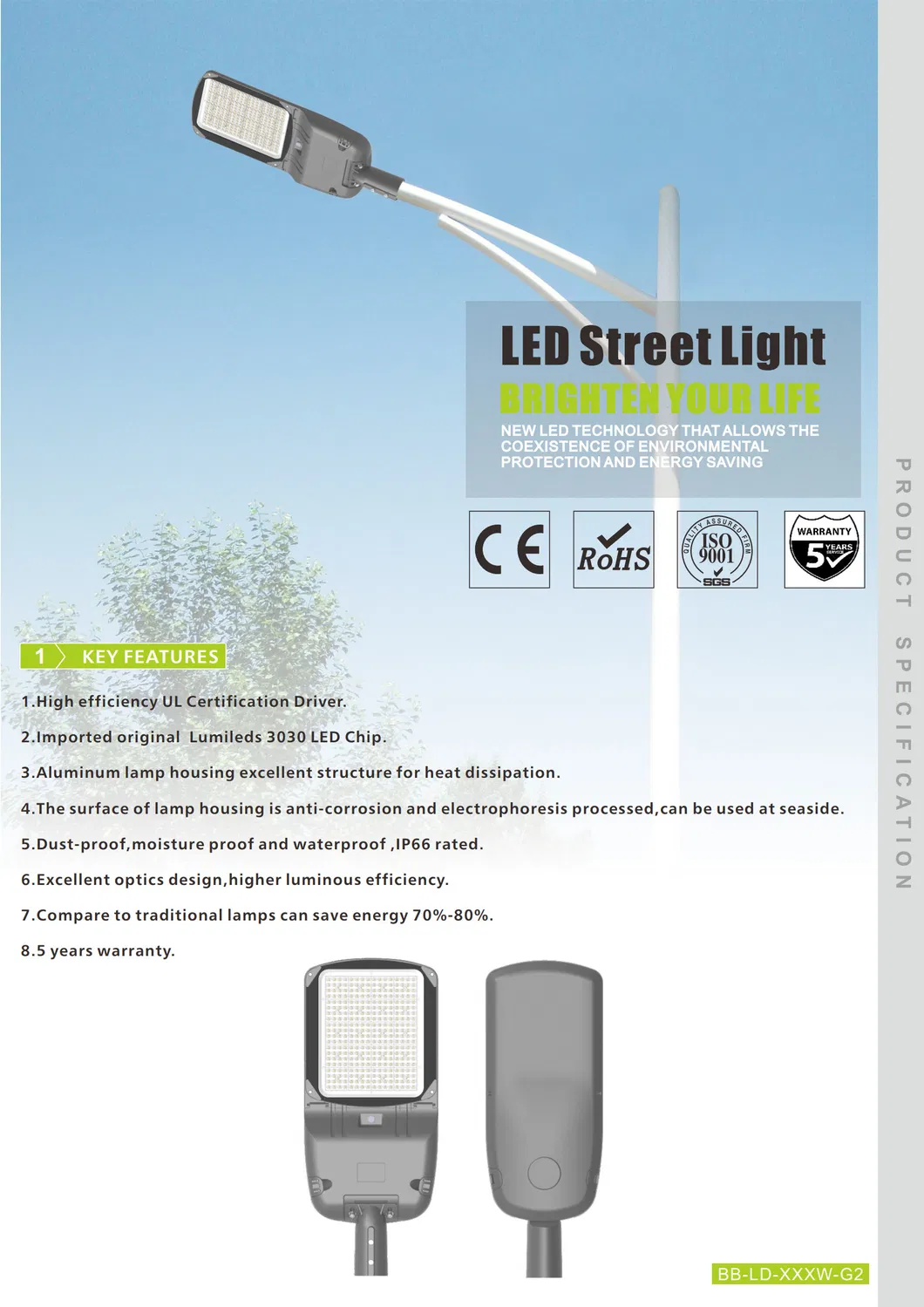

Smart All-In-One Solar LED Street Light for Smart Cities

The intelligent street lighting systems offer significant advantages for modern urban infrastructure:

Energy-saving and efficient: Uses advanced LED light sources, saving more than 50% energy compared to traditional lighting.
Intelligent control: Internet connectivity allows remote control of brightness, color, and scheduling for optimal energy management.
Long lifespan: High-quality LED sources last 5-10 years, reducing replacement costs and maintenance frequency.
Environmentally friendly: Contains no mercury, low radiation, and low heat emission.
Data collection: Integrated sensors can monitor environmental data such as temperature, humidity, and traffic flow.

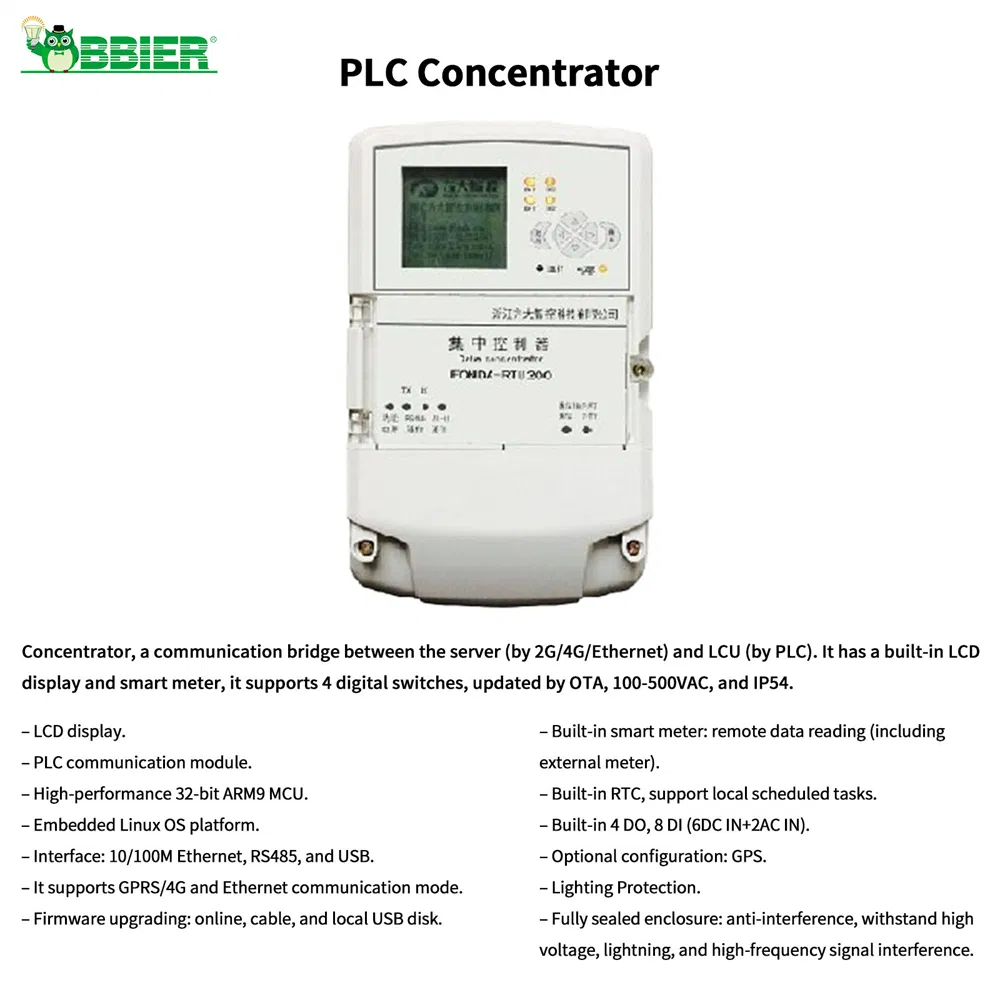

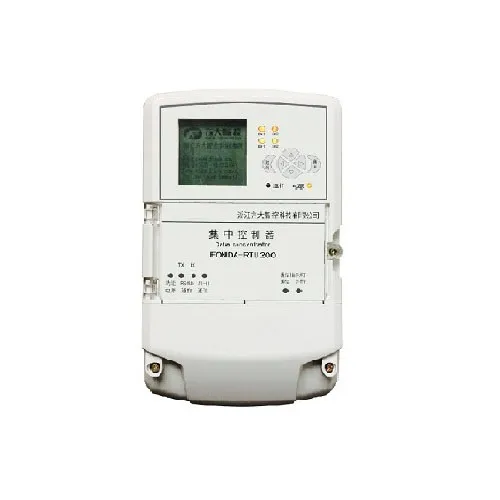

System Concentrator Features

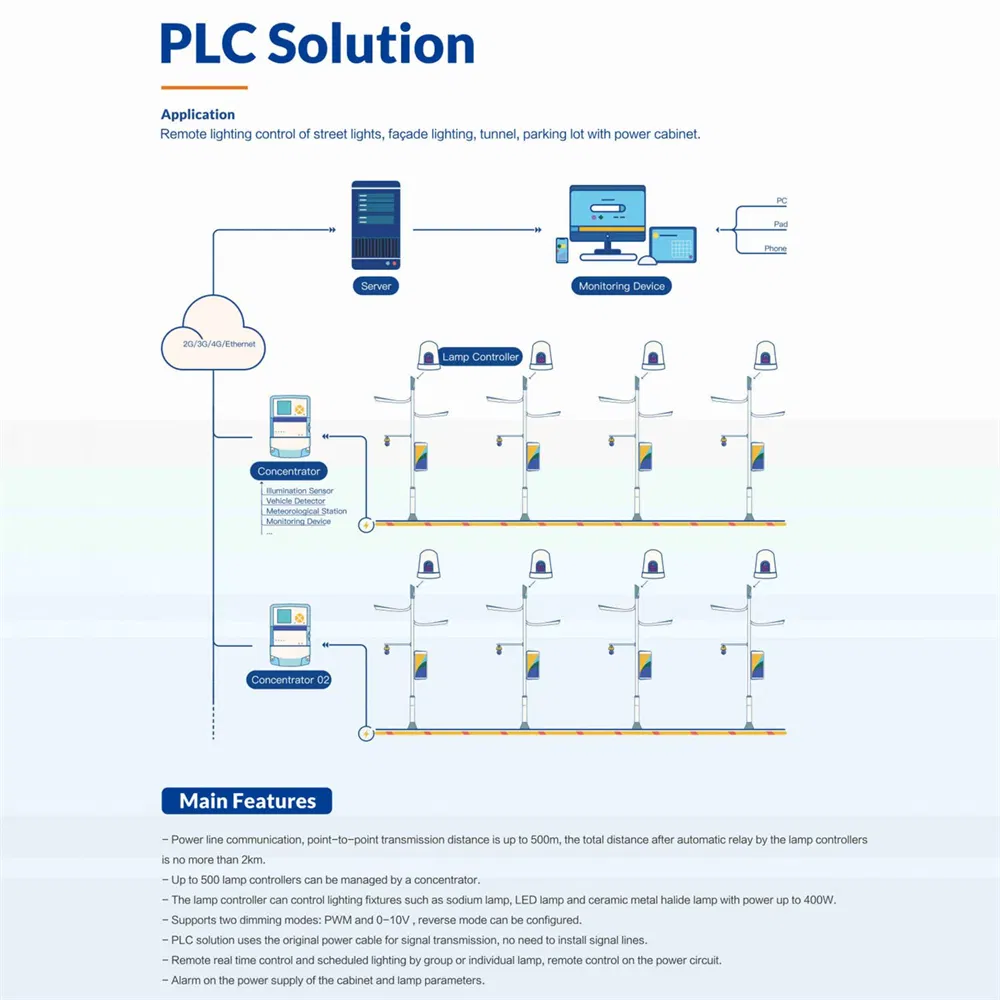

The concentrator acts as a communication bridge between the server (via 2G/4G/Ethernet) and LCUs (via PLC).

Built-in LCD display and smart meter for remote data reading.
High-performance 32-bit ARM9 MCU with Embedded Linux OS.
Multiple interfaces: 10/100M Ethernet, RS485, and USB.
Fully sealed IP54 enclosure with lightning and interference protection.

📸

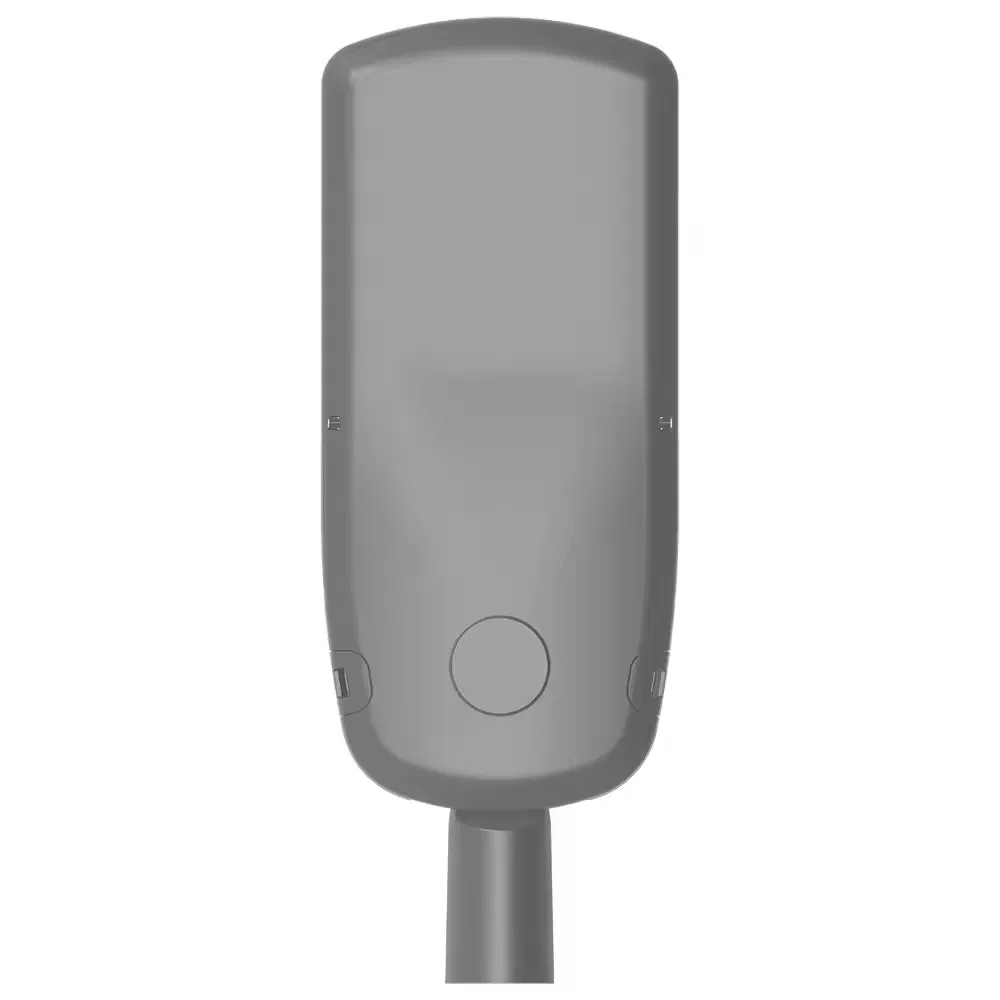

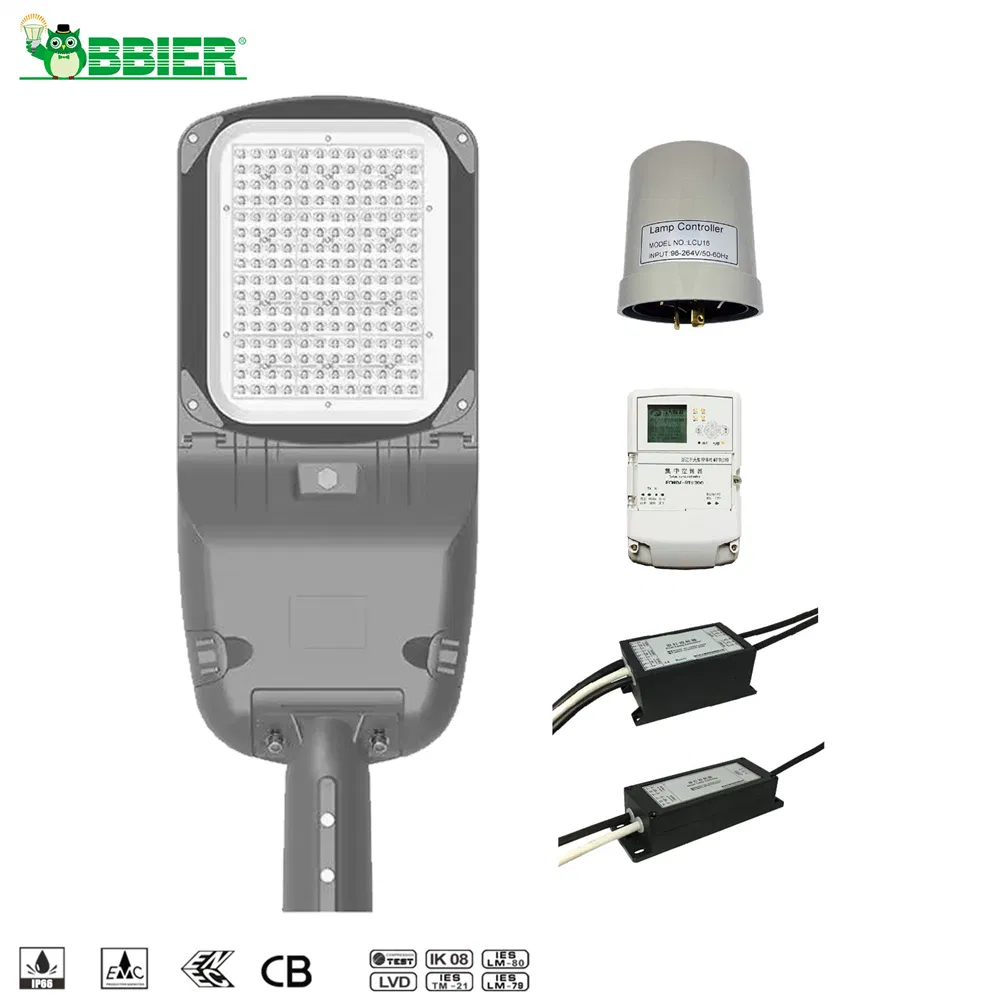

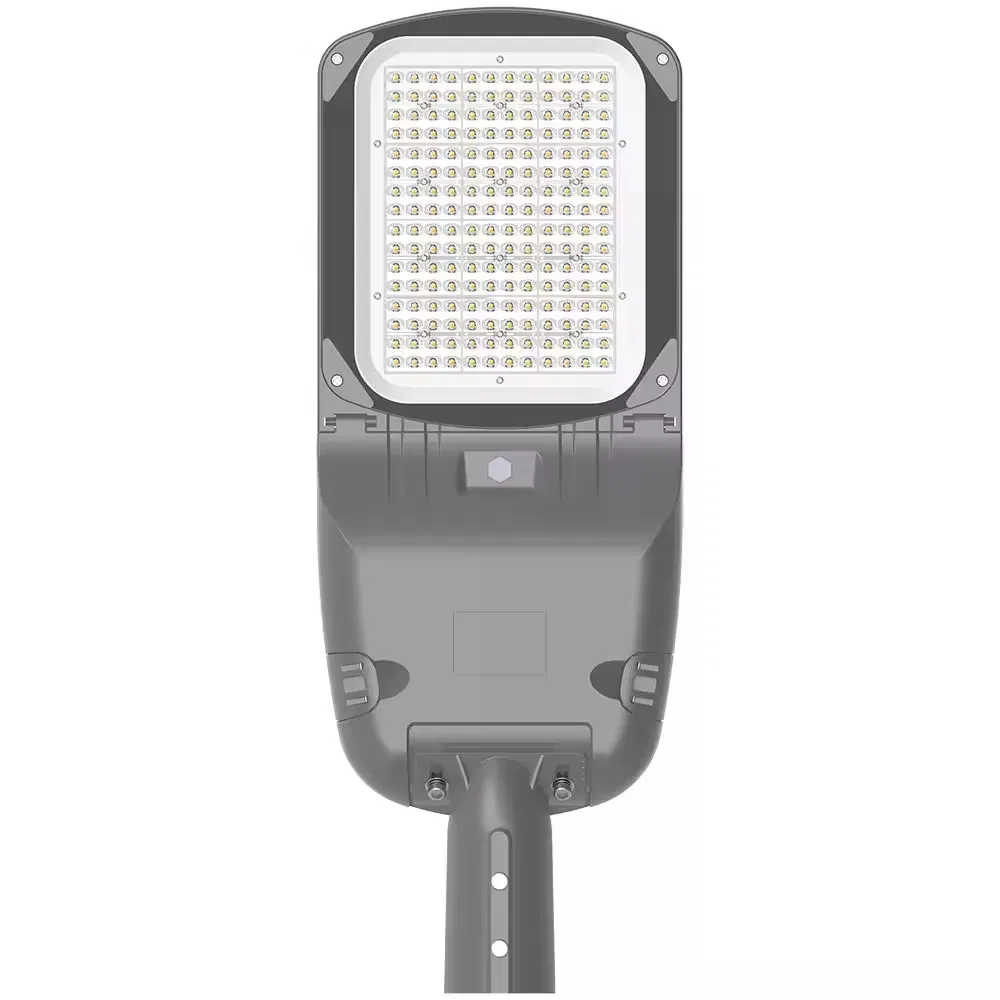

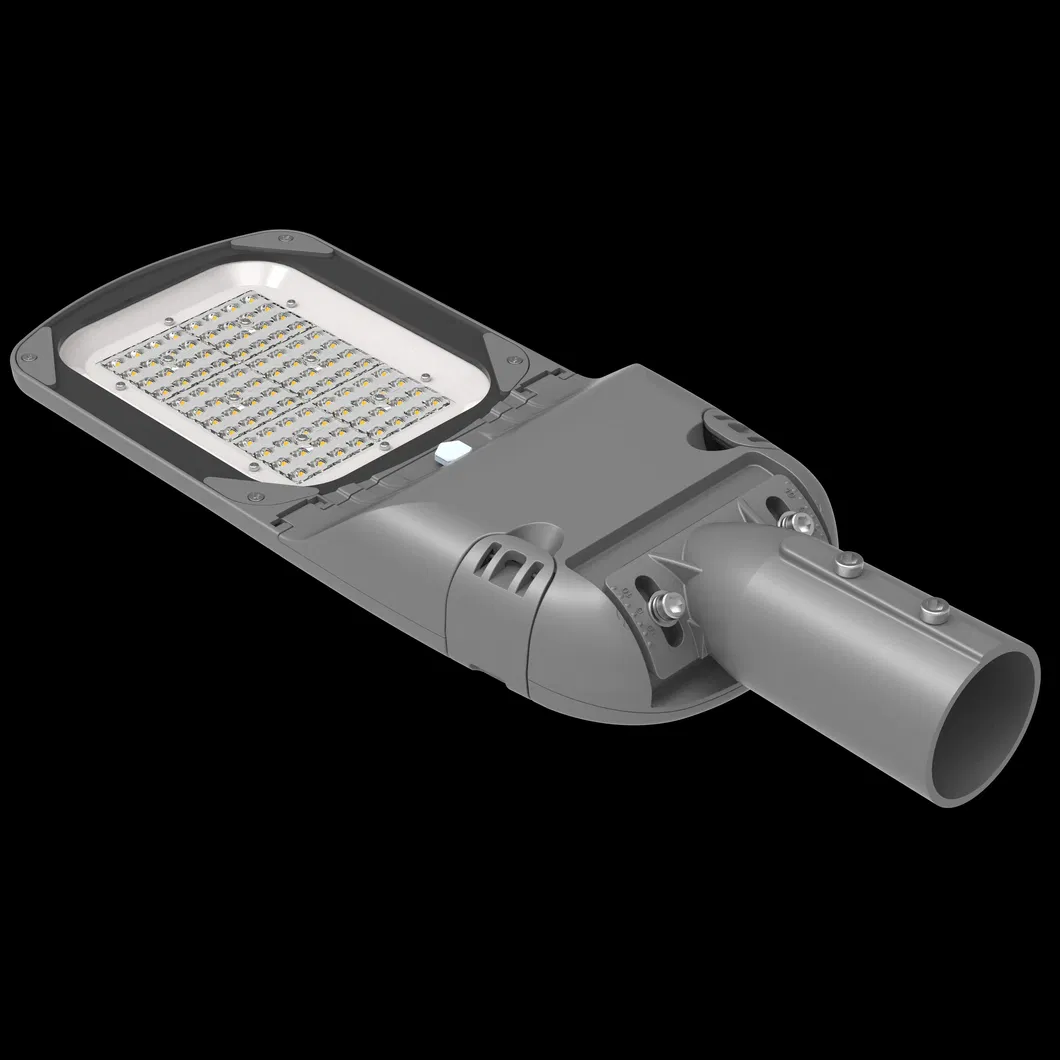

Detailed Photos

📊

Product Parameters

Product Name	Smart Lighting Street Light Centralized Controller
Light Source	SMD LED
IP Rating	IP54 (Controller) / IP65 (Lamp)
CRI	>80
Dimming Interface	0-10V / DALI / PWM
Remote Monitoring	Current, Power, Power Factor, Energy Consumed
Sensor Options	GPS, Tilt Detection, Microwave Sensor
Warranty	Up to 5 Years

📜

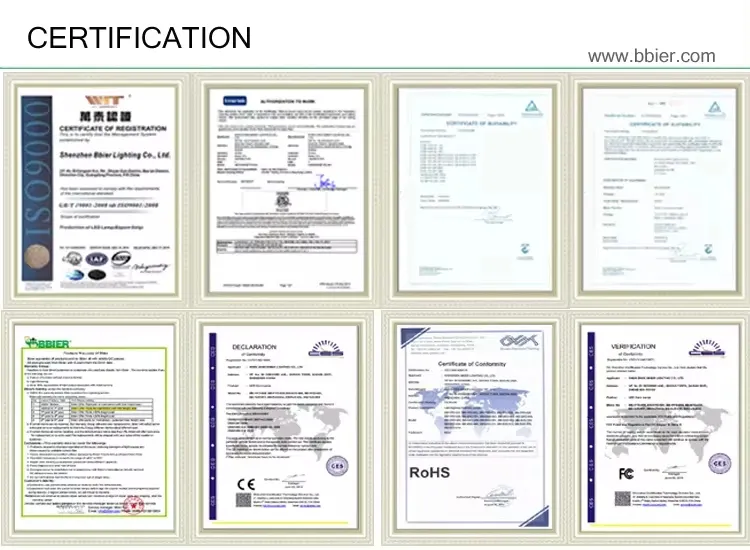

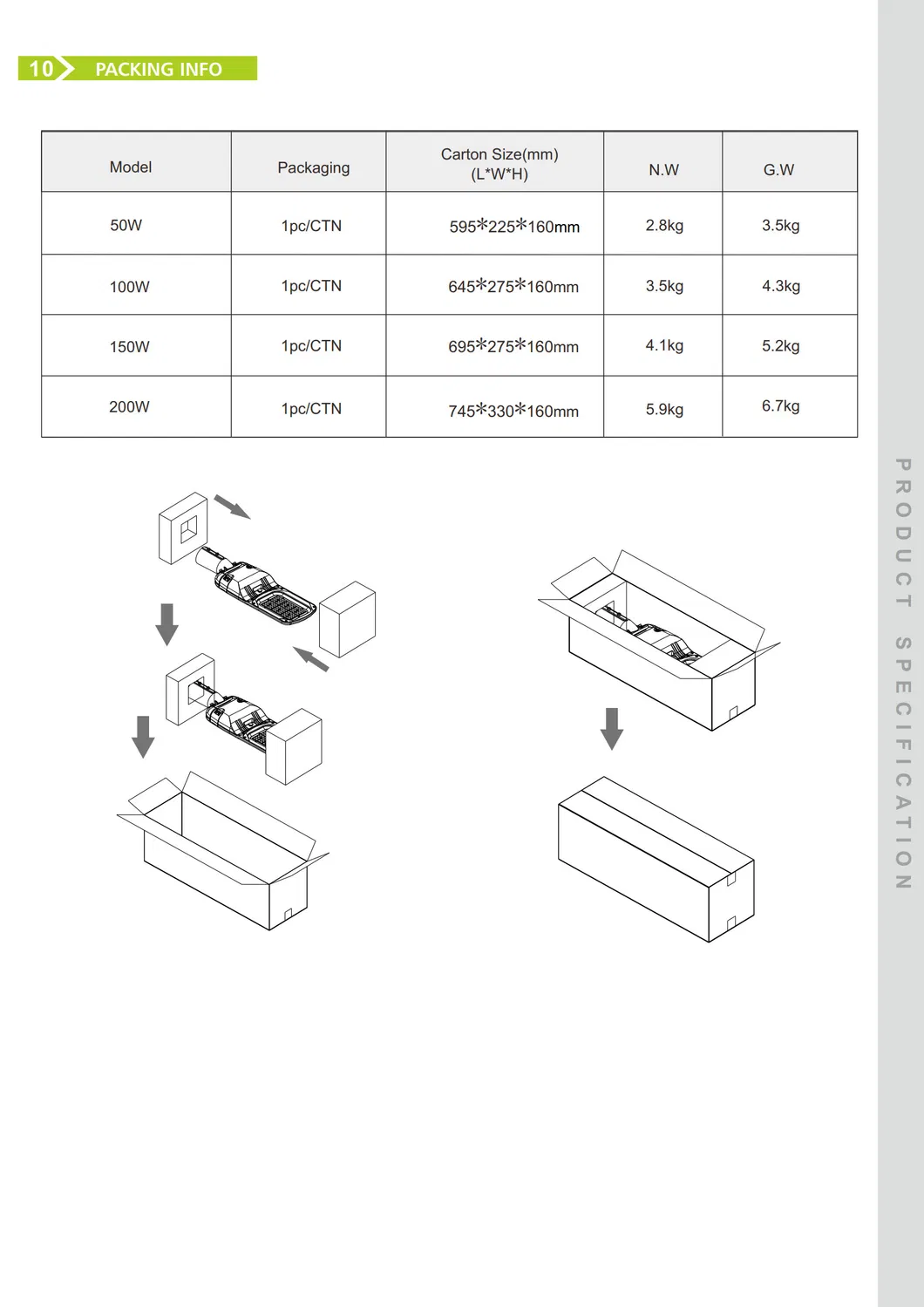

Certifications & Shipping

🔧

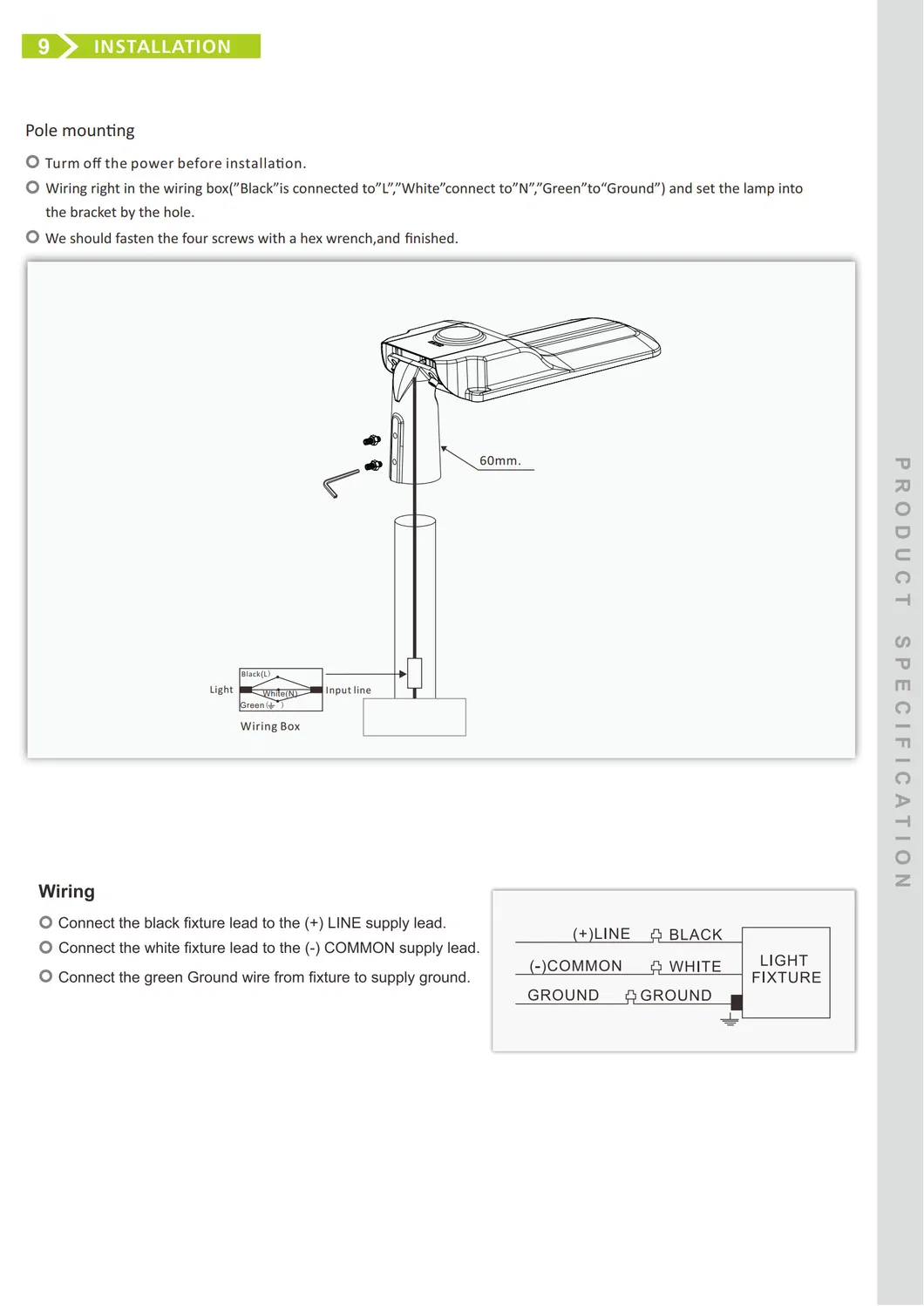

Installation Instructions

❓

Frequently Asked Questions

What are the primary benefits of using smart solar street lights?

Smart solar street lights offer significant energy savings (over 50%), remote management of lighting schedules, real-time data monitoring, and a long operational lifespan with minimal maintenance.

How is the lighting controlled remotely?

The system uses a centralized controller (Concentrator) that communicates via 2G, 4G, or Ethernet to a server. This allows users to adjust brightness, timing, and monitor electrical parameters from a remote location.

What is the expected lifespan and warranty for this product?

The LED light source has a working life of approximately 50,000 hours. We provide a comprehensive 5-year warranty for the lamp to ensure long-term reliability.

Are the lights resistant to harsh weather conditions?

Yes, the lamps are rated IP65, making them dust-tight and protected against water jets. The aluminum body provides excellent heat dissipation and durability in temperatures ranging from -40℃ to 40℃.

Can these lights monitor environmental data?

Absolutely. The intelligent system can be equipped with sensors to collect data on temperature, humidity, air quality, and traffic flow, which is valuable for smart city management.

What dimming options are available?

The system supports multiple dimming interfaces including 0-10V, DALI, and PWM, allowing for precise control of light intensity based on specific needs or sensor triggers.
