Home > LED Panel Lights > UL/Dlc Approved 100/130lpw 30W/40W/50W/60W/72W 2X2/1X4/2 X 4 LED Panel Light for Na Market

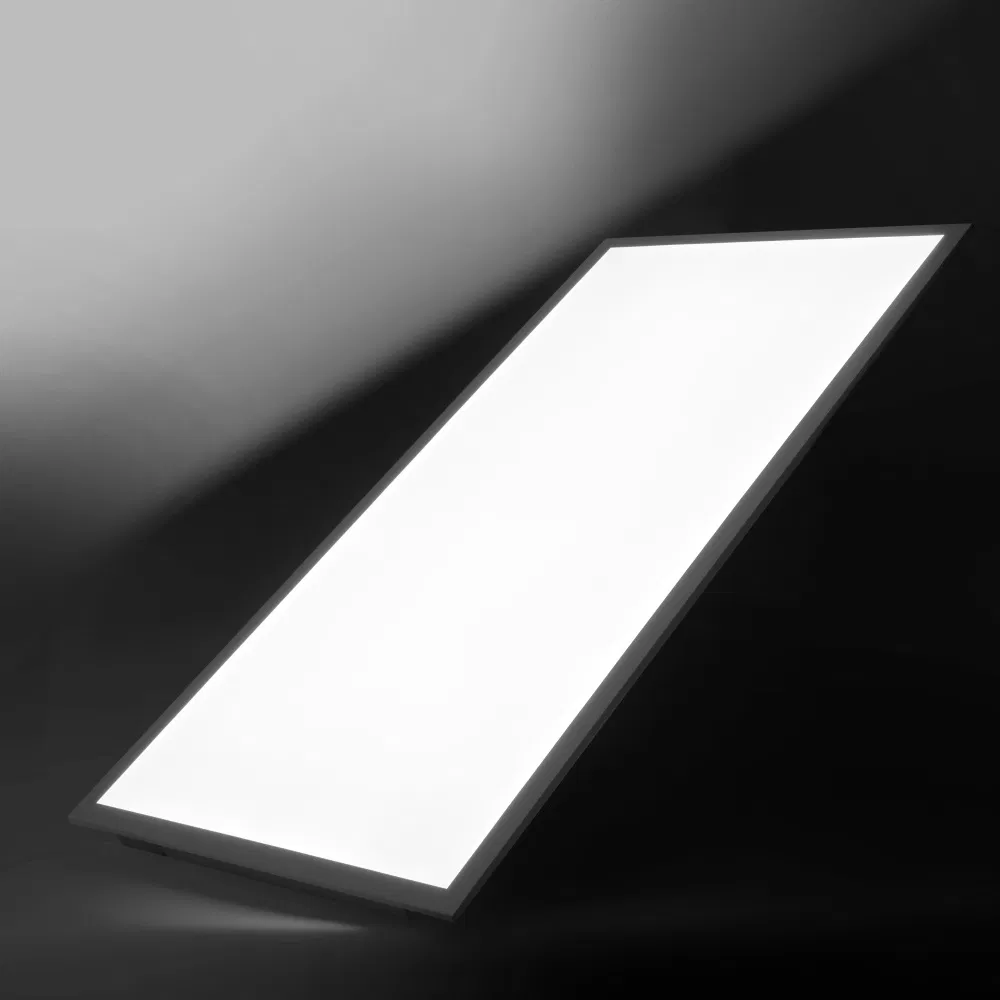

UL/Dlc Approved 100/130lpw 30W/40W/50W/60W/72W 2X2/1X4/2 X 4 LED Panel Light for Na Market
UL/Dlc Approved 100/130lpw 30W/40W/50W/60W/72W 2X2/1X4/2 X 4 LED Panel Light for Na Market
UL/Dlc Approved 100/130lpw 30W/40W/50W/60W/72W 2X2/1X4/2 X 4 LED Panel Light for Na Market
UL/Dlc Approved 100/130lpw 30W/40W/50W/60W/72W 2X2/1X4/2 X 4 LED Panel Light for Na Market
UL/Dlc Approved 100/130lpw 30W/40W/50W/60W/72W 2X2/1X4/2 X 4 LED Panel Light for Na Market
1 / 5
UL/Dlc Approved 100/130lpw 30W/40W/50W/60W/72W 2X2/1X4/2 X 4 LED Panel Light for Na Market
UL/Dlc Approved 100/130lpw 30W/40W/50W/60W/72W 2X2/1X4/2 X 4 LED Panel Light for Na Market
UL/Dlc Approved 100/130lpw 30W/40W/50W/60W/72W 2X2/1X4/2 X 4 LED Panel Light for Na Market
UL/Dlc Approved 100/130lpw 30W/40W/50W/60W/72W 2X2/1X4/2 X 4 LED Panel Light for Na Market
UL/Dlc Approved 100/130lpw 30W/40W/50W/60W/72W 2X2/1X4/2 X 4 LED Panel Light for Na Market

UL/Dlc Approved 100/130lpw 30W/40W/50W/60W/72W 2X2/1X4/2 X 4 LED Panel Light for Na Market

Customization: Available
Light Source: LED
Housing Material: Acrylic, Aluminium
Send Inquiry

Product Description

Basic Specifications
Model NO.
us-P22f40Wx
Emitting Color
White
Dimmable
With Dimmable
Appearance
Square
Type
Ceiling
Base Material
Plastic
Certification
CE, RoHS, SAA
Voltage
120V
Beam Angle
120°
LED Type
SMD 2835
Luminous Flux
125lm/W
Working Voltage
100-277V
Color Temperature
3000K - 6000K
IP Rating
IP40
Specification
1X1ft/2X2ft/1X4ft/2X4ft
Product Description

UL/DLC Approved High Efficiency LED Panel Light

  • Perfect world-class LED technology for superior brightness
  • Ideal for commercial and residential ceiling fixtures
  • Reinforced frame for extra durability and scratch resistance
  • Quick connect system operating from 100V to 277V
  • Perfect light uniformity with no visible hot spots
  • Energy-efficient design: lasts 5 times longer than fluorescent panels
LED Panel Light

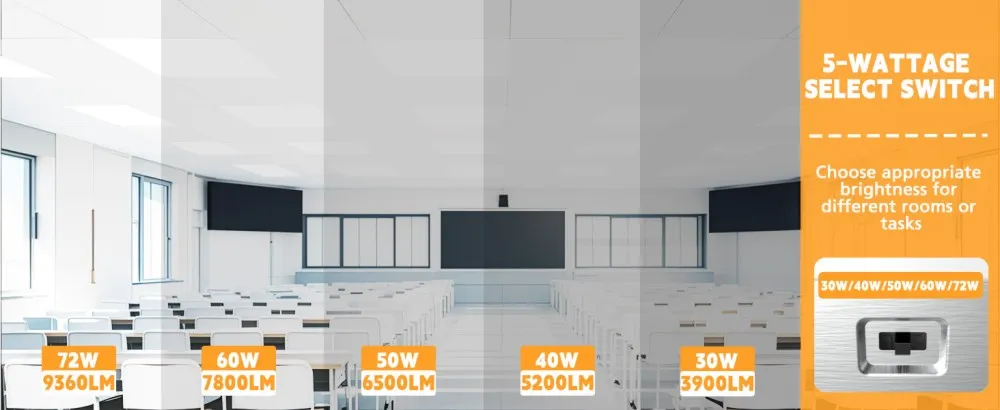

LED Technology

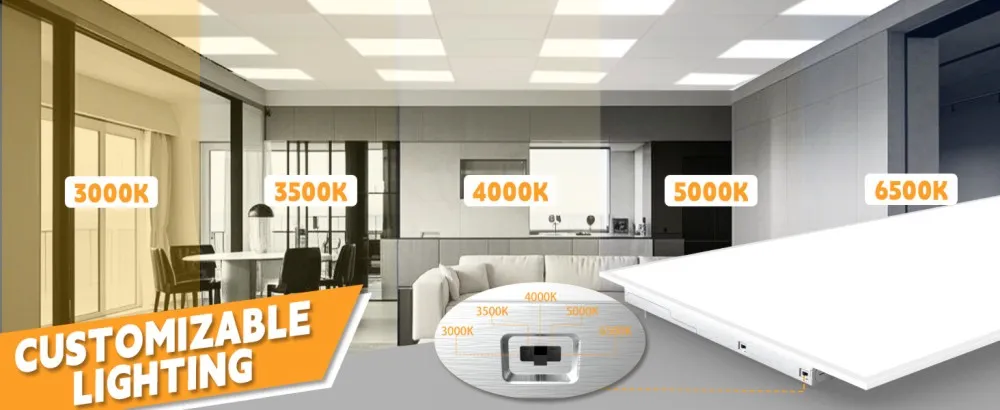

Installation View
Technical Specifications
Light source2835, LM80
High efficiency130lm/w
ParametersCRI(Ra)>83, PF>0.95, THD<15%, UGR<19
Working VoltageAC100~277V / 347V
Power Options20w to 72w
Size (mm)603X603 / 303X1213 / 603X1213mm
MaterialAL+PMMA Diffuser
CertificationUL, cUL, DLC5.2, TUV, GS, CB, SAA, FCC, CE, RoHS
Warranty5 years

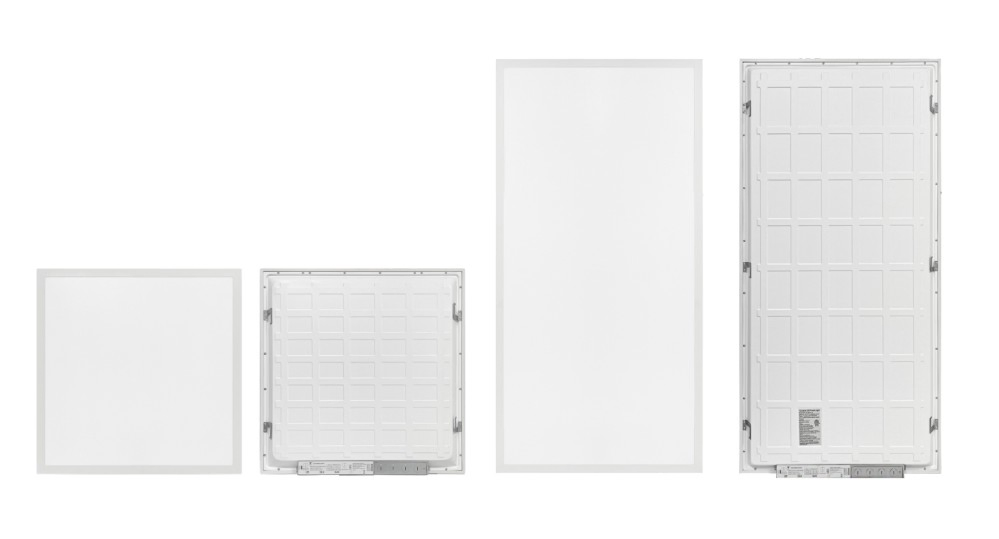

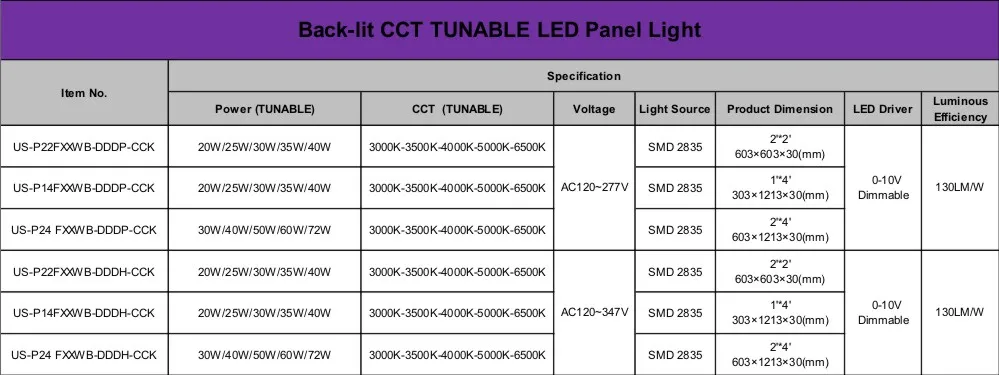

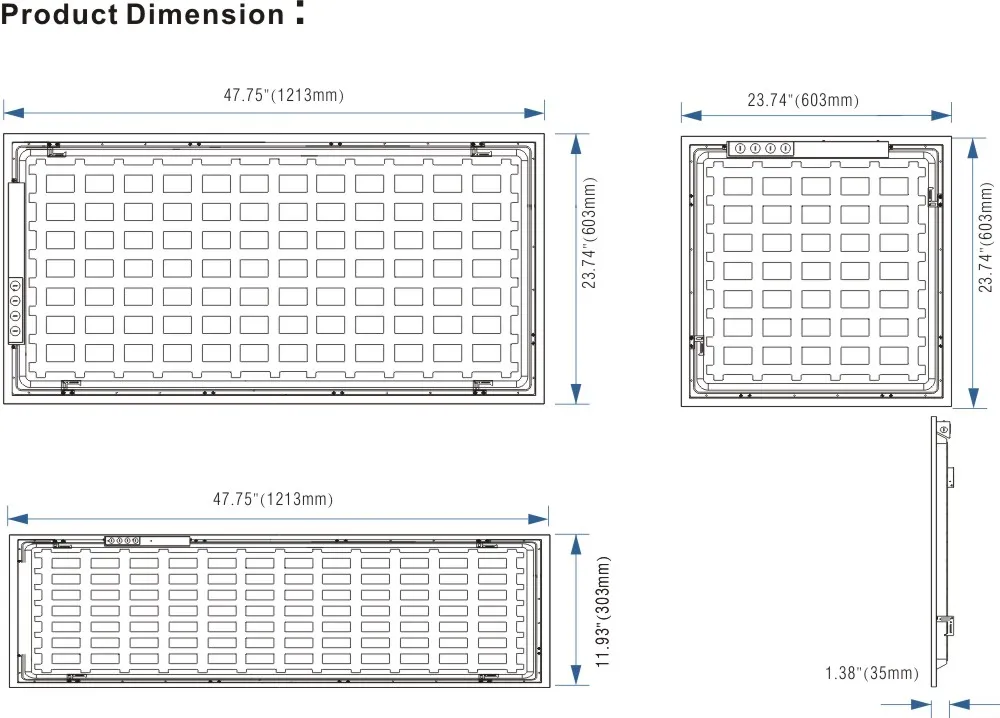

Panel Dimensions

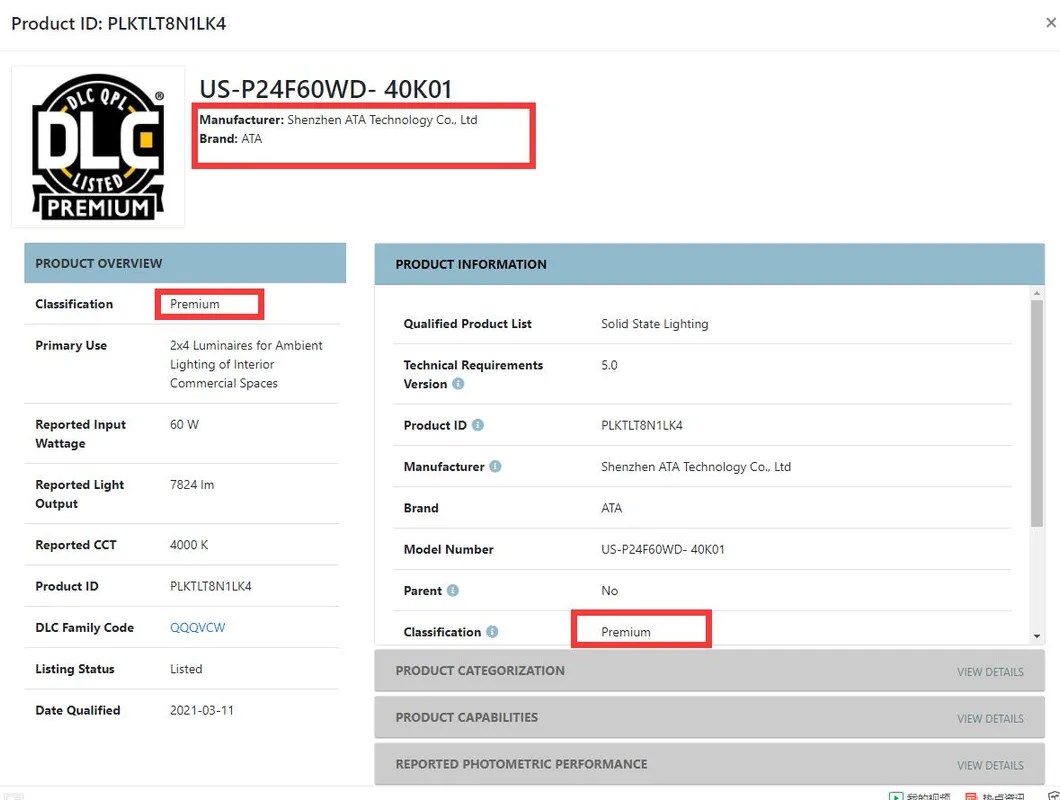

Light Quality

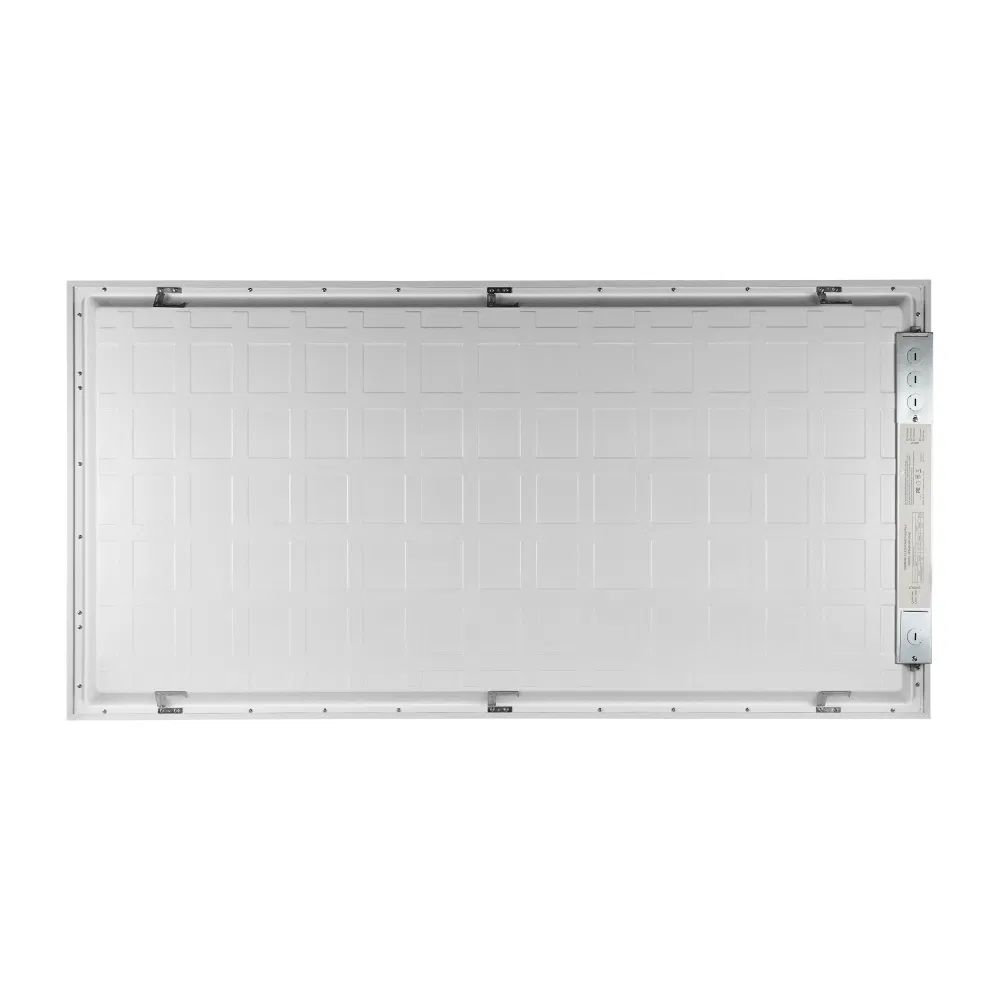

Back Lighting

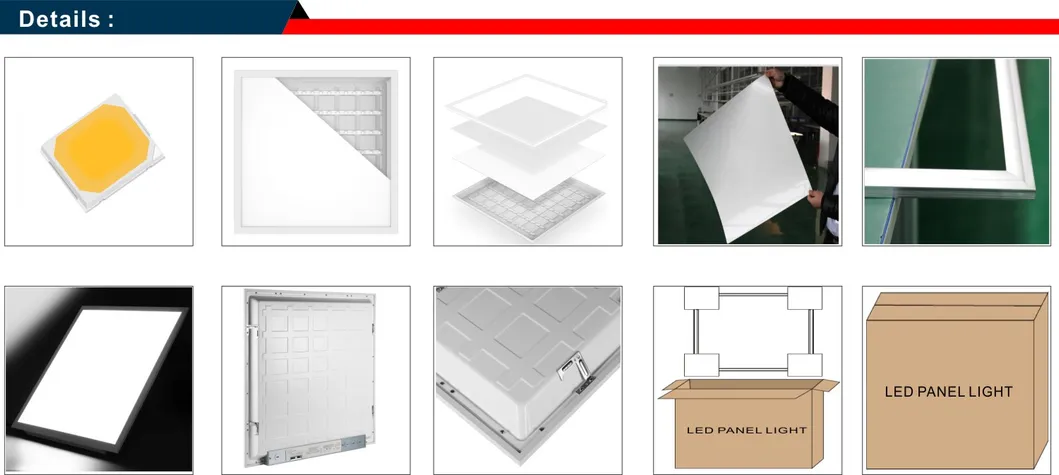

Product Detail Mounting Options
Installation & Applications

Mounting Methods:

  • Embedded (without accessories)
  • Suspending (with wire rope)
  • Surface mounting (with frame)
  • Earthquake proof (with hook)

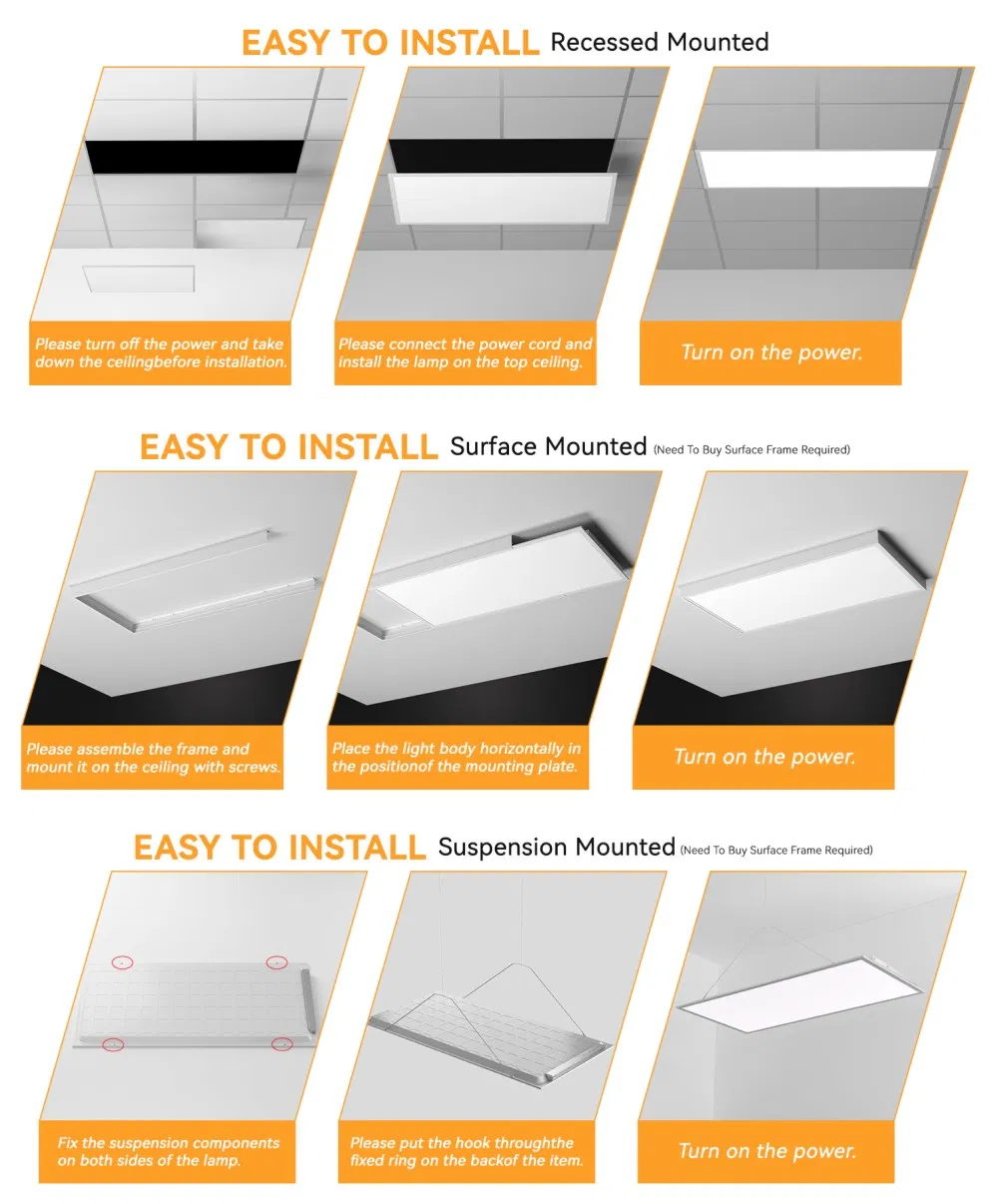

Installation Guide

Ideal For: Hotels, restaurants, high-end offices, meeting rooms, schools, hospitals, supermarkets, and industrial lighting environments where energy saving is critical.

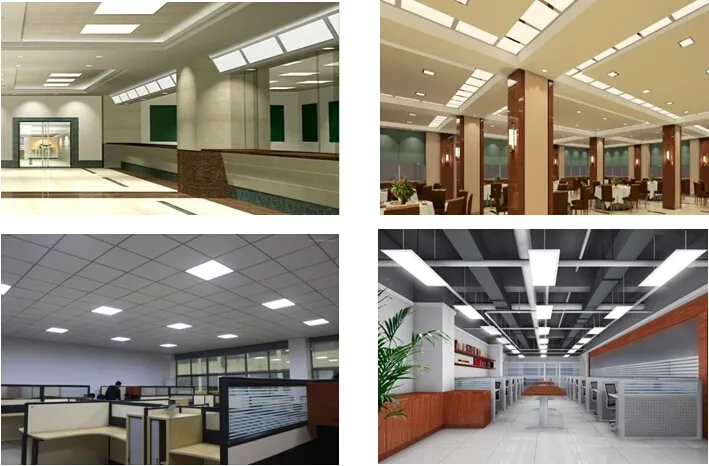

Application Scenario
Quality Control & Safety
Stability TEST: 100% aging test for at least 48 hours.
Lighting TEST: 100% functionality check before packing.
Drop TEST: Ensuring protection during transit.
Frequently Asked Questions (FAQ)
1. What certifications do these LED panel lights carry? Our panels are fully certified with UL, cUL, DLC 5.2, TUV, GS, CB, SAA, FCC, CE, and RoHS, making them suitable for global markets.
2. Can the brightness of the light be adjusted? Yes, these units support 0-10V dimmable functions and PWM modes for precise light control.
3. What are the available installation methods? The panels offer versatile installation options including embedded, suspending, roof mount, and latch catches.
4. What is the luminous efficiency of these panels? These LED panels provide high efficiency ranging from 125lm/W to 130lm/W, helping in qualifying for energy rebates.
5. What sizes are currently available? Standard sizes include 1x1ft, 2x2ft, 1x4ft, and 2x4ft (equivalent to 603x603mm, 303x1213mm, and 603x1213mm).
6. What is the warranty period for this product? We provide a comprehensive 5-year warranty to ensure long-term stability and customer satisfaction.
