| Model NO. | WHC150KW Li-229KWH Solar Power System | Nominal Voltage | 384V |
| Discharge Rate | High Discharge Rate | Shape | Square Battery |
| Electrolyte | Li-ion | Installation | Packaged |
| Product Name | Offgrid Solar Power System Home | System Type | off-Grid Solar Power System |
| Solar Panel Type | Half Cell Solar Panel | Battery Type | LiFePO4 Lithium Battery |
| Inverter | Pure Sine Wave Inverter | Controller | MPPT Solar Charge Controller |
| Mounting Support | Pitched / Flat Roof / Ground | Capacity | 10000pieces/Month |
Package Size: 113.80cm * 79.50cm * 172.50cm
Package Gross Weight: 1320.000kg
Package Detail: Package in Carton or According to Your Requirement

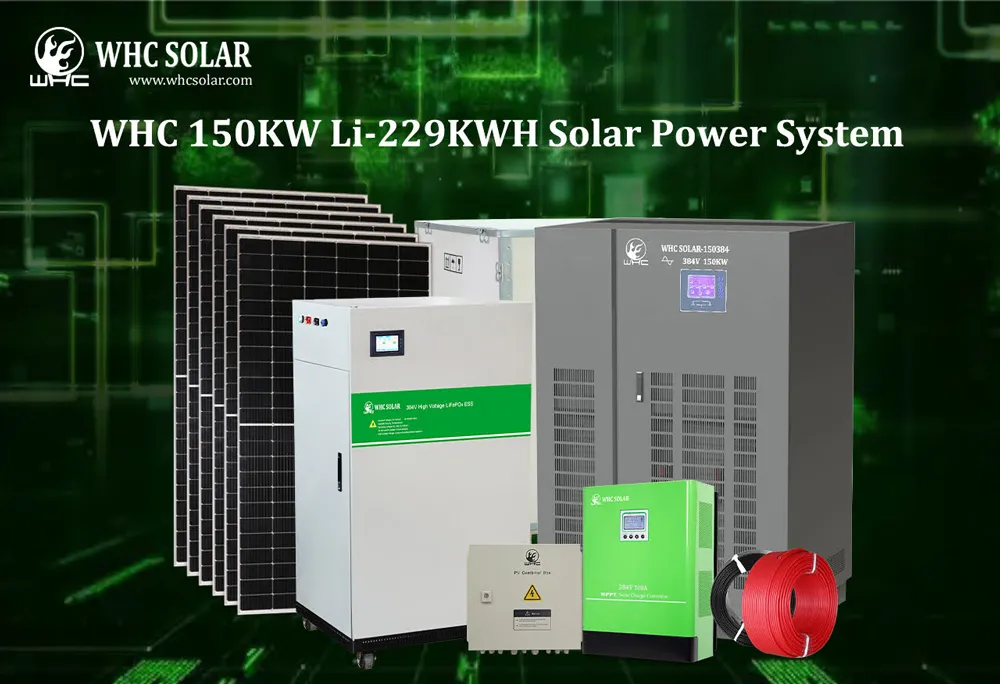

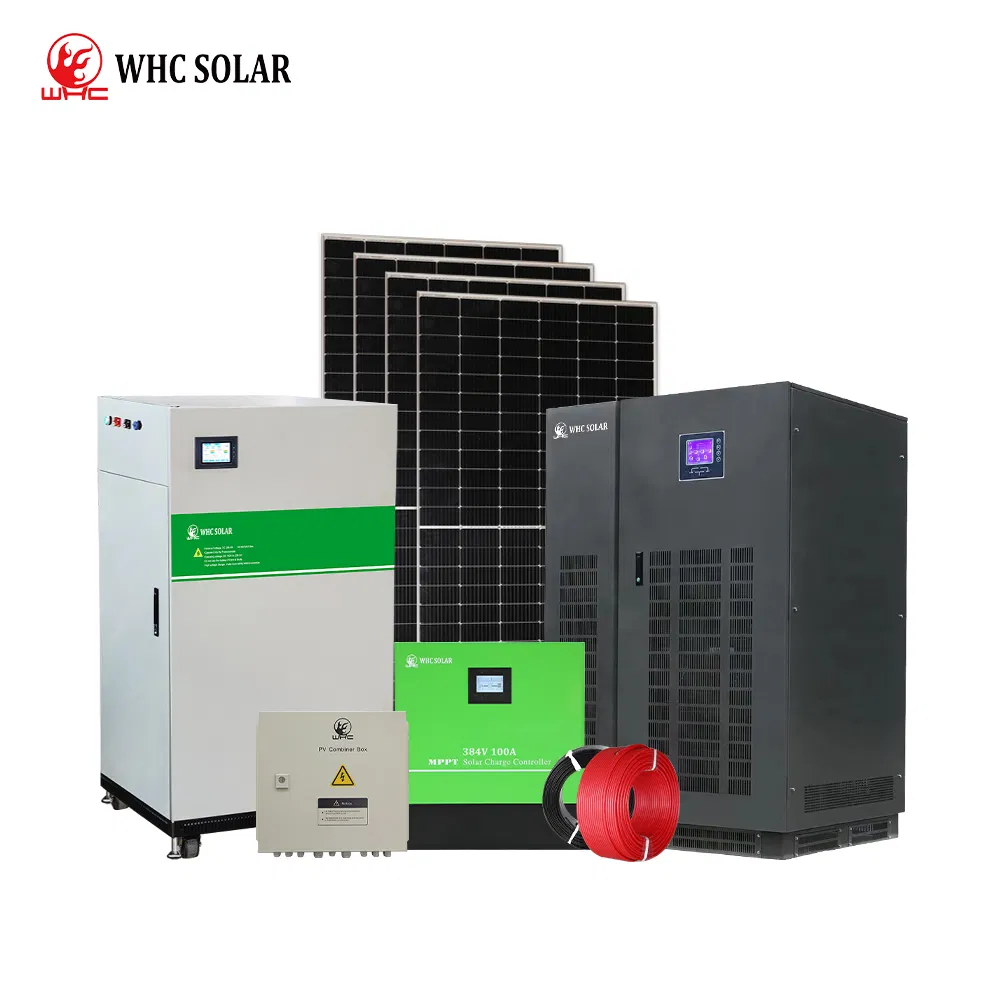

This off-grid solar system is a complete, cost-effective setup featuring highly efficient solar panels, an off-grid solar inverter, Grade A+ lithium iron phosphate (LiFePO4) batteries, and essential solar accessories. It provides continuous electricity while significantly reducing electricity bills.
| Item | Description | Quantity |
|---|---|---|
| Solar Lithium Battery | 192V100AH LiFePO4 Lithium Battery | 2 Pieces |
| Solar Panel | 450W Solar Mono Panel | 450W Solar Mono Panel |
| Solar Controller | 192V 50A MPPT Controller | 2 Pieces |
| Solar Inverter | 192V 20KW Solar Inveter | 1 Pieces |
| PV Combiner Box | Six Input + Two Output | 2 Pieces |

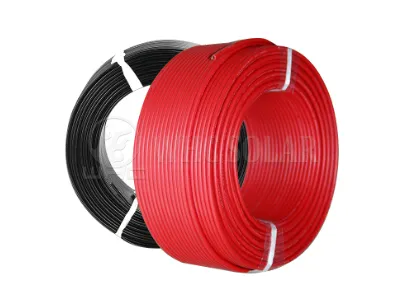

| PV Cable | Single-core 6mm2 PV cable 100m | 4 Pieces |

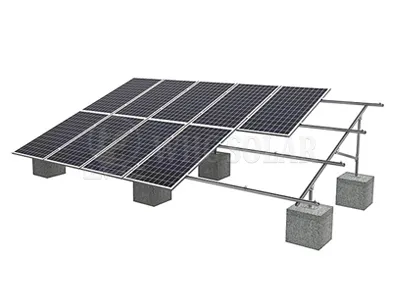

| PV Mounting Support | Hot Galvanizing Ground Mounting Support | 1 Set |
| Connector | MC4 Connector | 30 Pieces |
1. Model: WHC-450M-120
2. Max Power Voltage: 34.67V
3. Max Power Current: 12.98A
4. Open Circuit Voltage: 41.25V
5. Short Circuit Current: 13.89A
6. Dimensions: 1909*1134*35mm

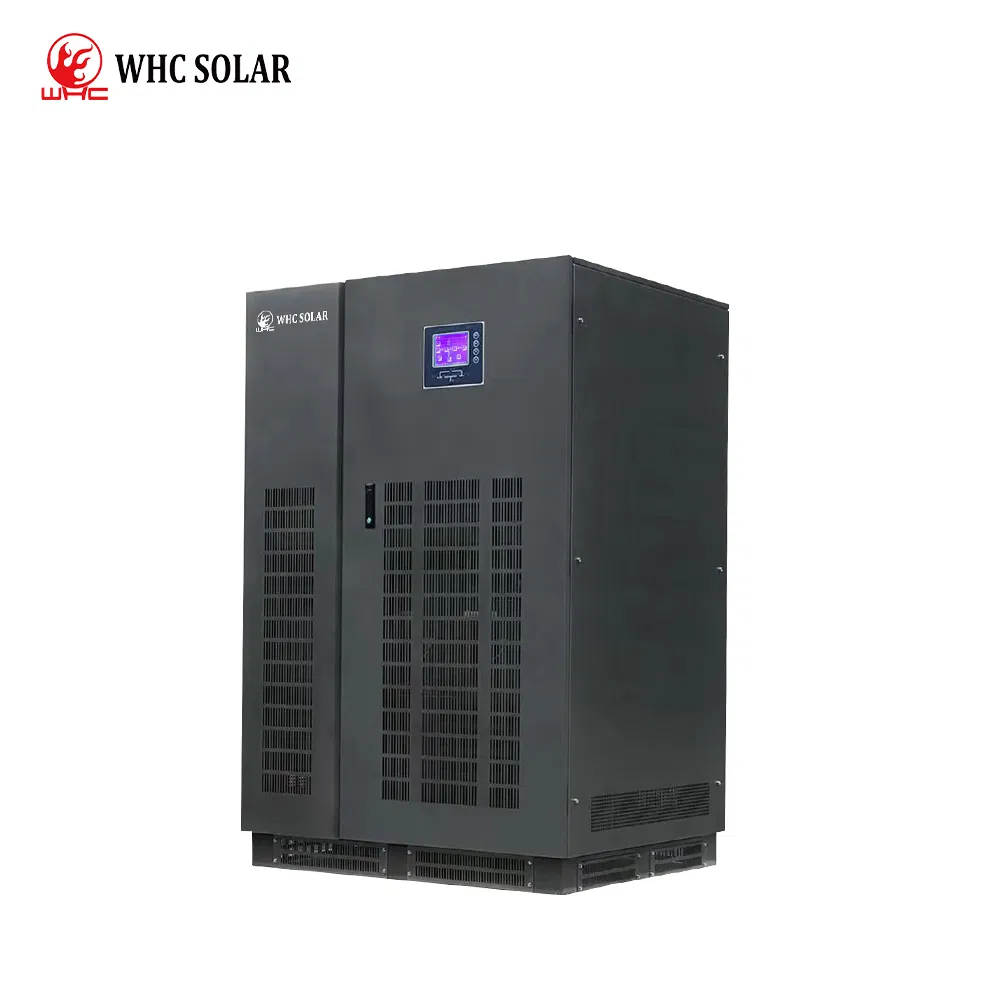

1. Type: Low Frequency IGBT
2. Pure Sine Wave Inverter with Big Transformer
3. DC Input Voltage: 384V
4. AC Input Voltage: 380V/220V
5. AC Output Voltage: 380V/220V
6. Frequency: 50/60HZ

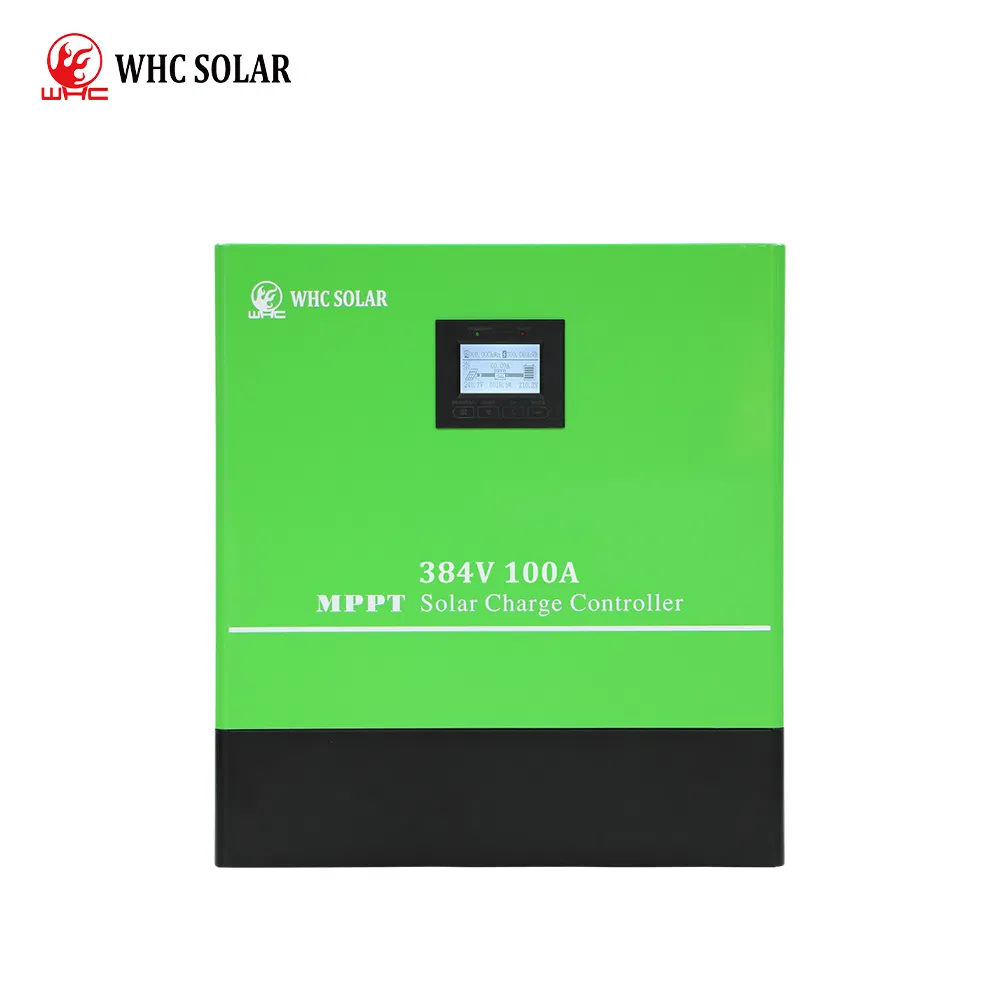

1. Model: WHC384V100A
2. Type: Heatsink Cooling
3. Max. Charging Current: 100A
4. Max. PV Open Circuit Voltage: 800V
5. DC Input Voltage: 384V
6. MPPT Efficiency: 98%

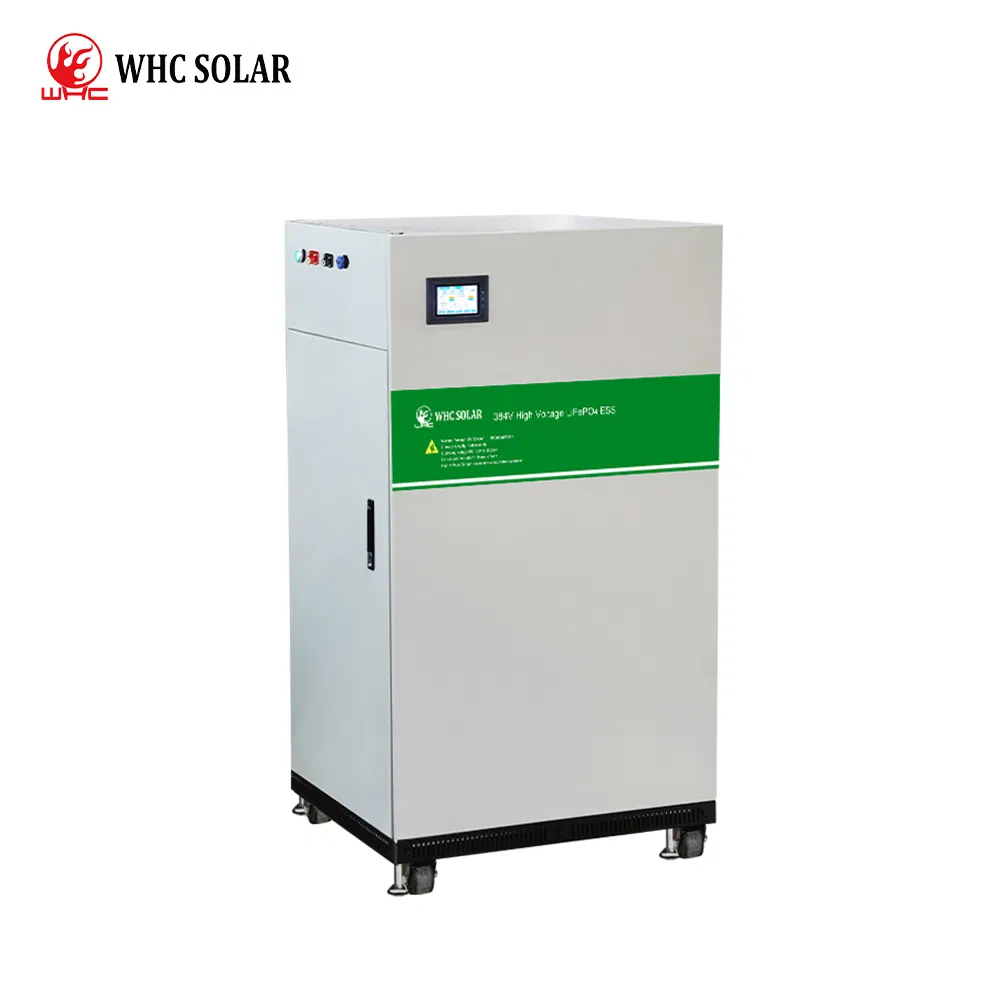

1. Model: WHC384V280Ah
2. Nominal Voltage: 409.6V
3. Capacity: 114688Wh
4. Max Charging Voltage: 467.2V
5. Lifespan: 10 Years
6. BMS Max Discharging Current: 200A
